Oilless Guiding Bush With Collar Self Lubricating
| Place of Origin | Bushing Manufacturer |
|---|---|
| Brand Name | REPLACEMENT PLAIN BEARINGS |
| Certification | ISO9001:2008 CuSn8, CuSn6.5, Brass |
| Model Number | JFB SL2 Graphite Plugged Flanged Bronze Bushing |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | Export Cartons,Customizable,Wooden Cases |
| Delivery Time | 15~20 work days |
| Payment Terms | TT IN ADVANCE,L/C,Western Union |
| Supply Ability | STANDARD TOLERANCE BUSHINGS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | CuZn25Al6Fe3Mn3 +SL2 | Model Number | Flange Bearings, Oilless Bearings With Flange |
|---|---|---|---|
| Feature | Self-lubrication Bearings, Extreme Temperatures | Lubrication | Graphite,Self Lubricating Bushes, Maintenance Free |
| Application | Hardware And Steel Fabrication, Stamping Dies, Tooling Components For The Automotive Industry, Sheet Pressing Etc. | Type | Sliding, Sleeve,Flanged,Washers,Plates,Strips,Customized |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | Guiding Bush With Collar,CuZn25Al6Fe3Mn3 Guiding Bush,Self Lubricating Guiding Bush |
||
Product Description

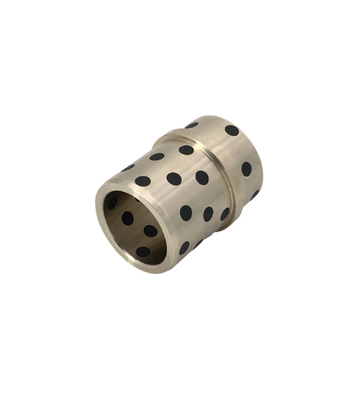

GUIDING BUSH WITH COLLAR SELF-LUBRICATING
The oilless guiding bush with collar, featuring self-lubricating properties, is a highly efficient and maintenance-friendly component designed for various industrial applications. The absence of the need for oil lubrication significantly reduces operational costs and maintenance requirements, making it an ideal choice for demanding environments. The collar reinforcement enhances the bush's structural integrity and durability, ensuring stable and reliable performance even under high loads. The self-lubricating material ensures smooth operation and reduced friction, contributing to overall efficiency and longevity.
Graphite Copper Sleeve Bearing Bushing Round Flange Guide Bush
Self-lubricating bushing - Long-term Wear Resistance
GUIDINGS AND SLIDINGS
Choose from our selection of self-lubricating bushings, including oil-embedded sleeve bearings, dry-running sleeve bearings, and more.
Quality, Well-made GUIDING Bush Bearings and Bushings. View Our Products. Get A Quote Today. 100% Quality Guaranteed. Worldwide On-time Shipping. View Our Products. Contact Us Today.
MATERIAL: Bronze Graphite
USE: Guide bush with collar (for centering between two plates), bronze with non-liquid lubricant; the material for self-lubricating reduces maintenance requirements.

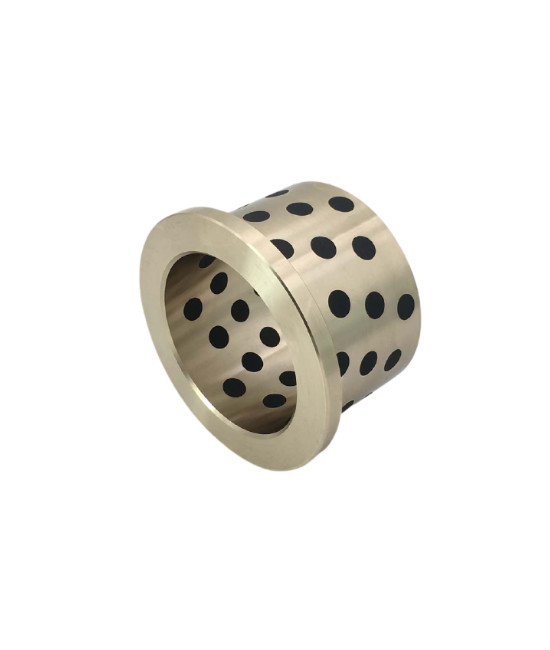

Bronze Sleeve Bushing, Flange Size JFB SL2 Graphite Plugged Flanged Bronze Bushing
GUIDING Bush Graphite Plugged Flanged bronze bushing
Guide Bushes DIN 9834 / ISO 9448, Bronze, Maintenance-Free With Collar Standard SO#50SP2
Solid Bronze Bearing is manufactured using high tensile manganese bronze plugged with solid lubricants. Basic bronze alloy material is CuZn25Al6Fe3Mn3 with graphite (SL2) plugged, we also provide a widely optional choices from CuSn5Pb5Zn5, CuAl10Fe5Ni5, CuSn12, and other standards materials.
Especially our company has developed the SL4 solid lubricants for water contacting applications like jet, propeller, ship, boatyard, offshore platform, hydraulic turbine, etc.
These products are mainly used in applications of high load & moderate speed. It has the ability to withstand temperature up to 400oC. We also have the capability to develop these bushes and plates as per any specifications of our clients.
| Composition and properties | ||||||||||||||||
| dg | DIN | Material No. delivery form1) |
Designation | ASTM standard | Proportional weights | Physical properties (min.) | ||||||||||
| Standard | Alloy No. |
DIN | ASTM | Density | 0.2% Strain |
Tensile strength |
Strain | Emodulus | Hardness | Application | ||||||
| Symbol | ρ | δy | δT | |||||||||||||
| Unit | % | % | g/cm³ | MPa | MPa | % | MPa | HB | ||||||||
| 01 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | C932 00 | Cu 81 - 85 Sn 6 - 8 Zn 3 - 5 Pb 5 - 7 permissible max. portions Ni 2.0 Sb 0.3 |
Cu 81 - 85 Sn 6.3 - 7.5 Zn 2 - 4 Pb 6 - 8 Ni 1 Sb 0.35 |
8.8 | 120 | 240 | 15 | 106.000 | 65 | Standard material for the most applications international standardized |
||
| 2.1090.03 | CuSn7ZnPb | B 271 | C932 00 | 8.8 | 130 | 270 | 13 | 106.000 | 75 | |||||||
| 2.1090.04 | CuSn7ZnPb | B 505 | C932 00 | 8.8 | 120 | 270 | 16 | 106.000 | 70 | |||||||
| 02 | 1705 | 2.1061.01 | CuSn12Pb | not yet standardized | Cu 84 - 87 Sn 11 - 13 Pb 1 - 2 permissible Ni 0.8 - 1.5 max. portions Ni 2.0 Sb 0.2 P 0.2 |
Cu 85 - 88 Sn 10 - 12 Pb 1 - 1.5 |
8.7 | 140 | 260 | 10 | 112.000 | 80 | Material for high loads and/or corrosion stress attack international only partially standardized |
|||
| 2.1061.03 | CuSn12Pb | not yet standardized | 8.7 | 150 | 280 | 5 | 112.000 | 90 | ||||||||
| 2.1061.04 | CuSn12Pb | B 505 | C925 00 | 8.7 | 140 | 280 | 7 | 112.000 | 85 | |||||||
| 03 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | C955 00 | C u min. 75 Al 8.5 - 11.0 Ni 4.0 - 6.5 Fe 3.5 - 5.5 permissible max. portions Mn 3.3 |
Cu min. 78 Al 10 - 11.5 Ni 3 - 5.5 Fe 3 - 5 Mn max. 3.5 |
7.6 | 270 | 600 | 12 | 122.000 | 140 | Material for extreme loads and/or high corrosive environments international standardized |
||
| 2.0975.02 | CuAl10Ni | B 30 | C955 00 | 7.6 | 300 | 600 | 14 | 122.000 | 150 | |||||||
| 2.0975.03 | CuAl10Ni | B 271 | C955 00 | 7.6 | 300 | 700 | 13 | 122.000 | 160 | |||||||
| 2.0975.04 | CuAl10Ni | B 505 | C955 00 | 7.6 | 300 | 700 | 13 | 122.000 | 160 | |||||||
| 04 | 1709 | 2.0598.01 | CuZn25Al5 | B584 | C863 00 | Cu 60 - 67 Al 3 - 7 Fe 1.5 - 4 Mn 2.5 - 5 Zn rest permissible max. portions Ni max. 3 |
Cu 60 - 66 Al 5 - 7.5 Fe 2 - 4 Mn 2.5 - 5 Zn 22 - 28 Ni max. 1 |
8.2 | 450 | 750 | 8 | 115.000 | 180 | Material for highest loads without corrosive attack. international partially standardized to a large extend |
||
| 2.0598.02 | CuZn25Al5 | B 30 | C863 00 | 8.2 | 480 | 750 | 8 | 115.000 | 180 | |||||||
| 2.0598.03 | CuZn25Al5 | B 271 | C863 00 | 8.2 | 480 | 750 | 5 | 115.000 | 190 | |||||||
| 05 | 1705 | 2.1052.01 | CuSn12 | not yet standardized | Cu 84 - 88 Sn 11 - 13 Pb 1 Ni 2.0 Sb 0.2 P 0.2 |
Cu 85 - 88 Sn 10 - 12 Pb 1 - 1.5 Ni 0.8 - 1.5 |
8.6 | 140 | 260 | 12 | 110.000 | 80 | Material with good wear resis- tance. corrosion and seawater resistant international partially standardized |
|||
| 2.1052.03 | CuSn12 | not yet standardized | 8.6 | 150 | 280 | 8 | 110.000 | 90 | ||||||||
| 2.1052.04 | CuSn12 | not yet standardized | 8.7 | 140 | 280 | 8 | 110.000 | 95 | ||||||||
| 1 ) delivery form: .01 = sand casting. .02 = gravity casting. .03 = centrifugal casting. .04 = continuous casting | ||||||||||||||||
GUIDING Bush Technical Data
| Bronze material |
CuZn25Al6Fe3Mn3 +SL2 |
CuSn5Pb5Zn5 +SL2 |
CuAl10Fe5Ni5 +SL2 |
CuSn12 +SL2 |
|
| Cu% | Rest | 85 | 80 | 88 | |
| Sn% | -- | 5 | -- | 12 | |
| Pb% | -- | 5 | -- | -- | |
| Zn% | 25 | 5 | -- | -- | |
| Al% | 6 | -- | 10 | -- | |
| Ni% | -- | -- | 5 | -- | |
| Fe% | 3 | -- | 5 | -- | |
| Mn% | 3 | -- | -- | -- | |
| Density | 8.2 g/cm3 | 8.8 g/cm3 | 8.5 g/cm3 | 8.8 g/cm3 | |
| Hardness | >HB210 | >HB70 | >HB150 | >HB80 | |
| Max. Load Pressure | 100 N/mm2 | 40 N/mm2 | 50 N/mm2 | 45 N/mm2 | |
| Max. Linear Speed | 0.5 m/s(dry) | 0.4 m/s(dry) | 0.25 m/s(dry) | 0.5 m/s(dry) | |
| Max. PV | 1.65 N/mm2 * m/s | 1.00 N/mm2 * m/s | 1.25 N/mm2 * m/s | 1.20 N/mm2 * m/s | |
| Tensile Strength | >750 N/mm2 | >200 N/mm2 | >500 N/mm2 | >360 N/mm2 | |
| Elongation | >12 % | >15 % | >10 % | >8 % | |
| Temperature Limit | -40 ~ +300 oC | -40 ~ +250 oC | -40 ~ +400 oC | -40 ~ +300 oC |
Products Standard: ISO 4379 (replaces DIN 1850)
Solid Lubricants
| Code | Material | Features | Application |
| SL2 | Graphite composite |
Low friction |
Widely used for machinery |
| SL4 | +MoS2 composite |
Water contacting lubricating |
Flanged Bush Size:
Self lubricating, High-strength brass, CuZn25Al or eq, Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO Equivalent Code Inner Ø
dOuter Ø
DLength
LFlanged F t JFB0810 SOBF 8-12-10 8 12 10 20 2 JFB0812 SOBF 8-12-12 8 12 12 20 2 JFB0815 SOBF 8-12-15 8 12 15 20 2 JFB1010 SOBF 10-14-10 10 14 10 22 2 JFB1012 SOBF 10-14-12 10 14 12 22 2 JFB1015 SOBF 10-14-15 10 14 15 22 2 JFB1017 SOBF 10-14-17 10 14 17 22 2 JFB1020 SOBF 10-14-20 10 14 20 22 2 JFB1210 SOBF 12-18-10 12 18 10 25 3 JFB1212 SOBF 12-18-12 12 18 12 25 3 JFB1215 SOBF 12-18-15 12 18 15 25 3 JFB1220 SOBF 12-18-20 12 18 20 25 3 JFB1225 SOBF 12-18-25 12 18 25 25 3 JFB1230 SOBF 12-18-30 12 18 30 25 3 JFB1310 SOBF 13-19-10 13 19 10 26 3 JFB1312 SOBF 13-19-12 13 19 12 26 3 JFB1315 SOBF 13-19-15 13 19 15 26 3 JFB1320 SOBF 13-19-20 13 19 20 26 3 JFB1325 SOBF 13-19-25 13 19 25 26 3 JFB1330 SOBF 13-19-30 13 19 30 26 3 JFB1415 SOBF 14-20-15 14 20 15 27 3 Embedded Solid Lubrication Bearings Metric Flange Bushes Flanged bush, self lubricating ITEM NO Equivalent Code Inner Ø
dOuter Ø
DLength
LFlanged F t JFB1420 SOBF 14-20-20 14 20 20 27 3 JFB1425 SOBF 14-20-25 14 20 25 27 3 JFB1510 SOBF 15-21-10 15 21 10 28 3 JFB1512 SOBF 15-21-12 15 21 12 28 3 JFB1515 SOBF 15-21-15 15 21 15 28 3 JFB1520 SOBF 15-21-20 15 21 20 28 3 JFB1525 SOBF 15-21-25 15 21 25 28 3 JFB1530 SOBF 15-21-30 15 21 30 28 3 JFB1612 SOBF 16-22-12 16 22 12 29 3 JFB1615 SOBF 16-22-15 16 22 15 29 3 JFB1618 SOBF 16-22-18 16 22 18 29 3 JFB1620 SOBF 16-22-20 16 22 20 29 3 JFB1623 SOBF 16-22-23 16 22 23 29 3 JFB1625 SOBF 16-22-25 16 22 25 29 3 JFB1630 SOBF 16-22-30 16 22 30 29 3 JFB1635 SOBF 16-22-35 16 22 35 29 3 JFB1640 SOBF 16-22-40 16 22 40 29 3 JFB1815 SOBF 18-24-15 18 24 15 32 3 JFB1820 SOBF 18-24-20 18 24 20 32 3 JFB1825 SOBF 18-24-25 18 24 25 32 3 JFB1830 SOBF 18-24-30 18 24 30 32 3 JFB1835 SOBF 18-24-35 18 24 35 32 3 JFB1840 SOBF 18-24-40 18 24 40 32 3 JFB2015 SOBF 20-30-15 20 30 15 40 5 JFB2020 SOBF 20-30-20 20 30 20 40 5 JFB2025 SOBF 20-30-25 20 30 25 40 5 JFB2030 SOBF 20-30-30 20 30 30 40 5 JFB2035 SOBF 20-30-35 20 30 35 40 5 JFB2040 SOBF 20-30-40 20 30 40 40 5 JFB2515 SOBF 25-35-15 25 35 15 45 5 JFB2520 SOBF 25-35-20 25 35 20 45 5 JFB2525 SOBF 25-35-25 25 35 25 45 5 JFB2530 SOBF 25-35-30 25 35 30 45 5 JFB2535 SOBF 25-35-35 25 35 35 45 5 JFB2540 SOBF 25-35-40 25 35 40 45 5 JFB2550 SOBF 25-35-50 25 35 50 45 5 JFB3020 SOBF 30-40-20 30 40 20 50 5 JFB3025 SOBF 30-40-25 30 40 25 50 5 JFB3030 SOBF 30-40-30 30 40 30 50 5 JFB3035 SOBF 30-40-35 30 40 35 50 5 JFB3040 SOBF 30-40-40 30 40 40 50 5 JFB3050 SOBF 30-40-50 30 40 50 50 5 JFB31,520 SOBF 31,5-40-20 31,5 40 20 50 5 JFB31,530 SOBF 31,5-40-30 31,5 40 30 50 5 JFB31,535 SOBF 31,5-40-35 31,5 40 35 50 5 JFB31,540 SOBF 31,5-40-40 31,5 40 40 50 5 Embedded Solid Lubrication Bearings Metric Flange Bushes Flanged bush, self lubricating ITEM NO Equivalent Code Inner Ø
dOuter Ø
DLength
LFlanged F t JFB3520 SOBF 35-45-20 35 45 20 60 5 JFB3525 SOBF 35-45-25 35 45 25 60 5 JFB3530 SOBF 35-45-30 35 45 30 60 5 JFB3535 SOBF 35-45-35 35 45 35 60 5 JFB3540 SOBF 35-45-40 35 45 40 60 5 JFB3550 SOBF 35-45-50 35 45 50 60 5 JFB4020 SOBF 40-50-20 40 50 20 65 5 JFB4025 SOBF 40-50-25 40 50 25 65 5 JFB4030 SOBF 40-50-30 40 50 30 65 5 JFB4035 SOBF 40-50-35 40 50 35 65 5 JFB4040 SOBF 40-50-40 40 50 40 65 5 JFB4050 SOBF 40-50-50 40 50 50 65 5 JFB4530 SOBF 45-55-30 45 55 30 70 5 JFB4535 SOBF 45-55-35 45 55 35 70 5 JFB4540 SOBF 45-55-40 45 55 40 70 5 JFB4550 SOBF 45-55-50 45 55 50 70 5 JFB4560 SOBF 45-55-60 45 55 60 70 5 JFB5030 SOBF 50-60-30 50 60 30 75 5 JFB5035 SOBF 50-60-35 50 60 35 75 5 JFB5040 SOBF 50-60-40 50 60 40 75 5 JFB5050 SOBF 50-60-50 50 60 50 75 5 JFB5060 SOBF 50-60-60 50 60 60 75 5 JFB5540 SOBF 55-65-40 55 65 40 80 5 JFB5560 SOBF 55-65-60 55 65 60 80 5 JFB6040 SOBF 60-75-40 60 75 40 90 7,5 JFB6050 SOBF 60-75-50 60 75 50 90 7,5 JFB6080 SOBF 60-75-80 60 75 80 90 7,5 JFB6367,5 SOBF 63-75-67,5 63 75 67,5 85 7,5 JFB6560 SOBF 65-80-60 65 80 60 95 7,5 JFB7050 SOBF 70-85-50 70 85 50 105 7,5 JFB7080 SOBF 70-85-80 70 85 80 105 7,5 JFB7560 SOBF 75-90-60 75 90 60 110 7,5 JFB8060 SOBF 80-100-60 80 100 60 120 10 JFB8080 SOBF 80-100-80 80 100 80 120 10 JFB80100 SOBF 80-100-100 80 100 100 120 10 JFB9060 SOBF 90-110-60 90 110 60 130 10 JFB9080 SOBF 90-110-80 90 110 80 130 10 JFB10080 SOBF 100-120-80 100 120 80 150 10 JFB100100 SOBF 100-120-100 100 120 100 150 10 JFB12080 SOBF 120-140-80 120 140 80 170 10 JFB120100 SOBF 120-140-100 120 140 100 170 10 JFB13080 SOBF 130-150-80 130 150 80 180 10 JFB130100 SOBF 130-150-100 130 150 100 180 10 JFB14080 SOBF 140-160-80 140 160 80 190 10 JFB140100 SOBF 140-160-100 140 160 100 190 10 JFB150100 SOBF 150-170-100 150 170 100 200 10 JFB150120 SOBF 150-170-120 150 170 120 200 10 JFB160100 SOBF 160-180-100 160 180 100 210 10 JFB160120 SOBF 160-180-120 160 180 120 210 10
