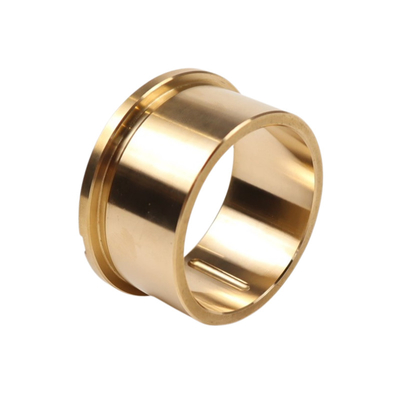

Tin Bronze EN Casting Copper Alloy Bearings CuSn12 Sleeve & Flange Bushings For Hydraulic Components

Product Details:
Place of Origin: Bushing Manufacturer
Brand Name: REPLACEMENT PLAIN BEARINGS
Certification: EN Casting Copper Alloy Bearings CuSn12
Model Number: LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Payment & Shipping Terms:
Minimum Order Quantity: MATE-TO-ORDER CUSTOM BUSHINGS
Price: Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details: Export Cartons,Customizable
Delivery Time: 10~20 work days
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: STANDARD TOLERANCE BUSHINGS
Contact Now

Detail Information

Material: EN Casting Copper Alloy Bearings CuSn12 Model Number: Standard Cylinder Bearings,Cylinder Bearings With Flange
Feature: Self Lubrication Lubrication: Graphite
Application: Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Bush Types: Sleeve Bushing, Plate, Solid, Tube, Flange

Product Description

CC483K Tin Bronze EN Casting Copper Alloy Bearings CuSn12 Sleeve & Flange graphite plugged Bushings For Hydraulic Components made to order from china,for bronze bushing DISTRIBUTOR



Bushing & Bearing Material

Chemical Composition mass/%

Cu

Sn

Al

Fe

Mn

Ni

Pb

Si

P

Zn

85.0-88.5

11.0-13.0

0.01

0.2

0.2

2

0.7

0.01

0.6

0.5

Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)

280

150

5

90

Note:

1,In Chemical Composition, Single values represent maximums.

2,Mechanical performance of hardness value is only for reference

Hydraulic Component Bronze Bushings The company has developed metal and plastic self-lubricating rolling bearings suitable for high load and high speed under the condition of fluid lubrication, which are widely used in gear pump, plunger pump, vane pump, compressor, cylinder and other industries.

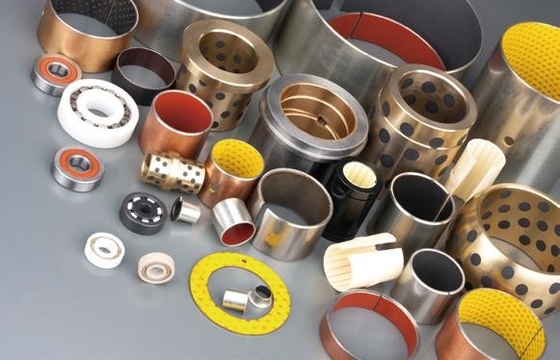

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs



Flanged Bearings non-standard MANUFACTURER sizes to suit specific customer requirements,have been developed for high load, low speed applications and are made of rotational cast high-strength bronze C86300/C86200/C95400/C93200 ALLOY using a specially formed graphite plug as lubricant.



Solid Bronze Metallic  Plug Graphite Cast Bronze Bearings Solid Bronze Lubrication

CUSN12 BRONZE BUSHINGS



CUSN12 is a high tin tin bronze commonly used for high-load gear, turbine, and bearing bushing.
High hardness, excellent wear resistance, not easy to die, good casting performance and cutting, in the atmosphere and fresh water
Good corrosion resistance.





VSB-50 Solid Bronze Metallic Self-lubricating Bearings

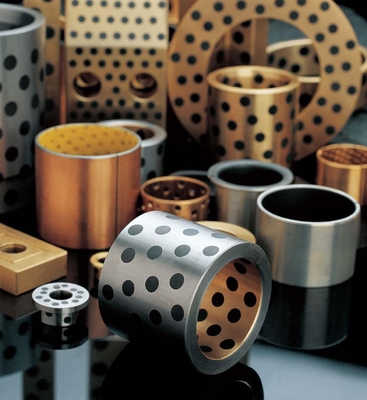

Cast Bronze Bearing with Graphite Plugs
 Typicai applicaton

The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant



Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings BushingsTin Bronze EN Casting Copper Alloy Bearings CuSn12 Sleeve & Flange Bushings For Hydraulic Components

CHARACTERISTICS

with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available


VSB-50  Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

STRUSTURE

VSB-50 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

AVAILABILITY

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates



TYPICAL APPLICATIONS



Widely used in hydraulic pneumatic, forging machine tool industry, plastics machinery, lifting transportation machinery, port machinery, office, gym machinery, textile machinery, food packages, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobile, railway vehicle, shipbuilding industry, machinery, metallurgical machinery, engineering machinery, etc.

CUSTOMER BRONZE BUSHINSS SIZE

START YOUR PROJECT WITH AN APPLICATION ENGINEER
