|Meterial:||Carton Steel , Bronze , PTFE ,||Plating:||Tin Or Copper|
|Characteristic:||Low-maintenance And Maintenance-free Plain Bearings||Type:||Bushes, Collar Bushes, Washers, Strips Or Special Designs|
|Size:||Standard Size Available||Quality:||OEM|

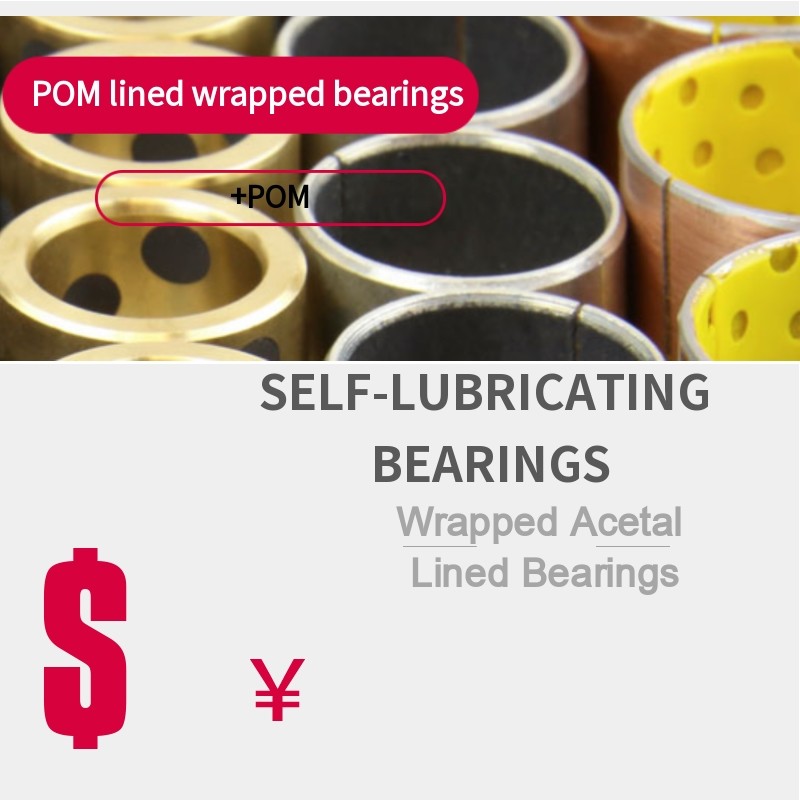

wrapped bronze bushings,
graphite sleeve bearings
Metal/Polymer Composite Plain Bearings Maintenance-free Low-maintenance Special designs, special materials
Technical principles Plain bearing materials Load carrying capacity and life Design of bearing arrangements Bearing clearance and mounting tolerances Mounting and dismounting
With just one phone call, at any time to ensure the safety and reliability of the bushing quality.
The company is specialized in the production and development of Manufacturing Co., Ltd for the high-performance operation maintenance-free bearings & solid embedded self-lubricating sleeve bearing, bearing sleeve, copper-sleeve of oil groove and self-lubricating sleeve bearing mold guide parts.
1. Before assembly, ensure that there is no foreign matter on the surface of the shaft sleeve and seat hole, and the surface of the seat hole should be as smooth as possible to avoid scratches during assembly.
2. During assembly, the outer surface of the shaft sleeve can be appropriately coated with lubricating oil to help the shaft sleeve to install more easily, but not too much to avoid the shaft sleeve will be detached in heavy load or reciprocating movement.
3. The mandrel should be pressed in slowly during assembly (oil press is recommended). It is forbidden to directly hit the bush to avoid deformation.
4. If the seat hole is designed with easily deforming materials such as aluminum alloy or the wall thickness of the seat hole is relatively thin, please explain, so as to avoid deformation of the seat hole when pressing.
5. In order to make the assembly easier and not to destroy the wear layer, the end face of the shaft must have smooth chamfering.
1. Maintenance-free, self-lubricating sleeve bearing, no oil required.
2. High bearing capacity, the very low friction coefficient of sliding surface, and wear resistance.
3. Corrosion resistance and chemical resistance.
4. Apply to - 40 ℃ ~ + 300 ℃.
5. No maintenance, long service life.
6. Can produce drawings and samples according to customer requirements.
The products are widely used in metallurgical machinery, steel rolling equipment, forging press, punching machine, engineering machinery, mining machinery, ship, gas turbine, die-stamping and other industries.
If you need or product problems please contact us, we warmly welcome your calls to inquire.
VIIPLUS International offers an unparalleled range of bearings and sintered parts for all applications across all industries. Whether you are working on a large, complex project that requires many bearings of different sizes or a smaller project with standard size bearings we have the right solution for you. We are able to quote in metric and imperial sizes and have the capability to produce special, one-off sizes especially for your specific project.
We have developed the C86300 self-lubricating sleeve bearing Selector to assist you in your design process. This invaluable tool will help ensure the correct bearing selection and optimize your product development.
Purpose of business
Design, manufacture, supply and sales of:
Line of business
Various oilless bearings, bearings for water gates, bearings, and bearing plates for structures such as bridges, other special oilless machinery such as mechanical, chemical, or electronic equipment.
Integrated with a well-running quality control management system.
Standard of Products
Also available like NAAMS, DIN, EUROPEAN STANDARD, JIS, CUSTOMIZE.
Agricultural machinery: tractors, combine harvesters, crop sprayers, bulldozers, grader, etc.
Automobile industry: power steering pump, steering gear thrust gasket, disc brake, shock absorber, door hinge, wiper, chair horn, air valve and solenoid valve;
Office and business machines: copier, fax machine, printer, mail processor, etc.
Hydraulic components and valves: gear pump, plunger pump, vane pump, ball valve, butterfly valve, cylinder, cylinder and other hydraulic components;
Home appliances: refrigerators, air conditioners, vacuum cleaners, sewing machines, cleaning machines, microwave ovens and fitness equipment, etc.
And other logistics machinery, packaging machinery, textile machinery, port machinery, mining machinery and forest machinery and so on.
In actual use, according to the different environment, working conditions and environmental protection requirements, low-carbon steel plate can be changed into copper plate or stainless steel plate, the inner surface of the plastic layer can choose PTFE lead or lead-free materials and other polymer filler, the appearance can be tin or copper plating.
We have all kinds of professional testing equipment, strict quality assurance system, excellent QC department, and professional testing personnel to ensure the quality of products
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
Step1 Choose the Bushing & Self-lubricating Bearings you need. Do you need different type bearings.
Step2 Choose the standard self-lubricating bearings & bushings size you need.
Step3 Confirm the material and bushings size you need.
Step4 Select the shipment terms.
Step5 Contact our salesperson to get the latest quote.
Step6 Ask for a FREE sample to check the quality of the products.
Step7 Confirm the sample quality and the quantity & price of the bulk order. Place the order with the salesperson.
Step8 Arrange a 30% deposit prior to production.
Step9 Electronic photos or shipping samples will be sent before shipment in accordance with your request.
Step10 Settle the 70% balance before the bulk order is finished.
Step11 Shipment will be arranged upon receipt of the balance and completion of the order.
Step12 CI, PL, BL, and CO (if necessary) are sent for custom clearance on your end.
Step13 End of the order.
Fast delivery by air with our own account (DHL, UPS, FedEx, TNT) or customers' account, save your time.
1)by express to door(DHL/FEDEX/UPS/TNT)
2)by air to airport
3)by sea to the port
Standard Export Packing: Cartons / Pallets /Woode CasesCHOOSE BUSHING TYPE & SIZE: Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs
|PAP 0406 P11||0.157||4||0.236||6||0.236||6||0.0018||0.8|
|PAP 0505 P11||0.197||5||0.276||7||0.197||5||0.0018||0.8|
|PAP 0606 P11||0.236||6||0.315||8||0.236||6||0.0024||1.1|
|PAP 0610 P11||0.236||6||0.315||8||0.394||10||0.0042||1.9|
|PAP 0808 P11||0.315||8||0.394||10||0.315||8||0.004||1.8|
|PAP 0810 P11||0.315||8||0.394||10||0.394||10||0.0048||2.2|
|PAP 0812 P11||0.315||8||0.394||10||0.472||12||0.0059||2.7|
|PAP 1005 P11||0.394||10||0.472||12||0.197||5||0.0031||1.4|
|PAP 1010 P11||0.394||10||0.472||12||0.394||10||0.0059||2.7|
|PAP 1015 P11||0.394||10||0.472||12||0.591||15||0.0092||4.2|
|PAP 1020 P11||0.394||10||0.472||12||0.787||20||0.0123||5.6|
|PAP 1210 P11||0.472||12||0.551||14||0.394||10||0.0073||3.3|
|PAP 1212 P11||0.472||12||0.551||14||0.472||12||0.009||4.1|
|PAP 1215 P11||0.472||12||0.551||14||0.591||15||0.0114||5.2|
|PAP 1220 P11||0.472||12||0.551||14||0.787||20||0.0152||6.9|
|PAP 1225 P11||0.472||12||0.551||14||0.984||25||0.0191||8.7|
|PAP 1415 P11||0.551||14||0.63||16||0.591||15||0.0132||6|
|PAP 1515 P11||0.591||15||0.669||17||0.591||15||0.015||6.8|
|PAP 1525 P11||0.591||15||0.669||17||0.984||25||0.0227||10.3|
|PAP 1615 P11||0.63||16||0.709||18||0.591||15||0.0147||6.7|
|PAP 1625 P11||0.63||16||0.709||18||0.984||25||0.0242||11|
|PAP 1825 P11||0.709||18||0.787||20||0.984||25||0.0268||12.2|
|PAP 2015 P11||0.787||20||0.906||23||0.591||15||0.0293||13.3|
|PAP 2020 P11||0.787||20||0.906||23||0.787||20||0.0374||17|
|PAP 2025 P11||0.787||20||0.906||23||0.984||25||0.0469||21.3|
|PAP 2030 P11||0.787||20||0.906||23||1.181||30||0.0561||25.5|
|PAP 2215 P11||0.866||22||0.984||25||0.591||15||0.0345||15.7|
|PAP 2220 P11||0.866||22||0.984||25||0.787||20||0.046||20.9|
|PAP 2225 P11||0.866||22||0.984||25||0.984||25||0.0583||26.5|
|PAP 2430 P11||0.945||24||1.063||27||1.181||30||0.075||34.1|
|PAP 2525 P11||0.984||25||1.102||28||0.984||25||0.0647||29.4|
|PAP 2530 P11||0.984||25||1.102||28||1.181||30||0.0777||35.3|
|PAP 2830 P11||1.102||28||1.26||32||1.181||30||0.1012||46|
|PAP 3020 P11||1.181||30||1.339||34||0.787||20||0.081||36.8|
|PAP 3030 P11||1.181||30||1.339||34||1.181||30||0.1214||55.2|
|PAP 3040 P11||1.181||30||1.339||34||1.575||40||0.1628||74|
|PAP 3520 P11||1.378||35||1.535||39||0.787||20||0.0972||44.2|
|PAP 3530 P11||1.378||35||1.535||39||1.181||30||0.1459||66.3|
|PAP 4050 P11||1.575||40||1.732||44||1.969||50||0.2609||118.6|
|PAP 4550 P11||1.772||45||1.969||50||1.969||50||0.409||185.9|
|PAP 5030 P11||1.969||50||2.165||55||1.181||30||0.2955||134.3|
|PAP 5040 P11||1.969||50||2.165||55||1.575||40||0.3938||179|
|PAP 5060 P11||1.969||50||2.165||55||2.362||60||0.592||269.1|
|PAP 5540 P11||2.165||55||2.362||60||1.575||40||0.3412||155.1|
|PAP 6040 P11||2.362||60||2.559||65||1.575||40||0.3705||168.4|
|PAP 6050 P11||2.362||60||2.559||65||1.969||50||0.4631||210.5|
|PAP 6060 P11||2.362||60||2.559||65||2.362||60||0.5557||252.6|
|PAP 6070 P11||2.362||60||2.559||65||2.756||70||0.6483||294.7|
|PAP 7050 P11||2.756||70||2.953||75||1.969||50||0.5379||244.5|
|PAP 7070 P11||2.756||70||2.953||75||2.756||70||0.7531||342.3|
|PAP 8060 P11||3.15||80||3.346||85||2.362||60||0.7313||332.4|
|PAP 80100 P11||3.15||80||3.346||85||3.937||100||1.2188||554|
|PAP 9060 P11||3.543||90||3.74||95||2.362||60||0.7766||353|
|PAP 90100 P11||3.543||90||3.74||95||3.937||100||1.2936||588|
|PAP 9560 P11||3.74||95||3.937||100||2.362||60||0.946||430|
|PAP 10060 P11||3.937||100||4.134||105||2.362||60||0.9064||412|
|PAP 100115 P11||3.937||100||4.134||105||4.528||115||1.738||790|
Contact Person: tiffany
Bushing Material: ASTM Casting Copper Alloy,Standard material ,BRONZE METAL ALLOY
Shapes & forms: Flanged Bearing
CharacteristicBy sea or airs: Suitable for high loads
Application: Forest machinery, pump housing parts, cylinder bearings, shipping & container industry etc. Shapes & forms Cylindrical bearings, flange bearings Description Dimensions Additional Information
material: C93200 CuSn7Zn4Pb7 G-CuSn 7 ZnPb
feature: High lead Excellent machining performance, good hardness, strength and wear resistance
Application field: Crane bearing, trunnion bearing, roller neck bearing, rolling mill bearing, fuel pump bushing, pump bushing, diesel engine piston pin bushing, forged elbow rod bearing
