Custom Casting Bronze Bushing Thin - Walled Bearing Use In Agricultural Machinery

  • Custom Casting Bronze Bushing Thin - Walled Bearing Use In Agricultural Machinery
  • Custom Casting Bronze Bushing Thin - Walled Bearing Use In Agricultural Machinery
  • Custom Casting Bronze Bushing Thin - Walled Bearing Use In Agricultural Machinery
  • Custom Casting Bronze Bushing Thin - Walled Bearing Use In Agricultural Machinery
  • Custom Casting Bronze Bushing Thin - Walled Bearing Use In Agricultural Machinery
Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO 9001
Model Number Custom Casting Bronze Bushing
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 10 - 15 BUSINESS DAYS
Payment Terms T/T
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Machine -tool And Agricultural Machinery Bushing Tupe Custom Casting Bronze Bushing Thin Wall Bearing
Size Customized Type Bimetal
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings

,

oil embedded sleeve bearing
Leave a Message
Product Description

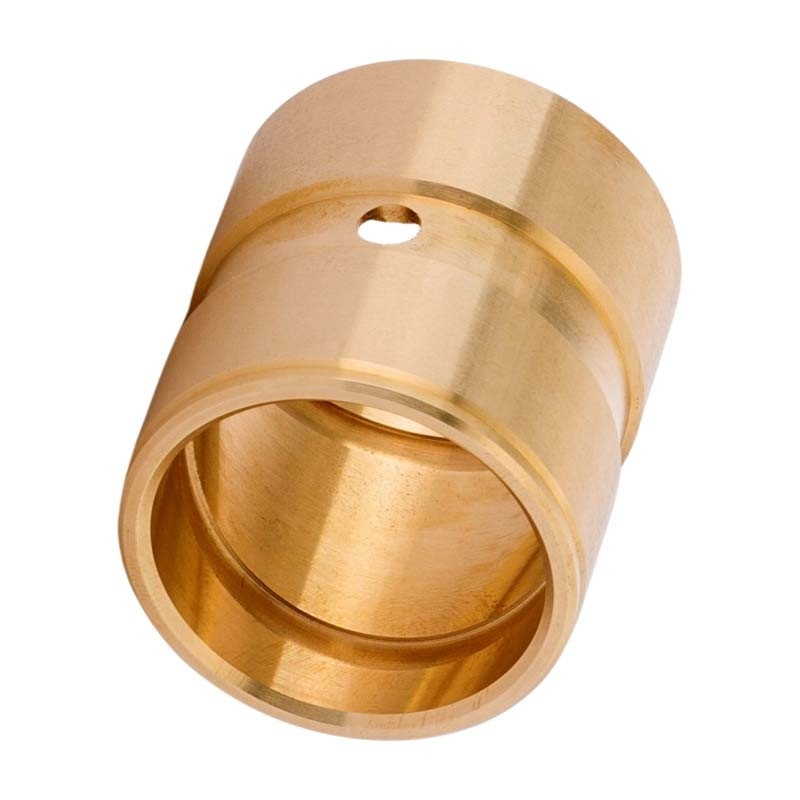

The custom casting bronze bushing, specifically designed as a thin-walled bearing, is an essential component for agricultural machinery. This bearing is cast using high-quality bronze material, which is renowned for its excellent mechanical properties and wear resistance.

The thin-walled design of the bushing allows for reduced weight and improved heat dissipation, making it suitable for use in a variety of agricultural applications. Wh it's used in tractors, harvesters, or other farming equipment, this bearing ensures smooth and reliable operation under heavy loads and varying conditions.

The custom casting process ensures that the bushing perfectly matches the specific requirements of the agricultural machinery. From the dimensions to the material composition, every detail is carefully considered to optimize performance and durability.

Installing this custom casting bronze bushing in your agricultural machinery will significantly enhance its operational efficiency and reliability. Contact us today to discuss your specific requirements and how we can assist you with custom casting solutions for your agricultural machinery.

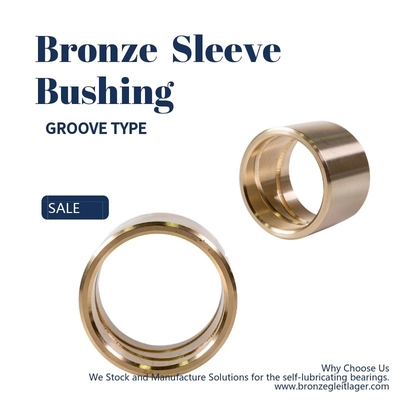

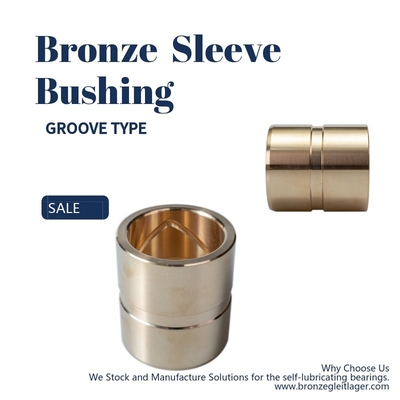

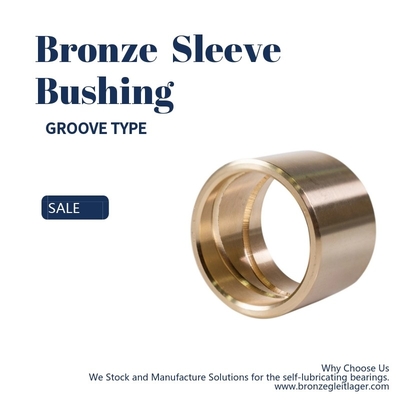

Bronze Sleeve Bushings



Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.

Oil Grooves for Bronze Bushings made to order from china,Oil & Grease Groove Bronze Bushings / Bearings china factory company stock price,fast delivery.

Custom Machined Services: Meeting All Your Needs





  • Turning
  • Boring
  • Grooving
  • Facing
  • Milling
  • Drilling
  • Grinding
  • Deburring





bronze sleeve bushings



Explanation: bimetal bushing is backed with high quality low carbon steel with tin-lead-bronze alloy(CuSn10Pb10) sintered on its surface. It has high fatigue strength, load capacity and impact strength.To effectively decrease abrasion, its alloy surface can be machined with ball shaped oil sockets for easier oil storage. When necessary, it could be plated copper or tin on the steel back. It can be applied to conditions of mediate load with mediate or high running belocity and conditions with enormous impact load. In mechanical applications, is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine.

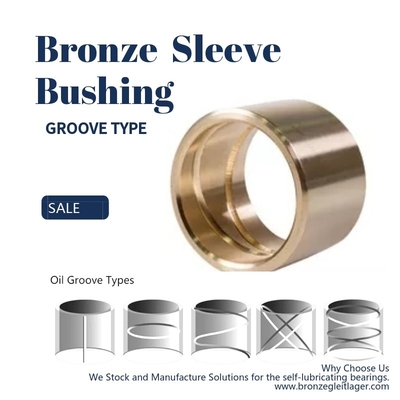

This groove can be used in combination with a spiral oil grooves,straight groove,circular groove bearing with an oil hole. Oval Groove: A single or double oval groove connected with an oil entry hole will distribute the lubricant ..



Custom Casting Bronze Bushing Thin Wall Bearing It Is Widely used in Machine -tool And Agricultural Machinery





Bronze Sleeve Bushings

Material
CuZn25Al5Mn4Fe3
Typical Application
Machine-tool,Agricultural machinery, Crane electromotor, Spring pin, Steering shaft and transmission, etc.
Density g/cm3
8.7
Max Dynamic Load N/mm2
60
Max Linear Velocity(Grease) m/s
0.85
Max PV value Grease N/mm2·m/s
1.65
Pressure strength N/mm2
>240
Yield Strength N/mm2
>100
Mating Axis
Hardness ≥40, Roughness 0.4~1.0
Working Temperature ℃
40~140
Friction Coefficient
0.09~0.15
coefficient of heat conduction W/m·K
52
Linear expansion coefficien
18.5×10-6/K
We can also develop according to customers special request while out of this table



Application



Earthmoving
Scrapers
Dozers
Loaders
Excavators



Cast Bronze Bushings
