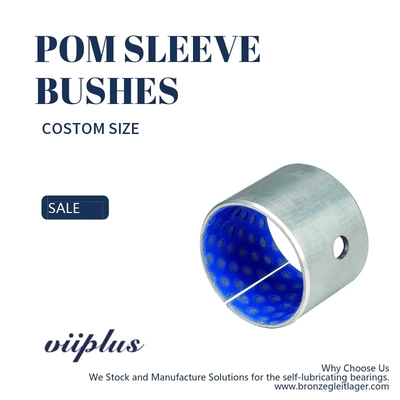

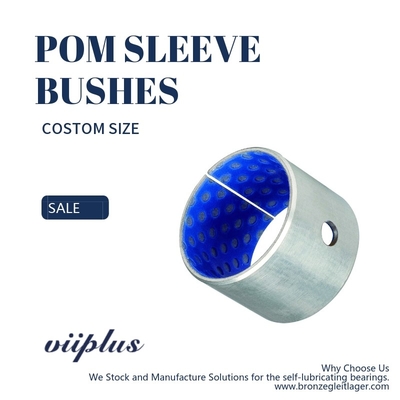

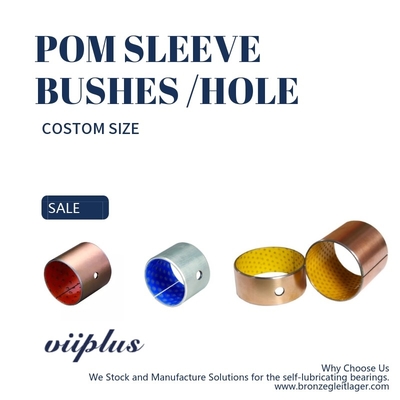

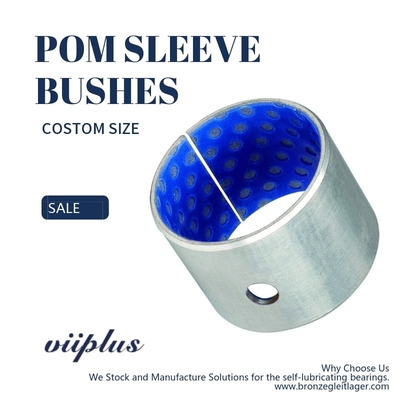

Oil Free Steel Back Plastic POM Layer Split Sliding Sleeve Bushing

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO 9001
Model Number Split Bushings
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 4 - 20 BUSINESS DAYS
Payment Terms T/T
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Back Plastic POM Layer Type Sleeve Bushing,Flange,thurst Washer
Size Customizable Surface Treatment Copper Plating/Tin Plating /Zinc Plating
Application Vehicle Chassis, Forming Machine Tools, Steel Metallurgical Machinery, Mineral Mountain Machinery, Hydraulic Industry And Rolling Steel Industry Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Self-Lubricating Sintered Bronze Bushing
Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings

,

graphite sleeve bearings

Leave a Message
Product Description

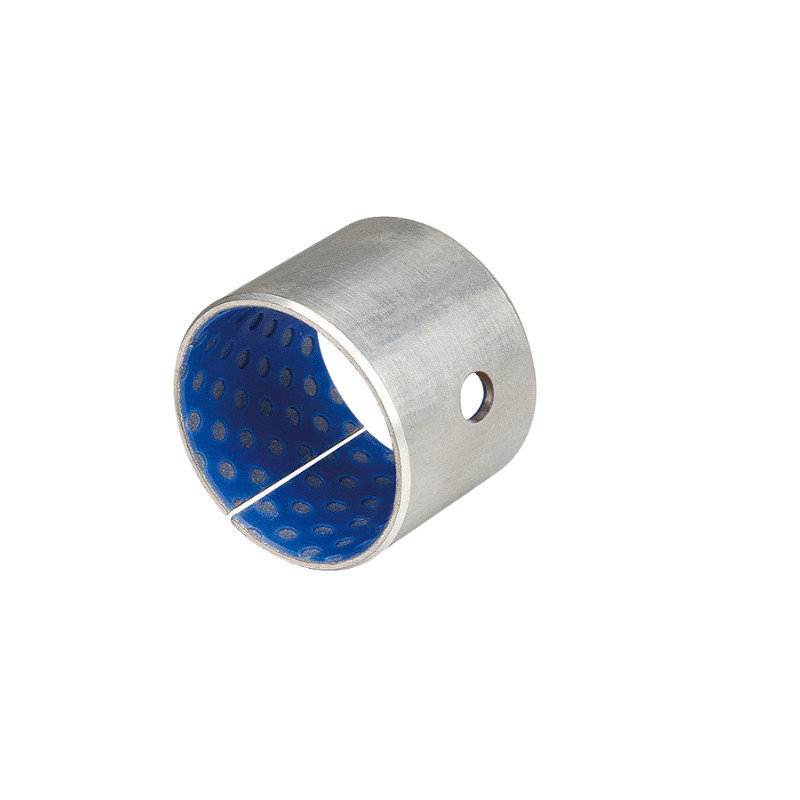

The oil-free steel-backed plastic POM (Polyoxymethylene) layer split sliding sleeve bushing is a unique bearing solution designed for applications where oil lubrication is not feasible or desirable. The bushing consists of a steel backing plate that provides structural support and rigidity, combined with a POM plastic layer that offers superior sliding and wear properties.

The POM layer is bonded to the steel backing using advanced adhesive or mechanical methods to ensure a strong and reliable bond. This combination of materials creates a bushing that is able to withstand high loads and frequent sliding movements while maintaining low friction and wear.

The split design of the sliding sleeve bushing allows for easy installation and removal, as well as the ability to adjust or replace worn components. This flexibility makes it a convenient choice for applications where maintenance and repair are critical.

The oil-free nature of this bushing is particularly beneficial in applications where contamination from lubricants is unacceptable, such as in food processing, medical, or cleanroom environments. By eliminating the need for oil lubrication, it also reduces maintenance requirements and potential for environmental contamination.

In summary, the oil-free steel-backed plastic POM layer split sliding sleeve bushing offers a robust and reliable bearing solution for applications requiring low friction, high wear resistance, and oil-free operation.



Oil Free Steel Back Plastic POM Layer Split Sliding Sleeve Bushing made to order from China





Viiplus  is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.



POM BULE SEL-LUBRICANT BEARINGS The bearing for lead free lubrication is improved by SF-2. It has low friction, coefficient, good anti-wear performance and long life, etc. It is lead-free, so it is used in places that require high environmental protection requirements like food machinery, etc.







Bronze Sleeve Bushings





























































Product Description



Size customizable
Type POM SLEEVE BUSHING SELF-LUBRICTAING BEARINGS
Processing methods Cold-extrusion
Surface treatment Copper plating/Tin plating /Zinc plating
Operating temperature -60~+120℃
Application field Vehicle chassis, forming machine tools,steel metallurgical machinery,mineral mountain machinery,hydraulic industry, rolling steel industry.etc
Material Steel base+ Bronze powder+ POM









Bronze Sleeve Bushings





Material

Steel base + Bronze powder + POM (Orange )

Typical Application

vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc

Max Static Load

140N/mm²

Max Dynamic Load

70N/mm²

Max Line Speed (Grease)

2.5m/s

PV Value Limit (Grease)

2.8N/mm².m/s

Friction Coefficient (Grease)

0.06~0.12

Mating Axis

Hardness >270, Roughness 0.4~1.25

Working Temperature

-60~+120℃

Thermal Conductivity

52W/mk

Coefficient Of Linear Expansion

11×10-6/K

In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.





Characteristics



1.marginally lubricated bushings for grease or oil lubricated applications



2.Standard parts contain grease indents in the sliding layer; plain sliding layer available by request



3.Optimum performance under relatively high loads and low speeds



4.Suitable for linear, oscillating and rotating movements



5.Wide range of parts available from stock
