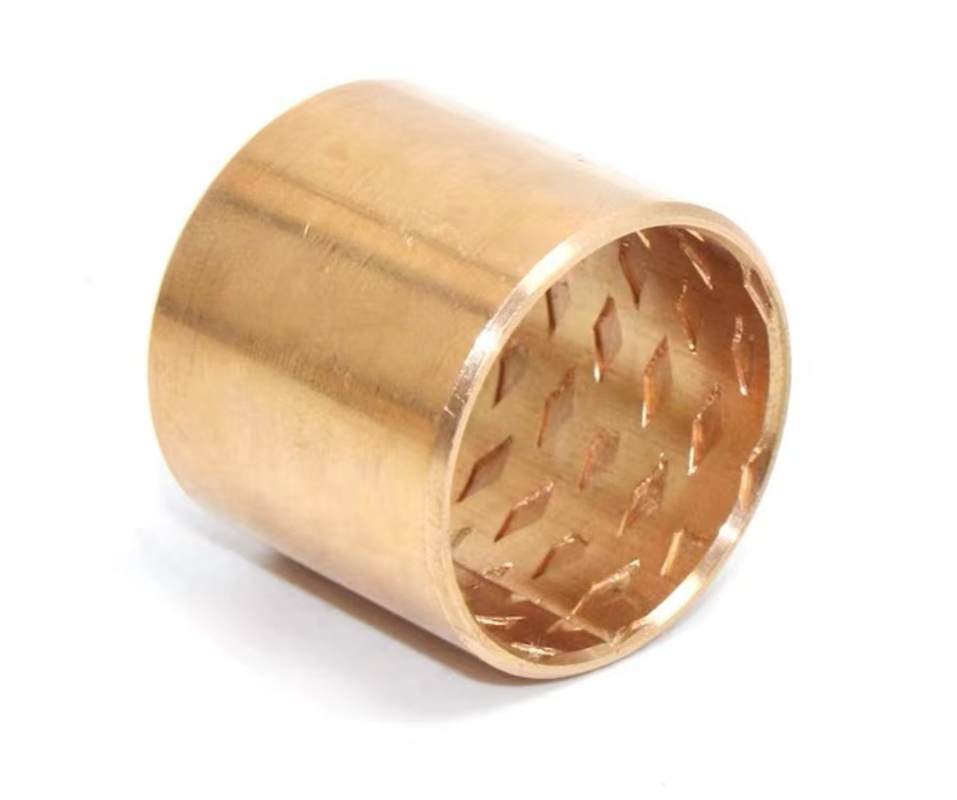

    The wrapped bronze bushings is produced with diamond-shaped lubrication indents on the inner diameter surface which provide lubricant reservoirs that allow for prolonged service.
Contact Person : Tiffany

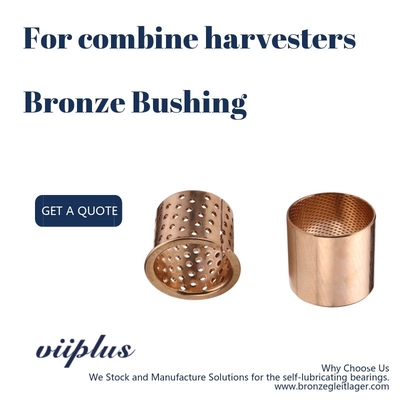

Combine Harvesters Bronze Sleeve Bushings 50x53x40mm Id 12-100 Mm Longlife

  • Combine Harvesters Bronze Sleeve Bushings 50x53x40mm Id 12-100 Mm Longlife
  • Combine Harvesters Bronze Sleeve Bushings 50x53x40mm Id 12-100 Mm Longlife
  • Combine Harvesters Bronze Sleeve Bushings 50x53x40mm Id 12-100 Mm Longlife
Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO 9001
Model Number Sleeve Bush Wrapped Bronze Bearing
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 5 - 15 BUSINESS DAYS
Payment Terms T/T, Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material TIN BRONZE CUSN8 CUSN6 Feature High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance High Load Capacity And Long Life Type Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Slidingplates.
Bushing Code BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 Application For Combine Harvesters Bronze Bushings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings

,

oil embedded sleeve bearing
Leave a Message
Product Description

Combine Harvesters Bronze Sleeve Bushings, sized 50x53x40mm with an Inner Diameter (ID) ranging from 12 to 100mm, are designed for long-lasting durability and reliability. These bushings are typically made of bronze, a material known for its excellent wear resistance and load-bearing capabilities, making them suitable for various applications in combine harvesters and other agricultural machinery. The precise dimensions and range of ID sizes allow for a tailored fit, ensuring smooth operation and reduced friction in rotating or sliding mechanisms.



Bronze Sleeve Bushings



FB090 CuSn8 CuSn6 Bronze bush MBZ-B09 bronze bearing, BK09 rolled sliding bearing,Request A Catalog Bronze Bushings Catalog:FB090-5040.pdf

Sliding bearings feature precision tolerances, simple design and self-lubricating quality materials. Our sleeve, flange, cylindrical, thrust washer, wear plate, plain bushes, oilless, precision and sliding bearings deliver strong performance, consistently and reliably.



Combine Harvesters Bronze Sleeve Bushings 50x53x40mm Id 12-100 Mm Longlife

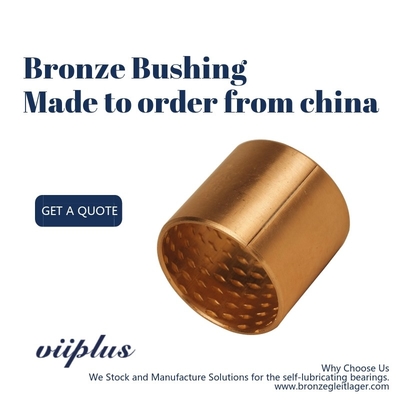

Wrapped bronze Butt joint – straight bushings Id 12 – 100 mm Dimensions Wrapped bronze bushings are available both as straight and flanged bushings.Metric Wrapped bronze Plain bearing MADE IN CHINA.Factory price.

Straight type & Flange Bearings Bronze bushing 50x53x40mm Combine Harvesters Bronze Bushings,Saves Time And Money. 500% revenue within 12 months by using our bronze bearing.Plain bearings are avialble with lubrication pockets, thru-holes and grooves.



Stable custom split material metric bronze bushing Dimension



Self-lubricating bearing installation environment analysis



Oil-free bearings must be installed in a dry, clean environment.Before installation, the machining quality of the mating surface of the shaft and housing, the end face of the convex shoulder, the groove and the connecting surface shall be carefully checked.All mating surfaces must be carefully cleaned and burr removed. Unprocessed surfaces of castings must be cleaned of sand.


Oil-free bearings should be cleaned with gasoline or kerosene before installation, dry after use, and ensure good lubrication, oil-free bearings generally use grease lubrication, can also use oil lubrication.When using grease lubrication, the grease with excellent properties such as no impurities, oxidation resistance, rust resistance and extreme pressure should be selected.The filling amount of grease is 30%-60% of the volume of oil-free bearing and oil-free bearing box, so it should not be too much.Double-row tapered roller oil-free bearing with sealing structure and oil-free bearing with pump shaft have been filled with grease, which can be directly used by users and cannot be cleaned again.



Chemical Composition



Part NO Material Cu Sn P Pb Zn
090 CuSn8 91.3% 8.5% 0.2% / /





precision oil free sheet metalbronze wrapped roller spilt



Materials



Support material CuSn8P (DIN 17662) alternative CuSn6P available

  • Specific load capacity static≤ 120 [N/mm2]
  • Specific load capacity dynamic≤ 40 [N/mm2]
  • Sliding speed≤ 2.5 [m/s] depending on lubrication
  • Friction value0.05 [µ] to 0.12 [µ]
  • Temperature strain- 40 [°C] to + 250 [°C]
  • Max. PV-value2.8 [N/mm² x m/s]

Designation d D B
mm mm mm
Wrapped bronze bushings CuSn8 121415 12 14 15
Wrapped bronze bushings CuSn8 151715 15 17 15
Wrapped bronze bushings CuSn8 151725 15 17 25
Wrapped bronze bushings CuSn8 161815 16 18 15
Wrapped bronze bushings CuSn8 161820 16 18 20
Wrapped bronze bushings CuSn8 161825 16 18 25
Wrapped bronze bushings CuSn8 182115 18 21 15
Wrapped bronze bushings CuSn8 182120 18 21 20
Wrapped bronze bushings CuSn8 182125 18 21 25
Wrapped bronze bushings CuSn8 202315 20 23 15
Wrapped bronze bushings CuSn8 202320 20 23 20
Wrapped bronze bushings CuSn8 202325 20 23 25
Wrapped bronze bushings CuSn8 202330 20 23 30
Wrapped bronze bushings CuSn8 252815 25 28 15
Wrapped bronze bushings CuSn8 252820 25 28 20
Wrapped bronze bushings CuSn8 252825 25 28 25
Wrapped bronze bushings CuSn8 252830 25 28 30
Wrapped bronze bushings CuSn8 303420 30 34 20
Wrapped bronze bushings CuSn8 303430 30 34 30
Wrapped bronze bushings CuSn8 303440 30 34 40
Wrapped bronze bushings CuSn8 323620 32 36 20
Wrapped bronze bushings CuSn8 323630 32 36 30
Wrapped bronze bushings CuSn8 353920 35 39 20
Wrapped bronze bushings CuSn8 353930 35 39 30
Wrapped bronze bushings CuSn8 353940 35 39 40
Wrapped bronze bushings CuSn8 353950 35 39 50
Wrapped bronze bushings CuSn8 404420 40 44 20
Wrapped bronze bushings CuSn8 404430 40 44 30
Wrapped bronze bushings CuSn8 404440 40 44 40
Wrapped bronze bushings CuSn8 404450 40 44 50
Wrapped bronze bushings CuSn8 455030 45 50 30
Wrapped bronze bushings CuSn8 455040 45 50 40
Wrapped bronze bushings CuSn8 455050 45 50 50
Wrapped bronze bushings CuSn8 455060 45 50 60
Wrapped bronze bushings CuSn8 505530 50 55 30
Wrapped bronze bushings CuSn8 505540 50 55 40
Wrapped bronze bushings CuSn8 505550 50 55 50
Wrapped bronze bushings CuSn8 505560 50 55 60
Wrapped bronze bushings CuSn8 556040 55 60 40
Wrapped bronze bushings CuSn8 556060 55 60 60
Designation d D B
mm mm mm
Wrapped bronze bushings CuSn8 606530 60 65 30
Wrapped bronze bushings CuSn8 606540 60 65 40
Wrapped bronze bushings CuSn8 606550 60 65 50
Wrapped bronze bushings CuSn8 606560 60 65 60
Wrapped bronze bushings CuSn8 657040 65 70 40
Wrapped bronze bushings CuSn8 657060 65 70 60
Wrapped bronze bushings CuSn8 707540 70 75 40
Wrapped bronze bushings CuSn8 707560 70 75 60
Wrapped bronze bushings CuSn8 707580 70 75 80
Wrapped bronze bushings CuSn8 758080 75 80 80
Wrapped bronze bushings CuSn8 808540 80 85 40
Wrapped bronze bushings CuSn8 808560 80 85 60
Wrapped bronze bushings CuSn8 808580 80 85 80
Wrapped bronze bushings CuSn8 859080 85 90 80
Wrapped bronze bushings CuSn8 909550 90 95 50
Wrapped bronze bushings CuSn8 909590 90 95 90
Wrapped bronze bushings CuSn8 10010550 100 105 50
Wrapped bronze bushings CuSn8 10010595 100 105 95
Designation system
Wrapped bronze bushings CuSn8 20 23 15
d D B
Metric
Wrapped bronze
Plain bearing
B
D d
Butt joint
Other dimensions available on request
