CuZn25AI5Mn4Fe3 Graphite Plugged Bronze Bushings For Mine Exploiting Equipments

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details Export Cartons,Customizable
Delivery Time 10~20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Bronze +Graphite,Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 Model Number Cylinder Bearings,Cylinder Bearings With Flange
Feature Self Lubrication Lubrication Graphite
Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Type FLANGE/SLEEVE/WASHER
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

wrapped bronze bushings

,

graphite sleeve bearings

Leave a Message
Product Description

CuZn25Al5Mn4Fe3 Graphite Plugged Bronze Bushings are specifically designed for mine exploiting equipments, where durability and reliability are paramount. These bushings are made from a unique alloy composition of copper, zinc, aluminum, manganese, and iron, which offers exceptional strength and wear resistance. The addition of graphite further enhances their durability, making them suitable for use in the harshest mining environments.

The graphite plugged design of these bushings provides excellent lubrication and reduces friction, ensuring smooth operation even under high loads and speeds. This feature also helps to extend the bushings' lifespan, reducing the need for frequent replacements.

CuZn25Al5Mn4Fe3 Graphite Plugged Bronze Bushings are an ideal choice for mine exploiting equipments due to their superior performance and durability. Wh used in drilling machines, excavators, or other mining equipment, these bushings will ensure efficient and reliable operation, maximizing productivity and minimizing downtime.



Bronze Sleeve Bushings



Bronze Bushing Products made to order from china.Your specialist for bronze bushings.Get a free quote Today! High temperature resistance .Our Bronze Bushings are machined from Continuous Cast bar stock. Depending on the type of Bushing selected, they are offered in C93200 Bearing Bronze (SAE 660) Bushing, C95400 Aluminum Bronze Bushings & C86300 Manganese Bronze Bushing for superior quality and performance.Our standard bearing lines feature metric & inch sizes that are carried in stock. These standards provide off-the-shelf economy for most applications, and may be easily resized, oil grooved, or graphited to meet special requirements.







graphite plugged bearing















Sleeve Bearing, Flange Bearing & Thrust Washer. Each type is available as a Plain, Oil or Grease Grooved and Graphite Plugged.

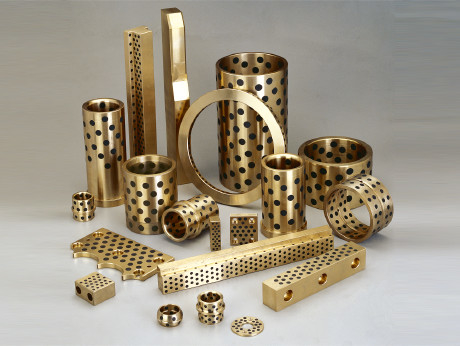

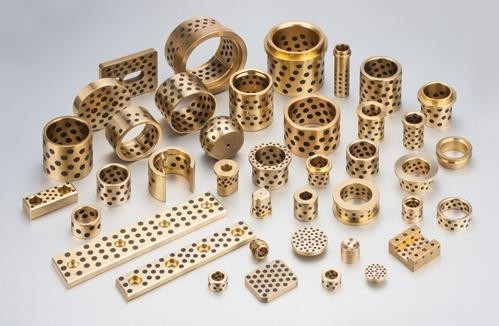

Solid Bronze Metallic CuZn25AI5Mn4Fe3 Plug Graphite Cast Bronze Bearings Solid Bronze Lubrication



Solid Bronze Metallic Self-lubricating Bearings nCast Bronze Bearing with Graphite Plugs



Material:CuZn25AI5Mn4Fe3



High strength brass, chemical formula is ZCuZn25Al6Fe3Mn3, mechanical properties are zinc content is different, mechanical properties are not the same, pressure processing properties have good plasticity, can withstand cold and hot processing.
Alloys consisting of more than two elements are called special brass.Such as aluminum, lead, tin, manganese, nickel, iron, silicon composed of copper alloy, high strength brass is one of them.High strength brass has strong wear resistance, high strength brass high strength, hardness, strong resistance to chemical corrosion.Also cutting mechanical properties are very superior.High - strength brass is often made into manufacturing plate, strip, bar, pipe, casting parts and so on.


Chemical composition


The chemical formula of high strength brass is ZCuZn25Al6Fe3Mn3, containing about 65% copper and 24% zinc.Aluminum improves the strength, hardness and corrosion resistance of brass.There are three kinds of microstructure of brass at room temperature: brass containing less than 35% zinc.
Pressure working property
High strength brass has good plasticity, can withstand cold and hot processing, but in forging and other hot processing easy to appear medium temperature brittleness, the specific temperature range varies with the content of Zn, generally between 200 ~ 700℃.Therefore, the thermal processing temperature should be higher than 700℃.


Mechanical properties of


The mechanical properties of high strength brass vary with their zinc content. For solid brass, b and increase with the increase of zinc content.Therefore, the copper zinc alloy containing more than 45% zinc has no practical value.Standard high strength brass brinell HB > 200, compressive strength > 600MPa, elongation > 10%.


Application field


Colliers brass application is very extensive, the casting made of bearing and bushing, domestic now mainly made of high strength brass for matrix solid lubrication oil-free bearings (hereinafter referred to as solid embellish bearing), is to use brass Gao Ligao strength as matrix, and embedded radial arranged orderly cylindrical polymer filler for friction materials (general graphite, molybdenum disulfide, , such as oil lubricant), its superiority lies in its made of copper alloy and non-metallic antifriction material has the respective complementary advantages, not only has high bearing capacity, and break through the boundaries of generally depends on the oil film bearing grease lubrication, achieve no oil lubrication,The embedded solid lubrication is easy to form the lubrication film, which greatly improves the friction and wear performance, and is stable, reliable and cost-effective.Compared with compound oil-free bearing, it has the advantages of good machinability, high precision, strong bearing capacity and good wear resistance.The self-lubricating guide bush guide can be used in many fields such as: engineering machinery joints, such as excavator, mining scraper, the rotating drill, concrete pump truck, rock drill machine, hoist, port cranes, etc., and metallurgical machinery casting machinery, water conservancy machinery, transportation machinery, rolling mill, bottle blowing machine blown film machine, injection molding machine cross clamping differential, tire vulcanizer, trailer balance beam, vacuum switch, etc.



Structure Characteristics and Applications


VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bushings



Characteristics


with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available
  Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃



Strusture



SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



Chemical Compositions



Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2





Availability



Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates


Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs


Typical Applications



This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...Products are widely used in continuous casting machines, mining machinery, ships, gas turbines and so on.Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant
