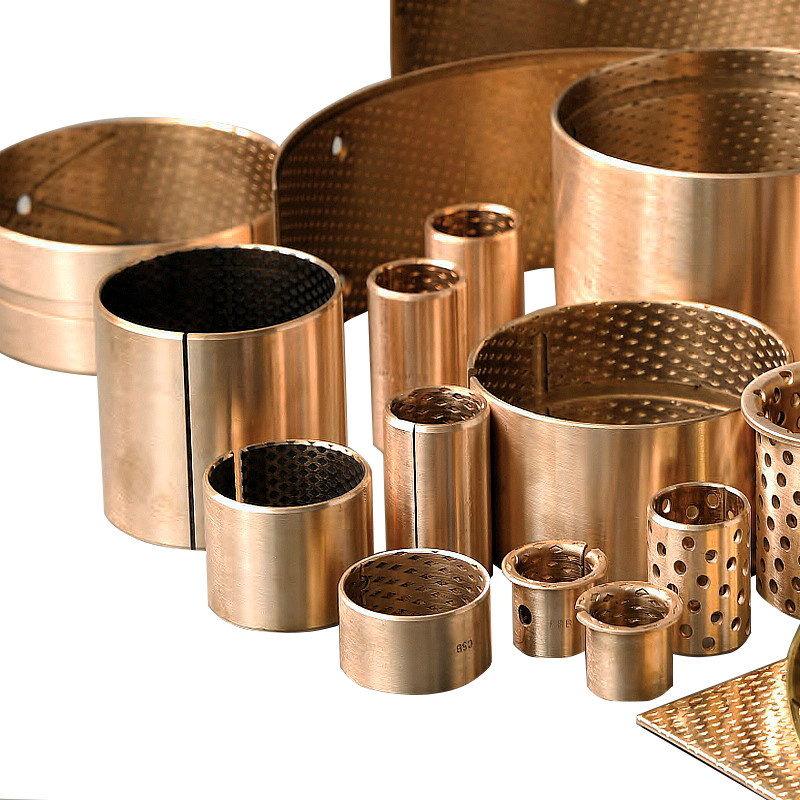

Standard Wrapped Bronze Sleeve Bearings For Underwater Pelletizer Machines

  • Standard Wrapped Bronze Sleeve Bearings For Underwater Pelletizer Machines
  • Standard Wrapped Bronze Sleeve Bearings For Underwater Pelletizer Machines
Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification UNS‎C52100‎•‎EN‎CW453K
Model Number Bronze Plain Bearings with Grease Reservoirs
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details Standard export carton also as your request
Delivery Time 2-3 Weeks
Payment Terms T/T
Supply Ability STANDARD TOLERANCE BUSHINGS
Product Details
Bushing Type Bronze Plain Bearings With Oil Holes Application Optimum Performance Under Relatively High Loads And Low Speeds
Bushing Material Bronze (CuSn6.5P / CuSn8P ) Bronze Bearing Forms Made To Order Ylindrical Bushes With Non-standard Dimensions, Customized Bearing Designs
Bushing Sale BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 Dimensions Standard Metric & Inch Size Bushing
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil embedded sleeve bearing

,

graphite sleeve bearings
Leave a Message
Product Description

alternative SKF Wrapped bronze straight bushing requiring low-maintenance series PRM

Standard Wrapped Bronze Sleeve Bearings For Underwater Pelletizer Machines



Sliding elements made of solid tin bronze (CuSn8) UNS ‎C52100‎•‎EN‎CW453K with lubrication holes, which serves as a lubricant reservoir.Bronze Wrapped Bush for Underwater Pelletizer Machines bushings made to ordr from china.Sleeve, Flange, Washer,Bronze Plain Bearing

CuSn8 is a solid solution strengthened copper alloy (bronze) with 8% tin. The high tin content results in high strength and springiness at an adequate conductivity. The alloy is wear-resistant, has very good corrosion resistance and can be readily soldered. Moreover CuSn8 has good sliding properties. Fields of application are stamped parts, connectors, spring contacts, springs, bushings and bearings, metal hose, the paper industry, ship and apparatus manufacturing as well as electrical and mechanical engineering.
Wrapped Bronze With Lubrication Pockets
low-maintenance

Gunmetal Wrapped Bush use for Underwater Pelletizer Machines WB800 Harden Bronze Bushing

Wrapped Bronze With Lubrication Holes
low-maintenance

Product Description

Bronze Wrapped Bush & bearing is wrapped by bronze strip. The material is made of particular formulation
with high specific gravity and on its surface may be incorporated with spherical or diamond
Shaped indentations or oil grooves as required by customer. It is of high load capacity and
Long life. It can act as substitution of traditional bronze bushing for low cost and
Performance of anti-higher compact. It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mining industy.
Material:CuSn8P0.3 OR CuSn6.5P0. 1
Hardness:HB90~120
Temperature limit:-80℃~200℃
Load capacity:75N/mm2
Speed limit:2.5m/s


For Bearing Design
Recommended fitting
shaft f7
housing H7
bearing according to DIN ISO 3547-1 (formerly DIN 1494)


self lubricating bronze bushing



FLANGED BRONZE BEARINGS SIZE

Type Spec. Type Spec.
FLANGED BRONZE BEARINGS 2515 25～28/35～15 FLANGED BRONZE BEARINGS 11050 110～115/130～50
FLANGED BRONZE BEARINGS 2525 25～28/35～25 FLANGED BRONZE BEARINGS 11090 110～115/130～90
FLANGED BRONZE BEARINGS 3020 30～34/45～20 FLANGED BRONZE BEARINGS 12050 120～125/140～50
FLANGED BRONZE BEARINGS 3030 30～34/45～30 FLANGED BRONZE BEARINGS 12090 120～125/140～90
FLANGED BRONZE BEARINGS 3520 35～39/50～20 FLANGED BRONZE BEARINGS 13060 130～135/155～60
FLANGED BRONZE BEARINGS 3530 35～39/50～30 FLANGED BRONZE BEARINGS 13090 130～135/155～90
FLANGED BRONZE BEARINGS 4025 40～44/55～25 FLANGED BRONZE BEARINGS 14060 140～145/165～60
FLANGED BRONZE BEARINGS 4040 40～44/55～40 FLANGED BRONZE BEARINGS 14090 140～145/165～90
FLANGED BRONZE BEARINGS 4530 45～50/60～30 FLANGED BRONZE BEARINGS 15060 150～155/180～60
FLANGED BRONZE BEARINGS 4545 45～50/60～45 FLANGED BRONZE BEARINGS 15090 150～155/180～90
FLANGED BRONZE BEARINGS 4550 45～50/60～50 FLANGED BRONZE BEARINGS 16060 160～165/190～60
FLANGED BRONZE BEARINGS 5030 50～55/65～30 FLANGED BRONZE BEARINGS 16090 160～165/190～90
FLANGED BRONZE BEARINGS 5050 50～55/65～50 FLANGED BRONZE BEARINGS 17060 170～175/200～60
FLANGED BRONZE BEARINGS 5530 55～60/70～30 FLANGED BRONZE BEARINGS 17090 170～175/200～90
FLANGED BRONZE BEARINGS 5550 55～60/70～50 FLANGED BRONZE BEARINGS 18060 180～185/215～60
FLANGED BRONZE BEARINGS 6030 60～65/75～30 FLANGED BRONZE BEARINGS 18090 180～185/215～90
FLANGED BRONZE BEARINGS 6035 60～65/75～35 FLANGED BRONZE BEARINGS 19060 190～195/225～60
FLANGED BRONZE BEARINGS 6060 60～65/75～60 FLANGED BRONZE BEARINGS 19090 190～195/225～90
FLANGED BRONZE BEARINGS 6530 65～70/80～30 FLANGED BRONZE BEARINGS 20060 200～205/235～60
FLANGED BRONZE BEARINGS 6560 65～70/80～60 FLANGED BRONZE BEARINGS 20090 200～205/235～90
FLANGED BRONZE BEARINGS 7040 70～75/85～40 FLANGED BRONZE BEARINGS 22560 225～230/260～60
FLANGED BRONZE BEARINGS 7070 70～75/85～70 FLANGED BRONZE BEARINGS 22590 225～230/260～90
FLANGED BRONZE BEARINGS 7540 75～80/90～40 FLANGED BRONZE BEARINGS 25060 250～255/290～60
FLANGED BRONZE BEARINGS 7570 75～80/90～70 FLANGED BRONZE BEARINGS 25090 250～255/290～90
FLANGED BRONZE BEARINGS 8040 80～85/100～40 FLANGED BRONZE BEARINGS 26060 265～270/305～60
FLANGED BRONZE BEARINGS 8080 80～85/100～80 FLANGED BRONZE BEARINGS 26090 265～270/305～90
FLANGED BRONZE BEARINGS 9050 90～95/110～50 FLANGED BRONZE BEARINGS 28560 285～290/325～60
FLANGED BRONZE BEARINGS 9090 90～95/110～90 FLANGED BRONZE BEARINGS 28590 285～290/325～90
FLANGED BRONZE BEARINGS 10050 100～105/120～50 FLANGED BRONZE BEARINGS 30050 300～305/340～60
FLANGED BRONZE BEARINGS 10090 100～105/120～90 FLANGED BRONZE BEARINGS 30090 300～305/340～90

cusn8&cusn6 Bronze-Wrapped Bearing, specially formulated high-density copper alloy strip base body surface may be requested by the user or hemispherical rolling diamond oil hole, oil sump. Having a high density, high carrying capacity, wear resistance, long life and other advantages, to replace the traditional casting of copper, and more compact, lower cost.090 has been widely used in lifting machinery, construction machinery, automobile and tractor chassis, the machine tool industry and mining machinery can also be made bearings, flanged bushes, thrust washers and bowl like.



Standard Tolerance



Technical Parameters
Data Grade FB090
Material CuSn8P(Qsn8-0.3)
Applications   Application: Hoisting, mining machinery. Forest machinery, agricultural machinery etc.
Density g/cm³   8.8
Max Dynamic Load N/mm²   100
Max Linear Velocity V Grease m/s 2
Max PV Value Grease N/mm²·m/s 2.8
Pressure Strength N/mm²   >460
Yield Strength N/mm²   >280
Hardness HB   90~150
Friction Coef u   0.06~0.15
Mating Axis Hardness HRC ≥50
Roughness Ra 0.4~1.0
Working Temperature ℃   -40~+150
Thermal Conductivity W/mk   58
Coefficient Of Linear Xpansion   18.5×10-6/K
