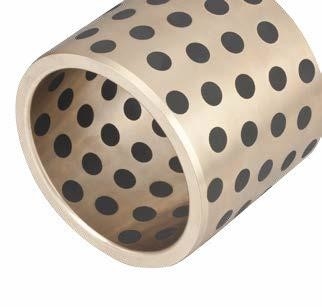

Plug Graphite Cast Bronze Sleeve Bushings High Strength Wear Resistant
Place of Origin | Bushing Manufacturer |
---|---|
Brand Name | REPLACEMENT PLAIN BEARINGS |
Certification | ISO9001:2008 CuSn8, CuSn6.5, Brass |
Model Number | LD Bronze Bearings made of CuSn8 with Grease Reservoirs |
Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
Packaging Details | Export Cartons,Customizable |
Delivery Time | 10~20 work days |
Payment Terms | TT IN ADVANCE,L/C,Western Union |
Supply Ability | STANDARD TOLERANCE BUSHINGS |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Aluminum-Bronze With Solid Lubricant,CuSn5Pb5Zn5 | Model Number | Cylinder Bearings,Cylinder Bearings With Flange |
---|---|---|---|
Feature | Self Lubrication | Lubrication | Graphite |
Application | Injection Molding Of Plastics, Pressure Diecast Home > Application Fields > Injection Molding Of Plastics, Pressure Diecast | Bearing Bushing Factory Price | Tiffany@viiplus.com |
Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | High Light | Self-Lubricating Sintered Bronze Bushing |
Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
Highlight | wrapped bronze bushings,graphite sleeve bearings |
Plug Graphite Cast Bronze Sleeve Bushings exhibit high strength and wear resistance, making them ideal for various industrial applications. These bushings are cast from bronze alloy, reinforced with graphite for enhanced durability and performance. The graphite addition improves the bushings' ability to withstand friction and wear, while the bronze alloy ensures excellent strength and corrosion resistance. The sleeve design allows for easy installation and replacement, making maintenance and repairs quick and efficient. Wh used in machinery, equipment, or other industrial settings, these bushings are a reliable choice for ensuring smooth and efficient operation.
Bronze Sleeve Bushings
Your recognised Chinese sourcing for sliding bearing applications.Working tog to create solutions for the most demanding sleeve bushing applications.

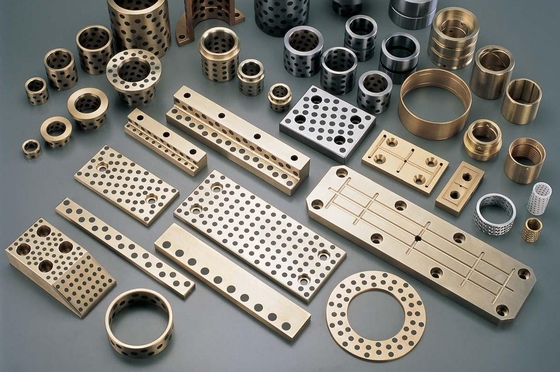

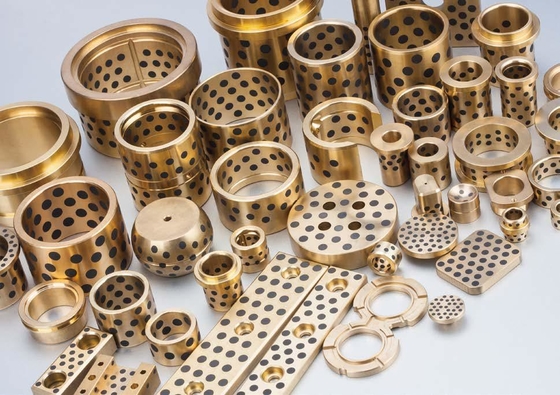

VIIPLUS INTERNATION ONLINE WWW.BRONZEGLEITLAGER.COM Bronze & Metals BUSHINGS offers a complete line of cast bronze bearings and slide plates. Cast bronze sleeve bearings, flange bearings, and custom parts are available with oil grooves or grease grooves. Maintenance-free self-lubricating bronze bearings with graphite filled grooves or graphite plugs
Solid Bronze Injection Molding Metallic Plug Graphite Cast Bronze Bearings Solid Bronze Lubrication|VSB-50S2
VSB-50 Solid Bronze Metallic Self-lubricating Bearings Cast Bronze Bearing with Graphite Plugs
Injection Molding of Plastics, Pressure Diecast
the viiplus manufacturer company has been committed to new product research and development, material performance, improved JDB series solid inlaid self-lubricating axle sleeve with high strength, wear resistance, free maintenance etc, has successfully supporting several world famous manufacturers of injection molding machine, die-casting machine.

Self-Lubricating Bearings Are Typically Used In The Following Application:
My company's self-lubricating bearing products have been supplied in the chassis walking body, body parts, hydraulic components and other components. Including bimetal boundary lubrication rolling bearings, metal-based self-lubricating bearings and metal-plastic self-lubricating rolling bearings. These bearing materials have excellent wear resistance and dust resistance under high load conditions, and the self-lubricating technology greatly prolongs the maintenance cycle of the bearing, thus improving the utilization ratio of the equipment and reducing the maintenance cost.
Material:
CuAI10Ni5Fe4
Typicai applicaton
The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.
Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant
Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.
Solid Lubricant Casting Aluminum Bronze Bearings Bushings
Characteristics
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
Strusture
VSB-50 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Material composition and properties table | |||||||||||
Grade | Bronze Alloy Material | ||||||||||
Material | CuZn25A15Mn4Fe3 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | CuSn12 | |||||||
Density | 8 | 8.9 | 7.8 | 8.9 | |||||||
HB Hardness | >210 | >70 | >150 | >95 | |||||||
N/mm² Tensile Strengt |
>750 | >200 | >600 | >260 | |||||||
N/mm² Yield Strength | >450 | >90 | >260 | >150 | |||||||
% Elongation |
>12 | >15 | >10 | >8 | |||||||
Coefficient Linear Expansion | 1.9x10-5/C | 1.8x10-5/C | 1.6×10-5/℃ | 1.8×10-5/℃ | |||||||
℃ Max.Temp. |
-40~+300 | -40~+400 | -40~+400 | 40~+400 | |||||||
N/mm² Max.Load |
100 | 60 | 50 | 70 | |||||||
m/mm Max.Load(Dry) |
15 | 10 | 20 | 10 | |||||||
N/mm²*m/mm Max.PV(Lubrication) |
200 | 60 | 60 | 80 | |||||||
300N/mm² Copression Deformation |
<0.01mm | <0.05mm | <0.04mm | <0.05mm | |||||||
Technical Data
|
Data |
|
Material |
|
CuSn5Pb5Zn5 |
Density |
|
7.8g/cm³ |
Hardness |
|
>150HB |
Tensile strength |
|
>600N/mm² |
Yeild strength |
|
>260N/mm² |
Elongation |
|
>10 % |
Coefficient of linear expansion |
|
1.6·10-5/℃ |
Performance |
Data |
|
emp. Limits |
|
-40~+400℃ |
Max. Dynamic Load |
|
50N/mm² |
Max.speed V |
|
20m/min |
Max.PV |
|
60N/mm²*m/min |
Besides the standard products displayed in the list of this catalogue, we can also supply non-standard products or develop according to customer design. |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
Typical Applications
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
