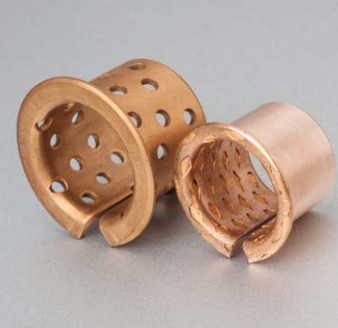

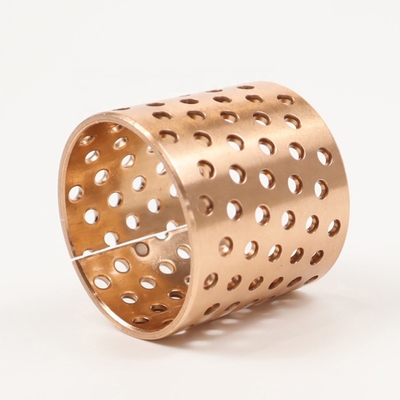

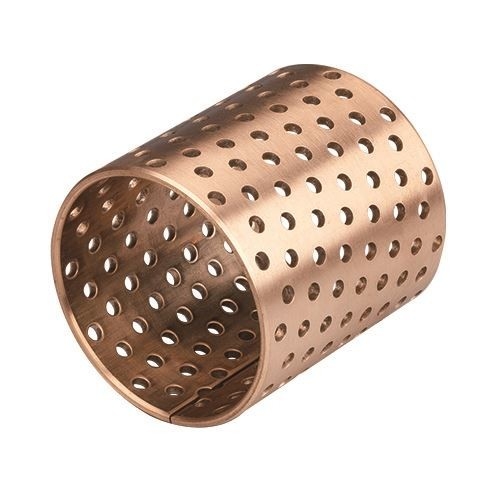

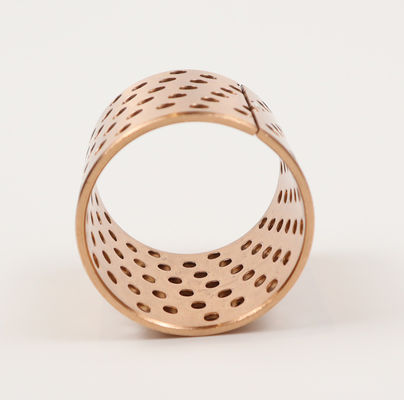

Metric Wrapped Bronze Sleeve Bushings With Grease Pockets, CuSn8,

  • Metric Wrapped Bronze Sleeve Bushings With Grease Pockets, CuSn8,
  • Metric Wrapped Bronze Sleeve Bushings With Grease Pockets, CuSn8,
  • Metric Wrapped Bronze Sleeve Bushings With Grease Pockets, CuSn8,
  • Metric Wrapped Bronze Sleeve Bushings With Grease Pockets, CuSn8,
  • Metric Wrapped Bronze Sleeve Bushings With Grease Pockets, CuSn8,
  • Metric Wrapped Bronze Sleeve Bushings With Grease Pockets, CuSn8,
Place of Origin Wrapped Bronze Bushes Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification DIN 17662
Model Number Sleeve Bushes Wrapped Bronze Bearing
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price CuSn 8 according to DIN 17662 Cheap Price and delivery time on request
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7 - 15 BUSINESS DAYS
Payment Terms T/T, Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS
Product Details
Bushing Material TIN BRONZE CUSN8 CUSN6 Feature High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance High Load Capacity And Long Life Type Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Slidingplates.
Bushing Code "BS" Wrapped Bronze Bushes Bearing Size Metric And Inch Size Bushing
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

metric bronze bushings

,

Wrapped Bronze Bushes
Leave a Message
Product Description

Wrapped bushes with grease pockets, FLANGED SLIDE BUSHING PTFE

Technical support / Custom-made B09 bronze bushings similar Sankyo Oilless bushes, Diamond shape, Split Type, Gap Bushing Price and delivery time on request

wrapped bronze bushings supplier- Plain bearings B09 bronze bushing


Bronze Base Rolling Bearings,Browsing product groups are not available at the moment.
Finishing copper alloy bushings provide a simple, economical way to use bearings with high bearing, good corrosion resistance, dimensional processing any of the characteristics. Meanwhile, we can offer according to different conditions of different copper alloys, and processed in accordance with the requirements of different forms, it has higher accuracy than the size class copper rolling bearings.

Bronze Bushings & Bearings

Bronze Bearings made of CuSn8 with Lubrication Indents

FLANGE BEARINGS

The lubrication pockets must be filled with grease when the bearing is installed. The wrapped bronze bearings are produced according to the ISO 3547.

  • bronze bushing

  • flanged bronze bushing

  • bronze bushing material

  • bushing bronze

  • bronze flange bushing

Bronze Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

STRUCTURE AND COMPOSITION

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents



solid bronze bearings with lubrication indents offer high load capacity, good wear resistance under rough conditions & low speeds.

B09 bronze bushings information "BS" replacement parts

inner diameter d

Please choose
Outer diameter D

Please choose
Length L

Please choose

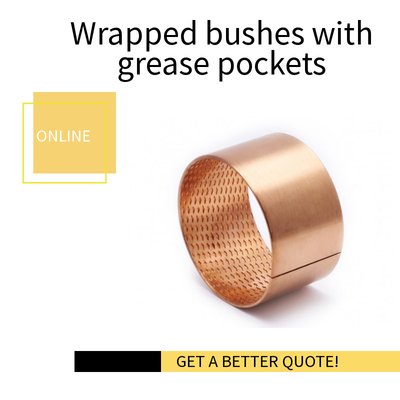

Wrapped bushes with grease pockets

Wrapped Bronze bushes  Properties: "BS"
Base Material: CuSn 8 according to DIN 17662
Self-lubricating: No
Surface Pressure P: 40 N/mm²
Sliding speed v: 120 m/min
Operating temperature: -200°C / +200°C

Metric Wrapped Bronze Sleeve Bushings With Grease Pockets, CuSn8,


FB090
Bronze base rolling bearings
FB090 bronze bearings, specially formulated high-density copper alloy...


FB092
Bronze base rolling bearings
FB092 bronze bushing is based on a bronze material body, uniform...


FB09G
Based solid bronze rolling bearings
FB09G bronze bearings, specially formulated high-density copper alloy...


FB08G
Bimetallic solid rolling bearings
FB08G bronze bushing is based on bronze material body, uniform..



Chemical Composition

Part NO Material Cu Sn P Pb Zn
090 CuSn8 91.3% 8.5% 0.2% / /

 Wrapped bushes with grease pockets CUSN8


Unit: mm
type ID OD FLANGE THICKNESS LENGTH f1 f2 SHAFT HOUSING
FB090 F2520 25 28 35 1.5 20 0.8 0.4 25 -0.02 28 0.021
FB 090 F2525 25 -0.041
FB 090 F3020 30 34 45 2 20 1.2 0.6 30 -0.02 34 0.025
FB090 F3025 25
FB 090 F3030 30 -0.041
FB 090 F3530 35 39 50 30 35 -0.025 39 0.025
FB 090 F3540 40
FB 090 F3550 50
FB 090 F4030 40 44 55 30 40 -0.025 44 0.025
FB 090 F4040 40
FB 090 F4050 50
FB 090 F5030 50 55 65 2.5 30 1.6 0.8 50 -0.025 55 0.03
FB 090 F5040 40
FB 090 F5050 50
FB 090 F5530 55 60 70 30     55 -0.03 60 0.03
FB 090 F5540 40
FB 090 F5550 50     -0.06
FB 090 F6040 60 65 75 40     60 -0.03 65 0.03
FB090 F6050 50
FB090 F6060 60     -0.06
FB090 F8050 80 85 100 50     80 -0.03 85 0.035
FB090 F8060 60
FB090 F8080 80     -0.06
FB090 F10050 100 105 120 50     100 -0.036 105 0.035
FB090 F10060 60
FB090 F10080 80     -0.071
FB090 F16060 160 165 190 60     160 -0.043 165 0.04
FB090 F16080 80     -0.083
FB090 F20060 200 205 235 60     200 -0.05 205 0.046
FB090 F20080 80     -0.096







What is FB090 wrapped bronze bearing?



FB090 Wrapped Bronze bearings are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments.
The self-lubricating sleeve bearing surface is provided with lubrication pockets, which contribute to the enhanced lubrication performance.
This self-lubricating sleeve bearing is produced in accordance with ISO 3547 and DIN 1494.



Where to use FB090 wrapped bronze bearing?



These self-lubricating sleeve bearing are suitable for both radial and axial movements.
The self-lubricating sleeve bearing is well suited for machinery in dirty environments where shock loads and/or vibrations occur.
Examples of applications are:
Agricultural machinery
Hoisting equipment
Construction machinery
Forest machinery



Why choose wrapped bronze bearing?



Insensitive to dirty environments

Resistant to shock loads and vibrations at slow speeds

Good resistance to corrosive conditions



Materials


Support material CuSn8P (DIN 17662) alternative CuSn6P available

  • Specific load capacity static≤ 120 [N/mm2]
  • Specific load capacity dynamic≤ 40 [N/mm2]
  • self-lubricating sleeve bearing speed≤ 2.5 [m/s] depending on lubrication
  • Friction value0.05 [µ] to 0.12 [µ]
  • Temperature strain- 40 [°C] to + 250 [°C]
  • Max. PV-value2.8 [N/mm² x m/s]

self-lubricating sleeve bearing contact surface design
Bearing Assembly



Q1:1. When can I get the quotation?
A1: We usually quote within 24 hours after we get your inquiry.

Q2: Can you do the design for us?
A2: Yes, we have a professional team with rich experience in bearing & bushings design and manufacturing.

Q3: What are your advantages in the competitive markets?
A3: Professional designs, strict quality control, punctual delivery, reasonable price.

Q4: What shall we do, if we need to put the logo on bearing & bushings?
A4: Just send the logo by email, attached the picture by AI, Coral Draw, PDF and High-resolution JPG, etc, and inform our code, then the job would be easily finished.

Q5: What can I do if something is wrong with my order?
A5: Please don’t worry and trust we are responsible partners who won’t leave these things behind. Meanwhile, we need you to send us pictures so we can better check and know what the problem is, and then try our best to solve the problems effectively and pleasantly with you. We can accept redo or a full refund.
