High Load Capacity Bronze Sleeve Bushings Made Of CuSn8 With Lubrication Indents

Product Details:
Place of Origin: Bushing Manufacturer
Brand Name: VIIPLUS
Certification: ISO 9001
Model Number: Cylindrical bushes
Payment & Shipping Terms:
Minimum Order Quantity: negotiation,China factory price
Price: Cheap Price Made in china
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time: 5 - 20 BUSINESS DAYS
Payment Terms: T/T
Supply Ability: STANDARD SIZE
Contact Now

Detail Information

Bushing Material: Bronze Bearings And Bronze Sleeve Bushings Made Of CuSn8 With Lubrication Indents Feature: Good Wear Resistance, Suitable For Rough Conditions
Performance: High Load Capacity And Long Life Type: Cylindrical Bushes With Non-standard Dimensions, Flanged Bushes, Sliding Plates, Customized Bearing Designs
High Light:

oil embedded sleeve bearing

,

graphite sleeve bearings

Product Description

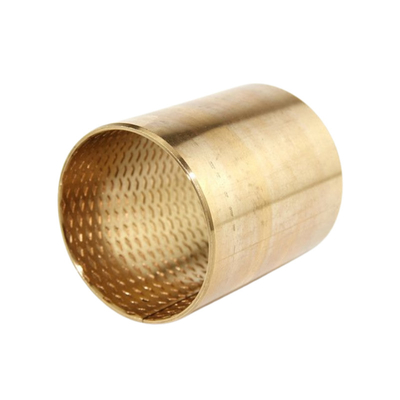

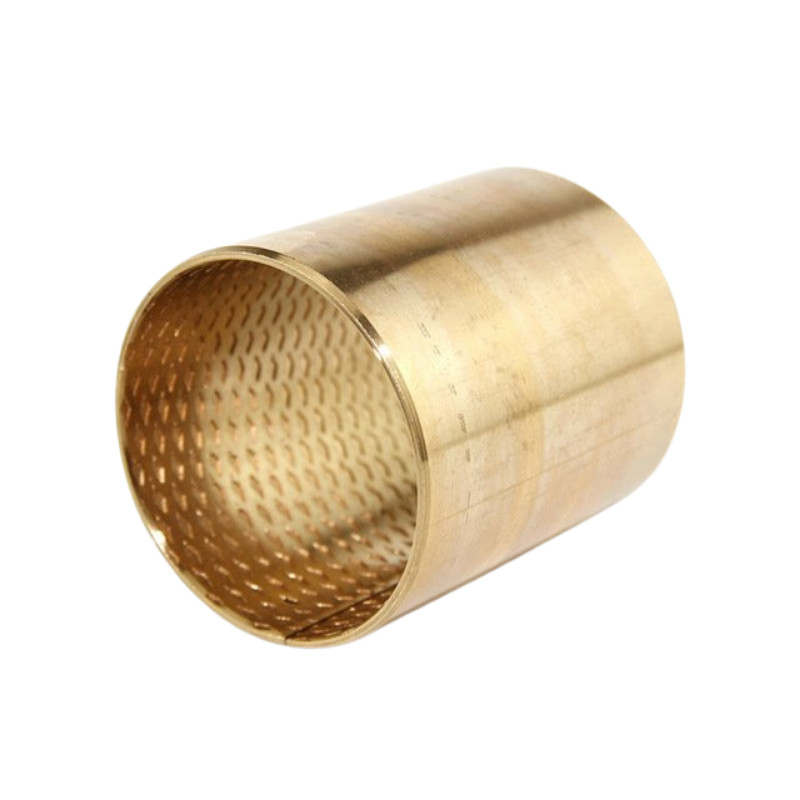

Bronze Bearings made of CuSn8 with Lubrication Indents:

Lubricating Oil Indentations/Holes

The China Supplier in High Performance Bearing Solutions

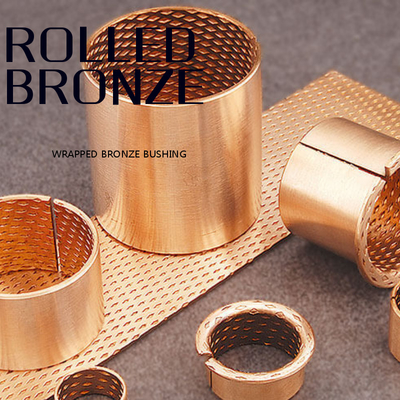

Rolled Bronze with Diamond Indents

Select product bronze bushing type for sizes and to order:
• Metric Sleeve Bushing
• Metric Flange Bushibg
Rolled Bronze w Diamond Indents

Product introduction
The bronze bearing is made of high density copper alloy strip with special formula. The surface can be rolled with diamond or hemispherical oil hole and oil groove according to the user's requirements. It has the advantages of high density, large bearing capacity, good wear resistance and long service life, etc., to replace the traditional cast copper sleeve, can reduce the mechanical volume and reduce the cost. Has been widely used in lifting machinery, construction machinery, car tractor chassis, machine tool industry and mining machinery, but also can be made into bearing bush, flanged bushing, thrust gasket and ball bowl and other forms.






  • Bearing material made of solid bronze strip with indents for lubrication
  • Good wear resistance, suitable for rough conditions
  • Optimum performance under relatively high loads and low speeds



Our bronze bearings are used in many industriesHigh Load Capacity Bronze Sleeve Bushings Made Of CuSn8 With Lubrication Indents 1

AVAILABILITY

Bearing forms available in standard dimensions



Cylindrical bushes



Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs



Applications Industrial:

Mechanical handling and lifting equipment, hydraulic cylinders, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, etc.



Structure And Composition

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

High Load Capacity Bronze Sleeve Bushings Made Of CuSn8 With Lubrication Indents 2





















Materials

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest



Operating Performance

Dry

Poor

Oil lubricated

Good

Grease lubricated

Good

Water lubricated

Poor

Process fluid lubricated

Poor

Standard Dia

O.D.Size

Housing Bore

I.D.Size


Matching Shaft Diameter

10~18 +0.065
+0.030
+0.018
0
+0.046
0
- 0.016
- 0.043
18~30 +0.075
+0.035
+0.021
0
+0.052
0
- 0.020
- 0.020
30~50 +0.085
+0.045
+0.025
0
+0.062
0
- 0.025
- 0.064
50~80 +0.100
+0.055
+0.030
0
+0.074
0
- 0.030
- 0.076
80~120 +0.120
+0.070
+0.035
0
+0.087
0
- 0.036
- 0.090
120~180 +0.170
+0.100
+0.400
0
+0.100
0
- 0.043
- 0.106
180~250 +0.210
+0.130
+0.046
0
+0.115
0
- 0.050
- 0.122
250~315 +0.260
+0.170
+0.052
0
+0.130
0
- 0.056
- 0.137



Technical Data
Material: Cu – 91.3% Sn – 8.5% P – 0.2%
Standard: Cu Sn8. DIN 17662. CW453K
Sliding layer (thickness): Homogeneous
Tensile strength Rm: 450N/mm²
Yield strength Rp 0.2: 250N/mm²
Elongation in % A10: 0.4
Hardness: 90-120 HB
Friction coeff: 0.08-0.25µ
Thermal conductivity: 60W/m·K
Temperature range: -100°C/200°C
Max. load static: 120 N/mm²
Max. load, dynamic: 40 N/mm²
Max. sliding speed (w.lubr.): 2.5 m/s
Pv-value, Mpa x m/s, kont / int: 2.8


Counter material
Recommended shaft hardness: >210HB
Rec. shaft surface roughness (Ra) 1.6
Recommended tolerance: e7-f7
House: H7



Choose Your Bronze Bushings Size.



 I.D. O.D. f 1 f 2 L 0
-0.40
10 15 20 25 30 35 40 50 60 70 80
10   12       1010 1015 1020
12   14       1210 1215 1220
14 + 0.043
0
16 + 0.065
+ 0.030
0.5 0.3 1410 1415 1420 1425
15   17       1510 1515 1520 1525
16   18       1610 1615 1620 1625
18   20       1810 1815 1820 1825
20   23       2010 2015 2020 2025
22   25 + 0.075 0.8   2210 2215 2220 2225
24 + 0.052 27 + 0.035       2415 2420 2425 2430
25 0 28         2515 2520 2525 2530
28   32         2815 2820 2825 2830
30   34         3015 3020 3025 3030 3035 3040
32   36 + 0.085 1.0 0.6   3215 3220 3225 3230 3235 3240
35   39 + 0.045       3515 3520 3525 3530 3535 3540
40 + 0.062
0
44           4020 4025 4030 4035 4040 4050
45   50           4520 4525 4530 4535 4540 4550
50   55           5020 5025 5030 5035 5040 5050 5060
55   60           5520 5525 5530 5535 5540 5550 5560
60   65 + 0.100 1.2 0.8       6025 6030 6035 6040 6050 6060 6070
65 + 0.074 70 + 0.055             6530 6535 6540 6550 6560 6570
70 0 75               7030 7035 7040 7050 7060 7070 7080
75   80               7530 7535 7540 7550 7560 7570 7580
80   85 + 0.120
+ 0.070
1.4           8030 8035 8040 8050 8060 8070 8080
