Tin Phosphor Bronze Sleeve Bushings CuSn8 & CuSn6.5 Material 090 092 Type

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification DIN 1494 / ISO 3547
Model Number wrapped bushing 40 - 44 L50
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-20 work days
Payment Terms T/T, Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material CuSn8/CuSn6 Tin Bronze Bushing Bushing Size 40 - 44 L50
Feature Low-maintenance Item Bronze Sleeve Bushings
Bushing For Sale BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 Type Thin Walled Bearings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings

,

graphite sleeve bearings

Leave a Message
Product Description

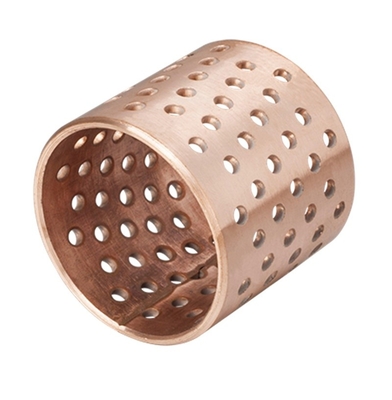

Tin Phosphor Bronze Sleeve Bushings CuSn8 & CuSn6.5 Material 090 092 Type



BRONZEGLEITLAGER.COM













090Introduction

O90 bronze bearing, the use of special high density copper alloy strip of formula for matrix, the surface can be rolling diamond according to the requirements of customers or hemispherical oil hole, groove. With high density, large carrying capacity, good wear resistance, long life and other advantages, to replace the traditional copper casting sets, can reduce the size of our machinery, reduce the cost. 090 has been widely used in hoisting machinery, construction machinery, automobile tractor chassis, machine tool industry and mining machinery, also can be made into bearings, flanged bushes, thrust washers and the ball bowl, etc.



092Introduction



O92 bronze bearing, is a bronze material as the matrix, processing and uniform and orderly oil injection hole, the rolling into a thin wall bearing, lubricating grease injection after assembly, configuration end face seal and use again. The bearing has a large amount of remaining oil and the advantages of small volume, easy installation, design and can replace copper set to use, can greatly reduce the cost. Has the product has been used in conveyor, elevator, roll machine, leveling machine, etc in the occasion of load and low speed.

GENERAL   Unit Value
Maximum load, p

Static

Dynamic

N/mm2

N/mm2

120

40

Operating temperature

Min

Max

°C

°C

- 40

150





Are You a Young Professional Buyer the Future of self-lubricating bronze bushings Industry?

At https://VIIPLUS.COM, we’re recognizing the impact of these amazing young professionals through the Online Sales Website Program — and save the cost and price for there project.

Tin Phosphor Bronze Bushings material cusn8&cusn6 gleitlager,get a free quote.Learn the advantages of using bronze bushng for different temperature application.



Size
Customized
Material
CuSn8P, Customized
Color
Natural
Certification
ISO9001, TS16949
Density
8.8g/cm3
Hardness
90-150HB
Working Temperature Limit
-40~150℃
Max. Dynamic Load
120N/mm²
Max Linear Velocity(Grease)
2.5m/s
Max PV value Grease
2.8N/mm2·m/s
Friction Coefficient
0.06~0.15
Pressure strength
>460N/mm²
Yield Strength
>280 N/mm2
Mating Axis
Hardness≥50, Roughness 0.4~1.0
Coefficient of heat conduction
58W/m·K
Linear Expansion Coefficient
18.5×10-6/K
Application
forest machinery, agricultural machinery ,heavy duty machinery
