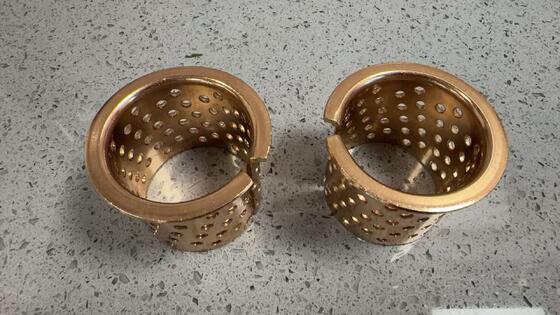

Large Image :  Lagerbuchsen Bronze Sleeve Bushings, Flange Glidlager Size Made to order

Product Details:
Place of Origin: Bushing Manufacturer
Brand Name: REPLACEMENT PLAIN BEARINGS
Certification: ISO 9001
Model Number: Sleeve Bush Wrapped Bronze Bearing
Payment & Shipping Terms:
Minimum Order Quantity: MATE-TO-ORDER CUSTOM BUSHINGS
Price: Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time: 5 - 15 BUSINESS DAYS
Payment Terms: T/T, Western Union
Supply Ability: STANDARD TOLERANCE BUSHINGS

Lagerbuchsen Bronze Sleeve Bushings, Flange Glidlager Size Made to order

Description
Bushing Material: TIN BRONZE CUSN8 CUSN6 Feature: High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance: High Load Capacity And Long Life Type: Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Slidingplates.
Bushing Code: BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 Bearing Size: 4040 Flange Bearings
Bronze Wrapped Bearings: WB700, WF-WB700 Rolled Bronze Bushings Flange Size Bushing: WB702, WF-WB702 Roller Bronze Sliding Bearings
High Light:

oil embedded sleeve bearing

,

graphite sleeve bearings

Wrapped Bronze Bearing Supplier



Drill Rigs Bronze Bushing for Sale | Drilling Rigs Bronze Parts Flange Size | Bushings Source

Bronze mesh material, Drill Rigs Bronze Bushing, self-lubricating sleeve bearing, gleitlager, Buchen made to order, cusn8 bronze material, flange size


Discovery your customer self-lubricating sleeve bearing design type. We guarantee quality lagerbuchsen at a competitive price, delivered on a timely basis.
As well as to provide you with samples of our lagerbuchsen for evaluation.FB -090F / 092F Electric Motor Bronze self-lubricating sleeve bearing 4040mm Size Corrosion Resistance
FB-090F/ 092F Bronze Bearings 4040 Flanged self-lubricating sleeve bearing, Standard catalog size, special size, and designs can be produced at competitive prices.
self-lubricating sleeve bearing FB092F 40*44*40/55

Choose from our selection of press-fit drill self-lubricating sleeve bearing, removable bronze drill bushings, metric split type press-fit drill bushings, and more. Standard Bushings Size In stock and ready to ship, customized self-lubricating sleeve bearing made to order.

Chemical Composition

Part NO Material Cu Sn P Pb Zn
090 CuSn8 91.3% 8.5% 0.2% / /




Unit: mm

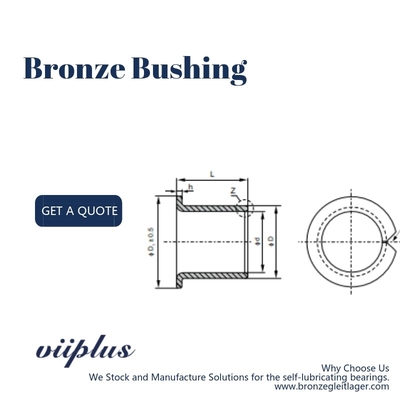

type ID OD FLANGE THICKNESS LENGTH f1 f2 SHAFT HOUSING
FB090 F2520 25 28 35 1.5 20 0.8 0.4 25 -0.02 28 0.021
FB 090 F2525 25 -0.041
FB 090 F3020 30 34 45 2 20 1.2 0.6 30 -0.02 34 0.025
FB090 F3025 25
FB 090 F3030 30 -0.041
FB 090 F3530 35 39 50 30 35 -0.025 39 0.025
FB 090 F3540 40
FB 090 F3550 50
FB 090 F4030 40 44 55 30 40 -0.025 44 0.025
FB 090 F4040 40
FB 090 F4050 50
FB 090 F5030 50 55 65 2.5 30 1.6 0.8 50 -0.025 55 0.03
FB 090 F5040 40
FB 090 F5050 50
FB 090 F5530 55 60 70 30     55 -0.03 60 0.03
FB 090 F5540 40
FB 090 F5550 50     -0.06
FB 090 F6040 60 65 75 40     60 -0.03 65 0.03
FB090 F6050 50
FB090 F6060 60     -0.06
FB090 F8050 80 85 100 50     80 -0.03 85 0.035
FB090 F8060 60
FB090 F8080 80     -0.06
FB090 F10050 100 105 120 50     100 -0.036 105 0.035
FB090 F10060 60
FB090 F10080 80     -0.071
FB090 F16060 160 165 190 60     160 -0.043 165 0.04
FB090 F16080 80     -0.083
FB090 F20060 200 205 235 60     200 -0.05 205 0.046
FB090 F20080 80     -0.096





 self-lubricating sleeve bearing

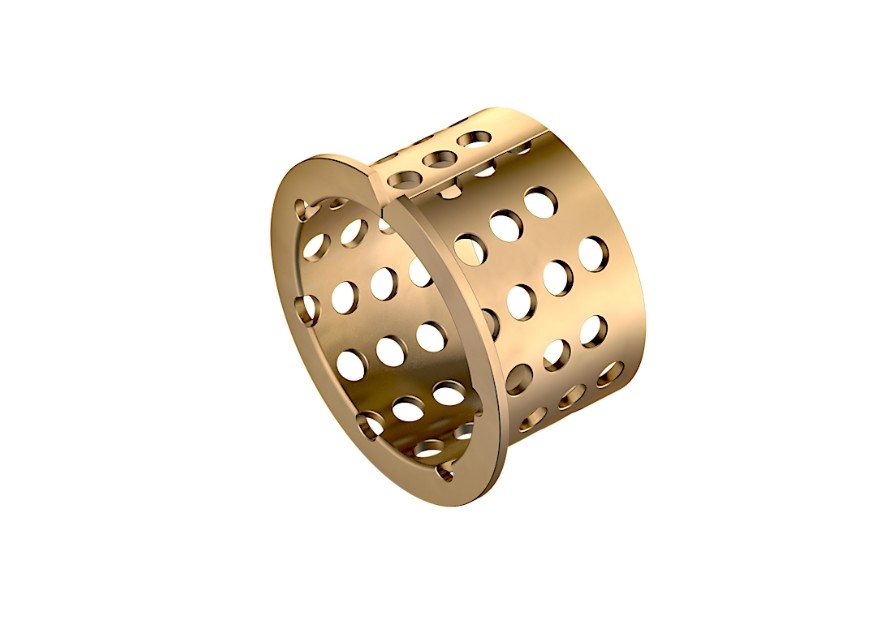

What is FB090 wrapped bronze bearing?



FB090 Wrapped Bronze bearings are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments.
The self-lubricating sleeve bearing surface is provided with lubrication pockets, which contribute to the enhanced lubrication performance.
This self-lubricating sleeve bearing is produced in accordance with ISO 3547 and DIN 1494.



Where to use FB090 wrapped bronze bearing?split sleeve bronze bushing


These self-lubricating sleeve bearing are suitable for both radial and axial movements.
The self-lubricating sleeve bearing are well suited for machinery in dirty environments where shock loads and/or vibrations occur.
Examples of applications are:
Agricultural machinery
Hoisting equipment
Construction machinery
Forest machinery



Why choose wrapped bronze bearing?



Insensitive to dirty environments

Resistant to shock loads and vibrations at slow speeds

Good resistance to corrosive conditions



Materials


Support material CuSn8P (DIN 17662) alternative CuSn6P available

  • Specific load capacity static≤ 120 [N/mm2]
  • Specific load capacity dynamic≤ 40 [N/mm2]
  • self-lubricating sleeve bearing speed≤ 2.5 [m/s] depending on lubrication
  • Friction value0.05 [µ] to 0.12 [µ]
  • Temperature strain- 40 [°C] to + 250 [°C]
  • Max. PV-value2.8 [N/mm² x m/s]

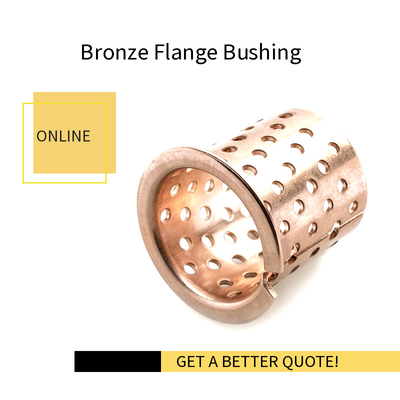

Customized Flange Bronze Bush Split Sleeve Bearing

Self-lubricating sleeve bearing contact surface design
Bearing Assembly



d D     length L0-0.40
f1 f2 10 15 20 25 30 35 40 50 60 70 80 90 100
10 12     1010 1015 1020
12 14 0.5   1210 1215 1220
14 16     1410 1415 1420 1425
15 17     1510 1515 1520 1525
16 18     1610 1615 1620 1625
18 20   0.3 1810 1815 1820 1825
20 23     2010 2015 2020 2025
22 25   0.4 2210 2215 2220 2225 2230
24 27       2415 2420 2425 2430
25 28       2515 2520 2525 2530
28 31 0.8     2815 2820 2825 2830
30 34       3015 3020 3025 3030 3035 3040
32 36 1 0.6   3215 3220 3225 3230 3235 3240
35 39       3515 3520 3525 3530 3535 3540
40 44         4020 4025 4030 4035 4040 4050
45 50         4520 4525 4530 4535 4540 4550 5060
50 55 1.2 0.8     5020 5025 5030 5035 5040 5050 5560
55 60         5520 5525 5530 5535 5540 5550 6060
60 65           6025 6030 6035 6040 6050 6560 6070
65 70             6530 6535 6540 6550 7060 6570
70 75             7030 7035 7040 7050 7560 7070 7080
75 80             7530 7535 7540 7550 8060 7570 7580
80 85             8030 8035 8040 8050 8560 8070 8080
85 90 1.4           8530 8535 8540 8550 9060 8570 8580 8590
90 95             9030 9035 9040 9050 9560 9070 9080 9090
95 100   0.8             9540 9550   9570 9580 9590 95100



d D     length L0-0.40
f1 f2 25 30 35 40 50 60 70 80 90 100
100 105             10015 10060 10070 10080 10090 100100
105 110   1.8         10550 10560 10570 10580 11590 105100
110 115             11050 11060 11070 11080 11090 110100
115 120             11550 11560 11570 11580 11590 115100
120 125               12060 12070 12080 12090 120100
125 130               12560 12570 12580 12590 125100
130 135               13060 13070 13080 13090 130100
135 140               13560 13570 13580 13590 135100
140 145               14060 14070 14080 14090 140100
145 150               14560 14570 14580 14590 145100
150 155               15060 15070 15080 15090 150100
155 160               15560 15570 15580 15590 155100
160 165               16060 16070 16080 16090 160100
165 170               16560 16570 16580 16590 165100
170 175               17060 17070 17080 17090 170100
175 180               17560 17570 17580 17590 175100
180 185               18060 18070 18080 18090 180100
185 190               18560 18570 18580 18590 185100
190 195               19060 19070 19080 19090 190100
195 200               19560 19570 19580 19590 195100
200 205               20060 20070 20080 20090 200100
205 215               20560 20570 20580 20590 205100
215 225               21560 21570 21580 21590 215100
225 230               22560 22570 22580 22590 225100
230 240               23060 23070 23080 23090 230100
240 250 1.4             24060 24070 24080 24090 240100
250 260 1.4 1.8           25060 25070 25080 25090 250100
260 270           26060 26070 26080 26090 260100
270 280           27060 27070 27080 27090 270100
280 290           28060 28070 28080 28090 280100
290 300           29060 29070 29080 29090 290100
300 305           30060 30070 30080 30090 300100
