Caliper Seals Repair Kit Bronze Sleeve Bearings High Temperature Resistance

  • Caliper Seals Repair Kit Bronze Sleeve Bearings High Temperature Resistance
  • Caliper Seals Repair Kit Bronze Sleeve Bearings High Temperature Resistance
Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO 9001
Model Number Sleeve Bush Wrapped Bronze Bearing
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 5 - 15 BUSINESS DAYS
Payment Terms T/T, Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material Tin Bronze Cusn8 Cusn6 Feature High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance High Load Capacity And Long Life Type Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Slidingplates.
Bushing Code BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 Application Caliper Seals Repair Kit Bronze Bushings
Bearing Sale BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Self-Lubricating Sintered Bronze Bushing
Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil embedded sleeve bearing

,

graphite sleeve bearings
Leave a Message
Product Description

Bronze Sleeve Bushings





Caliper Seals Repair Kit Bronze Sleeve Bearings High Temperature Resistance

BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700

Bronze Bush,Caliper Seals Repair Kit Bronze Bushings Groove Type made to order from china.Sliding Bronze Bearings

VIIPLUS constantly study the latest technology & materials and research & development of the new products.Find a Wrapped Bronze Bearings Outer Diameter mm,Length Size.Get a free quote today!





bronze sleeve bushing







Stable custom split material metric bronze bushing

Dimensions



Bronze Bush Ø41 x Ø37 x 73 mm

Bronze Bush Ø41 x Ø37 x 30 mm

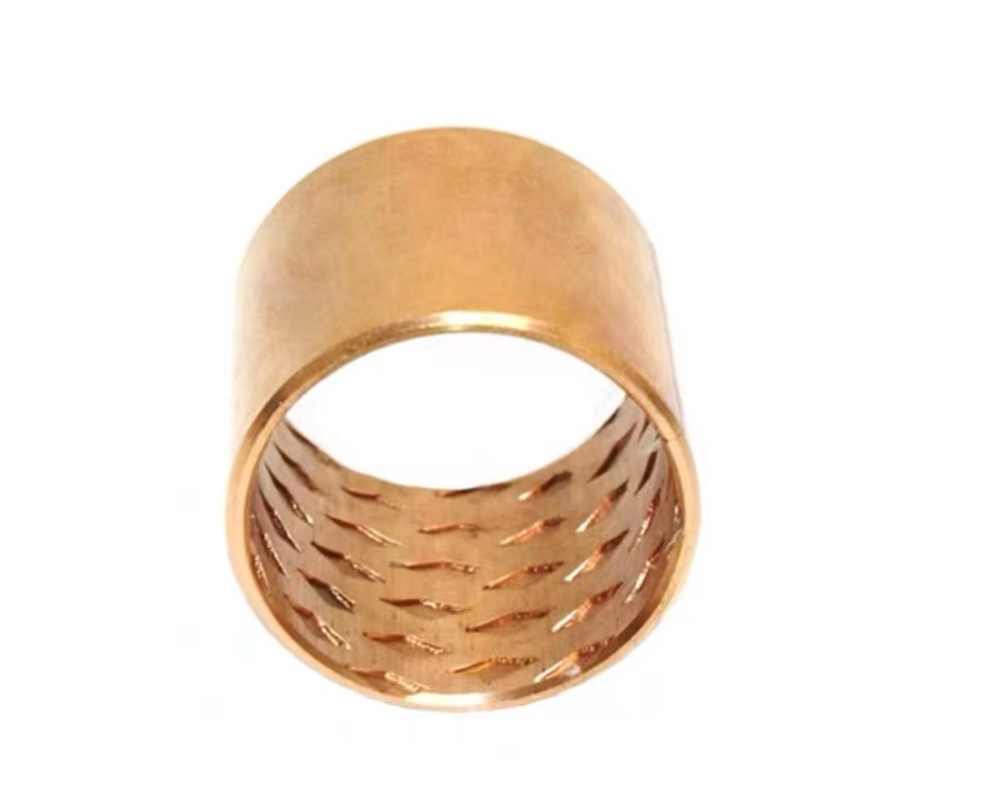

Tin bronze bearing is made of bronze with oil holes evenly distributed on it. When
assemble it, the bearing should be lubricated with grease before both ends of the bearing is
Assembled with seals. Tin bronze bearing 090 &092 bushing  has the advantages of abundant oil storage, easy-to-assembly
Or easy to be machined etc. It can substitute bushings made by complete copper material, in addition, it suits for conditions of middle load and low speed including convey machine. Hoisting machine, windlass, aligning machine etc.
Material:CuSn8P0.3orCuSn6.5P0. 1
Hardness:HB90~120
Temperature limit:-100℃~200℃
Load capacity:60N/mm2
Speed limit:2.5m/s

Interference of bearing assembly

Before the bearing is pressed into the seat hole: bearing outer diameter > inner diameter of the seat hole.After the interference assembly, a strong stress will be generated in the hole, so that the inner circle of the bearing can ensure a higher degree of firmness, and the bearing can be better fixed to prevent the sliding and wear of the bearing in the hole
Interference calculation press
Minimum yield 6min= minimum bearing outside diameter Dmin- maximum base bore inside diameter DH

Chemical Composition

Part NO Material Cu Sn P Pb Zn
090 CuSn8 91.3% 8.5% 0.2% / /

precision oil free sheet metalbronze wrapped roller spilt

MATERIALS

Support material CuSn8P (DIN 17662) alternative CuSn6P available



  • Specific load capacity static≤ 120 [N/mm2]
  • Specific load capacity dynamic≤ 40 [N/mm2]
  • Sliding speed≤ 2.5 [m/s] depending on lubrication
  • Friction value0.05 [µ] to 0.12 [µ]
  • Temperature strain- 40 [°C] to + 250 [°C]
  • Max. PV-value2.8 [N/mm² x m/s]



Bearing contact surface design
Bearing Assembly
