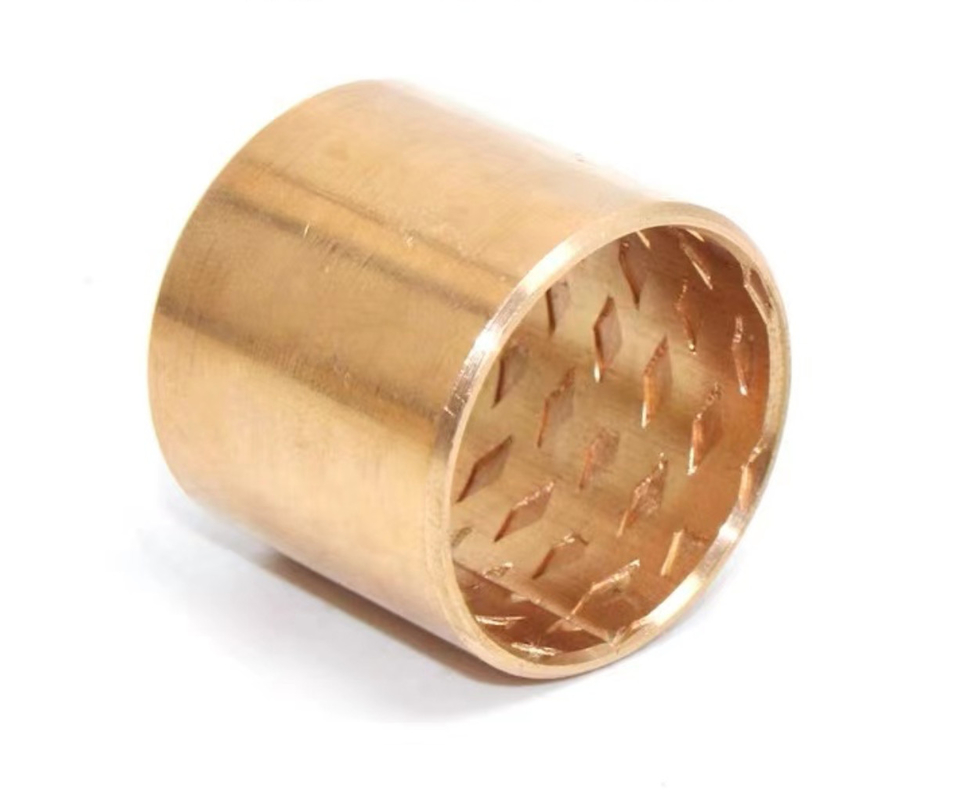

CuSn8 Thin Wall TIn Bronze Sleeve Bushes For Agricultural Machinery

CuSn8 Thin Wall TIn Bronze Sleeve Bushes For Agricultural Machinery

Brand Name: REPLACEMENT PLAIN BEARINGS
Model Number: FB090 BRONZE BUSHINGS
MOQ: MATE-TO-ORDER CUSTOM BUSHINGS
Price: Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Payment Terms: T/T
Supply Ability: STANDARD TOLERANCE BUSHINGS
Detail Information
Place of Origin:
Bushing Manufacturer
Certification:
ISO 9001
Application:
Hoisting, Mining Machinery,forest Machinery, Agricultural Machinery
Material:
CuSn8/CuSn6 Bronze
Size:
Customized
Type:
Sleeve
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Self-Lubricating Sintered Bronze Bushing
Characteristic:
Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
EXPORT CARTON WOOD PALLET WOODEN CASE
Supply Ability:
STANDARD TOLERANCE BUSHINGS
Highlight:

oil embedded sleeve bearing

,

graphite sleeve bearings

Product Description

CuSn8 Thin Wall Tin Bronze Sleeve Bushes are specifically designed for use in agricultural machinery. These bushings are made of CuSn8 bronze material, which combines excellent wear resistance and corrosion resistance, ensuring reliable and long-lasting performance in agricultural applications.

The thin-wall design of these bushings allows for reduced weight and optimized space utilization, making them suitable for various agricultural machinery components that require precision and durability. The addition of tin to the bronze composition further enhances its mechanical properties, improving its resistance to deformation and fatigue.

The sleeve bushes are designed with precision to fit tightly into their designated positions, providing a smooth and efficient surface for rotational or sliding movements. This reduces friction and wear, ensuring smoother operation and longer service life for the agricultural machinery.

Moreover, the CuSn8 material is well-suited for agricultural environments, as it can withstand exposure to moisture, dirt, and other contaminants without compromising its performance. This makes it an ideal choice for bushings used in outdoor agricultural equipment.

In summary, CuSn8 Thin Wall Tin Bronze Sleeve Bushes are an excellent choice for agricultural machinery, providing reliable and durable performance in harsh and demanding conditions.

CuSn8 Thin Wall TIn Bronze Sleeve Bushes For Agricultural Machinery

Bronze Sleeve Bushings



CUSN8 BRONZE BUSHING BEARINGS MADE TO ORDER FROM CHINA,Better corrosion resistance than tin bronzes with lower tin content, higher strength and very good sliding properties and wear resistance. Good cold formability, good solderability. Sliding components, slide bearings (especially thin-walled ones) and sliding guide bearing bushing.mechanical properties as manufactured.

LAND IN MOTION HTTP://BRONZESLEEVE.COM | The Premier Source for Bronze Bushings Online,HTTP://BRONZEGLEITLAGER.COM
We produce world leading bearings and slide bushings in China. Look no further for your premium OEM alternative, where consistently long lead times and high prices can be found. We will show you a complete service, quality and world class production resources. We are the supplier in supplying bushing parts and bearings for scrapers, excavators, loaders and excavators.Custom Bearing Solutions Design & Development Bushings Made-To-Order Bronze Sleeve Thin Wall Flange Bearings & Bushing for an Oil/Grease Application



Product Description


FB090 is made from highly alloyed, hot-rolled phosphorus-tin bronze. The plain bearings are specially designed for high loads and shockproof. The entire sliding surface of the bearing consists of lubrication pockets that build up a lubricating film that reduces friction both during start-up and during operation. FB090 is designed for radial, oscillating and axial movements and is particularly suitable for medium to high loads.

Preferential price customized wrapped bronze bushing bearing with oil socket Thin Wall Bronze Sleeve Bushes For Agricultural Machinery,hoisting, mining machinery,forest machinery



Material

CuSn8/CuSn6 Bronze

Density

8.8g/cm³

Max Dynamic Load

100N/mm²

Max Linear Velocity(Grease)

2m/s

Max PV value Grease

2.8N/mm²·m/s

Pressure strength

>460N/mm²

Yield Strength

>280N/mm²

Hardness

90~150HB

Mating Axis

Hardness ≥50 ,Roughness 0.4~1.0

Working Temperature

-40~150℃

Friction Coefficient

0.06~0.15

coefficient of heat conduction

58W/m·K

Linear expansion coefficient

18.5×10-6/K

Application

hoisting, mining machinery,forest machinery, agricultural machinery

We can also develop bronze bushing according to customers special request while out of this table



Application Features


1. save a lot of copper, copper sets working hours to save.2. Compared with bushes to its light weight, low cost;
3. can be processed in a variety of friction surface has hole, pit, storing certain oils, prolonged refueling time is five times that of copper sets;
4.The high load capacity, especially suitable for rough friction surface;
