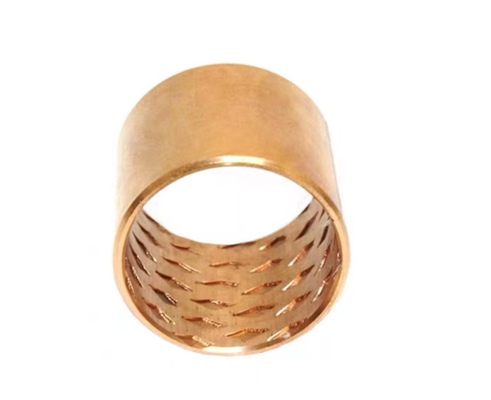

Tin Bronze Din Cusn8 Sleeve Bushings E90 E90F PRM PRMF BMZ FB090 Round Oil Pockets
| Place of Origin | Bushing Manufacturer |
|---|---|
| Brand Name | REPLACEMENT PLAIN BEARINGS |
| Certification | ISO 9001 |
| Model Number | FB090 BRONZE BUSHINGS |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 3 - 15 BUSINESS DAYS |
| Payment Terms | T/T |
| Supply Ability | STANDARD TOLERANCE BUSHINGS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bushing Material | TIN BRONZE CUSN8 CUSN6 | Feature | High Temperature Resistance,Wear Resistance,corrosion Resistance |
|---|---|---|---|
| Performance | High Load Capacity And Long Life | Type | Sleeve,Flange,Thrust Washer |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | wrapped bronze bushings,graphite sleeve bearings |
||
Product Description
Bronze Sleeve Bushing Made To Order From China Stock Prices Cheap Online China Factory Manufacturer
Our Tin Bronze Din Cusn8 sleeve bushings are precision-engineered components designed to offer superior wear resistance and lubrication. These bushings are manufactured using high-quality tin bronze material, ensuring durability and reliability in various industrial applications.
A key feature of these bushings is the inclusion of round oil pockets, specifically designated as E90, E90F, PRM, PRMF, BMZ, and FB090. These pockets are designed to enhance lubrication by evenly distributing oil or lubricant, reducing friction and wear. This, in turn, extends the lifespan of the bushings and improves the overall performance of the mechanical system.
The Din Cusn8 specification ensures that the bushings meet industry standards for material composition and performance. This alloy offers excellent corrosion resistance, making it suitable for use in environments where exposure to moisture or chemicals is a concern.
Our sleeve bushings are available in a range of sizes and specifications to meet the specific requirements of different equipment and operational conditions. Wh you need bushings for high-speed applications, heavy loads, or specific lubrication requirements, we can provide a solution that meets your needs.
With our expertise in manufacturing and material science, we are confident in the quality and performance of our Tin Bronze Din Cusn8 sleeve bushings. Contact us today to discuss your requirements and find the best bushings for your application.
Straight sets, thrust washers, flanged bushings, bearings, skateboards, steel sleeve assembly.
CUSN8/CUSN6 090 Series bushings biggest feature is the thin-walled structure, does not occupy a large installation space. Sleeve material specially formulated high-density copper alloy strip. Compared with the traditional casting of copper, with high density, no gas shrinkage, carrying capacity, but also wear resistance, fatigue and other advantages. Bushings manufactured using advanced tooling, can be processed into a variety of engineering conditions apply oil hole, oil pit, sump friction surface strip, so that the sleeve can store a lot of grease in use, to extend the refueling interval, effective increased service life.

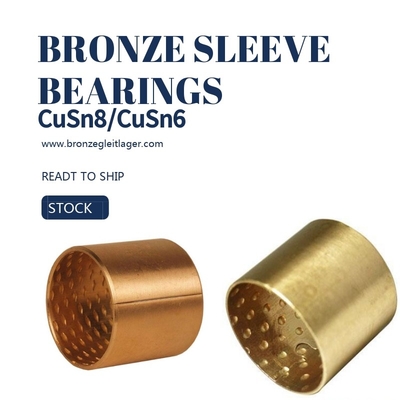

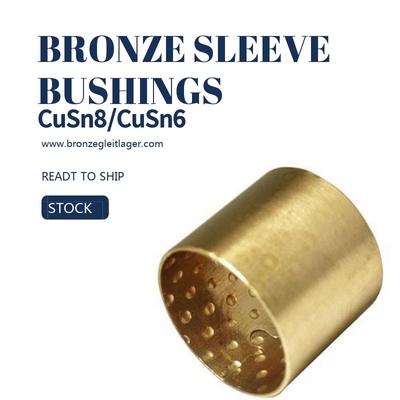

FB090 Wrapped Bronze Bushings Customized Bronze Sleeve Sliding Bearings
Material: CuSn8P,CuSn6.5P
Type: sleeve,flange bearing,thrust washer,strip,plate,sheet,custom-made
Hardness:90~150 HB
Oil pockets:FB090 Sleeve Bush With Round Hole Shape Bushing Bronze Wrapped Bearing
Customer's drawing, various material, size and type, open seam can be divided (straight seam) or snapped (deadbolt), etc.
| QUALITY BRONZE BUSHING MATERIAL | ||
| PN | DIN | |
| BRONZE SLEEVE BUSHING MATERIAL | B101 | CuSn10P |
| B8 | CuSn8 | |
| B6 | CuSn6 | |
| BA1032 | CuAl10Fe3Mn2 | |
| BA1054 | CuAl10Ni5Fe4 | |
| RG7 | CuSn7Zn4Pb7 | |
| B815 | CuSn8Pb15Ni | |
| BK331 | CuSi3Zn3Mn1 | |
Tech. Data:
|
Physical and mechanical Performance |
Mating Axis |
Hardness |
≥50 HRC |
|
Roughness |
0.4~1.0 |
||
|
Max Load Pressure |
|
100 N/mm2 |
|
|
Max Linear Velocity |
|
2 m/s |
|
|
Max PV Value |
|
2.8 N/mm2*m/s |
|
|
Tensile Strength |
|
460 N/mm2 |
|
|
Yield Strength |
|
260 N/mm2 |
|
|
Hardness |
|
90-150 HB |
|
|
Working Temperature |
|
150 ℃ |
|
|
Friction Coef. |
|
0.05~0.2u |
|
|
Heat Conducting Coef. |
|
58W/(m*k) |
|
|
Heat Expansion Coef. |
|
18.5 (10(-6)k(-1) |
Request:
It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
