Tin Bronze DIN CuSn8 Flange Sleeve Bushings DIN ISO/3547,High Quality

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO 9001
Model Number FB092 Sleeve Bush Wrapped Bronze Bearing
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Bushing Sleeve Price Made in china
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 3 - 15 BUSINESS DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material TIN BRONZE CUSN8 CUSN6 Feature High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance High Load Capacity And Long Life Type Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Slidingplates.
Bushing Code BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Self-Lubricating Sintered Bronze Bushing
Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil embedded sleeve bearing

,

graphite sleeve bearings

Leave a Message
Product Description

Tin Bronze DIN CuSn8 flange sleeve bushings DIN ISO/3547 are high-quality components that are widely used in various industrial applications. These bushings are made of tin bronze, a type of alloy that offers excellent wear resistance, corrosion resistance, and mechanical properties.

The DIN CuSn8 designation indicates that the bushings are composed of copper with an 8% tin content, which provides them with superior strength and ductility. The flange sleeve design allows for easy installation and secure attachment to the desired surface, ensuring stable and reliable performance.

The bushings adhere to the DIN ISO/3547 standard, which ensures that they meet strict quality requirements and are suitable for use in various industrial environments. Their high-quality construction ensures long-lasting durability and performance, reducing the need for frequent maintenance or replacement.

Wh you need bushings for machinery, equipment, or other industrial applications, tin bronze DIN CuSn8 flange sleeve bushings DIN ISO/3547 are an excellent choice for providing superior performance and reliability.





Bronze Bushing Sleeve Cheap Price - Select high quality Bronze Material Bushing Sleeve Price products in best price from certified Chinese Sleeve Bushings Flange Bearings Supplier.

Inner diameter 20 (mm) outer diameter 23 (mm) thickness 20 (mm)



Find here online price CuSn8 Bronze Bushings Sleeve.



details of

Homogeneous bronze bushings (Cu 91,3%, Sn 8,5%, P 0,2%)

BRONZE SLEEVE BUSHING MADE TO ORDER FROM CHINA STOCK PRICES CHEAP ONLINE CHINA FACTORY

BUTT JOINT BUSHINGS,PRMF Dimensions

QSn8-0.3

Qsn8-0.3 tin bronze is bronze with tin as the main alloying element.Tin content is generally 3 ~ 14%, mainly used for making elastic components and wear - resistant parts.



Chemical composition


Sn: 7.0 to 9.0
P: 0.03 to 0.35
Zinc: 0.20 or less
Ni: 0.20 or less
Fe: 0.01 or less
Pb: 0.05 or less
Cu: allowance

MANUFACTURER WB802, WB800, WB702, WB700, B92 i B90

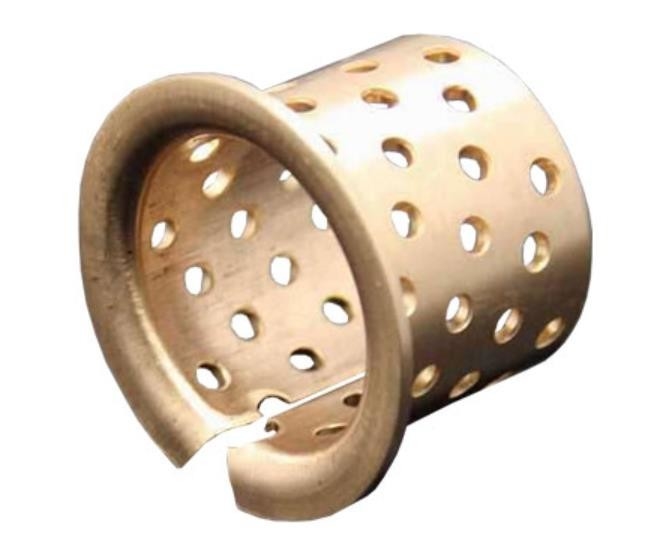

FB092 Flange Bronze Bearing Bushing & FB092 Sleeve Bush Wrapped Bronze Bearing

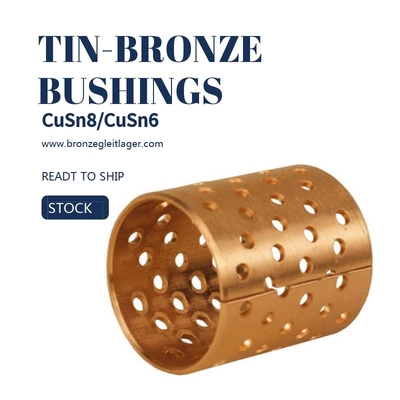

FB092 Wrapped Bronze Bearing Material: CuSn8P CuSn6.5P bronze bushings





  QUALITY BRONZE BUSHING MATERIAL
PN DIN
BRONZE SLEEVE BUSHING MATERIAL B101 CuSn10P
B8 CuSn8
BA1032 CuAl10Fe3Mn2
BA1054 CuAl10Ni5Fe4
RG7 CuSn7Zn4Pb7
B815 CuSn8Pb15Ni
BK331 CuSi3Zn3Mn1

Tech. Data:

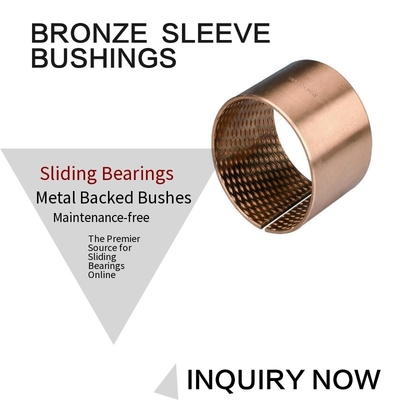

wrapped bronze bushing

Physical and mechanical Performance

Mating Axis

Hardness

≥50 HRC

Roughness

0.4~1.0

Max Load Pressure



100 N/mm2

Max Linear Velocity



2 m/s

Max PV Value



2.8 N/mm2*m/s

Tensile Strength



460 N/mm2

Yield Strength



260 N/mm2

Hardness



90-150 HB

Working Temperature



150 ℃

Friction Coef.



0.05~0.2u

Heat Conducting Coef.



58W/(m*k)

Heat Expansion Coef.



18.5

(10(-6)k(-1)



Bronze Sleeve Bushing Size Made In China
