Metals | Brass | Bronze Sleeve Bushings , Graphite plugged bearing, china supplier, high quality
Place of Origin | Bushing Manufacturer |
---|---|
Brand Name | REPLACEMENT PLAIN BEARINGS |
Certification | ISO9001:2008 CuSn8, CuSn6.5, Brass |
Model Number | LD Bronze Bearings made of CuSn8 with Grease Reservoirs |
Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
Packaging Details | Export Cartons,Customizable |
Delivery Time | 10~20 work days |
Payment Terms | TT IN ADVANCE,L/C,Western Union |
Supply Ability | STANDARD TOLERANCE BUSHINGS |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Aluminum-Bronze With Solid Lubricant,CuSn5Pb5Zn5 | Model Number | Cylinder Bearings,Cylinder Bearings With Flange |
---|---|---|---|
Feature | Self Lubrication | Lubrication | Graphite |
Application | Oil Drilling Platform Bushing | Quality | High Quality |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | oil embedded sleeve bearing,graphite sleeve bearings |
As a leading supplier of high-quality metals, we offer a range of brass and bronze sleeve bushings that are designed for optimal performance in various industrial applications. Our bronze bushings, in particular, are made from a durable alloy that combines the strength and corrosion resistance of copper with the hardness and wear resistance of tin.
For even greater durability and lubrication, we also offer graphite plugged bearings. These bearings are designed with graphite inserts that provide excellent lubrication and reduce friction, ensuring smooth and efficient operation. The graphite also acts as a heat insulator, helping to maintain stable temperatures and extend the bearing's lifespan.
As a China supplier, we pride ourselves on offering high-quality products that meet international standards. We use only the finest raw materials and adhere to strict manufacturing processes to ensure the consistency and reliability of our products.
Wh you need brass or bronze sleeve bushings, graphite plugged bearings, or any other metal component for your industrial application, we have the solution for you. Contact us today to learn more about our products and how we can help you achieve optimal performance in your equipment.
Metals | Brass | Bronze Sleeve Bushings available in different shapes & sizes made to order from china
Bronze sleeve bushing is your online sliding bearings resource. We specialize in copper and brass plugged graphite bearings sales.CATALOGO TECNICO TECHNICAL CATALOG Self-lubricating bearings of port machinery are widely used in outdoor logistics machinery such as porters, stacking machines, lifting platform vehicles and port machinery.Compared with traditional rolling bearings, they are maintenance-free, low cost and corrosion resistant.
VSB-50 Solid Bronze Metallic Self-lubricating Bearings
viiplus Product information sheet | ||||||||||||
Product | Material Parameters | Use The Feature | Process Method | Application Field | Optional Structure | |||||||
JDB-1 | CuZn25A16Fe3Mn4+Graphite+MOS2+ | Such as high temperature, high load, low speed overload and other occasions. | See if the outside diameter is centrifugal or continuous casting.Subsequent car, manual + graphite | At present, the product has been used in low load, high temperature, medium speed occasions such as fireplace door, oven raceway, rubber machinery, light industry machinery and machine tool industry. | Flange, straight cylinder, graphite position, etc | |||||||
JDB-2 | CuSn6Zn6Pb3+Graphite+MOS2+ | The bearing capacity of the two - alloy bearings is the strongest | See if the outside diameter is centrifugal or continuous casting.Subsequent car, manual + graphite | At present, the products have been used in metallurgical continuous casting machines, train supports, steel rolling equipment, mining machinery, ships, gas turbines | Flange, straight cylinder, graphite position, etc | |||||||
JDB-3(Can be welded) | steel+CuSn6Zn6Pb3+Graphite+MOS2+ | Save cost and improve compressive strength.Its end face can be welded with the matrix for installation and use (can be welded) | See if the outside diameter is centrifugal or continuous casting.Subsequent car, manual + graphite | Applicable to metallurgical machinery, construction machinery and oil transfer machinery and other fields can not fuel | Flange, straight water cylinder graphite position, etc | |||||||
JDB-4 | HT250+Graphite+MOS2+ | Save cost and improve compressive strength.Its end face can be used with matrix welding installation (can be welded) if under pressure <14.5n /mm2 or where mechanical properties are required, can be used as a substitute for vsb-jdb-2 material | See if the outside diameter is centrifugal or continuous casting.Subsequent car system | For example, the mold guide column, injection molding machine mold frame and other fields can be used. | The position of graphite and so on | |||||||
JDB-5 | GCr15+Graphite+MOS2+ | It is a reinforced product with high anti-pressure performance, and can discharge lubricating particles when working, so that a layer of diaphragm is generated between the shaft and the sleeve, which has the advantage of more anti-bite than monomer oil lubrication, and is especially suitable for the supporting parts of lifting machinery | See if the outside diameter is centrifugal or continuous casting.Subsequent car system | Suitable for the support of winder and crane, but not suitable for use in water or acid and alkali. | The position of graphite and so on | |||||||
JDB-6 | CuZn25A16Fe3Mn4 | Simple and economical bearing application, with high bearing capacity, good corrosion resistance, arbitrary size processing and other characteristics | It has higher dimensional accuracy than rolled copper bearings | Construction machinery: chassis walking mechanism supporting wheel shaft sleeve, towing wheel shaft sleeve, tensioning wheel shaft sleeve;Automobile industry: balanced shaft bushing, steel plate pin bushing, steering knuckle-main shaft bushing, connecting rod bushing, valve rocker arm bushing, camshaft bushing, differential bushing, gearbox bushing, internal combustion engine spindle tile, thrust gasket;And plunger pump side piece, gear pump side piece, etc. | Flange, straight cylinder | |||||||

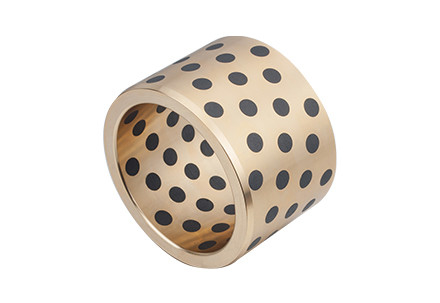

Cast Bronze Bearing with Graphite Plugs

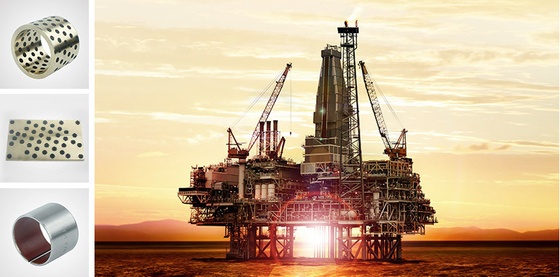

VIIPLUS BRONZE GLEITLAGER provides a large number of JSP sliders for the jack-up oil RIGS. For oil and gas delivery system, provide self - lubrication and free - maintaining shaft sleeve.
Material: CuSn5Pb5Zn5
Typicai applicaton
The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

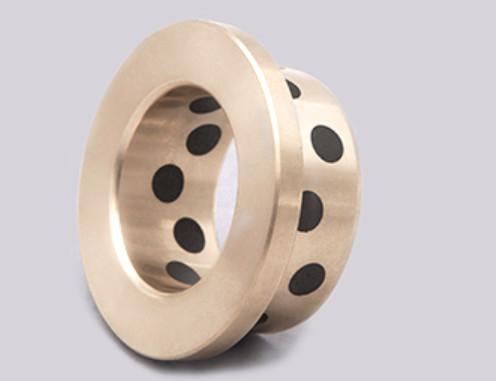

Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant
Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.
Solid Lubricant Casting Aluminum Bronze Bearings Bushings
Characteristics
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
Strusture
VSB-50 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Technical Data
|
Data |
|
Material |
|
CuSn5Pb5Zn5 |
Density |
|
8.9g/cm³ |
Hardness |
|
>70HB |
Tensile strength |
|
>200N/mm² |
Yeild strength |
|
>90N/mm² |
Elongation |
|
>15 % |
Coefficient of linear expansion |
|
1.8·10-5/℃ |
Performance |
Data |
|
emp. Limits |
|
-40~+400℃ |
Max. Dynamic Load |
|
60N/mm² |
Max.speed V |
|
10m/min |
Max.PV |
|
60N/mm²*m/min |
Besides the standard products displayed in the list of this catalogue, we can also supply non-standard products or develop according to customer design. |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
Typical Applications
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
