C95500 Cast Bronze Flange Bearing ASTM B271

Place of Origin Bushing Manufacturer
Brand Name VIIPLUS
Certification DIN G-CuSn 7 ZnPb
Model Number Rg7 Bronze Bushing CC493K
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T, Western Union
Supply Ability Buy material bronze rg7 Bronze Bushings Online,Bronze Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material Flanged Cast Bronze Bushings Bushing Feature Cast Bronze Bearings Have Flanges
Code Bronze Equivalent C95500 Bronze Material High Lead And Copper Bushings
Bushings Size 8~400mm Size Customized Flange Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

C95500 Cast Bronze Bearings

,

ASTM B271 Bronze Flange Bearing

,

ASTM B271 Bronze Sleeve Bushings

Leave a Message
Product Description

ASTM B271 C95500 Bronze Flange Cast Bearing.

ASTM B271 C95500 Bronze Bearings, flange cast bearing.

C95500 aluminum bronze is a copper base alloy with aluminum as the main alloying element. It is aluminum bronze containing Iron and manganese element . It belongs to high-strength heat resistant bronze. Aluminum content generally does not exceed 11.5%, sometimes also add the appropriate amount of iron, nickel, manganese, and other elements, to further improve the performance. Aluminum bronze can be strengthened by heat treatment, its strength is higher than tin bronze, and its resistance to high temperature oxidation is better.

CB06 Alloy Chemical Composition (CuSn10)
Cu Sn Chemicals / Alloy
88.0-90.0 9.0-11.0 CuSn10
CB06 Alloy Code & Corresponding International Code
Product Code Alloy Code Alloy Hardness Corresponding International Code Maximum Operating Temperature Tmax Approximate Density ( g/cm3 )
CB06 CuSn10 ≥80 HB ISO 1338 / CuZn10, 0+280 °C 8.7
DIN 1705 / CuZn10,
ASTM UNS C90700,
CT-1 BS1400
Available Bronze Alloy



ALLOY TYPE EN STANDARD DIN STANDARD ASTM STANDARD (NEAREST EQUIVALENT) OTHER COMPATABLE ALLOYS
Aluminum Bronze CW307G CuAl10Ni C63200 / C63000 NES833, BSB23(DTD197A)
Aluminum Bronze - CuAl10Fe3Ni7Mn2 C63000 -
Aluminum Bronze CC331G CuAl10Fe2-C C95400 SAE68
Aluminum Bronze CC333G CuAl10Fe5Ni5-C C95500 SAE68B
Leaded Bronze CC496K CuSn7Pb15-C C93800 SAE67
Leaded Bronze CC495K CuSn10Pb10-C C93700 SAE64 / SAE797 / SAE792
Leaded Bronze CC494K CuSn5Pb9-C C93500 SAE66
Leaded Bronze CC497K CuSn5Pb20-C C94100 SAE94, SAE794 & SAE799.
Leaded Bronze - CuSn7ZnPb C93200 SAE660
Leaded Gunmetal CC491K CuSn5Zn5Pb5-C C83600 SAE40
Leaded Gunmetal CC492K CuSn7Zn2Pb3-C C93400 -
Leaded phosphor bronze - CuSn8Pb4Zn1 C93100 -
Leaded Phosphor Bronze CC480K CuSn10-C C92700 -
Nickel Gunmetal - CuSn7Ni5Zn3 B292-56 -
Phosphor Bronze CW450K CuSn4 C50900 C51100 -
Phosphor Bronze CW451K CuSn5 C51000 NES838
Phosphor Bronze CW452K CuSn6 C51900 -
Phosphor Bronze CW459K CuSn8 C52100 BSB24 DTD265A
Phosphor Bronze - - - BSB24, PB104
Tin Phosphor Bronze CC481K CuSn11P-C B143 SAE65
Tin Phosphor Bronze CC483K CuSn12-C CC483K SAE65




Bronze Sleeve Bushings Gun Metal Bronze Bearing Price. Other cast bronze bushing dimensions on request. All rg7 bronze bushings with a bore diameter> 14 mm incorporate an axial lubrication groove! Get your groove type!

Gun metal, also known as red brass in the United States, is a type of bronze – an alloy of copper, tin, and zinc.





Material : RG7 BRONZE BUSHING (GC-CuSn7ZnPb as per DIN 1705) or CuSn7Zn4Pb7-C ( CC493K) as per EN 1982

Finish Size/(Base size Ø)

RG7 / CC493K bronze round bar

RG7 GROOVE BRONZE BUSHINGS TYPE equipped with grooves to retain lubricant

Dimension, RoHS compliant, REACH. CuSn7Zn4Pb7-C Rg7 BRONZE BEARING

Cast bronze bushing & bearings material bronze rg7
Solid Bronze bushings
RG7 Solid Bronze Alloy Bearings
RG7 BRONZE EQUIVALENT RG7 BRONZE EQUIVALENT BUSHINGS CHARACTERISTICS

  • Conventional bearing material for lubricated applications in general engineering applications
  • RG7 BRONZE BEARINGS APPLICATIONS Industrial – Mechanical handling and lifting equipment, general and special engineering, agricultural equipment, textile machinery, automotive engineering, etc.
  • Suitable for oil and grease lubrication

Rg7 is the most common bronze alloy worldwide. The material properties make this alloy well suited for cast bronze bearing and groove bushing!

Solid Bronze Bushing Catalog, Size Chart

solid bronze bushing CuSn7Zn4Pb7 bronze bushing.pd...

Characteristics

Permissible load (dyn/stat), N/mm2 25 / 45

Permissible sliding velocity, m/s 0,5

Friction coefficient m (greased) 0,08 0,15

Temperature range, °C –40 +250



RG7 Bronze Alloy Bearings and Bronze Sleeve Bushings Application recommendations

Shaft tolerance e7 – e8

Housing tolerance H7

Shaft roughness Ra, mm 0 1,0

Shaft hardness, HB 165 – 400

Leaded gunmetal SAE 660 continuous castings bearings and centrifugal castings bushing leaded gunmetal.VIIPLUS as a large stock of bushings and bronze bearing with immediate availability.For pieces with bronze bushings & sliding bearings diameter of ≤ 400 mm. For larger sizes values to be agreed with the order. For small diameter bronze bearings ≥8mm.Get Competitive self-lubricating bronze bushing & gleitlager rate with your best China, Online Support, let viiplus handle your next shipment now.

AVAILABILITY RG7 BRONZE  BEARINGS ACCORDING TO rg7 Bearing type made to order: Cylindrical bushes with bronze alloy, special parts according to ISO, DIN or customer design, special alloys

Continuous Casting & Centrifugal Casting


The Most Complete and Flexible
BRONZE AND HIGH TENSILE BRASS FOUNDRY IN CHINA
Contact viiplus and Get a Better bronze bearings prices Rate from China.
Contact us and Reduce bronze gleitlager Your Cost. ... we will always be your best partner for self-lubricating bronze bearings from China. Anywhere you need to send your shipment from China.

CC 493K / RG7 BRONZE BUSHING

Rg7 bronze bearings


Typical Uses


SAE660 has traditionally been used as general utility bearings, bushings and wear plates, and other engineering components requiring good wear resistance and machinability.
SAE660

We supply Cast bronze bearings, RG7, C93200Cusn7zn4pb7 bronze graphite bearings, flange, straight type, wear plate, thrust washer. custom bearings.
Bronze Bearings Datasheets: SAE660 / CC493K offers very good machining properties and reasonable strength and hardness levels. The tin and the lead content in the material also enhances the alloys wear resistance and gives excellent anti-friction qualities. SAE660 / CC493K is not subject to dezincification and offers reasonable corrosion resistance in seawater and brine. This makes it suitable for pump and valve components bearings and bushings having medium loads and speeds with adequate lubrication.
CC493K, Gunmetal,




Gunmetal, Red Bronze etc.


Rg7 is the most common bronze alloy worldwide. The material properties makes this alloy well suited for bearings, valve bushings, bronze wear plates,trust washer and similar bronze parts. Pressure-tight with good dry running properties and easy to machine simply makes this an excellent all around bronze alloy.

Areas of use


Straight & flange bronze standard bearings, sliding bearings, valve bushing, pump housings, water, and steam fitting, and much more.

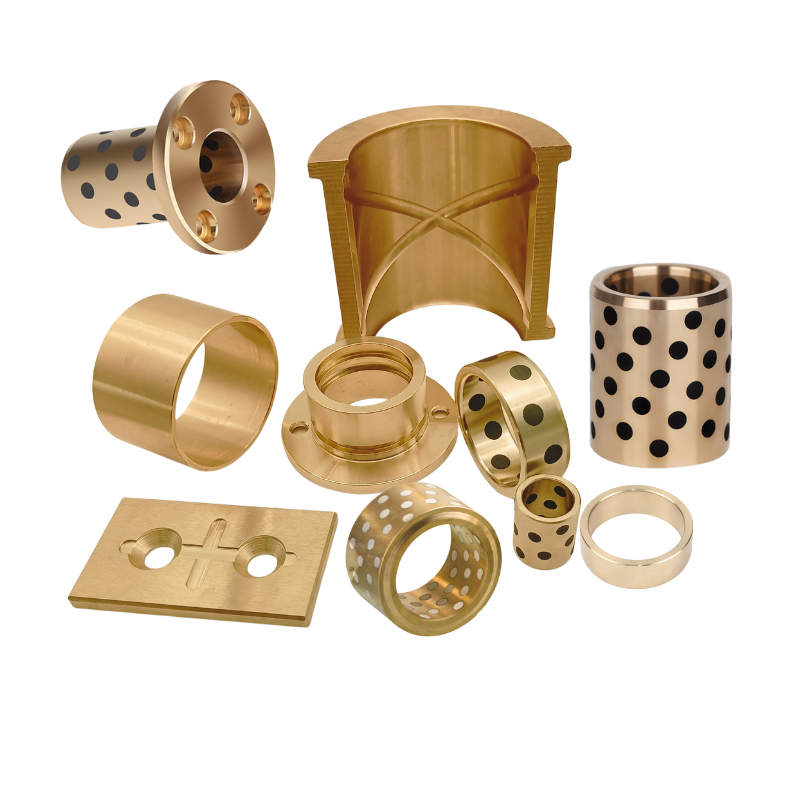

Bronze prats type

l Flange bearing

l Straight bushing

l Washer

l Plate

l Custom part


 Finished rg7 bronze bearings products: solution for the manufacture of finished bronze parts and self-lubricating bronze based on our customer drawings.

 Buy bronze bushing & graphite bearings? Request a quote

Red bronze RG7

Discover our bronze bearing & gleitlager products

Chemical composition Cu Sn Zn Pb Ni P
% 81-85 6-8 3-5 5-7 2Max 0.2Max


Mechanical properties
Yield strength (Rp N/mm²): ≥ 120 N/mm²
Tensile strength (Rm N/mm²): ≥ 260 N/mm²
Elongation in % A5: ≥ 12%
Hardness/Brinell: ≥ 70 HB
Density of ∼ 8.8
Mating material: Min. surface hardness 200HB. Rec. surface roughness < 1 Ra
Characteristics The material is not suitable for welding (lead content). The material is suitable for soldering and brazing. The material is also suitable for bonding.

General Purpose Bushings Corrosion Resistance, Machine Parts, Pump BushingsThrust Washers

C93200 Leaded Tin Bronzes Bushing

Related Standards


SAE660 CC493K
C93200 CuSn7Zn4Pb7
(RG7)

VIIPLUS is continuous and centrifugal cast bronze and high tensile brass foundry with a high production capacity. We manufacture a wide range of sizes and alloys that comply with the main international standards. We have the availability of a wide range of standard alloy bronze parts in ASTM BS EN1982 DIN JIS AS ISO to offer excellence in service and quick delivery throughout the world. Chemical composition

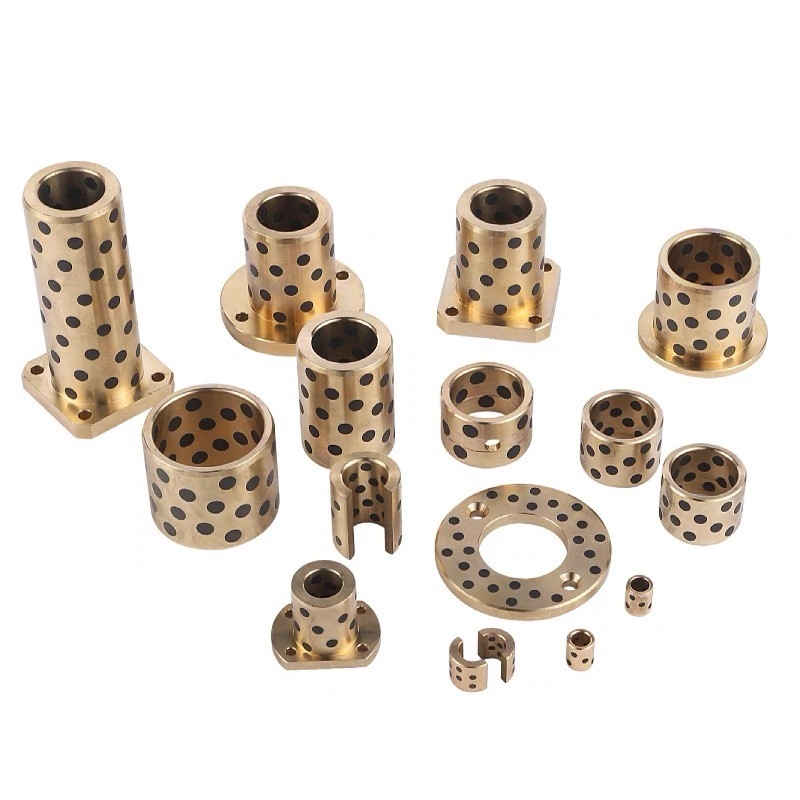

graphite-plugged-bushings-cast bronze bearing RG7




Area Standards Alloy Code




Europe BS 1400 LG4
DIN 1705 CuSn5ZnPb (Rg7)
NFA 53707 UE7
USA ASTM B505 C93200(SAE 660)
ASTM B271 C93200(SAE 660)
Australia AS 1565 C93200
Japan JIS H5121 CAC407C
JIS H5120 CAC407
ISO 1338 CuSn7Pb6Zn4
Germany DIN 1705: 1981 CuSn7ZnPb 2.1090 Rg 7, GC-Rg 7, GZ- Rg 7

Australia AS 1565: 1996 C93200 C93200 Leaded gunmetal SAE 660
Denmark
DS 3001: 1978 Rodgods 5426 5426  [ Rg 7 ]
Spain UNE 37-103-2: 1981 CuSn7Zn4Pb6 C-3530
Europe EN 1982: 1998 CuSn7Zn2Pb3-C CC492K
Europe EN 1982: 1998 CuSn7Zn4Pb7-C CC493K
Finland
SFS 2207: 1977 CuSn7Pb6Zn3
France
NF A 53-707: 1987 CuSn7Pb6Zn4
ISO ISO 1338: 1977 CuSn7Zn3Pb7   BS ZN 4 // Bronzo allo zinco
Italy UNI 7013-7: 1972
Portugal NS 16525: 1977 CuSn7Pb6Zn3   Rodmetall Stopelegering
Portugal NP 1585 : 1978 CuSn7Pb6Zn4
UK BS 1400: 1985 CuSn7Pb3Zn3 LG4 87/7/3/3 Leaded gunmetal CuSn7
Switzerland
VSM 10810-1: 1973 CuSn7Pb6Zn4   Rg 7
USA ASTM B 584 : 1999 C93200 C93200 High-lead tin bronze SAE 660
