| Brand Name: | VIIPLUS |
| Model Number: | LG2 BRONZE BUSHING |
| MOQ: | negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |

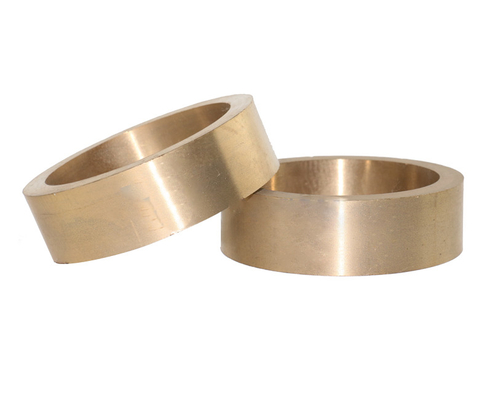

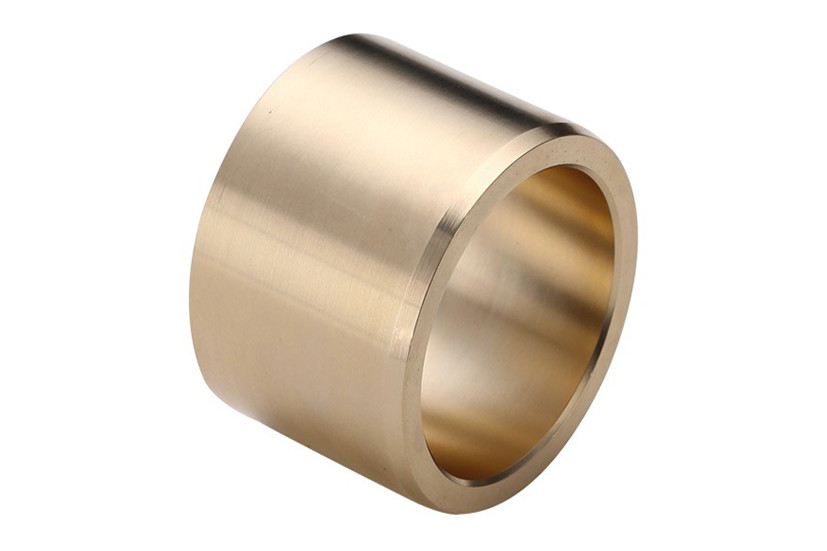

The LG-2 Bronze Bush is a high-quality, precision-machined component made from bronze alloy. Bronze is a metal alloy that typically consists of copper and other metals, such as tin, aluminum, or silicon, and is known for its excellent corrosion resistance, wear resistance, and machinability.
The LG-2 Bronze Bush is specifically designed for applications where high precision and durability are required. Its bronze material ensures that it can withstand repeated use and friction while maintaining tight tolerances. The bush is often used in bearings, bushings, and other mechanical components to provide a smooth, low-friction surface for rotating or sliding parts.
The LG-2 Bronze Bush can be customized to meet specific requirements, including different dimensions, tolerances, and surface finishes. It is also available in various bronze alloys to suit different application needs, such as those requiring enhanced corrosion resistance or higher strength.
In summary, the LG-2 Bronze Bush is a reliable and durable component that is widely used in various industrial and mechanical applications where precision and durability are crucial.
LG2 has Excellent machining properties. Medium strength, good pressure toughness and is not subject to dezincification and has reasonable corrosion resistance to sea water and brine, making it suitable for pump and valve components. LG2 is suitable for bearings having light loads and low to medium speeds with adequate lubrication and for very light duty gears when loading is negligible.
| Typical Composition | ||
| Min. % | Max. % | |
| Copper | 84 | 86 |
| Tin | 4 | 6 |
| Zinc | 4 | 6 |
| Lead | 4 | 6 |
| Phosphorous | 0.05 | |
| Aluminium | 0.005 |
LG-2 bronze bush bronze bushing is based on the copper alloy. It offers technically and economically favorable bearings solutions.
It is of high load capability, low weight, and good corrosion resistance.
LG-2 bronze bush bronze bushing can offer different types of bronze copper alloys according to the required lifetime, service, etc. The tolerance is much tighter than wrapped bronze bushes.
| Manufacturing Process | Tensile Strength MPa | Yield Strength 0.2% MPa | Elongation % | Hardness range HB |
| Continuous Cast | 270 | 100 | 13 | 75 |
| Centrifugal Cast | 220 | 110 | 8 | 80 |
This kind of products are widely used in machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft and transmission, etc. We can use different copper alloy material as per customer's requirements.
❤ The LG-2 bronze bush bronze bushing is Self-lubricating, easy to install and easy to use .
❤ High-quality LG-2 bronze bush material, durable and long time for your replacement tool.
❤ LG-2 bronze bush bronze bushing for slide block 3D printer accessories.
❤ Suitable for Ultimaker 3D Printer slide block.
❤ Suitable size for your using.
Bearing forms made to order: cylindrical bushes, flanged bushes, thrust washers, sliding plates, half-bearings, axial and radial segment rings, self-aligning spherical bearings, spherical plain bearings, special shapes, customized bearing designs
| Dry | Good |
| Oil-lubricated | Good |
| Grease lubricated | Good |
| Water lubricated | Depending on copper alloy |
| Process fluid lubricated | Depending on Fluid and copper alloy |
| Technical Data | |||||
| Material | Brass | Bronze | Bronze | Bronze | Bronze |
| CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuSn10Pb10 | |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8.9 |
| Yield point/mm2 | ＞450 | ＞90 | ＞260 | ＞150 | ＞100 |
| Tensile strength N/mm2 | ＞750 | ＞200 | ＞600 | ＞260 | ＞210 |
| Elongation % | ＞12 | ＞15 | ＞10 | ＞8 | ＞8 |
| Hardness HB | ＞210 | ＞70 | ＞150 | ＞95 | ＞75 |
|
QC System
|
100% inspection before shipment.
|
||
|
Packaging
|
Standard package/ As per customized specifications
|
||
|
Delivery Date
|
7-30 working days based on quantity
|
||
|
Payment Terms
|
1)<USD1000.00 100%T/T deposit
|
||
|
2)≥USD1000.00 30% T/T deposit, 70% balance before shipment; T/T, L/C&D/P is acceptable
|
|||
|
Shipment Terms
|
1)≤100kg: express& air freight priority
|
||
|
2) >100kg: sea freight priority
|
|||
|
3) As per customized specifications
|
|||
