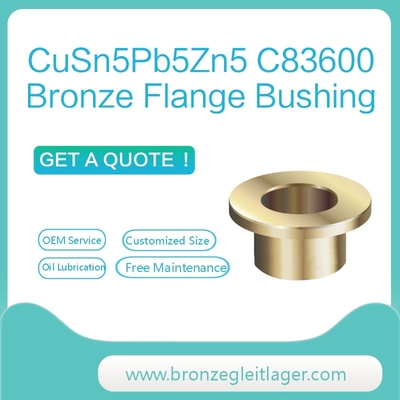

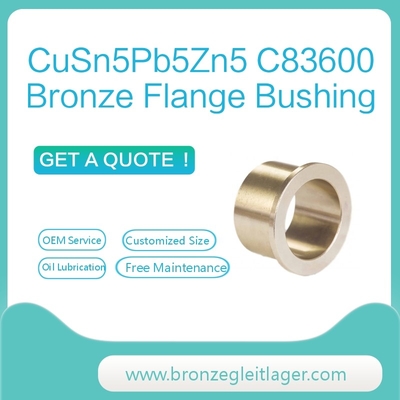

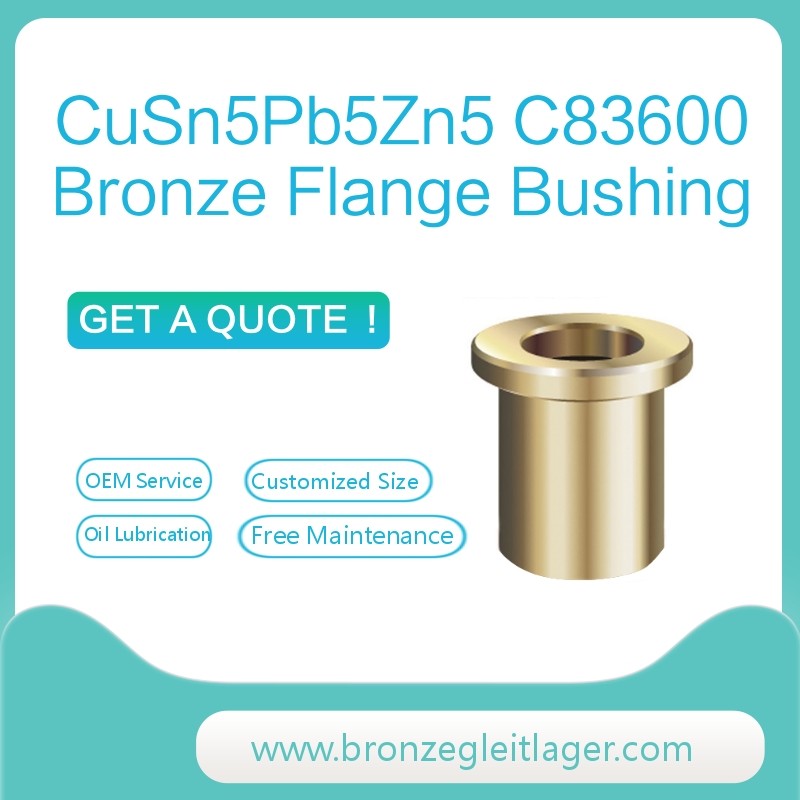

CuSn5Pb5Zn5 C83600 Bronze Flange Bushing Graphite
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | CuSn12 Bush |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | 7000000 Piece/Pieces One week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | C83600 Bronze Bushing, CuSn5Pb5Zn5 Copper Bush | Type | Solid Bronze Bearings |
|---|---|---|---|
| Feature | Cast Bronze Bearing | Style | Sleeve, Flange Size Bronze Bush |
| Bush Bearing Price | Competitive Price | Size | Customized |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | C83600 Bronze Flange Bushing,CuSn5Pb5Zn5 Bronze Flange Bushing,60HB flanged bronze bushes |
||
Product Description
The CuSn5Pb5Zn5 (C83600) bronze flanged bushing with a graphite coating offers a unique combination of strength, durability, and self-lubricating properties. The C83600 bronze alloy, composed of copper, tin, lead, and zinc, is known for its excellent wear resistance and corrosion resistance, making it a suitable material for demanding applications.
The flanged design of the bushing allows for easy installation and secure positioning, ensuring stability and reliability during operation. The graphite coating further enhances the performance of the bushing by reducing friction and wear. Graphite is a natural lubricant that offers excellent lubrication properties, reducing the need for additional lubrication and maintenance.
The combination of C83600 bronze and graphite coating results in a bushing that is suitable for a wide range of industrial applications. It can be used in rotating machinery, bearings, and other applications where smooth and reliable rotation is crucial. The self-lubricating properties of the graphite coating ensure long-lasting performance with minimal wear, even under heavy loads and high speeds.
Overall, the CuSn5Pb5Zn5 (C83600) bronze flanged bushing with graphite coating is a reliable and cost-effective solution for improving the performance and durability of rotating machinery and bearing applications.

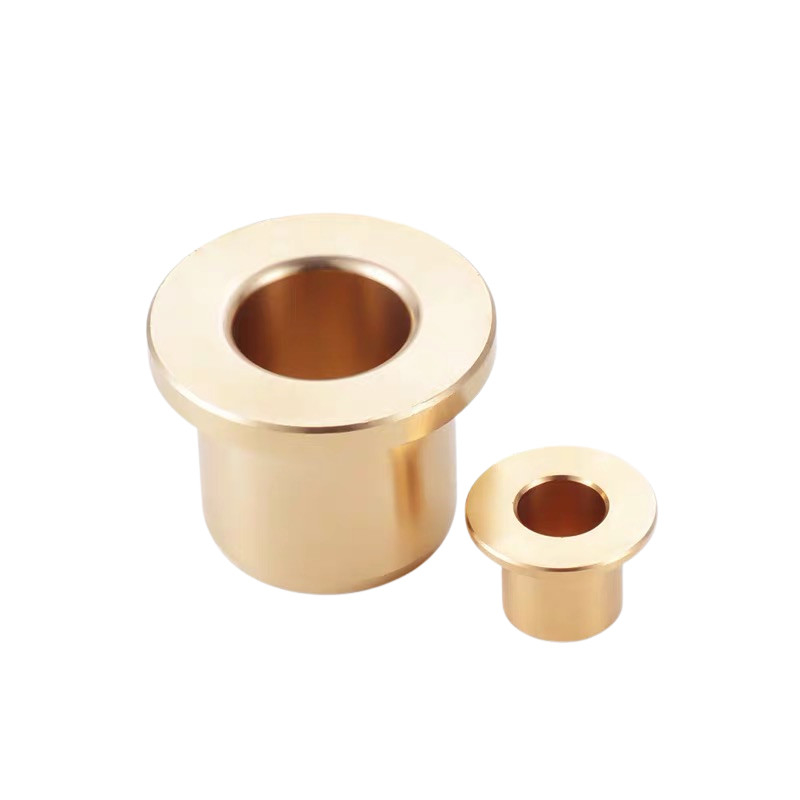

CuSn5Pb5Zn5 C83600 Bronze Flange Bushing
Casting Bronze Bushing Supply - High-quality factory products, C83600 Bronze Flange
Bushing, Pursue high self-lubricating technology & good material CuSn5Pb5Zn5 bronze bushing, combine the best quality bronze bearing & reasonable price.
Cast Bronze Bushing Lubricating Products, Competitive Prices. High Quality Products.
www.bronzegleitlager.com can provide customized product services according to drawing and material requirements.
Tin Bronze Bush Supplier
Casting Copper Alloy Bronze Bearings
Type:Tin Bronze Bushing
| Chemical Composition mass/% | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| 84.0-86.0 | 4.0-6.0 | 0.005 | 0.3 | - | 1 | 4.0-6.0 | 0.005 | 0.05 | 4.0-6.0 |
| Mechanical properties | |||
|---|---|---|---|
| Tensile strength Mpa(Min) | Yield strength MPa(Min) | Elongation % | Brinell hardness(HB) |
| 248 | 131 | 15 | 60 |
CuSn5Pb5Zn5 Bronze bushing with graphite plugs
Structure: Bronze bearings made of CuSn5Pb5Zn5 with solid lubricant plug (graphite)
Technical Data:
| Density | 8.7 g/cm3 | |
| Hardness | >70 HB | |
| Tensile strength | >200 N/mm2 | |
| Yeild strength | >90 N/mm2 | |
| Elongation | >15 | |
| Coefficient of linear expansion | 1.8x10-5/°C | |
| Operating temperature | -40°C~+250°C | |
| Max. Dynamic Load | 60 | |
| Max. Speed | Dry | 0.3 m/s |
| Oil | 0.85 m/s | |
| Max. PV limit | Dry | 1.0 N/mm2.m/s |
| Oil | 1.65 N/mm2.m/s | |
| Friction | Dry | 0.12~0.16 μ |
| Oil | 0.03~0.08 μ | |
Characteristics:
Bronze alloy bearings with graphite plugs provide both good wear resistance and great self lubricating feature of this bearing.
This designation enables the bearings to be operated without oiling or greasing maintenance.
It is widely used in the field of high load and intermittent movement as well as oscillating movement conditions.
Bronze Flange Bearing Plugged Graphite Features
High load capacity, very good wear and abrasion resistance, moderate corrosion resistance, hardened mating material favorable. Special suitable for toggle mechanism bushing in injection molding machines.
1. It is widely used in the mold manufacturing industry.
2. The selection of high-quality high strength brass and graphite, so that the guide sleeve in the guide performance of durability greatly enhanced, and has a beautiful metallic luster.
3. After grinding, its toughness, finish, and positioning performance are excellent.
4. High dimensional accuracy and stable quality.
|
Product Name
|
Wholesale Customized Casting Bronze Bushing
|
|
Material
|
1)Metal: Stainless steel, Steel(Iron,)Brass, Copper, Aluminum.
2)OEM according to your request. |
|
Surface treatment
|
Anodized different color, Mini polishing&brushing, Electronplating(zinc plated,nickel plated, chrome plated), Power coating & PVD coating, Laser marking&Silk screen, Printing, Welding, Harden etc.
|
|
Tolerance
|
±0.01mm
|
|
process
|
CNC machining,Auto lathing/turning,Milling,Grindin, Tapping Drilling,Bending,Casting,Laser cutting
|
|
Certificate
|
ISO9001
|
|
Delivery Time
|
7-21days
|
|
MOQ
|
100pcs
|
Note:
1,In Chemical Composition, Single values represent maximums.
2,Mechanical performance of hardness value is only for reference.
