| Brand Name: | VIIPLUS |
| Model Number: | Bronze Bushing |
| MOQ: | negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 Piece/Pieces One week |

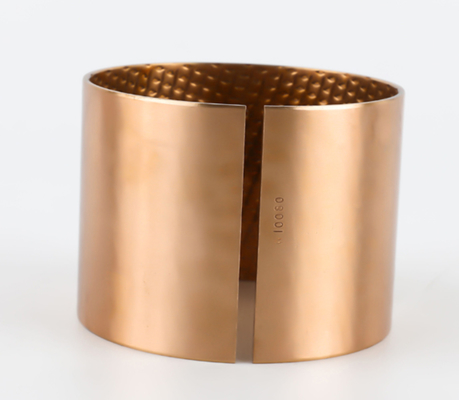

The Cylindrical CuSn8P Self-Lubricating Plain Bearing is a high-performance bearing designed to offer exceptional durability and reliability in various industrial applications. The CuSn8P material, a bronze alloy with phosphorus addition, exhibits superior wear resistance and load-bearing capacity, making it suitable for bearings that require high strength and long-term stability.
The cylindrical shape of this bearing ensures smooth and even rotation, minimizing friction and wear. The self-lubricating property of CuSn8P material further enhances its performance by reducing the need for external lubrication, thus simplifying maintenance and extending the bearing's lifespan.
The plain bearing design allows for easy installation and integration into various mechanical systems. It can withstand high loads and temperatures, making it suitable for use in demanding environments such as heavy-duty machinery and high-speed applications.
In summary, the Cylindrical CuSn8P Self-Lubricating Plain Bearing offers a robust and reliable solution for industrial applications that require smooth and efficient operation. Its superior material properties and self-lubricating design ensure long-term performance and durability, reducing the need for frequent maintenance and replacements.
bushing for use in machine construction and repairs
- port-lubricated type
| PLAIN CYLINDRICAL BUSHING |
3220 | CuSn8 | 32/36x20 |
- bushing for use in machine construction and repairs
- port-lubricated type
- inner diameter Ø 40 mm
- outer diameter Ø 44 mm
- length 30 mm
- wall thickness 2 mm
- lubrications ports 4 mm
- material bearing bronze
These professional wrapped bronze plain bearings liukulaakeriholkki with holes 092 manufacturers in China, welcome to buy the customized and low price bronze hole sleeve, bronze bearing bush, wrapped bronze sleeve or get the free sample from our factory.

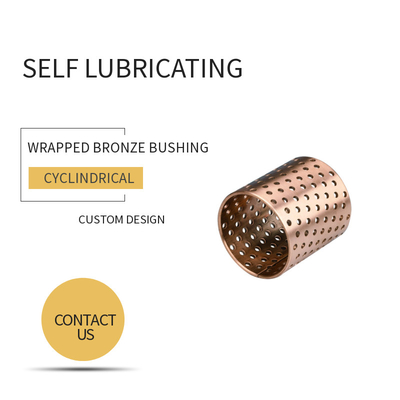

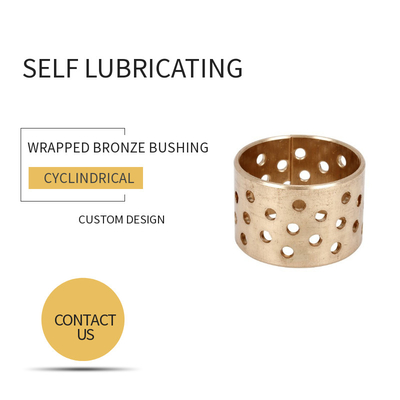

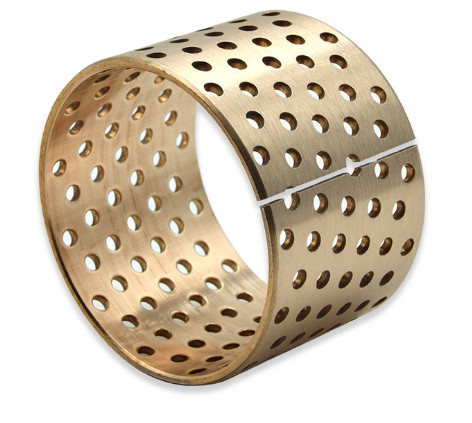

Wrapped in bronze plain bearings liukulaakeriholkki with through holes
Metal and bronze liukulaakeriholkki are strong and typically withstand very large loads and impact loads. In addition to liukulaakeriholkki, our range includes pressure rings and plain plates as well as bronze alloy Pipes and materials.
The products in the range of metal and liukulaakeriholkki are mainly self-lubricating bearings. For lubricant, the liukulaakeriholkki has, depending on the model, grease holes, grooves or holes from which the lubricant is dispensed when the bearing is in use. This allows for a low coefficient of friction, which guarantees a long life for the bearing.
092 liukulaakeriholkki bearings have good value for money, bearing capacity and thermal conductivity. The bronze alloy contains phosphorus, which improves sliding properties and wear resistance. The sliding surface of 092 liukulaakeriholkki tin-bronze bearings has through holes, which allows the bearing to store a larger amount of lubricant than 090 liukulaakeriholkki bearings. In other respects, the 092 liukulaakeriholkki bearing is very similar to the S090 liukulaakeriholkki bearing.
Technical data: (at operating temperature + 20 ° C)
made of phosphorus-containing bronze alloy CuSn8P
hardness 125-150 HB
temperature range -100 ° C to + 200 ° C
maximum speed 2.5 m / s
coefficient of friction 0.08-0.25
max. static load 280 N / mm² (no movement)
load dynamic 80-120N / mm² (> up to 0.01 m / s)
load dynamic 30-40 N / mm² (0.01-2.5 m / s)
Bronze Bushing Cusn8p chemical composition
Bronze Bushing consist of CuSn8 holes through
CuSn8 with composition (Sn:8%, P<0.05%, Cu:Rest)
| Max. Load P | Static | 120 N/mm2 | |
| Dynamic | 40 N/mm2 | ||
| Max. sliding speed V(m/s) | 2.5 m/s | ||
| Max. PV factor (N/mm2.m/s) | 2.8 N/mm2.m/s | ||
| Operating Temperature | Max. Greased | 150°C | |
| Max. Oil lubricated | 250°C | ||
| Coefficient of friction | 0.06~0.15μ | ||
| Surface roughness (Ra) | ≤ 0.8 µm | ||
| Surface hardness | Normal | >200 HB | |
| For longer service life | >350 HB | ||
Wrapped bronze bushing with through holes 092 is suitable for high load, lower speed application like construction, transport and agriculture machinery etc.

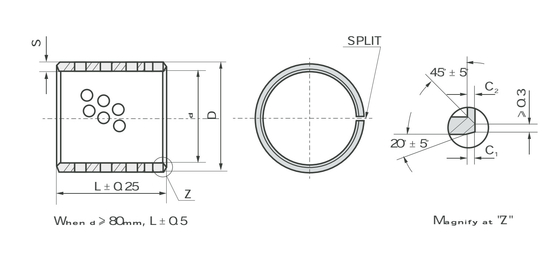

| Tuotekoodi | Sisähalkaisija | Ulkohalkaisija | Leveys |
| BRM80 BRONZE BUSHING-151720 | 15 mm | 17 mm | 20 mm |
| BRM80 BRONZE BUSHING-161820 | 16 mm | 18 mm | 20 mm |
| BRM80 BRONZE BUSHING-202320 | 20 mm | 23 mm | 20 mm |
| BRM80 BRONZE BUSHING-202325 | 20 mm | 23 mm | 25 mm |
| BRM80 BRONZE BUSHING-202330 | 20 mm | 23 mm | 30 mm |
| BRM80 BRONZE BUSHING-222520 | 22 mm | 25 mm | 20 mm |
| BRM80 BRONZE BUSHING-252820 | 25 mm | 28 mm | 20 mm |
| BRM80 BRONZE BUSHING-252825 | 25 mm | 28 mm | 25 mm |
| BRM80 BRONZE BUSHING-252830 | 25 mm | 28 mm | 30 mm |
| BRM80 BRONZE BUSHING-283125 | 28 mm | 31 mm | 25 mm |
| BRM80 BRONZE BUSHING-283130 | 28 mm | 31 mm | 30 mm |
| BRM80 BRONZE BUSHING-303420 | 30 mm | 34 mm | 20 mm |
| BRM80 BRONZE BUSHING-303425 | 30 mm | 34 mm | 25 mm |
| BRM80 BRONZE BUSHING-303430 | 30 mm | 34 mm | 30 mm |
| BRM80 BRONZE BUSHING-303440 | 30 mm | 34 mm | 40 mm |
| BRM80 BRONZE BUSHING-353920 | 35 mm | 39 mm | 20 mm |
| BRM80 BRONZE BUSHING-353930 | 35 mm | 39 mm | 30 mm |
| BRM80 BRONZE BUSHING-353940 | 35 mm | 39 mm | 40 mm |
| BRM80 BRONZE BUSHING-353950 | 35 mm | 39 mm | 50 mm |
| BRM80 BRONZE BUSHING-404425 | 40 mm | 44 mm | 25 mm |
| BRM80 BRONZE BUSHING-404430 | 40 mm | 44 mm | 30 mm |
| BRM80 BRONZE BUSHING-404440 | 40 mm | 44 mm | 40 mm |
| BRM80 BRONZE BUSHING-404450 | 40 mm | 44 mm | 50 mm |
| BRM80 BRONZE BUSHING-455020 | 45 mm | 50 mm | 20 mm |
| BRM80 BRONZE BUSHING-455030 | 45 mm | 50 mm | 30 mm |
| BRM80 BRONZE BUSHING-455040 | 45 mm | 50 mm | 40 mm |
| BRM80 BRONZE BUSHING-455050 | 45 mm | 50 mm | 50 mm |
| BRM80 BRONZE BUSHING-505530 | 50 mm | 55 mm | 30 mm |
| BRM80 BRONZE BUSHING-505540 | 50 mm | 55 mm | 40 mm |
| BRM80 BRONZE BUSHING-505550 | 50 mm | 55 mm | 50 mm |
| BRM80 BRONZE BUSHING-505560 | 50 mm | 55 mm | 60 mm |
| BRM80 BRONZE BUSHING-556040 | 55 mm | 60 mm | 40 mm |
| BRM80 BRONZE BUSHING-556060 | 55 mm | 60 mm | 60 mm |
| BRM80 BRONZE BUSHING-606540 | 60 mm | 65 mm | 40 mm |
| BRM80 BRONZE BUSHING-606550 | 60 mm | 65 mm | 50 mm |
| BRM80 BRONZE BUSHING-606560 | 60 mm | 65 mm | 60 mm |
| BRM80 BRONZE BUSHING-606570 | 60 mm | 65 mm | 70 mm |
| BRM80 BRONZE BUSHING-657040 | 65 mm | 70 mm | 40 mm |
| BRM80 BRONZE BUSHING-657050 | 65 mm | 70 mm | 50 mm |
| BRM80 BRONZE BUSHING-657060 | 65 mm | 70 mm | 60 mm |
| BRM80 BRONZE BUSHING-707540 | 70 mm | 75 mm | 40 mm |
| BRM80 BRONZE BUSHING-707560 | 70 mm | 75 mm | 60 mm |
| BRM80 BRONZE BUSHING-707580 | 70 mm | 75 mm | 80 mm |
| BRM80 BRONZE BUSHING-758080 | 75 mm | 80 mm | 80 mm |
| BRM80 BRONZE BUSHING-808560 | 80 mm | 85 mm | 60 mm |
| BRM80 BRONZE BUSHING-808580 | 80 mm | 85 mm | 80 mm |
