GCR15 Hardened Steel Sleeve Bearing Bushing Groove

Place of Origin Bronze Bearings Supplier
Brand Name VIIPLUS
Certification ISO9001
Model Number Solid bushing, Hardened steel bushing
Minimum Order Quantity NEGOTIABLE
Price Solid bushing MFG, china factory directly prices
Packaging Details BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time FAST DELIVERY
Payment Terms TT IN ADVANCE
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Product Details
Material C45, GCr15, 40Cr Feature Harden,Wear Resistance
Application Excavators,Cranes,Construction Machine Size Customized
High Light

Self Lubricating Plain Excavator Bearing

,

Harden Self Lubricating Bearing

Leave a Message
Product Description

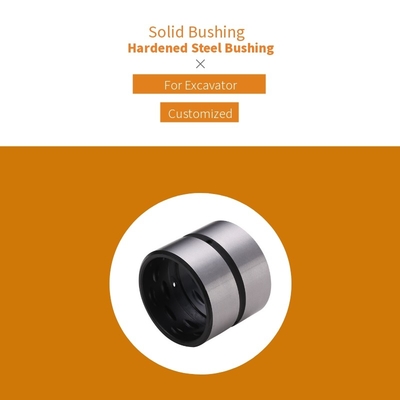

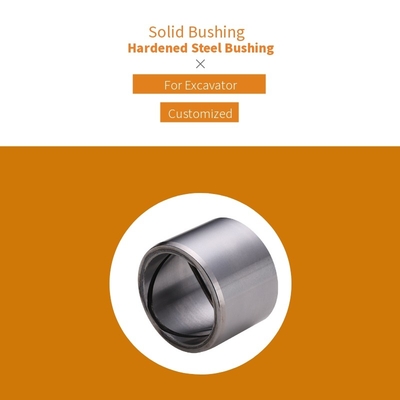

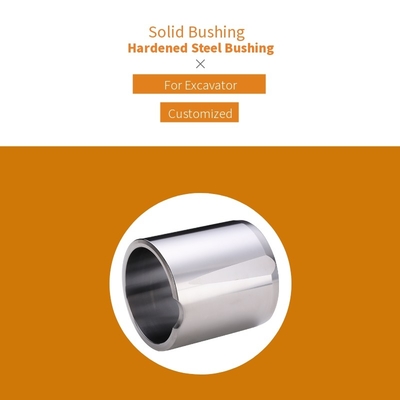

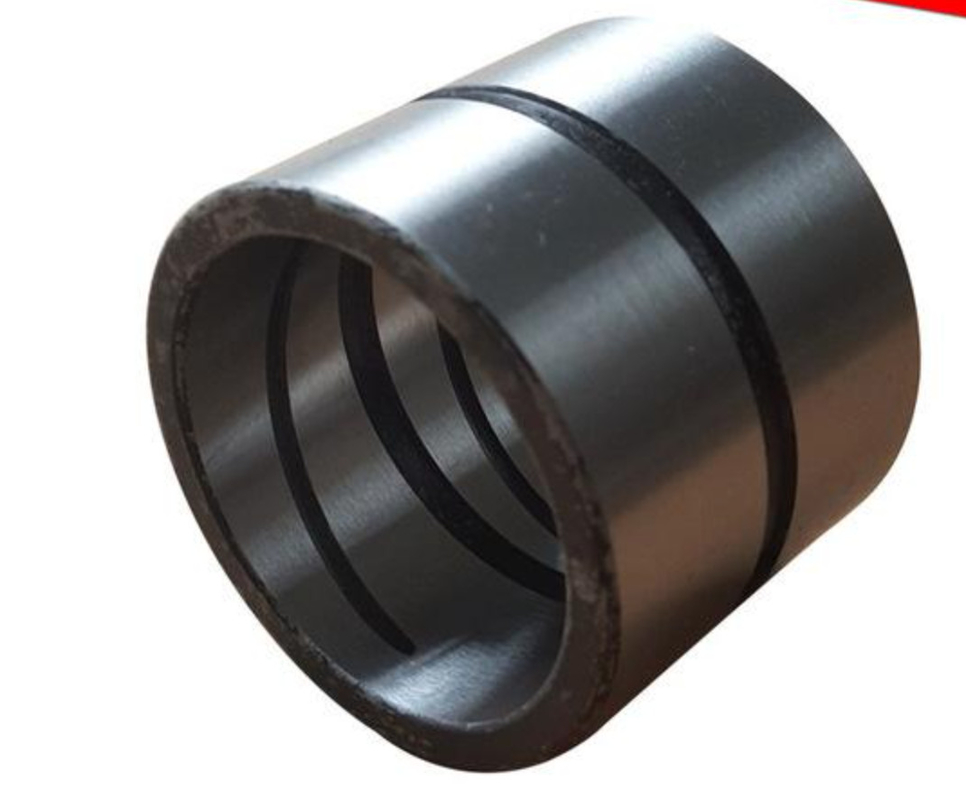

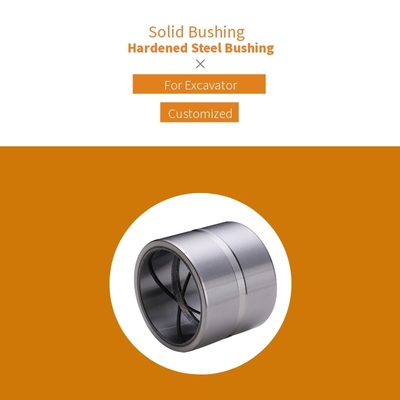

Solid bushing, Hardened steel bushing,for excavator, GCR15 Hardened Steel Sleeve Bearing Bushing Groove, High-carbon chromium bearing steel Bushings

Specialized in the production of GCR15 bearing steel sleeve special hard wear-resistant steel sleeve wear - resistant self - lubricating steel sleeve

GCR15 bearing steel sleeve extra hard steel sleeve self - lubricating wear-resistant steel sleeve.



In a variety of grades of steel as base material, according to a certain proportion according to the operating conditions in the working face processing out of the cavity and fill in the solid lubricant, steel alloy provides high bearing capacity and solid lubricant is lower friction pair can be formed, under the condition of high load low speed showed its excellent lubricating is solid inlaid reinforced products, has a very high compression performance. When the embedded graphite is working, the lubrication particles are discharged, so that a layer of diaphragm is produced between the shaft and the sleeve, which has the advantages of anti-bite than the monomer oil lubrication.

It is especially suitable for supporting parts of lifting machinery, such as mold guide post, mold frame of injection molding machine, soil rolling machine, crane support, etc.

Specific size can refer to JDB-650 standard, can also be matched with steel shaft production.



Solid bushing for industrial applications. Your global partner for sliding bearing technology. Order Bushings Online. Range Of Products. View www.viiplus.com; Plain Bearing types available in standard dimensions: Cylindrical bushes, Flanged bushes, Thrust washers, Flanged washers, Sliding plates.





Product Type:
Solid bushing
Application :
Excavators,Cranes,Construction Machine复制
Material:
GCr15, 40Cr, C45
Hardness :
52~60HRC
Max Dynamic Load:
250N/mm²
Max Linear Velocity:
0.1m/s
Max PV Value
1.5 N/mm².m/s
Working Temperature Limit
-100~+350℃
Linear Expansion Coefficient
1.1×10-5/℃
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.



GCR15 Hardened Steel Sleeve Bearing Groove Bushing Size





GCR15 Hardened Steel Sleeve Bearing Bushing Groove Size
d
D
IDF7
ODm6
L-0.10
-0.30
8
10
12
15
16
20
25
30
35
40
50
60
70
80
8
12
8
+0.028
+0.013
12
+0.018
+0.007
081208
081210
081212
081215










10
14
10
14
101408
101410
101412
101415

101420








12
18
12
+0.034
+0.016
18

121810
121812
121815
121816
121820
121825
121830






13
19
13
19
+0.021
+0.008

131910

131915
131916









14
20
14
20

142010
142012
142015

142020
142025
142030






15
21
15
21

152110
152112
152115
152116
152120
152125
152130






16
22
16
22

162210
162212
162215
162216
162220
162225
162230
162235
162240




18
24
18
24


182412
182415
182416
182420
182425
182430
182435
182440




20
28
20
+0.041
+0.020
28

202810
202812
202815
202816
202820
202825
202830
202835
202840
202850



22
32
22
32
+0.025
+0.009


223212
223215

223220
223225







25
33
25
33


253312
253315
253316
253320
253325
253330
253335
253340
253350
253360


30
38
30
38


303812
303815

303820
303825
303830
303835
303840
303850
303860


35
45
35
+0.050
+0.025
45





354520
354525
354530
354535
354540
354550
354560


40
50
40
50





405020
405025
405030
405035
405040
405050
405060
405070
405080
45
55
45
55
+0.030
+0.011







455530
455535
455540
455550
455560


50
60
50
60







506030
506035
506040
506050
506060
506070
506080

The process of quenching quality of GCr15 steel bearing rings I. The process of expanding the common defects of bearing rings during quenching and cooling

Oil is widely used as quenching medium for bearing parts. The main reason for GCr15 steel sleeve is that the cooling rate of oil is very slow in the third stage (convection period) of cooling process. In the previous production of No. 10, No. 20 machine oil in 650~500℃ between 20~50℃/s. The convection stage starts from about 300℃ and continues to room temperature, which is just in line with the cooling rate that the martensite temperature of bearing steel requires less, so that the deformation and cracking tendency of bearing parts are greatly reduced in the quenching process. However, the operation mode is to use manual hoist to hoist the ring into the oil, and the frequency and amplitude of the ring moving up and down in the oil are controlled by the operator manually, which is difficult to meet the process requirements, that is, the time of the ring moving through the oil is not less than 3S /mm. Therefore, in the cooling process, the ring often appears the following quality problems: 1) poor hardness uniformity: the same batch of ring hardness divergence HRC > 2, the same ring hardness uniformity HRC > 1 or 2. 2) Regional or local soft spots appear on the surface of the ring. 3) For the ring with an effective wall thickness of BBB 0 7mm, reticular trositic sites appeared in the microstructure of the 45 steel sleeve.
According to the quality analysis of heat treatment in 1998, the number of furnaces that need to be repaired due to poor cooling is 51.5% of the repair rate of quenched bronze bushing fire. The defects of the rings in the cooling process lead to the decrease of bearing hardness and strength, wear resistance and fatigue resistance.

Process of quenching quality of GCr15 steel bearing ring


The following measures have been taken for the problems of the ring during cooling:
1. Without changing the cooling method, increase the quenching heating temperature of the ring (select the upper limit temperature) to increase the stability of supercooled austenite in the steel, thus reducing the critical cooling rate of GCr15 steel. However, with the increase of heating temperature, the secondary carbides dissolve too much in the steel, leading to the larger austenite grains, and the effect of hindering the growth of martensite is weakened. The hardness difference of the same ring is larger, and the maximum difference is HRC2. There are still a few small massive taustenite in the quenched and tempered structure from time to time. At the same time, fine acicular martensite also began to appear. Under 500 x metallographic microscope, acicular martensite (superheated tissue) could be seen clearly. The quenching deformation increases sharply, and the over-error rate of diameter variation increases from less than 10% to more than 20% on average, and the mechanical properties of the parts deteriorate relatively.

2. Use a fast quenching oil with a faster cooling rate. Due to the limitation of objective conditions, in the production, a small amount of water is inevitably entered into the oil tank, which will gradually emulsify the oil in the use process, change the performance, lose the good cooling effect, and make the quenching quality can not reach the ideal effect.
Process of quenching quality of GCr15 steel bearing ring


Research and application of new heat treatment technology for bearing rings

The cooling and hardening capacity of quenching medium is an important factor affecting the heat treatment quality of bearing rings. Obviously, this is related to the metallurgical factors of the workpiece, the shape of the C curve and the cooling conditions. And the quenching medium with strong cooling capacity can make the hardness of the workpiece after quenching higher or the hardening layer deeper. In practice, the key to ensuring hardening is a sufficiently large cooling rate at the nose tip of the C curve, but a relatively small cooling rate is required during martensite transformation. The application of the new technology is adapted to this characteristic. By changing the relative speed of the workpiece and the quenching oil, and changing the cooling and hardening ability of the quenching medium, the ideal quenching quality can be obtained to meet the requirements of different cooling rates for the structure formation of the workpiece at different temperatures.
1. Cooling strength test analysis

Through many tests and analyses, it is shown that the cooling strength of the oil can be improved by changing the cooling method with the new technology, so as to improve the quality of heat treatment. The cooling strength H is a parameter reflecting the cooling capacity of the medium, H=αλ/2 (α is the interfacial heat transfer coefficient; λ is the thermal conductivity of steel). The H value for still water is 0.1. The greater the value of H, the stronger the cooling capacity of the medium. In the test, according to the quenching medium under different agitating conditions, the change of cooling strength is shown in Table 1. When the quenching is carried out by strongly agitating the oil, the H value can reach 0.7. In general, the H value of oil quenching is 0.3.
2. Microstructure and hardness test analysis

Ring in the process of testing the product model at 314/01, quenching temperature is 840.40 ℃, machine oil, coolant for 10 rings in static quenching and cooling conditions, through many experiments, it is concluded that ring troostite level changes in the microstructure, ring in static and dynamic cooling conditions, organization closely size differ about 5 ~ 10 times, Under the channeling cooling condition, the hardness difference of the same ring is reduced to 0.5.
3. Application of new process and equipment improvement

The new process is to change the production facilities, change the quenching oil and water jacket cooling into circulating cooling, use a large flow oil pump to inject the cooled oil from the bottom of the quenching tank, first form a circulation under the funnel, rise evenly, and then through two layers of orifice plate to form a uniform dark gushing oil column upward injection, the oil surface in the oil tank is boiling. And can change the output flow of the oil pump, change the relative movement speed of the ring and oil, to meet the requirements of different cooling rates in the process of the formation of the workpiece, and at the same time, the upper hot oil is pumped out in time so that the oil temperature of the upper and lower layers in the oil groove is basically balanced. The oil cooling filtration system not only makes the oil can be fully cooled, but also makes the oil can be very good purification. The new process not only meets the high cooling rate requirements of GCr15 steel under high-temperature condition, ensures the quenching hardness and homogeneity of quenching, but also meets the critical quenching rate required by the austenite with fine grains and low carbon and chromium content produced by the austenitizing of the workpiece at a lower temperature, refining the martensite matrix structure. Avoid quenching crack, make the bearing ring quenching hardness stable control in HRC64~65.5, quenching microstructure of 2~3 grade. With 2 levels as most, the outer diameter of ¢100mm or more after quenching the diameter of the ring change over the error rate reduced to about 7%, the surface brightness of the workpiece after quenching increased, all qualified quality, reduce the loss of waste and repair.
Production facilities improvement is hot quenching tank upper-middle-class oil overflow to the filtration unit, and then into a set of overhead of brass tube cooler in (place) in the cleaning cycle pool, and then after cooling in oil pump oil pump into the bottom of the quench tank, between two layers of aperture is ¢5 mm, pitch of 20 mm x 20 mm of porous plate, orifice on the second floor of a staggered, Ensure the uniform rise of cooling oil.





VIIPLUS is dedicated to the research and manufacture of all kinds of bushings,spare parts,machinery parts and precision parts. We are approved by the third party concerning the quality certificate. Up to now, we have provied a total of ten categories of products,including composite self-lubricating bushing, boundary lubricating bushing, bimetal bushing, oil sintered bushing,solid lubricating bushing with graphite, steel bushing, casting copper bushing, wrapped bronze bushing,spherical plain bearing and filament wound bearing. The quality and performance have met or exceed international standards.



Solid bushing, Hardened steel bushing,for excavator



  • Description

  •
Material&Bearing Properties Unit Value Unit Value
Max.dynamic load MPa 250 psi 36,200
Operating Temperature °C ‘-100 to 350) °F -148 to 662
Grease Lubrication
Max.sliding speed m/s 0.1 fpm 19.7
Max.PV Value m/s 1.5 psi x fpm 43,500
Min.Hardness HRC 55 HRC 55







Solid bushing, Hardened steel bushing,for excavator





  • Description

  •
Material&Bearing Properties Unit Value Unit Value
Max.dynamic load MPa 100 psi 14,500
Operating Temperature °C ‘-100 to 250) °F -148 to 482
Grease Lubrication
Max.sliding speed m/s 0.5 fpm 100
Max.PV Value m/s 1.5 psi x fpm 43,500
Min.Hardness HV 600 HV 600









Material

1. Stainless Steel: SS303, SS304, SS316, SUS420J2, etc

2. Steel: 12L14, 12L15, C45(AISI1045), etc

3. Carbon Steel: CH1T, ML08AL, 1010, 1035, 1045, etc

4. Alloy Steel: 10B21, 35ACR,40ACR, 40Cr, 35CrMn, etc

5. Aluminum or Aluminum Alloy: Al6061, Al6063, etc

6. Brass: C3604, C38000, etc







Typical Application



excavators, cranes and some crucial parts of the construction machine.
