Contact Person : Tiffany

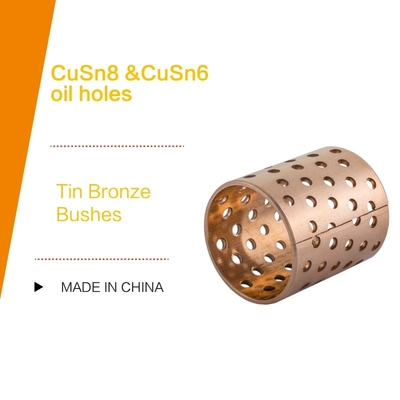

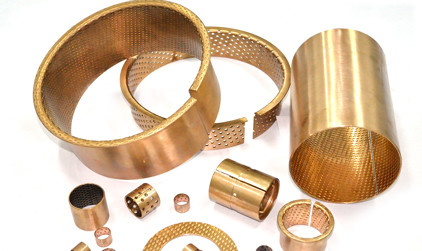

DIN 1494 / ISO 3547 CUSN8P Wrapped Tin Bronze Bushes Sliding Bearing With Perforations Lubrication Pockets

  • DIN 1494 / ISO 3547 CUSN8P Wrapped Tin Bronze Bushes Sliding Bearing With Perforations Lubrication Pockets
  • DIN 1494 / ISO 3547 CUSN8P Wrapped Tin Bronze Bushes Sliding Bearing With Perforations Lubrication Pockets
  • DIN 1494 / ISO 3547 CUSN8P Wrapped Tin Bronze Bushes Sliding Bearing With Perforations Lubrication Pockets
  • DIN 1494 / ISO 3547 CUSN8P Wrapped Tin Bronze Bushes Sliding Bearing With Perforations Lubrication Pockets
Place of Origin Self Lubricating Bearings Manufacturers
Brand Name VIIPLUS
Certification DIN 1494 / ISO 3547
Model Number Wrapped bronze sliding bearing
Minimum Order Quantity negotiable
Price Competitively Priced vs 090 & 092, Provides Lubricating Bronze Bush
Packaging Details STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time 7 - 20 BUSINESS DAYS
Payment Terms T/T PREPARD, T/T
Supply Ability Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material CuSn8P (DIN 17662) Bushing Area Of Use Hydraulic Cylinders, Construction Machines, Crane Construction, Agricultural Machines
Bronze Bushing Size ID50*OD55*65Flange*L50mm Type E92F 5050 Bushing
Size Other Dimensional Tolerance Can Customize Bushing Made In China Solid Bronze Bearings, Bronze Bearing, Lubrication Indents
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

sintered self lubricating bushes

,

self lubricating bronze bushings
Leave a Message
Product Description

DIN 1494 and ISO 3547 are standards that specify the requirements for wrapped bronze bushes, which are commonly used as sliding bearings in various mechanical applications. The material designation CUSN8P refers to a tin bronze alloy, which is widely used for its excellent wear resistance, low friction, and good corrosion resistance.

Key Features of DIN 1494 / ISO 3547 CUSN8P Wrapped Bronze Bushes:
Material (CUSN8P):

Composition: Copper (Cu) with approximately 8% tin (Sn) and small amounts of phosphorus (P).

Properties: High strength, good wear resistance, and compatibility with various lubricants.

Design:

Wrapped Construction: The bushes are made by wrapping a strip of bronze alloy into a cylindrical shape and then sintering or bonding it to form a solid bearing.

Perforations and Lubrication Pockets: These features are designed to retain lubricant, ensuring consistent lubrication during operation and reducing friction and wear.

Applications:

Suitable for high-load and low-speed applications.

Commonly used in automotive, industrial machinery, agricultural equipment, and construction machinery.

Standards Compliance:

DIN 1494: German standard for wrapped bushes.

ISO 3547: International standard for wrapped bushes, ensuring global compatibility and quality.

Lubrication:

The perforations and lubrication pockets help maintain a lubricant film, reducing friction and extending the bearing's lifespan.

Can be used with oil, grease, or other lubricants depending on the application.

Advantages:

Excellent load-bearing capacity.

Good conformability and embeddability for dirt or debris.

Suitable for both rotary and oscillating motions.

Typical Dimensions:
Available in various inner diameters (ID), outer diameters (OD), and lengths (L) as per the standards.

Custom sizes can also be manufactured based on specific requirements.

Installation and Maintenance:
Proper installation is crucial to ensure optimal performance.

Regular lubrication is necessary to maintain performance and extend service life.

If you need specific dimensions, technical data, or further details, feel free to ask!







DIN 1494 / ISO 3547 CUSN8P Wrapped Tin Bronze Bushes refer to sliding bearings made of wrapped tin bronze alloy (CUSN8P) that adhere to the specifications outlined in the DIN 1494 and ISO 3547 standards. These bearings feature perforations or lubrication pockets to allow for proper lubrication and reduced friction. The perforated design enables the passage of lubricating oil or grease, which is crucial for ensuring smooth and efficient operation. The use of tin bronze alloy (CUSN8P) provides excellent wear resistance, corrosion resistance, and mechanical properties, making these bearings suitable for various applications.



Bronze Sleeve made of CuSn8 with Lubrication holes split type, Consult us for a quote.

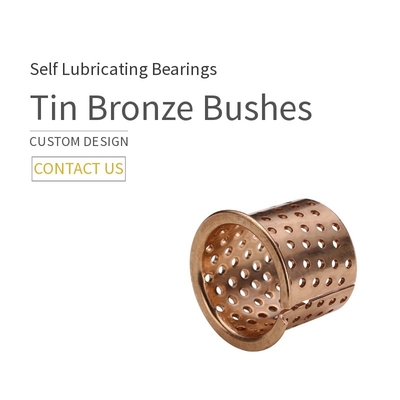

Bushing sleeve forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

Bronze mesh material
Wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance

Solid bronze bearings with lubrication indents offer high load capacity, good wear resistance under rough conditions & low speeds. Consult china bushing sleeve supplier for a quote.


Wrapped Tin Bronze Bushes Sliding Bearing bushing sleeve brass bearing sleeve brass sleeve bushing bushing sleeve



Bronze Plain Bearing,CUSN8P Bronze Gleitlager Wrapped Bronze Bushes Sliding Bearing :E92F 5050 Bushing,Bronze bushing flange ID50 OD55 F65 L50.pdf；Get a Free Quote- With Perforations lubrication pockets, research and production of a variety of self-lubricating bearings, oil-free bearings, sliding bearings and other professional Wrapped Tin Bronze Bushes Sliding Bearing products manufacturers.The company has a professional team, advanced and complete equipment, scientific and perfect management, Wrapped Tin Bronze Bushes Sliding Bearing sales throughout the world, by the majority of domestic and foreign customers trust and praise.https://www.viiplus.com



Wrapped Tin Bronze Bushes Dry Sliding Bearings



The Wrapped Tin Bronze Bushes Sliding Bearing with a bronze perforation hole used CuSn8 as a base, designed to create regular oil holes on a better work surface, has a high load capacity, good wear resistance and a low coefficient of friction, it has been widely applied to transport machinery, lift, spiral machines and agricultural equipment.



WRAPPED TIN BRONZE BUSHING SLIDING BEARINGS MATERIAL



CuSn8 material: tin bronze bushing



Tin bronze is a kind of copper alloy.

Tin bronze:


Bronze with tin as the main alloying element.Tin content is generally 3 ~ 14%, mainly used for making elastic components and wear - resistant parts.The tin content of deformed tin bronze is not more than 8%, and phosphorus, lead, zinc and other elements are sometimes added.Phosphorus is a good deoxidizer and improves fluidity and wear resistance.The machinability and wear resistance of tin bronze can be improved by adding lead, and the casting performance can be improved by adding zinc.This kind of alloy has higher mechanical properties, wear reduction properties and corrosion resistance, free cutting, good brazing and welding properties, small shrinkage coefficient, non-magnetic.The coatings of bronze bushing, shaft bushing and diamagnetic element can be prepared by wire flame spraying and arc spraying.Various sizes are available.With high strength, corrosion resistance and excellent casting properties, it has been widely used in various industrial sectors for a long time.


The 092 Flange is made of high quality hot rolled phosphor tin alloy bronze. Wrapped Tin Bronze Bushes Sliding Bearing are specially designed to withstand heavy loads and to withstand shocks. The entire Wrapped Tin Bronze Bushes Sliding Bearing surface is made up of "perforated through holes" which offer improved lubrication properties and fewer maintenance periods which reduce friction, both at start-up and during operation. The FBB092 is intended for radial, oscillating and axial movements and is particularly suitable for medium to high loads.





CHARACTERISTICS


Wrapped Tin Bronze Bushes Sliding Bearing 092 Oil IndentationsHoles

·Very good for rotation and linear motion.

·Low sensitivity in dirty and rough environment

·Good corrosion resistance medium

·Has a large wear depth, also suitable for rough machining.
(limit < 0,15 x wall thickness [mm])

·Even at low speeds, the sensitivity to impact loads and vibrations is low.

·Lubricate essential fats or oils regularly (lithium saponified fats are recommended)

·Lubricating holes are used as lubricant stores and dirt traps.

·A thin axle is available



ADVANTAGES



·Extra high load capacity
·Good lubrication properties
·Wide temperature range

·Easy to assemble




TECHNICAL DATA


Material: Cu – 91.3% Sn – 8.5% P – 0.2%
Standard: Cu Sn8. DIN 17662. CW453K
Sliding layer (thickness): Homogeneous
Tensile strength Rm: 450N/mm²
Yield strength Rp 0.2: 250N/mm²
Elongation in % A10: 0.4
Hardness: 90-120 HB
Friction coeff: 0.08-0.25µ
Thermal conductivity: 60W/m·K
Temperature range: -100°C/200°C
Max. load static: 120 N/mm²
Max. load, dynamic: 40 N/mm²
Max. sliding speed (w.lubr.): 2.5 m/s
Pv-value, Mpa x m/s, kont / int: 2.8


bronze bushing size chart
[mm] d D L D1
BRONZE BUSHING-FBB092-2515 25 28 15 35
BRONZE BUSHING-FBB092-2525 25 28 25 35
BRONZE BUSHING-FBB092-3020 30 34 20 45
BRONZE BUSHING-FBB092-3030 30 34 30 45
BRONZE BUSHING-FBB092-3520 35 39 20 50
BRONZE BUSHING-FBB092-3530 35 39 30 50
BRONZE BUSHING-FBB092-4025 40 44 25 55
BRONZE BUSHING-FBB092-4040 40 44 40 55
BRONZE BUSHING-FBB092-4530 45 50 30 60
BRONZE BUSHING-FBB092-4545 45 50 45 60
BRONZE BUSHING-FBB092-4550 45 50 50 60
BRONZE BUSHING-FBB092-5030 50 55 30 65
BRONZE BUSHING-FBB092-5050 50 55 50 65
BRONZE BUSHING-FBB092-5530 55 60 30 70
BRONZE BUSHING-FBB092-5550 55 60 50 70
BRONZE BUSHING-FBB092-6030 60 65 30 75
BRONZE BUSHING-FBB092-6035 60 65 35 75
BRONZE BUSHING-FBB092-6060 60 65 60 75
BRONZE BUSHING-FBB092-6530 65 70 30 80
BRONZE BUSHING-FBB092-6560 65 70 60 80
BRONZE BUSHING-FBB092-7040 70 75 40 85
BRONZE BUSHING-FBB092-7070 70 75 70 85
BRONZE BUSHING-FBB092-7540 75 80 40 90
BRONZE BUSHING-FBB092-7570 75 80 70 90
BRONZE BUSHING-FBB092-8040 80 85 40 100
BRONZE BUSHING-FBB092-8080 80 85 80 100
BRONZE BUSHING-FBB092-9050 90 95 50 110
BRONZE BUSHING-FBB092-9070 90 95 70 110
BRONZE BUSHING-FBB092-9090 90 95 90 110
BRONZE BUSHING-FBB092-10050 100 105 50 120
BRONZE BUSHING-FBB092-10090 100 105 90 120
BRONZE BUSHING-FBB092-11050 110 115 50 130
BRONZE BUSHING-FBB092-11090 110 115 90 130
BRONZE BUSHING-FBB092-12050 120 125 50 140
BRONZE BUSHING-FBB092-12090 120 125 90 140
BRONZE BUSHING-FBB092-13060 130 135 60 155
BRONZE BUSHING-FBB092-13090 130 135 90 155
BRONZE BUSHING-FBB092-14060 140 145 60 165
BRONZE BUSHING-FBB092-14090 140 145 90 165
BRONZE BUSHING-FBB092-15060 150 155 60 180
BRONZE BUSHING-FBB092-15090 150 155 90 180
BRONZE BUSHING-FBB092-16060 160 165 60 190
BRONZE BUSHING-FBB092-16090 160 165 90 190
BRONZE BUSHING-FBB092-17060 170 175 60 200
BRONZE BUSHING-FBB092-17090 170 175 90 200
BRONZE BUSHING-FBB092-18060 180 185 60 215
BRONZE BUSHING-FBB092-18090 180 185 90 215
BRONZE BUSHING-FBB092-19060 190 195 60 225
BRONZE BUSHING-FBB092-19090 190 195 90 225
BRONZE BUSHING-FBB092-20060 200 205 60 235
BRONZE BUSHING-FBB092-20090 200 205 90 235
BRONZE BUSHING-FBB092-22560 225 230 60 260
BRONZE BUSHING-FBB092-22590 225 230 90 260
BRONZE BUSHING-FBB092-25060 250 255 60 290
BRONZE BUSHING-FBB092-25090 250 255 90 290
BRONZE BUSHING-FBB092-26560 265 270 60 305
BRONZE BUSHING-FBB092-26590 265 270 90 305
BRONZE BUSHING-FBB092-28560 285 290 60 325
BRONZE BUSHING-FBB092-28590 285 290 90 325
BRONZE BUSHING-FBB092-30060 300 305 60 340
BRONZE BUSHING-FBB092-30090 300 305 90 340



BUSHING TOLERANCE DETAILS


·Housing ØH7
·Bushing inner-Ø after mountingH9
·Shaft tolerancef7 to h8


Mating Material



surface roughness Ra = 0,4 μm
minimum hardness > 200 HB





BUSHING AREA OF USE



Hydraulic cylinders, construction machines, crane construction, agricultural machines

Tin Bronze Bushing is a low-maintenance Wrapped Tin Bronze Bushes Sliding Bearing, primary lubrication is necessary. Oil or grease lubrication is possible. Due to lubrication pockets lubrication clearances are reduced to a minimum.



BEARING TYPE



Plain cylindrical bearings, flanged bearings, thrustwashers, slidingplates.



APPLICATION



Agricultural machinery, truck cranes and construction machinery, suitable for impact loads



MAINTENANCE


It is a sleeve material that does not require special care. Initial lubrication during installation is necessary, after which periodic lubrication with oil or grease is mandatory. Diamond pockets are an excellent lubricant store and keep maintenance to a minimum.

Wrapped Tin Bronze Bushes Sliding Bearing, CuSn8 tin-bronze alloy is a material, a rhombic hole for surface rolling, because as the role of a storage grease, it has good fatigue strength and load capacity, corrosion resistance, wear resistance. Widely used in agricultural machinery, construction machinery, construction machinery and other high speed at low speed.

The Wrapped Tin Bronze Bushes Sliding Bearing are wrapped with cold-formed homogeneous bronze (CuSn8) with exceptional material properties. Standard sizes are formed with diamond lubricating grooves on the bearing surface. The recesses serve as lubricant reservoirs, which quickly form a lubricating film at the beginning of the movement and then reduce working friction. These materials are suitable for use in construction and agricultural machinery.


TheWrapped Tin Bronze Bushes Sliding Bearing is encased in homogeneous bronze capable of forming cold, which will obtain exceptional material properties. The standard bearing is equipped with diamond-shaped lubrication cutouts on the bearing surface. These setbacks serve as lubricant reservoirs to quickly form a lubricating film in the starting movement and reduce starting friction. Typical application: widely applied in lifting machines and other construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.





WE ARE A PROFESSIONAL
SELF-LUBRICATING BEARING MANUFACTURER & SUPPLIER

Welcome to contact us!
If you have any questions, please feel free to contact us,you are always welcome, thank you!




Tags:

sintered self lubricating bushes

self lubricating bearing

self lubricating bronze bushings
