Caliper Guides Repair Kit Bronze Sleeve Bushings , Flanged Bronze Bushings
Place of Origin | Bushing Manufacturer |
---|---|
Brand Name | REPLACEMENT PLAIN BEARINGS |
Certification | ISO 9001 |
Model Number | Sleeve Bush Wrapped Bronze Bearing |
Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
Delivery Time | 5 - 15 BUSINESS DAYS |
Payment Terms | T/T, Western Union |
Supply Ability | STANDARD TOLERANCE BUSHINGS |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBushing Material | TIN BRONZE CUSN8 CUSN6 | Feature | High Temperature Resistance,Wear Resistance,corrosion Resistance |
---|---|---|---|
Performance | High Load Capacity And Long Life | Type | Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Slidingplates. |
Bushing Code | BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 | Application | Caliper Guides Repair Kit Bronze Bushings |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | oil embedded sleeve bearing,graphite sleeve bearings |
Our Caliper Guides Repair Kit Bronze Sleeve Bushings, Flanged Bronze Bushings, are designed to provide a robust and reliable solution for caliper guide repair and maintenance. These bushings are crafted from high-quality bronze material, known for its durability, wear resistance, and excellent performance under various conditions.
The flanged design of the bushings ensures a secure and stable fit within the caliper guides, minimizing movement and maximizing precision. This allows for smooth and reliable operation, ensuring accurate caliper movement and improved braking performance.
The repair kit includes all the necessary components for a straightforward and efficient installation process. Wh you're performing routine maintenance or replacing worn-out bushings, our Caliper Guides Repair Kit Bronze Sleeve Bushings, Flanged Bronze Bushings, will get the job done quickly and effectively.
With their superior material properties and precision engineering, these bushings are capable of handling high loads and temperatures, making them suitable for a wide range of industrial and automotive applications.
So, if you're looking for a high-quality, dependable, and long-lasting solution for your caliper guide repair needs, our Caliper Guides Repair Kit Bronze Sleeve Bushings, Flanged Bronze Bushings, are the perfect choice. Contact us today to learn more and order your kit!
Caliper Guides Repair Kit Bronze Sleeve Bushings , Flanged Bronze Bushings
Bronze Bush,Caliper Guides Repair Kit Bronze Bushings Groove Type.Your specialist for bronze bushings.Get a free quote Today! High temperature resistance
Ø41 x Ø37 x 73 mm
Ø41 x Ø37 x 30 mm
TYPE | ID | OD | FLANGE | THINKNESS | H | f1 | f2 | SHAFT | HOUSING | ||||||
FB090 F2520 | 25 | 28 | 35 | 1.5 | 20 | 0.8 | 0.4 | 25 | -0.02 | 28 | 0.021 | ||||
FB 090 F2525 | 25 | -0.041 | |||||||||||||
FB 090 F3020 | 30 | 34 | 45 | 2 | 20 | 1.2 | 0.6 | 30 | -0.02 | 34 | 0.025 | ||||
FB090 F3025 | 25 | ||||||||||||||
FB 090 F3030 | 30 | -0.041 | |||||||||||||
FB 090 F3530 | 35 | 39 | 50 | 30 | 35 | -0.025 | 39 | 0.025 | |||||||
FB 090 F3540 | 40 | ||||||||||||||
FB 090 F3550 | 50 | ||||||||||||||
FB 090 F4030 | 40 | 44 | 55 | 30 | 40 | -0.025 | 44 | 0.025 | |||||||
FB 090 F4040 | 40 | ||||||||||||||
FB 090 F4050 | 50 | ||||||||||||||
FB 090 F5030 | 50 | 55 | 65 | 2.5 | 30 | 1.6 | 0.8 | 50 | -0.025 | 55 | 0.03 | ||||
FB 090 F5040 | 40 | ||||||||||||||
FB 090 F5050 | 50 | ||||||||||||||
FB 090 F5530 | 55 | 60 | 70 | 30 | 55 | -0.03 | 60 | 0.03 | |||||||
FB 090 F5540 | 40 | ||||||||||||||
FB 090 F5550 | 50 | -0.06 | |||||||||||||
FB 090 F6040 | 60 | 65 | 75 | 40 | 60 | -0.03 | 65 | 0.03 | |||||||
FB090 F6050 | 50 | ||||||||||||||
FB090 F6060 | 60 | -0.06 | |||||||||||||
FB090 F8050 | 80 | 85 | 100 | 50 | 80 | -0.03 | 85 | 0.035 | |||||||
FB090 F8060 | 60 | ||||||||||||||
FB090 F8080 | 80 | -0.06 | |||||||||||||
FB090 F10050 | 100 | 105 | 120 | 50 | 100 | -0.036 | 105 | 0.035 | |||||||
FB090 F10060 | 60 | ||||||||||||||
FB090 F10080 | 80 | -0.071 | |||||||||||||
FB090 F16060 | 160 | 165 | 190 | 60 | 160 | -0.043 | 165 | 0.04 | |||||||
FB090 F16080 | 80 | -0.083 | |||||||||||||
FB090 F20060 | 200 | 205 | 235 | 60 | 200 | -0.05 | 205 | 0.046 | |||||||
FB090 F20080 | 80 | -0.096 |

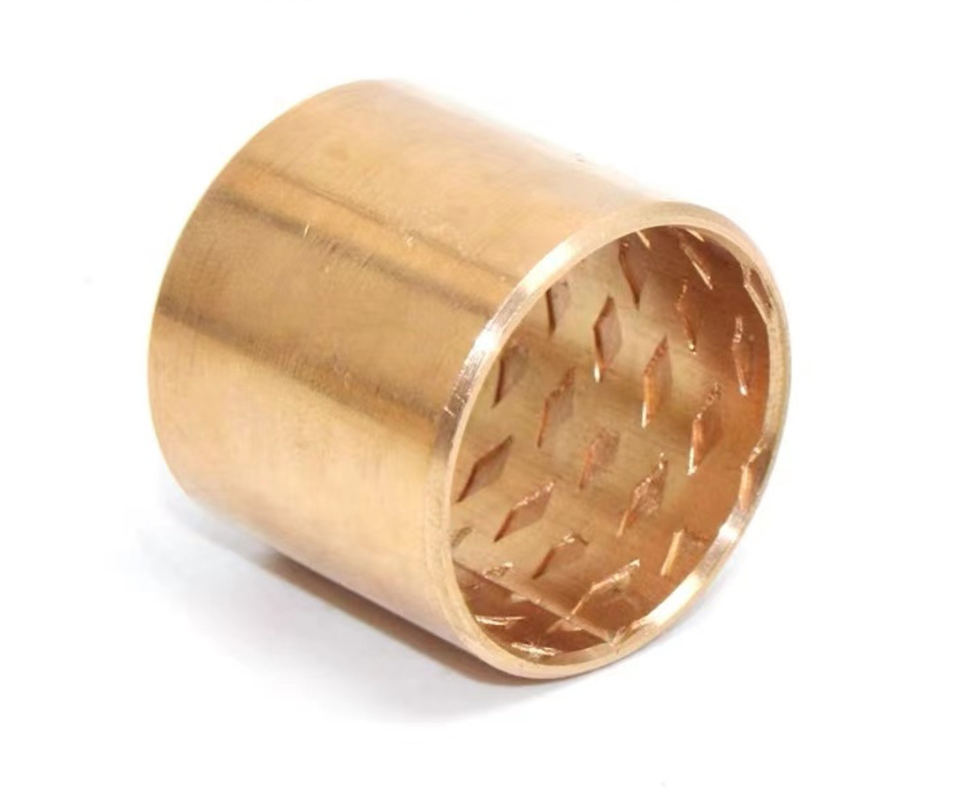

What is FB090 wrapped bronze bearing?
FB090 Wrapped Bronze bearings are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments.
The sliding surface is provided with lubrication pockets, which contribute to the enhanced lubrication performance.
This bushing is produced in accordance with ISO 3547 and DIN 1494.
Where to use FB090 wrapped bronze bearing?
These bearings are suitable for both radial and axial movements.
The bushings are well suited for machinery in dirty environments where shock loads and/or vibrations occur.
Examples of applications are:
Agricultural machinery
Hoisting equipment
Construction machinery
Forest machinery
Why choose wrapped bronze bearing?
Insensitive to dirty environments
Resistant to shock loads and vibrations at slow speeds
Good resistance to corrosive conditions
Product Type:
|
090 |
Application :
|
hoisting, mining machinery,
forest machinery, agricultural machinery etc. |
Material:
|
CuSn8P
|
Density:
|
8.8g/cm3
|
Max Dynamic Load:
|
100N/mm²
|
Max Linear Velocity(Grease):
|
2m/s
|
Max PV Value Grease :
|
2.8N/mm²·m/s
|
Pressure Strength
|
>460N/mm²
|
Yield Strength N/mm2
|
>280N/mm2
|
Hardness:
|
90-150
|
Mating Axis
|
Hardness ≥50, Roughness 0.4-1.0
|
Working Temperature
|
-40~+150℃
|
Friction Coefficient
|
0.06~0.15
|
Linear Expansion Coefficient
|
18.5×10-6/K
|
coefficient of heat conduction
|
58W/m·K
|
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.
|
Homogeneous bronze bushings (Cu 91,3%, Sn 8,5%, P 0,2%)
