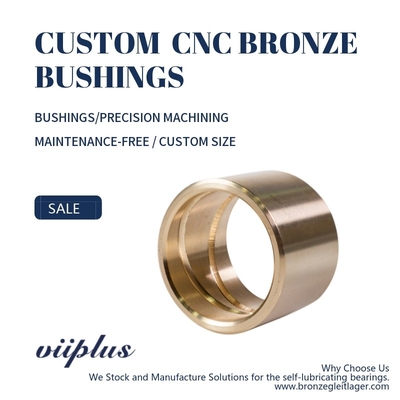

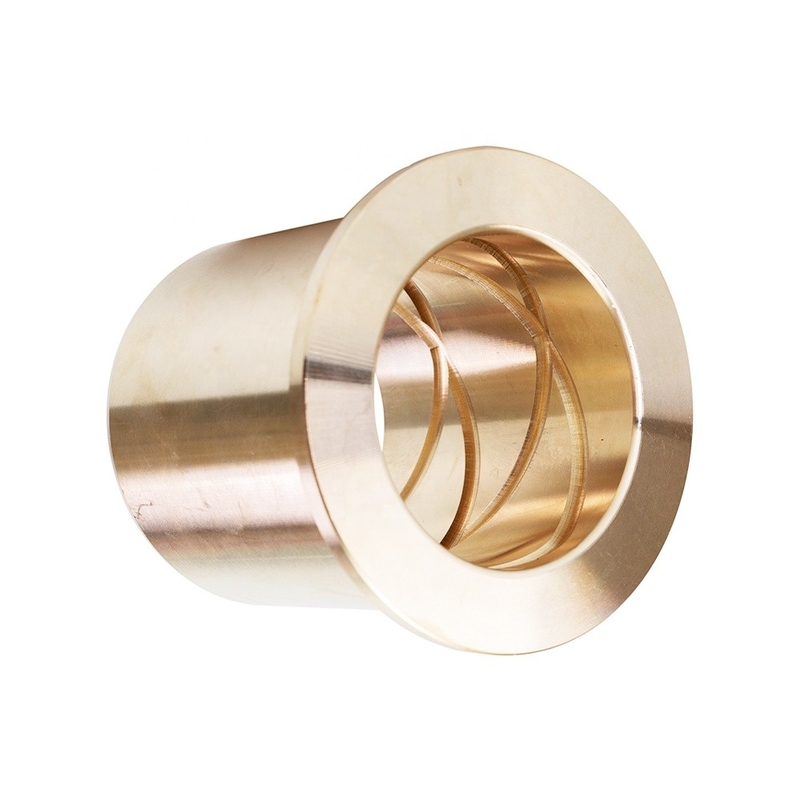

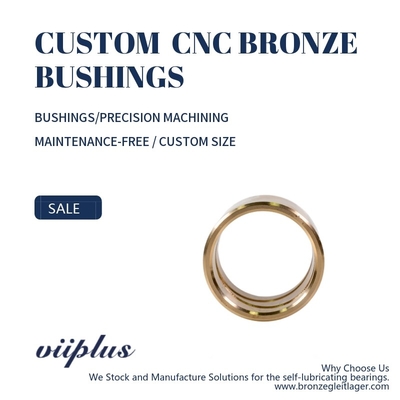

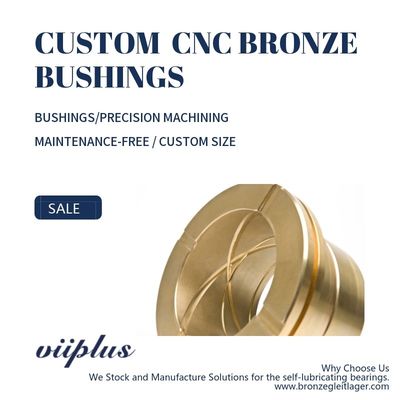

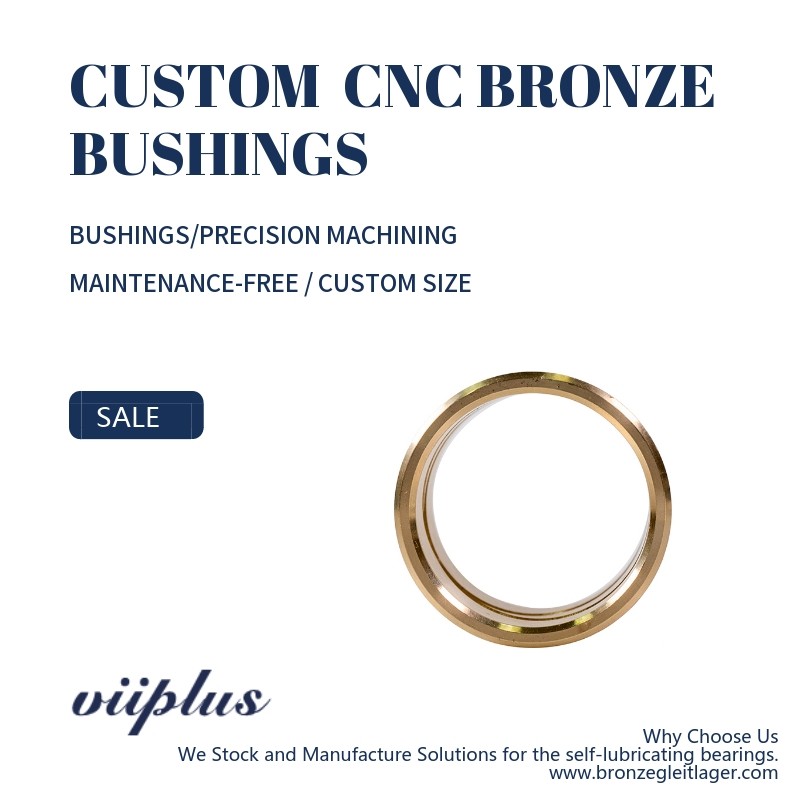

Cast Bronze Bushing, ASTM groove brass, custom cnc bronze bushing
| Place of Origin | Bushing Manufacturer |
|---|---|
| Brand Name | viiplus |
| Certification | CW713R |
| Model Number | Brass bushings |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | STANDARD TOLERANCE BUSHINGS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bearings Material | Special Brass Bushing | Material | CuZn25AI5Mn4Fe3, CuSn5Pb5Zn5, CuAl10Ni5Fe5, CuSn12 |
|---|---|---|---|
| Type | Sleeve, Flange, Washer, Plate | Sizes | Customized |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | wrapped bronze bushings,oil embedded sleeve bearing |
||
Product Description
Our Cast Bronze Bushing, made from high-quality ASTM groove brass, offers exceptional durability and wear resistance. The use of bronze material ensures superior performance in a wide range of industrial applications, including heavy machinery, automotive components, and other equipment that demands high-performance bearings.
The unique feature of our Cast Bronze Bushing is its customizability. We utilize precision CNC machining to create bushings that perfectly fit your specific needs. Wh you require a standard size or a customized solution, we can deliver with utmost precision and accuracy.
Our bronze bushings are designed with grooves that conform to ASTM standards, ensuring compatibility and interchangeability with various systems. This allows for seamless integration into your existing setup, minimizing the need for modifications or additional adapters.
With our Cast Bronze Bushing, you can expect smooth and reliable operation, even under high loads and extreme conditions. The bronze material's natural lubrication properties reduce friction and wear, extending the bushing's lifespan and reducing the need for frequent maintenance.
If you're looking for a high-quality, durable, and customizable Cast Bronze Bushing solution, look no further than our offering. Contact us today to discuss your requirements and let us provide you with a quote that meets your needs and budget. We're committed to delivering the best bronze bushings for your industrial applications.
Bronze Sleeve Bushings
The cast bronze alloy is a high strength material with good impact resistance, corrosion resistance and wear resistance features under the middle to high load working conditions. High precision machining provides good tolerance matching with their counterparts. Oil grooves, oil deposits could be designed according to the different application conditions. Dimensions of the bearings could be customized for a better match to the customers' existing counterparts.
Structure:
The cast bronze alloy tuned bushings provides a perfect self-lubricating solution both from technical and economic aspects. The material has a high load performance and good corrosion resistance feature. Various alloys are available depending on different application requirement.
VIIPLUS is dedicated to the research and manufacture of all kinds of bushings,spare parts,machinery parts and precision parts. We are approved by the third party concerning the quality certificate. Up to now, we have developed a total of ten categories of products,including composite self-lubricating bushing, boundary lubricating bushing, bimetal bushing, oil sintered bushing,solid lubricating bushing with graphite, steel bushing, casting copper bushing, wrapped bronze bushing,spherical plain bearing and filament wound bearing. The quality and performance have met or exceed international standards.
For many medium- to large-size bronze bearings, remanufacturing can offer considerable benefits…
Custom Machined Services: Meeting All Your Needs Turning Grooving Facing Milling Drilling Grinding Deburring Bronze Bushings
CNC Turning Machining Parts Bushing Bush Bearing,Bronze,Specialized in mechanical parts of CNC precision machining
Premium cast bronze bushing, precision CNC milling copper aluminium alloy bronze Bush.Factory CNC Machining Copper Bush/Bronze Sleeve/Brass Bushing
| Type | CAST BRONZE BUSHING | CAST BRONZE BEARINGS | 复制 | |||||
| Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | ||||
| Density | 7.8 | 8.9 | 7.8 | 8.9 | ||||
| HB Hardness | ≥210 | ≥250 | ≥210 | ≥230 | ≥70 | ≥150 | ≥75 | |
| Tensile Strength MPa | ≥750 | ≥800 | ≥755 | ≥755 | ≥250 | ≥500 | ≥270 | |
| Yield Strength MPa | ≥450 | ≥450 | ≥400 | ≥400 | ≥90 | ≥260 | ≥150 | |
| Elongation % | ≥12 | ≥8 | ≥12 | ≥12 | ≥13 | ≥10 | ≥5 | |
| Thermal Expansion Coefficient | 1.9x10*%/°C | 1.8x10*9/°C | 1.6x10^*/°C | 1.8x10*/°C | ||||
| Max. Operation Temp. | -40~+250°C | -40~+400°C | ||||||
| Max. load MPa | 50 | 75 | 75 | 100 | 50 | |||
| Max. speed m/s | Dry | 0.5 | 0.1 | 0.5 | 0.1 | 0.5 | ||
| Lubricated | 1 | 0.25 | 1 | 0.25 | 2.5 | |||
| Max. PV (N/mm2*m/s) | Dry | 1.65 | 1 | |||||
| Lubricated | 3.25 | 1.65 | ||||||
Typical Applications
The typical applications of this material include the port machinery, construction engineering machinery, plastic injection machinery, axles, and material handling machinery. It has a high load capacity and good corrosion resistance feature.
Overview
It is based on the bronze alloy. These kinds of products are widely used in machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft, and transmission, etc.
Premium cast bronze bushing, precision CNC milling copper aluminium alloy bronze Bush
4 axis machining center, precision grinder, precision wire cutting and CNC lathe, machining accuracy of 0.02mm.
The company focuses on CNC precision machining of mechanical parts, mainly used in the field of robotics, communications;Medical, automation fields, as well as customized precision complex parts processing.The core competitiveness is rapid response ability, quality assurance system and cost control level.We provide value-added services for customers through technical services closer to customers, quality processes and business processing capabilities, so that customers can focus more on their own main business, so as to enhance customer value.
Surface: as your requirement
Material: steel / aluminum / brass / iron / zinc / alloy
Any other material and dimension depends on customers' demand.
Usage: machinery / furniture / toy / woodboard / wall
Manufacturing process: Precision turning parts
Euipment: CNC turning machine
Testing equipment: projector
Tolerance:+/-0.02MM
Special processing tasks require unusual material selection solutions
In the field of industrial solutions, our materials engineers and workshop technicians combine the selected final results of rationalization projects to confirm the overall non-standard customized solution.If it is meaningful to use non-standard customized materials, we will provide materials that can be delivered and used in the shortest time according to the condition of the workpiece.
Non-standard customization covers: special size, specified quantity, special standard, etc
In the field of industrial solutions, our materials engineers and workshop technicians combine the selected final results of rationalization projects to confirm the overall non-standard customized solution.If it is meaningful to use non-standard customized materials, we will provide materials that can be delivered and used in the shortest time according to the condition of the workpiece.
Non-standard customization covers: special size, specified quantity, special standard, etc
Factory CNC Machining Copper Bush/Bronze Sleeve/BrassBronze bushings exhibit wear properties of up to four times greater than OEM bushings due to the use of improved materials. This superior level of quality is necessary for the bronze bushings to match CNC pins and shafts, in both performance and part longevity. Increased lubricity is also present with bronze bushings to ensure that you attain a solution specifically tailored to your needs. Wh you desire a straight bushing, or a flanged bushing with grease modifications, the tools available in CNC’s arsenal will ensure you get what you require.
|
Material
|
CuZn25Al5Mn4Fe3
|
|
Typical Application
|
Machine-tool,Agricultural machinery, Crane electromotor, Spring pin, Steering shaft and transmission, etc.
|
|
Density g/cm3
|
8.7
|
|
Max Dynamic Load N/mm2
|
60
|
|
Max Linear Velocity(Grease) m/s
|
0.85
|
|
Max PV value Grease N/mm2·m/s
|
1.65
|
|
Pressure strength N/mm2
|
>240
|
|
Yield Strength N/mm2
|
>100
|
|
Mating Axis
|
Hardness ≥40, Roughness 0.4~1.0
|
|
Working Temperature ℃
|
40~140
|
|
Friction Coefficient
|
0.09~0.15
|
|
coefficient of heat conduction W/m·K
|
52
|
|
Linear expansion coefficien
|
18.5×10-6/K
|
