CUSN8 / CUSN6 Sleeve Bronze Bushing With Lubrication Grooves DIN 1494 / ISO 3547 40 - 44 L50

Place of Origin Bushing Manufacturer
Certification DIN 1494 / ISO 3547
Model Number wrapped bushing 40 - 44 L50
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Delivery Time 7-20 work days
Payment Terms T/T, Western Union
Product Details
Material CuSn8/CuSn6 Tin Bronze Bushing Bushing Size 40 - 44 L50
Feature Low-maintenance Item Bronze Sleeve Bushings
Bushing For Sale BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 Type Thin Walled Bearings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings


graphite sleeve bearings

Leave a Message
Product Description

40 - 44 L50 Sleeve Bronze Bushing With Lubrication Grooves DIN 1494 / ISO 3547

Bronze (CuSn8P)alloy bushings special compositions as base, surface of alloy is rolled diamond type of the oil indents. High load carrying capacity, well wearing performance, longer lifetime and good chemical resistance to corrosive agent. It has been widely used in many fields, such as Earthmoving equipments, hoist machines, building machinery, machine tool industry and mining machinery.

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance

Special dimensions and imperial sizes are available on request,For higher requirements – e.g. higher temperature ranges – different materials are available in this category.WB802, WB800, WB702, WB700, B92 i B90,FB090 FB092,http://BronzeSleeve.com | The Premier Source for Bronze Bushings Online,http://bronzegleitlager.com

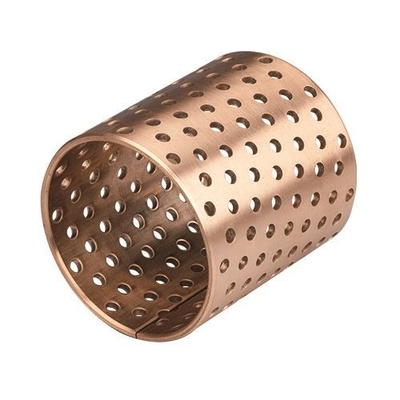

Rolled bronze bearings with lubrication pockets.











- High load capacity
- Works well in dirty environments
- Wide temperature range
- Easy to assemble
- Grease pockets like lubrication tanks


Technical Details


Specific load capacity static< 120 [N/mm2]

Specific load capacity dynamic< 40 [N/mm2]

Sliding speed≤ 2.5 [m/s]

Friction value0.05 [µ] to 0.12 [µ] depending on lubrication

Temperature strain- 40 [°C] to + 250 [°C]

Max. PV-value2.8 [N/mm² x m/s]

The percentage of contact area on the ID is > 75%

The listed values in the material properties are valid for optimal operating conditions. By changing the conditions of application, e.g. an increase in the sliding speed or strain, these values could shift.


Range Of Application




Product Name
 Bronze Wrapped Bushing
CuSn8 + Graphite
We can develop according to customers' special requirement.
ISO/TS16949:2009, SGS, CNAS
Pressure Strength
460 N/mm2
Yield Strength
230 N/mm2
90 ~ 150
Starting motor hoisting machines and other construction machines.


Areas of use for example

Forestry and construction machinery, agricultural machinery, cranes, forklifts, lifting equipment, etc.
Shapes and shapes
Cylindrical plain bearings, flanged bearings, pressure washers, sliding plates.

  • Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Aerial work platform, while you are still "heard of" it, many industries have become increasingly dependent on it.Below, we will take you to the key application areas of the high-altitude operation platform:

Construction Machinery
There is a lot of height work in construction, and the traditional high-altitude work tools such as scaffolding, derrick, portals, etc., have the problems of poor safety, large amount of building materials and long time consumption. Excellent safety guarantee and excellent work efficiency: The aerial work platform is an ideal replacement for Scaffolding, which has accelerated the process of construction mechanization and significantly reduced the labor of lifting in the construction process.

Pipe Installation Bronze Grease
Pipelines, especially fire fighting pipelines, play a vital role in the reliability of fire water and the ability of buildings to withstand fires. When installing fire pipes, many internal air operations are performed, and there are also many operating points and complex operations. space.

Supermarket and Warehouse Logistics

With the development of modern supermarkets, warehouses and logistics centers, multi-tiered stacking and warehousing of goods is increasingly inseparable from the use of the self-propelled aerial work platform. They are small in size, lightweight, stable up and down, safe and reliable. It can complete the lift operation at a higher height in a smaller space, and is the ability to move under the state of climb.Moreover, the intelligent control system enables all operations to be completed independently by one person, which greatly improves the efficiency of warehousing and logistics work and reduces the labor intensity of operators.

Discover More

In addition to the above three applications, the platform is also used in all walks of life, such as cleaning and maintaining building walls; Manufacture and maintenance of large equipment; Transportation from major transportation centers and so on.The platform also faces a variety of problems: abnormal noise in the operating process, wear of the joints, hug ......
Faced with the above problem, VIIPLUS SLEF LUBRICATING BUSHING can be a "game" to solve.
