Casting Copper Alloy Bushings , CuZn35Al2Mn2Fe1 Copper Alloy, china supplier, high quality
| Place of Origin | Bushing Manufacturer |
|---|---|
| Brand Name | REPLACEMENT PLAIN BEARINGS |
| Certification | CW713R |
| Model Number | CuAl10Fe3Mn2 |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | STANDARD TOLERANCE BUSHINGS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bearings Material | CuZn35Al2Mn2Fe1 | Groove | Groove |
|---|---|---|---|
| Type | Self Lubricating Bronze Bushing | Quality | High Quality |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | oil embedded sleeve bearing,graphite sleeve bearings |
||
Product Description

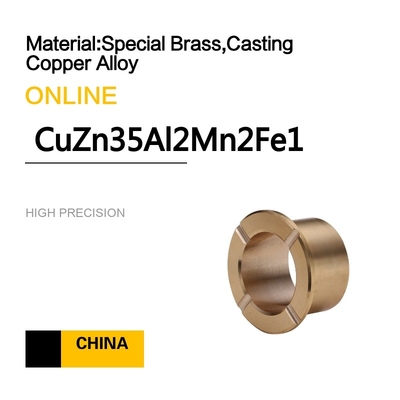

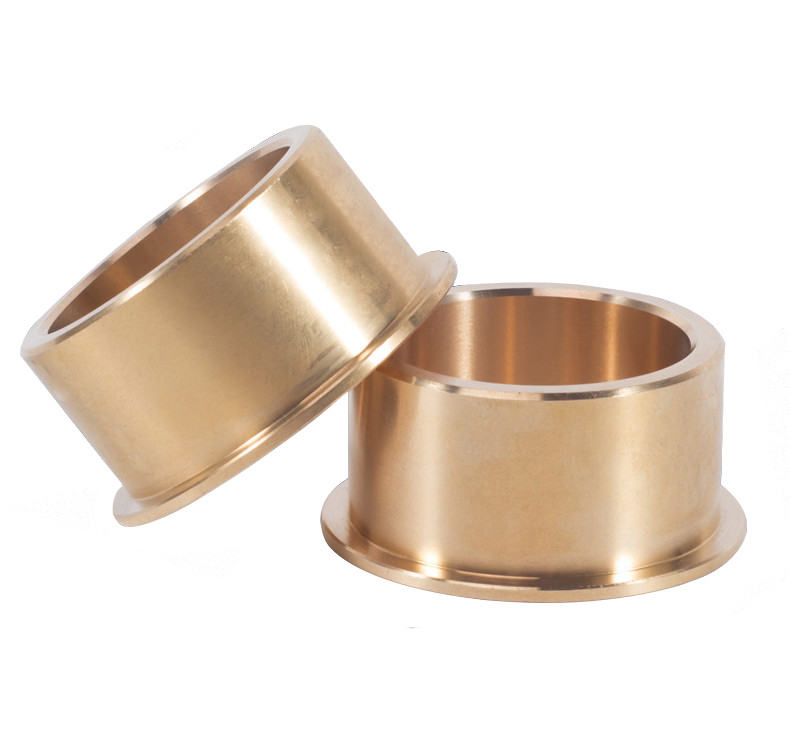

Casting Copper Alloy Bushings CuZn35Al2Mn2Fe1 Copper Alloy Bearings For Pumps & Hydro - Electric
Casting Copper Alloy Bushings CuZn35Al2Mn2Fe1 Casting Copper Alloy Type Bearings
VIIPLUS CHINA can not only manufacture copper alloy bearing and bushings flange according to China's standard, but also can produce it as the related standards of the ASTM(UNS,SAE), EU and JIS, etc.What's more,we can also manufacture the copper alloy bearing material according to the special requirements and drawings of customers.
Bronze Bushing Application
Water Resisting• Dam Gates • Submersible Pumps • Hydro-Electric Surfaces • Off Shore Structures
| Chemical Composition mass/% | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| 57.0-65.0 | 1 | 0.5-2.5 | 0.5-2.0 | 0.5-3.0 | 6 | 0.5 | 0.1 | 0.03 | Rem |
| Mechanical properties | |||
|---|---|---|---|
| Tensile strength Mpa(Min) | Yield strength MPa(Min) | Elongation % | Brinell hardness(HB) |
| 500 | 200 | 18 | 120 |
Note:
1,In Chemical Composition, Single values represent maximums.
2,Mechanical performance of hardness value is only for reference
|
Size
|
Customized
|
|
Material
|
CuZn25Al5Mn4Fe3. Customized
|
|
Color
|
Natural
|
|
Certification
|
ISO9001,
|
|
Density
|
8g/cm3
|
|
Hardness
|
>210HB
|
|
Working Temperature Limit
|
-40~200℃
|
|
Max. Dynamic Load
|
98N/mm²
|
|
Max Linear Velocity(Grease)
|
0.85m/s
|
|
Max PV value Grease
|
1.65N/mm2·m/s
|
|
Friction Coefficient
|
0.09~0.15
|
|
Tensile strength
|
>750N/mm²
|
|
Yield Strength
|
>340 N/mm2
|
|
Mating Axis
|
Hardness≥40, Roughness 0.4~1.0
|
|
Coefficient of heat conduction
|
38~55W/m·K
|
|
Linear Expansion Coefficient
|
2.2×10-5/℃
|
|
Application
|
machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft and transmission
|
Explanation:Casting Copper Alloy Bushings is based on the copper alloy. It offers technically and economically favorable bearings solutions. It is of high load capability, low weight and good corrosion resistance. Casting Copper Alloy Bushings can offer different types of bronze alloys according to the required life time, service etc. The tolerance is much tighter than wrapped bronze bushes. We can use different copper alloy material as per customer's requirements.
