| Brand Name: | REPLACEMENT PLAIN BEARINGS |
| Model Number: | CuAl10Fe3Mn2 |
| MOQ: | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price: | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Payment Terms: | T/T |
| Supply Ability: | STANDARD TOLERANCE BUSHINGS |

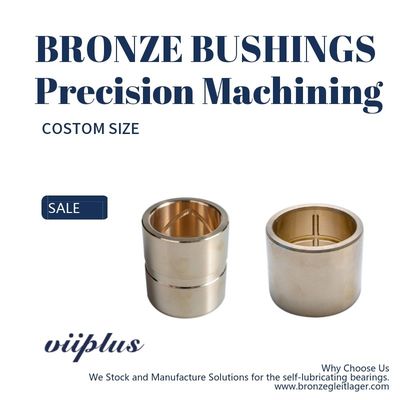

Aluminum Bronze CuAl10Fe3Mn2 sleeve bushings are specialized copper alloy bearings designed for use in dozers and other heavy-duty earthmoving equipment. These bushings are made from a unique alloy composition that combines the strength and wear resistance of aluminum bronze with the corrosion resistance and ductility of copper.
The CuAl10Fe3Mn2 alloy offers excellent mechanical properties, making it suitable for high-load and high-speed applications. The sleeve bushings are precision-manufactured to ensure a snug fit and smooth operation, reducing friction and wear while maximizing equipment performance.
Our aluminum bronze CuAl10Fe3Mn2 sleeve bushings are of the highest quality, meeting strict industrial standards. We are committed to providing reliable and durable bearings that can withstand the demands of dozers and other heavy machinery, ensuring longer equipment lifespan and reduced maintenance costs.
Wh you need replacement bushings or are looking to upgrade your dozer's performance, our aluminum bronze CuAl10Fe3Mn2 sleeve bushings are an excellent choice. Contact us today to learn more about our products and how we can help improve the efficiency and reliability of your dozers and other industrial equipment.
We offer full bronze bearings rebuild packages for various dozers.
Aluminum Bronze CuAl10Fe3Mn2 Sleeve Bushings Copper Alloy Bearings Made to order from china
VIIPLUS CHINA can not only manufacture copper alloy bearing and bushings flange according to China's standard, but also can produce it as the related standards of the ASTM(UNS,SAE), EU and JIS, etc.What's more,we can also manufacture the copper alloy bearing material according to the special requirements and drawings of customers.
|
Chemical Composition mass/% |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Cu |
Sn |
Al |
Fe |
Mn |
Ni |
Pb |
Si |
P |
Zn |
|
Rem |
0.1 |
9.0-11.0 |
2.0-4.0 |
1.5-3.5 |
1 |
0.05 |
0.2 |
- |
0.5 |
|
Mechanical properties |
|||
|---|---|---|---|
|
Tensile strength Mpa(Min) |
Yield strength MPa(Min) |
Elongation % |
Brinell hardness(HB) |
|
500-900 |
330-510 |
30-5 |
130-210 |
Note:
1,In Chemical Composition, Single values represent maximums.
2,Mechanical performance of hardness value is only for reference
|
Size
|
Customized
|
|
Material
|
CuZn25Al5Mn4Fe3. Customized
|
|
Color
|
Natural
|
|
Certification
|
ISO9001, TS16949
|
|
Density
|
8g/cm3
|
|
Hardness
|
>210HB
|
|
Working Temperature Limit
|
-40~200℃
|
|
Max. Dynamic Load
|
98N/mm²
|
|
Max Linear Velocity(Grease)
|
0.85m/s
|
|
Max PV value Grease
|
1.65N/mm2·m/s
|
|
Friction Coefficient
|
0.09~0.15
|
|
Tensile strength
|
>750N/mm²
|
|
Yield Strength
|
>340 N/mm2
|
|
Mating Axis
|
Hardness≥40, Roughness 0.4~1.0
|
|
Coefficient of heat conduction
|
38~55W/m·K
|
|
Linear Expansion Coefficient
|
2.2×10-5/℃
|
|
Application
|
machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft and transmission
|
Explanation: Sleeve Bushings Copper Alloy Bearings is based on the copper alloy. It offers technically and economically favorable bearings solutions. It is of high load capability, low weight and good corrosion resistance. Sleeve Bushings Copper Alloy Bearings can offer different types of bronze alloys according to the required life time, service etc. The tolerance is much tighter than wrapped bronze bushes. We can use different copper alloy material as per customer's requirements.
