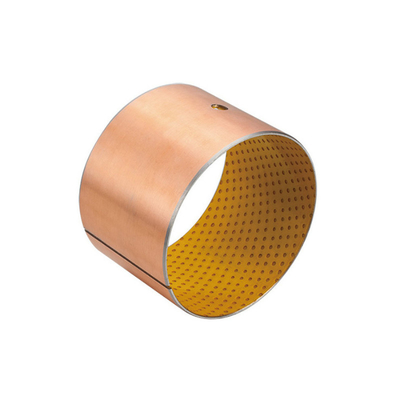

    The wrapped bronze bushings is produced with diamond-shaped lubrication indents on the inner diameter surface which provide lubricant reservoirs that allow for prolonged service.
Contact Person : Tiffany

Metal And Bimetal Bronze CuPb10Sn10 Sleeve Bushings To Standard SAE 792 Housing Spilt Bushes

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO 9001
Model Number Bimetal Plain Bearings to Standard SAE 792
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 4 - 12 BUSINESS DAYS
Payment Terms T/T
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CHARACTERISTICS Bimetal Bearing With Steel Backing And Bronze Overlay Area Of Use Particularly Suitable For High Specific Loads With Oscillating Motion And Low Frequency
Bimetal Bushing Feature High Load Capacity, Very Good Resistance To Fatigue Strength At Higher Temperatures STRUCTURE AND COMPOSITION Steel Backing And Leaded Bronze Overlay Steel + CuPb10Sn10 With Indents
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings

,

oil embedded sleeve bearing

Leave a Message
Product Description

Metal and bimetal bronze CuPb10Sn10 sleeve bushings are widely used in applications that require high wear resistance, corrosion resistance, and good load-bearing capabilities. These bushings are often made from a combination of copper, lead, and tin alloys, such as CuPb10Sn10, which provides excellent mechanical properties and self-lubricating capabilities.

The SAE 792 standard specifies the dimensions and requirements for split bushes, which are designed to fit into a housing and provide a bearing surface for rotating or sliding components. The sleeve bushings made from CuPb10Sn10 bronze material are commonly used in SAE 792 housing split bushes, offering reliable performance and long service life.

The split design of SAE 792 housing bushes allows for easy installation and removal, which is crucial in applications where maintenance and repair are important. The bushings are also designed to withstand high loads and provide good alignment, ensuring smooth and efficient operation of the rotating or sliding components.

Metal and bimetal bronze CuPb10Sn10 sleeve bushings for SAE 792 housing split bushes are widely available from various suppliers, including those in China. When selecting a supplier, it is important to ensure that the bushings meet the SAE 792 standard and are made from high-quality materials to ensure optimal performance and durability.



Bronze Sleeve Bushings



Bimetal cylindrical bearings are available on order.Dimensions and tolerances follow ISO 3547 and specifications.VIIPLUS INTERNATIONAL offers, along with the widest range of lubricated and self-lubricating bearing Sleeve Bushing Bimetal Bearing made to order from china factory, a comprehensive technical and application engineering knowledge.In this respect, our Application Engineers can assist you in:Choosing the right type of plain bearing for your application! Design of the bearing according to standard dimensions or to customer specific requirements! Establishing a life time estimate! Assembly and installation recommendations.



Bimetal plain bearing materials each consisting of a steel backing to which is sintered a lead bronze sliding layer. Metal Sleeve Bushings forms made to order from china: cylindrical bushes and thrust washers with non-standard dimensions, sliding plates, customized bearing designs.



Bimetal Sleeve Bush bore may bored, reamed, broached or ball burnished in situ to control the assembled bearing clearance,Suitable for oil or grease lubrication Steel backing provides strength and rigidity,Hardened shafts are not required,Thin wall construction permits compact bearing assembly.



Bimetal Bearing Solutions for Lubricated Applications





self lubricating bronze bushing







Bimetal Bushing Characteristics
Physical and Mechanical Properties



  • Capable of supporting high specific loads
  • Excellent fatigue strength under dynamic and shock load conditions
  • Suitable for oil and grease lubrication
  •  Superior performance under oscillating movement
  •  Steel backing provides strength and rigidity
  • Thin wall construction permits compact bearing assembly
  • Indents in the bearing surface provide a reservoir for grease and thus allow extended re-greasing intervals
  • Tolerant of relatively poor mating surface finish



Bearing forms available in standard dimensions



  • Cylindrical bushes

  • Thrust washers



Bimetal Bushing is available as a standard range of cylindrical wrapped bushes and thrust washers in metric
sizes.Non standard parts, strip and special forms to order. Bimetal Bushing can be ordered as metric and inch bushes, strip and special forms.



Structure And Composition



Steel Backing and Leaded Bronze Overlay

Steel + CuPb10Sn10 with indents

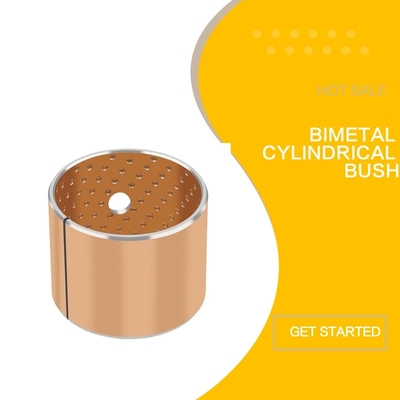

Suitable for use with oil or grease lubrication.For use with grease lubrication, the bearing surface is
manufactured with a uniform pattern of indents which form a reservoir for the lubricant and provide the optimum distribution within the loaded area of the bearing.



Technical data

Maximum load
Static load
N/mm²
250
Dynamic load
N/mm²
140

Operating temperature
Minimal
-40
Max greased
150

Max oil lubricated
250


Grease lubricated
Maximum sliding speed
m/s
2.5
Maximum PV factor
N/mm²·m/s
2.8
Coefficient of friction

0.05-0.12


Oil lubricated
Maximum sliding speed
m/s
5
Maximum PV factor
N/mm²·m/s
10
Coefficient of friction

0.02-0.20



Microsection



Sliding layer with lubrication indents CuPb10Sn10 with composition approx.:



Cu 80 %
Pb 10 %
Sn 10 %

Steel backing

Our high performance bearing specialists have the experience and expertise to provide innovative solutions to even the most challenging applications.

Non standard parts, strip and special forms to order.



Bimetal Bushing Quality/Certification



For a complete listing of our certifications, please visit our website:www.bronzegleitlager.com.

Bimetal Bearings
The more and more demanding specifications of today's high performance equipment and systems require that the bearings operate not only under severe working conditions with minimal or no maintenance but that they also offer increased reliability and durability with lower operating costs.



Bimetal Bushing Application



Bimetal Bearings are perfectly suited to a wide range of applications.

Typical applications include: agricultural machinery, earth-movers, textile machinery, pneumatic equipment, king pin bushes, brake caliper bushes, mechanical handling and lifting equipment, hydraulic cylinders, off-highway equipment etc.
