• JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
    David from Canada
    Our company import the bronze gleitlager from viiplus china,viiplus professional team makes sure customs clearance is always smooth. They provide an accurate bronze bushing classification, handle all the paperwork,We have received the self-lubricating bronze bushings. They look well done and the high quality.
  • JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
    Valerie from California
    We import the bronze gleitlager from China to under the incoterm FOB shanghai, sometimes by Air. viiplus is a very good bronze gleitlager supplier, they are very professional and patient, after we inform the new order, they will manufacturer bronze gleitlager in time and give us the schedule , and then we just need to receive the bronze parts
  • JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
    Daisy From Germany
    The best surface finishes for Sleeve Bearing, tighter concentricity, and bronze bushings material uniformity. The good supplier of standard inch and metric sleeve bearings and bushings from china. https://www.bronzelube.com/
  • JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
    Beverly from Florida
    “Valve Bushings perfect,Thank you so much for your superior customer service! The steel-backed, PTFE lined rolled bushings are a low cost, a general-purpose product that provides excellent wear characteristics at high loads and speeds over a wide temperature range. They are designed to be self-lubricating and maintenance-free.
  • JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
    Michael Russo
    The wrapped bronze bushings is produced with diamond-shaped lubrication indents on the inner diameter surface which provide lubricant reservoirs that allow for prolonged service.
Contact Person : Tiffany

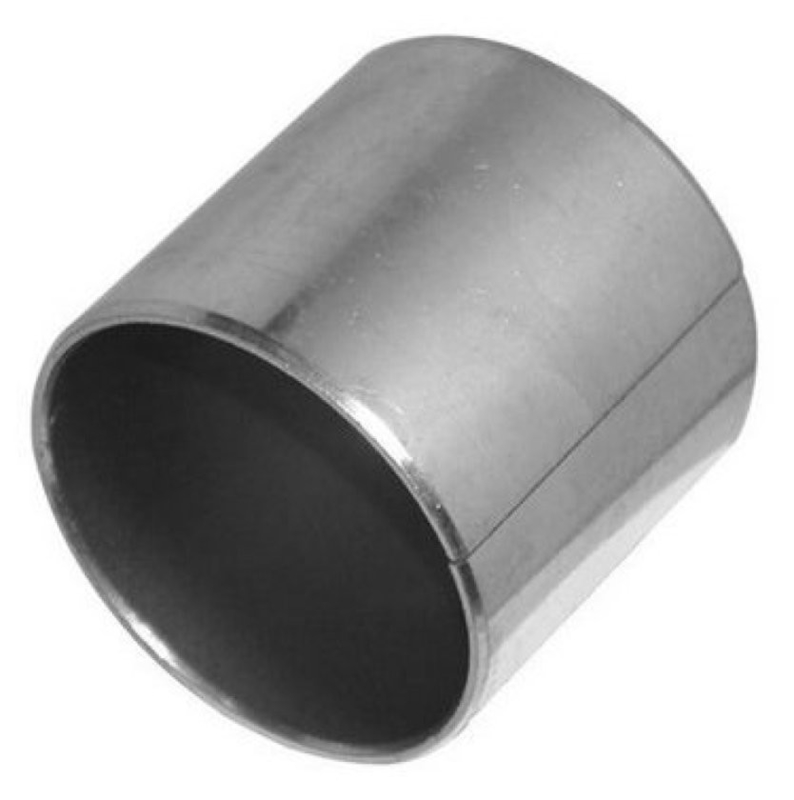

Bushing, Oilless Bush Bushing , Stainless Steel Bearing , China Supplier

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO 9001
Model Number Metal-Polymer Anti-Friction Plain Bearings
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE ARE MADE OF HEAT TREATED PLYWOOD
Delivery Time 7-23 work days
Payment Terms T/T, Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type SLEEVE SIZE CUSTOMIZED
Lubrication Self-lubricating Material Stainless Steel+ Bronze Powder +
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings

,

graphite sleeve bearings

Leave a Message
Product Description

(Polytetrafluoroethylene) bushings are widely used in various industrial applications due to their excellent properties such as high chemical resistance, low friction coefficient, and good heat resistance. These bushings are often referred to as "oilless" bushings because they can operate without the need for lubrication, making them suitable for applications where the use of lubricants is undesirable or not feasible.

 Oilless bush bushings, specifically, are made from high-quality material and are designed to provide smooth and reliable operation in demanding environments. The use of stainless steel as the bearing material further enhances the durability and corrosion resistance of these bushings.

China is a major supplier of bushings and stainless steel bearings, offering a wide range of products to meet the needs of different industries. With advanced manufacturing technologies and strict quality control, Chinese suppliers are able to provide high-quality bushings and bearings that are competitively priced and reliable in performance.

When selecting a bushing or stainless steel bearing supplier in China, it is important to choose a reputable company that has a good track record in the industry. By doing so, you can ensure that you receive a product that meets your specific requirements and provides the best possible performance.



Bronze Sleeve Bushings



Cylindrical Bushes,Flange Bearings Sliding Plates Strips Bearing forms made to order From china factory: standard forms in special dimensions, half-bearings, special shapes obtained by stamping or deep drawing, bearings with locating notches, lubricant holes and machined/stamped grooves, customized bearing designs.Metal-Polymer Self-Lubricating Lead Free Bearing Solutions All the products described in this brochure are manufactured under Lead-free material compliant to RoHS specifications



Structure And Composition



  • Metal-Polymer Composite Material
  • Steel Back + Porous Bronze Sinter +
  • + Solid Lubrican



Characteristics





self lubricating bronze bushing





  • Good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
  • Very good performance in lubricated applications particularly in marginally lubricated applications
  • Suitable for linear, oscillating and rotating movements



Product Description



The recommended application conditions are the high load, high temperature and high polluted environment with grease or oil lubrication. It has excellent wear resistance. This material is widely used in the kingpin bushing, piston pump, agricultural machinery. It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.



Size
Customized
Material
Stainless steel+ Bronze powder +
Color
Natural
Certification
ISO9001, TS16949
Max load capacity P
Static Load 250N/mm²,Dynamic Load 140N/mm²,Oscoillation Load 60N/mm²
Max line speed V
Dry Lubrication 2.5m/s,Oil Lubrication >5m/s
PV value limit
Dry Lubrication 1.8N/mm²· m/s,Oil Lubrication 3.6N/mm²· m/s
Friction coef u
Dry Lubrication 0.08~0.20,Oil Lubrication 0.02~0.12
Max Working temperature
-200~280℃
Mating Axis
Hardness >220 HB,Roughness Ra=0.4~1.25
Thermal conductivity
40W/(m·k)
Coefficient of linear expansion
11×10-6/K
Application
The corrosion resistant part in dyeing machinery and ocean industry

Explanation:Its material structure is Stainless steel base + Bronze powder + and filler. It can be used in strong acid and alkaline.



Microsection



  • Sliding layer
  • + Solid Lubricant
  • Porous Bronze Sinter
  • Steel Backing





Product Name
Supply Hardened Steel Bush Wrapped Split Sleeve  Bearing Steel Insert Bushing
Material
Steel+Bronze++Pb+Filler
Size
We can develop according to customers' special requirement.
Standard
IATF 16949:2016, SGS, RoHS
Working Temperature
-200~+280℃
Outside Surface
Copper/Tin
Used
Automotive engines, Gear pumps, Shock absorber, Door hinges, Seats, printing, woven, tobacco and gymnastic machinery, pneumatic cylinder.
