Low Friction Coefficient Copper Sleeve Maintenance Bushings For Injection Molding Machine

Low Friction Coefficient Copper Sleeve Maintenance Bushings For Injection Molding Machine

Brand Name: ,MISUMI,DAIDO,SELF LUBE,,FIBRO STANDARD REPLACEMENT BEARING
Model Number: solid bushing, bronze with lubricant plugs embedded Maintenance-free
MOQ: NEGOTIABLE
Price: Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Payment Terms: TT IN ADVANCE
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Detail Information
Place of Origin:
Graphite Bearings Manufacturers
Certification:
DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Material:
CuSn7Zn4Pb7,CuSn12,CuZn37Mn3Al2PbSi,CuSn7- 0.2,CuAl10Fe3,CuAl10Fe5Ni5,CuZn25Al6Fe3Mn3,
Model Number:
Groove Patterns, Flanged Bushings
Feature:
Customized
Lubrication:
Without Graphite,self-lubricating
Application:
Heavy Duty Equipment,Machinery Repair,Hydraulic,Power Transmission
Type:
Precision Bronze Bearing
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
Item:
Bronze Grafitado
Graphite Plugged Bushings:
Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Supply Ability:
Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Highlight:

graphite impregnated bronze bushings

,

graphite impregnated bushings

Product Description

Introducing our low friction coefficient copper sleeve maintenance bushings specifically designed for injection molding machines. These bushings are crafted from high-quality copper materials, renowned for their excellent conductivity, corrosion resistance, and durability.

The key feature of these bushings is their low friction coefficient, which significantly reduces the amount of friction generated during the injection molding process. This reduction in friction not only improves the efficiency of the machine but also extends the lifespan of the bushings and other related components.

Moreover, our copper sleeve bushings are designed for easy maintenance and replacement. This ensures minimal downtime and quick turnaround in case of any wear or damage. The bushings' precision-fitted design also ensures a snug and secure fit, minimizing any potential for leakage or misalignment.

Wh you're looking to upgrade your existing injection molding machine or are in the market for new bushings, our low friction coefficient copper sleeve maintenance bushings are an excellent choice. They offer superior performance, durability, and ease of maintenance, ensuring smooth and efficient operation of your injection molding machine.

General Products Application/Service Area

Engineering machinery, mining machinery, industry and etc.;
Grab, earthmover, pushdozer, crushing mill, kibbler and etc..



Grooving Bronze Sleeve Bushing.



When your application calls for lubrication for either the housing or the shaft, an oil or grease groove is essential. Refer to the below chart for the types of grooves that can be done.Good Abrasion Resistance Low Friction Coefficient Copper Sleeve Maintenance Bushings For Heavy Load Long Service Life,Injection Molding Machine Bushings An Injection molding machine, also known as an injection press, is a machine for manufacturing plastic products by the injection molding process. VIIPLUS offers you the widest range of injection molding machines bronze bushings. Choose from grooved cast bronze bearings,bronze plugged graphite bushings with a full range of plain bearings processing technologies, including trust washer and sliding plate.

Copper Bearing finished copper alloy bushings provide a simple, economical way to use bearings with high bearing, good corrosion resistance, dimensional processing any of the characteristics. Meanwhile VIIPLUS CHINA can provide different copper alloys according to different conditions, and in accordance with the requirements of processing different forms, it has a higher dimensional accuracy than class copper rolling bearings.



Base bronze bushings material properties


1. Can be used for a long time without maintenance;
2. Designed for high static and dynamic load;
3. It has a very low and stable friction factor and no "adhesion" phenomenon;
4. Dust resistance, corrosion resistance, impact resistance and edge load resistance;
5. Metal substrate has good shock absorption capacity;
6. Can be used in a wide temperature range;
7. Suitable for reciprocating, rotating and swinging start frequently and difficult to form oil film occasions.



  • Material (can be customized):
    Material grade
    (GB)
    Main features Applications
    ZCuPb10Sn10 Lubrication performance, wear resistance and corrosion resistant performance is good, suitable for bimetal casting materials Surface pressure is high, and there is the lateral pressure of the sliding bearing, such as rolling rolling, vehicle use bearing, load peaks 60 mpa hit parts, as well as the highest peak of 100 mpa bimetallic bearing bush of the internal combustion engine, and the piston pin sets, lining, etc.
    ZCuPb15Sn8 Under the condition of lack of lubricant and use water quality lubricants, sliding and lubricating, free cutting, casting performance is poor, for dilute sulfuric acid corrosion resistant performance is good Surface pressure is high, and the lateral pressure of bearing, copper cooling pipe can be made from cold rolling mill, impact resistance load of up to 50 mpa parts, internal combustion engines of bimetallic bearing, mainly used for the biggest load of 70 mpa of piston pin set, acid-proof accessories
    ZCuPb20Sn5 At higher sliding performance, in the absence of a lubricating medium and water as medium are particularly good self-lubricating performance suitable for bimetal casting material, sulfuric acid corrosion resistance, easy cutting, casting performance is poor High sliding speed of the bearing, and crusher, water pump, cold rolling mill bearings, piston pin load of 70 mpa
    ZCuPb30 Have good self-lubrication, free cutting, casting performance is poor, easy to produce the gravity segregation High sliding velocity of bimetallic bearing shell, wearing parts, etc.
    ZCuZn25Al6Fe3Mn3 With high mechanical properties, the casting performance is good, good corrosion resistance, has a tendency to stress corrosion Suitable for high strength, wear parts, such as bridge plate, nut, screw, wear-resistant plate, the slider, and worm gear, etc
    ZCuZn26Al4Fe3Mn3 With high mechanical properties, the casting performance is good, in the air, water, and seawater corrosion resistance is good, can be welded Require high strength, corrosion resistant parts
    ZCuZn38Mn2Pb2 Have higher mechanical properties and good corrosion resistance, abrasion resistance, good cutting performance General purpose structure, ship, instrument appearance, simple casting using such as sleeve, sleeve, bearings, slider, etc
    ZCuZn40Mn3Fe1 With high mechanical properties, good casting properties and machinability, and in the air, water, and water has good corrosion resistance, has a tendency to stress corrosion cracking Seawater corrosion parts, pipe fittings and under 300 °C, manufacturing and other large Marine propeller castings
    ZCuZn33Pb2 Structural material, feed temperature is 90 °C when good oxidation resistance, electrical conductivity of about 10 ~ 14 ms/m The shell of gas and water supply equipment, machinery manufacturing, electronics, precision instruments and optical instruments of component parts
    Other standard and material ASTM, JIS, AISI, EN, BS;
    Manganese brass: C86300 and etc.;
    Tin bronze: C83600, C93200, CuSn12, CuSn7Zn4Pb7 and etc.;
    Aluminum Bronze: C62900, C95400, C95500, CuAl10Fe5Ni5 and etc..

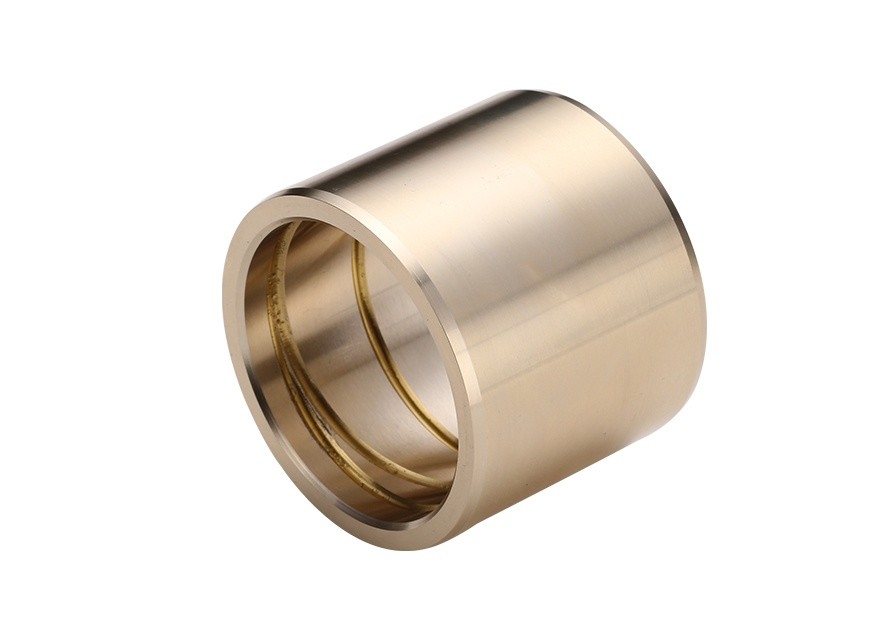

Low Friction Coefficient Copper Sleeve Maintenance Bushings For Injection Molding Machine 0

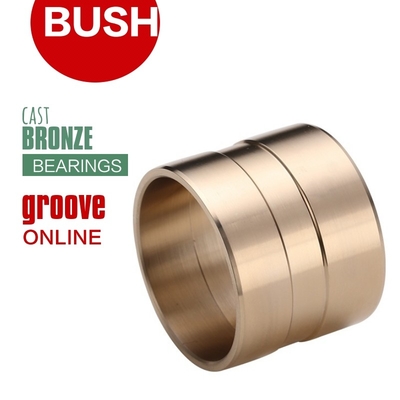

Low Friction Coefficient Copper Sleeve Maintenance Bushings For Injection Molding Machine 1



Copper Sleeve Bearing for heavy load


When high load applications encounter bad working conditions, maintenance becomes a big problem, how to extend the service life of parts, at the same time, reduce the cost of later maintenance?
VIIPLUS BRONZE bearings have opened up a new way of thinking about solving this problem.

Sleeve bronze sleeves due to its low manufacturing cost, better wearing quality and longer service life.

Oil Grooves Type For Cast Bronze Bushings



Double Loop and Double Figure Eight recommended for grease only.

Low Friction Coefficient Copper Sleeve Maintenance Bushings For Injection Molding Machine 2





Made-To-Order Cast Bronze Sleeve Bearings
Oil & Grease Groove Bronze Bushings & Flanged



Groove Type :Single Loop Figure Eight Straight & Circular Double Loop Double Figure Eight Half Figure Eight Straight Circular

Note: In order to form a more perfect oil film between the bearing & shaft, we recommend a V-shaped groove whenever the design permits, as it allows full flow of the lubricant across the bearing surface.



Copper Alloy Bushings Technical Parameters



Material Composition and Properties
Grade BRONZE BRONZE BRONZE BUSHINGS BURONZE BUSHING
Material CuZn25Al5Mn3Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12
Density 8 8.9 7.8 8.9
Hardness HB >210 >70 >150 >95
Tensile strength N/mm² >750 >200 >600 >260
Yield strength N/mm² >450 >90 >260 >150
Elongation % >12 >25 >10 >8
Coeffcient of linear expansion 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃
Max.temp ℃ -40~+300 -40~+400 -40~+400 -40~+400
Max.load N/mm² 100 60 50 70
Max.speed (Dry) m/min 15 10 20 10
Max.PV(Lubrication) N/mm² *m/min 200 60 60 80
Compression deformation 300N/mm² <0.01mm <0.05mm <0.04mm <0.05mm





Low Friction Coefficient Copper Sleeve Maintenance Bushings For Injection Molding Machine 3

Customizable Materials

Material Grade (GB) Key Features Applications
ZCuPb10Sn10 Good lubrication, wear resistance, and corrosion resistance. Suitable for bimetal casting. High surface pressure and lateral pressure in sliding bearings. Used in rolling equipment, vehicle bearings, load-bearing parts (up to 60 MPa), and internal combustion engine bushings and piston pin sets.
ZCuPb15Sn8 Excellent performance under dry conditions or with water-based lubricants. Free-cutting, good resistance to dilute sulfuric acid. Used in bearings under high pressure, cold-rolled copper pipes, and parts exposed to impact loads (up to 50 MPa). Common in bimetallic bearings for internal combustion engines, especially for piston pin sets (up to 70 MPa).
ZCuPb20Sn5 High sliding performance, especially under water lubrication or no lubricant at all. Excellent self-lubricating, good sulfuric acid corrosion resistance. Ideal for bearings with high sliding speeds such as those in crushers, water pumps, and cold rolling mills. Also used for piston pins under loads up to 70 MPa.
ZCuPb30 Good self-lubrication and free cutting properties. Poor casting performance with a tendency to segregate under gravity. Suitable for high-speed bimetallic bearing shells and wear parts.
ZCuZn25Al6Fe3Mn3 High mechanical properties, good corrosion resistance, and good casting performance. Tendency to stress corrosion. Used in high-strength wear parts like bridge plates, nuts, screws, wear-resistant plates, sliders, and worm gears.
ZCuZn26Al4Fe3Mn3 High mechanical strength and excellent corrosion resistance in air, water, and seawater. Good casting performance. Can be welded. Ideal for high-strength, corrosion-resistant components.
ZCuZn38Mn2Pb2 High mechanical strength, excellent corrosion and abrasion resistance, and good cutting performance. General-purpose components, ship parts, instruments, and simple castings like sleeves, bearings, and sliders.
ZCuZn40Mn3Fe1 High mechanical properties, excellent casting and machinability. Corrosion-resistant in air, water, and seawater. Susceptible to stress corrosion cracking. Used in seawater-resistant parts, pipe fittings, and large marine propeller castings, especially in environments under 300°C.
ZCuZn33Pb2 Good oxidation resistance at temperatures up to 90°C. Electrical conductivity around 10-14 mS/m. Used in the shells of gas and water supply equipment, machinery, electronics, precision instruments, and optical components.
Other Standards and Materials ASTM, JIS, AISI, EN, BS standards. Includes: Manganese brass (C86300), Tin bronze (C83600, C93200, CuSn12, CuSn7Zn4Pb7), and Aluminum bronze (C62900, C95400, C95500, CuAl10Fe5Ni5). Various applications depending on specific material types and standards.

Available Sliding Bearings Form:



Plain cast bronze sleeve bushings,grooved cast bronze sleeve bushings,flanged cast bronze bushings,thrust washer,cast bronze bearings , Oversized Bearings

Bushings Size:Our standard bearing line features over different deminsion & inch size bushings that are carried in stock.
Made-To-Order Cast Bronze Sleeve Bearings for an Oil/Grease Application

VIIPLUS INTERNATIONAL according to different customer requirements, according to DIN, BS, EN (DIN/EN), SS, NS, UNS, SAE and China GB standard production of all kinds of bronze, brass bushing, plate and rod products.All products are made of electrolytic copper by centrifugal casting, continuous casting and extrusion sliding bearings.

Bearing solutions

Our company specializes in providing you with: oil-free bearing, sliding bearing, self-lubricating bearing, composite bearing; in Construction Machinery,The automotive industry,Electrical appliances,Hydraulic and pneumatic,Mold,Agricultural Machinery,water conservation,Bridge.
