When it comes to handling heavy loads and high-speed rotations, our centrifugal plugged graphite turned bronze bushings are second to none. Specially designed for demanding industrial applications, these bushings are crafted from high-grade bronze alloys that offer exceptional strength and durability.

The centrifugal design of our bushings ensures optimal performance in high-speed rotational applications. The graphite plugs provide excellent lubrication, reducing friction and wear, while also enhancing the bushings' overall lifespan. This combination of features makes our bushings ideal for use in pumps, motors, and other equipment that requires smooth and efficient operation.

Moreover, we offer custom oversized and extra big size solutions to cater to unique and specialized requirements. Wh you need bushings that are larger than standard sizes or have specific dimensions, we can provide you with custom-made bushings that perfectly fit your needs.

Our team of experts is dedicated to providing you with the highest quality bushings that meet or exceed your expectations. We employ precision manufacturing techniques to ensure accurate dimensions and tolerances, guaranteeing a secure and reliable fit for your equipment.

In summary, our centrifugal plugged graphite turned bronze bushings, available in custom oversized and extra big sizes, are the perfect choice for industrial applications that demand superior performance and durability. Trust us to provide you with bushings that are tailored to your specific requirements and ensure smooth and efficient operation of your machinery.

Die Making Guide Bushes, Graphite Plugged Bushings, Flanged size sleeve bush Price and delivery time on request. Flange Bronze Bushing Price and delivery time on request.

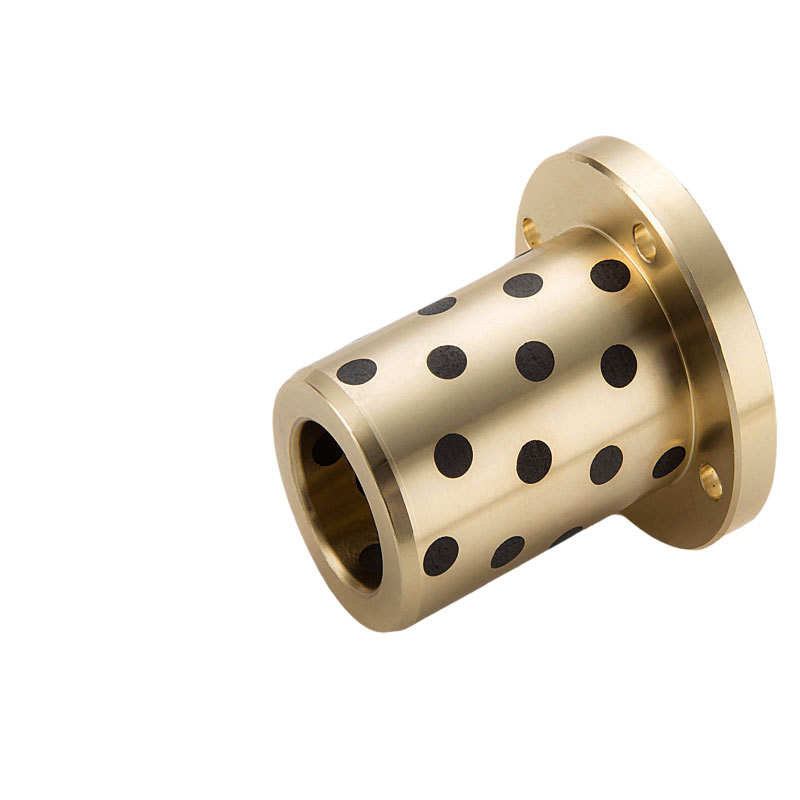

Maintenance-free Flange bearing and guide bushes, bronze with solid lubricants

Graphite Centrifugal Manufacture Oversized Plugged Graphite Bronze Bushings, type groove: Multiple Plug Loops, Circular Bushing. Stock Bearing Manufacturer Bronze Bearings Thrust Bearings CNC Machining Flange Bearings

STANDARD GROOVES Oil & Grease, Single Figure Straight & Double Double Half, Loop Eight Circular Loop Fig. Eight Fig. Eight Straight Circular

Inlaid graphite bronze Bushings Made-To-Order Choose your Bushing Size, Centrifugal Manufacturing Bushing, Cast Bronze Bushing. Click here to go to our online catalog and bushing specifier for all of our sliding bushing bearings including tolerance. BRONZE SLIDING PLATE PLUGGED GRAPHITE.pdf

The Extra Big largest bronze bushing sizes weight can achieve 3.0 tons, the minimum can achieve 50 grams.

Solid lubricated bearing Wear-resistant metal material as a matrix, by adding various lubricating materials to reduce friction factor, and achieve self - lubrication. This material structure combines the advantages of a high load of metal, good impact resistance, and low friction coefficient of non-metal, so it can be used in various working conditions. According to the distribution of solid lubricant is different, divided into according to certain proportion rule configuration set and evenly distributed in the working layer of dispersion of two kinds of solid lubricating bearing, Mosaic solid lubrication bearing is suitable for low speed and high load, and the dispersive solid lubricated bearing even under the condition of high speed in the micro, can keep a very low coefficient of friction.

Bronze Bushings Material Customized

Features

Self Lubricated when standard lubrication is impractical

Available in Inch & Metric dimensions

Performs well under various loads types and speed operations

Resists corrosive and hostile environments

Excellent performance in medium to high temperatures up to 600 F

Compatible with most viscous lubricants and oil and grease applications

Our main products are:Sliding bearings, self-lubricating bearings, solid lubrication bearings, self-lubricating bearings, sliding plate,trust washer,gasket, copper, brass sleeve bushings, and design ,Bushing material:phosphorus copper (QSn6.5 QSn10-1, 0.1), brass (H62, H65, H68 H70, H85, H90), tin bronze (QSn6-6-6, QSn5-5-5 CuSn10Pb1, CuSn8, CuSn4, CuSn12),Aluminum bronze (C60600, C64200, C60800, C61300, C61400, C61900, C62300, C62400, C63000, C63020, C63200, C65100, CuAL10Fe3, CuAL9Fe4Ni4, CuAL9Mn2, CuAL9Ni3Fe2, CuAL10Ni5Fe4), etc.

Sliding Bearings Precautions For Use:

1. Where possible, try to use standard design;
2. Please note that the surface of any foreign body assembly;
3. Sliding surface after use, because the solid lubricant film formation results in a surface with black or gray-black phenomenon, please do not scrub, as usual;
4. Before assembly, if the lubricating oil applied to the wear parts, can shorten the running-in period, in favor of mechanical operation, operation;
5. The assembly should be slowly pushed forbidden beat, so as not to damage bearings and cause deformation;
6. The design should be used in different parts of the appropriate material, in order to improve the mechanical properties, extending bearing life;
7. In the high load, the reciprocating motion, it is recommended to use screws;
8. In freshwater, seawater, and at sea, the shaft, or recommend the use of stainless steel, chrome plated.

Groove Type: Single Loop Figure Eight Straight & Circular Double Loop Double Figure Eight Half Figure Eight Straight Circular

Note: In order to form a more perfect oil film between the bearing & shaft, we recommend a V-shaped groove whenever the design permits, as it allows a full flow of the lubricant across the bearing surface.

Technical Parameters

Copper Alloy Bushings Materials

High-strength copper alloy as the base material, according to the use conditions by a certain percentage of its working surface machined hole and fill one solid lubricant. High-strength copper alloy provides a high load-carrying capacity and the solid lubricant can be formed lower friction. Under dry friction condition of our pre-designed layer of lubricating film in the bearing surface to ensure that in the shortest possible time will be transferred to the solid lubricant on the coupling member and form a valid solid lubricant film.

Sliding Bearing Characteristics

Custom Bushings Designs are taking on a huge need for today's self-lubricating bearing materials. Even in extreme extreme operating conditions and maximum load conditions are also required maintenance-free. With the continuous improvement of cost requirements, the reliability of equipment and plant operation requirements are also getting higher and higher. Metal self-lubricating bearings are designed for maintenance-free and self-lubricating conditions under long-term service conditions, thus making it possible to design reliable long-term self-lubricating systems. Metal self-lubricating bearing materials can be widely used in high-load low-speed conditions of rotation, swing and linear reciprocating motion, but also applies to traditional lubrication can not be achieved or prohibited to use the occasion, or in special conditions such as dust, Load or irradiation conditions need long-term and stable use.

Available Sliding Bearings Form:

Plain cast bronze sleeve bushings, grooved cast bronze sleeve bushings, flanged cast bronze bushings, thrust washer, cast bronze bearings, Oversized Bearings

Bushings Size: Our standard bearing line features over different dimensions & inch size bushings that are carried in stock.
Made-To-Order Cast Bronze Sleeve Bearings for an Oil/Grease Application

VIIPLUS INTERNATIONAL according to different customer requirements, according to DIN, BS, EN (DIN/EN), SS, BS, UNS, SAE, and China GB standard production of all kinds of bronze, brass bushing, plate, and rod products. All products are made of electrolytic copper by centrifugal casting, continuous casting, and extrusion sliding bearings.

Sliding Bearing Application

Suite for general machines and under atmosphere, Ship, hydraulic turbine, gas turbine, etc.
