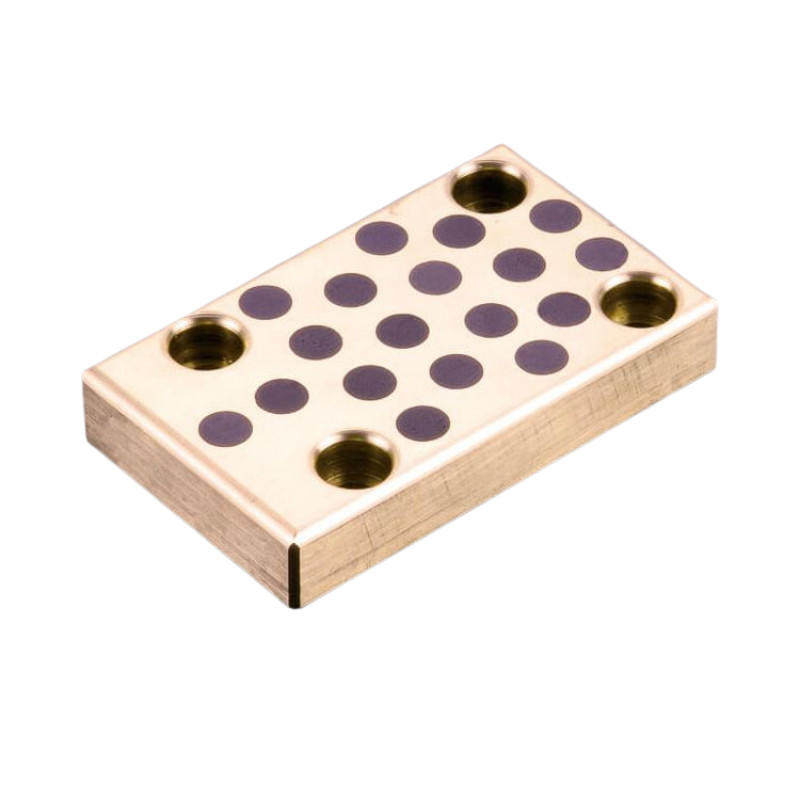

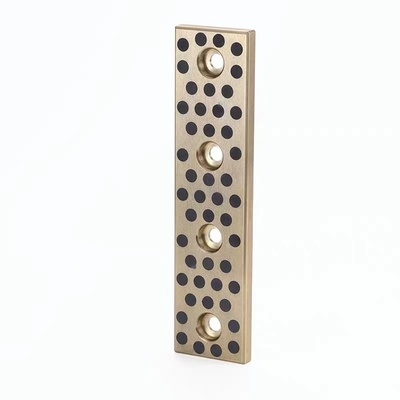

CAM V Guide Plugged Graphite Slide Bearing Plates Solid Lubricant
Place of Origin | China |
---|---|
Brand Name | viiplus graphite slide plate |
Certification | ROSH ISO 9001 |
Model Number | graphite slide plate |
Minimum Order Quantity | According to the size of the Oil-Free Slide Plates |
Price | According to the size of the Oil-Free Slide Plates |
Packaging Details | Wooden packing, paper packing |
Delivery Time | 5-25 works days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | Sufficient supply capacity |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Graphite + Copper Base | The Original Site | China |
---|---|---|---|
Oil-Free Slide Platesize | Oil-Free Slide Plates Can Be Customized | The Price | Oil-Free Slide Plates Factory Price |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Item | Bronze Grafitado | Graphite Plugged Bushings | Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables. |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | Solid Lubricant Slide Bearing Plates,Plugged Graphite Slide Bearing Plates |
CAM V Guide Plugged Graphite Slide Bearing Plates
The CAM V Guide Plugged Graphite Slide Bearing Plates with Solid Lubricant are designed to provide exceptional wear resistance and smooth sliding performance in various industrial applications.
The bearing plates are constructed from high-quality graphite material, which is renowned for its excellent lubrication properties and ability to withstand high temperatures and pressures. The solid lubricant integrated into the bearing plates further enhances their performance, reducing friction and wear while ensuring smooth and efficient operation.
The CAM V Guide design of these bearing plates allows for precise alignment and stable guidance, ensuring accurate and reliable movement. The plugged feature adds extra durability and prevents debris or contaminants from entering the bearing system, thus prolonging its lifespan.
These bearing plates are suitable for use in a wide range of industrial equipment, including machinery, conveyors, and other heavy-duty applications. Their solid lubricant property makes them particularly suitable for environments where regular lubrication is challenging or impractical.
In summary, the CAM V Guide Plugged Graphite Slide Bearing Plates with Solid Lubricant offer a reliable and efficient solution for industrial sliding applications, providing excellent wear resistance and smooth sliding performance.
Oil-Free Slide Plates, CAM V Guide,Plugged Graphite Plate, Cost-effective graphite parts, contact me to give you a satisfactory price.
Check the oil-free sliding plates for the latest prices and delivery times to order from China with holes of different thicknesses.
CAM V Guide Oil Free sliding part. Consist of two sides: Cam Bottom Guide Plate & Cam Bottom Slide Plate.
Bronze V Guide 25CGW : Copper Alloy + Oil Free(TM) Solid Lubricant
Steel Guide 25CGI : S45C (55HRC~)
Model
25CGW/25CGI
Manufacturer Code
CGW/CGI/CBSP/CBS
Oil-free slide plates are produced by incorporating a special solid lubricant in the appropriate places.Sintered alloy is a special alloy with an even distribution of solid lubricants and lubricating grease filled with pores.The metal base material supports the load while the built-in solid lubricant provides lubrication, resulting in superior oil-free durability, even under harsh conditions.
Composition and properties | ||||||||||||||||
dg | DIN | Material No. delivery form1) |
Designation | ASTM standard | Proportional weights | Physical properties (min.) | ||||||||||
Standard | Alloy No. |
DIN | ASTM | Density | 0.2% Strain |
Tensile strength |
Strain | Emodulus | Hardness | Application | ||||||
Symbol | ρ | δy | δT | |||||||||||||
Unit | % | % | g/cm³ | MPa | MPa | % | MPa | HB | ||||||||
01 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | C932 00 | Cu 81 - 85 Sn 6 - 8 Zn 3 - 5 Pb 5 - 7 permissible max. portions Ni 2.0 Sb 0.3 |
Cu 81 - 85 Sn 6.3 - 7.5 Zn 2 - 4 Pb 6 - 8 Ni 1 Sb 0.35 |
8.8 | 120 | 240 | 15 | 106.000 | 65 | Standard material for the most applications international standardized |
||
2.1090.03 | CuSn7ZnPb | B 271 | C932 00 | 8.8 | 130 | 270 | 13 | 106.000 | 75 | |||||||
2.1090.04 | CuSn7ZnPb | B 505 | C932 00 | 8.8 | 120 | 270 | 16 | 106.000 | 70 | |||||||
02 | 1705 | 2.1061.01 | CuSn12Pb | not yet standardized | Cu 84 - 87 Sn 11 - 13 Pb 1 - 2 permissible Ni 0.8 - 1.5 max. portions Ni 2.0 Sb 0.2 P 0.2 |
Cu 85 - 88 Sn 10 - 12 Pb 1 - 1.5 |
8.7 | 140 | 260 | 10 | 112.000 | 80 | Material for high loads and/or corrosion stress attack international only partially standardized |
|||
2.1061.03 | CuSn12Pb | not yet standardized | 8.7 | 150 | 280 | 5 | 112.000 | 90 | ||||||||
2.1061.04 | CuSn12Pb | B 505 | C925 00 | 8.7 | 140 | 280 | 7 | 112.000 | 85 | |||||||
03 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | C955 00 | C u min. 75 Al 8.5 - 11.0 Ni 4.0 - 6.5 Fe 3.5 - 5.5 permissible max. portions Mn 3.3 |
Cu min. 78 Al 10 - 11.5 Ni 3 - 5.5 Fe 3 - 5 Mn max. 3.5 |
7.6 | 270 | 600 | 12 | 122.000 | 140 | Material for extreme loads and/or high corrosive environments international standardized |
||
2.0975.02 | CuAl10Ni | B 30 | C955 00 | 7.6 | 300 | 600 | 14 | 122.000 | 150 | |||||||
2.0975.03 | CuAl10Ni | B 271 | C955 00 | 7.6 | 300 | 700 | 13 | 122.000 | 160 | |||||||
2.0975.04 | CuAl10Ni | B 505 | C955 00 | 7.6 | 300 | 700 | 13 | 122.000 | 160 | |||||||
04 | 1709 | 2.0598.01 | CuZn25Al5 | B584 | C863 00 | Cu 60 - 67 Al 3 - 7 Fe 1.5 - 4 Mn 2.5 - 5 Zn rest permissible max. portions Ni max. 3 |
Cu 60 - 66 Al 5 - 7.5 Fe 2 - 4 Mn 2.5 - 5 Zn 22 - 28 Ni max. 1 |
8.2 | 450 | 750 | 8 | 115.000 | 180 | Material for highest loads without corrosive attack. international partially standardized to a large extend |
||
2.0598.02 | CuZn25Al5 | B 30 | C863 00 | 8.2 | 480 | 750 | 8 | 115.000 | 180 | |||||||
2.0598.03 | CuZn25Al5 | B 271 | C863 00 | 8.2 | 480 | 750 | 5 | 115.000 | 190 | |||||||
05 | 1705 | 2.1052.01 | CuSn12 | not yet standardized | Cu 84 - 88 Sn 11 - 13 Pb 1 Ni 2.0 Sb 0.2 P 0.2 |
Cu 85 - 88 Sn 10 - 12 Pb 1 - 1.5 Ni 0.8 - 1.5 |
8.6 | 140 | 260 | 12 | 110.000 | 80 | Material with good wear resis- tance. corrosion and seawater resistant international partially standardized |
|||
2.1052.03 | CuSn12 | not yet standardized | 8.6 | 150 | 280 | 8 | 110.000 | 90 | ||||||||
2.1052.04 | CuSn12 | not yet standardized | 8.7 | 140 | 280 | 8 | 110.000 | 95 | ||||||||
1 ) delivery form: .01 = sand casting. .02 = gravity casting. .03 = centrifugal casting. .04 = continuous casting |
Technical Data
Grade | JDB-10 | JDB-20 | JDB-30 | JDB-40 | JDB-50 |
Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | HT250 | CuSn12 |
Density | 8 | 8.9 | 7.8 | 7.35 | 8.9 |
Hardness | ≥210 | ≥70 | ≥150 | ≥160 | ≥75 |
Tensile strength | ≥750 | ≥250 | ≥500 | ≥150 | ≥270 |
Yield strength | ≥450 | ≥90 | ≥260 | ≥150 | |
Elongation | ≥12 | ≥13 | ≥10 | ≥12 | ≥5 |
Coefficient o linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 0.8×10-5/℃ | 1.8×10-5/℃ |
Max.Temp. | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+150℃ | -40~+400℃ |
Max.dynamic load | 100 | 60 | 50 | 70 | 70 |
Max.speed(Dry) | 15 | 10 | 20 | 0.15 | 10 |
N/mm²*m/s(Lubrication) | 200 | 60 | 60 | 0.8 | 80 |
Compression deformation | < 0.01 mm | < 0.05mm | < 0.04mm | < 0.05mm |
Oil-free slide plates Feature
1.Oil-free slide plates are most effective in places where a constant supply of lubricant is required, frequent or frequent start and stop movements are required and the oil film is difficult to form.
2.Since oil-free slide plates are used in oil-free conditions, lubrication equipment is not required. This reduces assembly time and results in a cleaner environment by preventing pollution from hydrocarbons and other problems.
3.Oil-free slide plates have excellent seizure resistance.
Oil-free Slide Plates Size Model
Material: C86300 bronze Oil-Free Slide Plates (previously used copper alloy JIS, HBSC4). Special solid lubricant. Initial lubrication is recommended for more efficient use. Oil-free sliding plates made of copper alloy
Oil-free slide plates chemical composition
CuSn7Zn4Pb7(GB/T 1176-1987)= G-CuSn 7 ZnPb(DIN)=C93200(SAE660 RG7)Chemical composition quality/% |
|||||||||
Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
81.0-85.0 | 6.3-7.5 | 0.01 | 0.2 | - | 1 | 6.0-8.0 | 0.01 | 1.5 | 2.0-4.0 |
Oil-free slide plates mechanical properties
Tensile strength(Mpa) | Yield strength(Mpa) | Ductility% | Hardness (HB) |
241 | 138 | 10 | 65 |
Oil-Free Slide Plates Material Properties
- Enables maintenance-free and long life;
- Suitable for high static and dynamic loads;
- With low and smooth friction coefficient and no stick-slip effect;
- Suitable for dirt, corrosion, impact load, and edge loading;
- The base material provided good shock absorption;
- Can be used in a wide temperature range;
- Suitable for reciprocating, rotational and oscillating movement with initial frequency and difficulty in creating an oil film;
Oil-Free Slide Plates Types & Dimensions
25CGW | 35 | 75 | 24 | 15 | 30 | 45 | - | 2 | 8 | 15 | 15 | 15 | 4 | 11 | 9 | 14 |
100 | 20 | 40 | 60 | 20 | ||||||||||||
125 | 85 | 45 | ||||||||||||||
150 | 110 | 70 | ||||||||||||||
50 | 75 | 31 | 15 | 30 | 45 | - | 2 | 10 | 15 | 18 | 15 | 8 | 13 | 11 | 17.5 | |
100 | 20 | 40 | 60 | 20 | ||||||||||||
125 | 25 | 50 | 75 | 25 | ||||||||||||
150 | 25 | 50 | 100 | 50 | ||||||||||||
65 | 100 | 35 | 20 | 40 | 60 | - | 2 | 10 | 20 | 18 | 15 | 8 | 10 | 11 | 17.5 | |
150 | 25 | 50 | - | 50 | 3 | 50 | ||||||||||
200 | 4 | 100 | ||||||||||||||
250 | 5 | 150 | ||||||||||||||
300 | 6 | 200 |
25CGI | 35 | 75 | 20 | 15 | 30 | 45 | - | 2 | 8 | 15 | 17 | 4 | 9 | 14 | 35 |
100 | 20 | 40 | 60 | 20 | |||||||||||
125 | 85 | 45 | |||||||||||||
150 | 110 | 70 | |||||||||||||
50 | 75 | 32 | 15 | 30 | 45 | - | 2 | 10 | 15 | 29 | 10 | 11 | 17.5 | 50 | |
100 | 20 | 40 | 60 | 20 | |||||||||||
125 | 25 | 50 | 75 | 25 | |||||||||||
150 | 100 | 50 | |||||||||||||
65 | 100 | 47 | 20 | 40 | 60 | - | 2 | 10 | 20 | 44 | 20 | 11 | 17.5 | 65 | |
150 | 25 | 50 | - | 50 | 3 | 50 | |||||||||
200 | 4 | 100 | |||||||||||||
250 | 5 | 150 | |||||||||||||
300 | 6 | 200 |
Inlaid plates, suppliers, and manufacturers of inlaid plates.
This type of Oil-Free Slide Plates can be applied in dry, high temperature, high pressure, corrosive, water, or other chemical environments when it is not possible to introduce oil. It is widely used in the automotive product line, water engineering, dam gate, plastics industries, subsequent casting machines, steel rollers in the metallurgical industry, mineral machines, ships, turbogenerators, hydraulic turbines, and injection molding machines.
Oil-Free Slide Plates
STRUCTURE
VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
