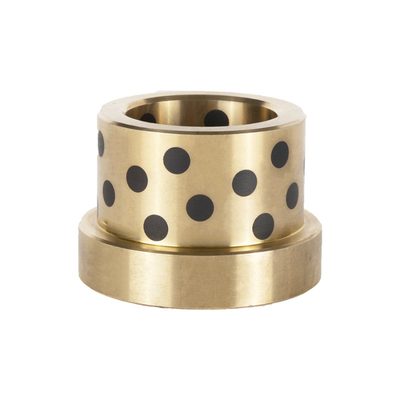

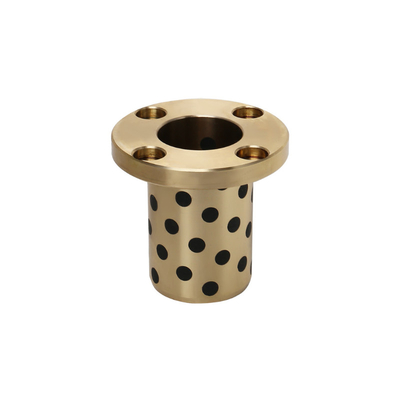

Low Friction C86300 Graphite Bronze Bearing SPW/JTW/SBW Cylindrical Flange Bush for Heavy Duty

Place of Origin MADE IN CHINA
Brand Name VIIPLUS.COM
Model Number CuZn25Al6Fe3Mn3+Graphite

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Coefficient Of Friction 0.08 - 0.20 Color Bronze
Code SPW, JTW,SBW Base Material C86300, SAE430, CuZn25Al5
Bush Type Straingt Bushing, Collar Bushes Application High Load And Low Speed
Chemical Resistance Good Shape Cylindrical, Flange
Leave a Message
Product Description

Product Description:

The Graphite Oilless Bearing is available in various types such as Aluminum Bronze Bearing, Solid Lubricants Graphite Bronze, and Tin Bronze Bushing Graphite. These types are designed to meet different application requirements and offer excellent performance and durability. The Aluminum Bronze Bearing is an ideal solution for applications that require high strength, corrosion resistance, and wear resistance. The Solid Lubricants Graphite Bronze is a perfect choice for applications that require high load-bearing capacity, low friction coefficient, and excellent wear resistance. The Tin Bronze Bushing Graphite is suitable for applications that require high wear resistance, low friction coefficient, and good corrosion resistance.
The Graphite Oilless Bearing is a self-lubricating product that eliminates the need for additional lubrication. It features solid lubricants in the form of graphite that provide excellent lubrication even under high loads and speeds. The self-lubricating feature of this product ensures a maintenance-free operation and reduces the risk of system failure due to lack of lubrication.
This product has a low friction coefficient of 0.08 - 0.20, which ensures smooth and efficient operation. The low friction coefficient also reduces the risk of system failure due to friction-related issues. The Graphite Oilless Bearing has excellent wear resistance, which ensures a long service life and reduces the need for frequent replacement. It is an ideal solution for applications that require high wear resistance and long service life.
The Graphite Oilless Bearing is available in two types of bushings, Straight Bushing, and Collar Bushes. The Straight Bushing is a simple and cost-effective solution for applications that require low friction and high wear resistance. The Collar Bushes are designed for applications that require higher load capacity and better alignment control. The Collar Bushes are suitable for applications that require high accuracy and precision.
In conclusion, the Graphite Oilless Bearing is a high-quality product that offers excellent performance and durability. It is available in different types and bushings to meet various application requirements. The self-lubricating feature, low friction coefficient, and high wear resistance make it an ideal solution for various applications. Whether you need Aluminum Bronze Bearing, Solid Lubricants Graphite Bronze, or Tin Bronze Bushing Graphite, the Graphite Oilless Bearing is a perfect choice for you.



Low Friction C86300 Graphite Bronze Bearing SPW/JTW/SBW Cylindrical Flange Bush for Heavy Duty is a type of bearing that is specifically designed for applications requiring high load-bearing capacity and low friction. The C86300 graphite bronze material used in the bearing ensures excellent wear resistance and durability, making it suitable for heavy-duty applications.

The cylindrical flange bush is a component that is typically installed within a machine or equipment to provide support and reduce friction between moving parts. The SPW/JTW/SBW designations refer to different types of flanges or mounting configurations that allow the bush to be securely fastened within its intended application.

These bearings are commonly used in industries such as mining, construction, and heavy machinery, where equipment is subject to high loads and frequent operation. By utilizing low-friction materials and a cylindrical flange design, these bearings help to ensure smooth operation, reduce wear, and extend the overall lifespan of the equipment.



Chemical Requirements
Copper
Alloy
UNS No.
Composition, % max, except as indicated
          Nickel
Copper Tin Lead Zinc Iron Including Aluminum Manganese Antimony Sulfur Phosphorus Silicon
          Cobalt
C86300 60.0–66.0 0.20 0.20 22.0–28.0 2.0–4.0 1.0A 5.0–7.5 2.5–5.0 ... ... ... ...
C90500 86.0–89.0 9.0–11.0 0.30 1.0–3.0 0.20 1.0A 0.005 ... 0.20 0.05 0.05B 0.005
C91100 82.0–85.0 15.0–17.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C91300 79.0–82.0 18.0–20.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C93700 78.0–82.0 9.0–11.0 8.0–11.0 0.8 0.7C 0.50A 0.005 ... 0.50 0.08 0.10B 0.005
A In determining copper minimum, copper may be calculated as copper plus nickel.
B For continuous castings, phosphorus shall be 1.5 % max.
C Iron shall be 0.35 % max. when used for steel-backed.



Low Friction C86300 Graphite Bronze Bearing SPW/JTW/SBW Cylindrical Flange Bush for Heavy Duty



Features:

  • Product Name: Graphite Bronze Bearing
  • Shape: Cylindrical, Flange
  • Code: SPW, JTW, SBW
  • Chemical Resistance: Good
  • Wear Resistance: High
  • OEM: YES

The Graphite Bronze Bearing is also known as Brass Manganese Bushing and features solid lubricants graphite bronze for enhanced performance.



Technical Parameters:

Product Attribute Value
Product Name Graphite Bronze Bearing
Shape Cylindrical, Flange
Chemical Resistance Good
Application Construction
Type Bearing
Self-Lubricating Yes
Wear Resistance High
Coefficient Of Friction 0.08 - 0.20
Application High Load And Low Speed
Base Material C86300, SAE430, CuZn25Al5
Corrosion Resistance High
Alternative Names Aluminum Bronze Bearing, Brass Manganese Bushing


Applications:

The Graphite Bronze Bearing is perfect for scenarios where there is heavy machinery usage. It is an excellent fit for bushing applications that have high impact loads, low-speed operations, and oscillating movements. This product is ideal for construction sites that utilize hydraulic excavators, bulldozers, and other equipment that requires precision movement. The Graphite Bronze Bearing is also an excellent choice for agriculture machinery, mining equipment, and marine applications.
The SPW, JTW, and SBW codes make it easy to identify the type of Graphite Bronze Bearing for specific applications. The SPW code is suitable for applications that require high loads, low speeds, and oscillating movements. The JTW code is perfect for heavy-duty applications, and the SBW code is ideal for applications that require high-speed and high-temperature operations.
The Graphite Bronze Bearing is a versatile product that can be used in a wide range of construction applications. Its self-lubricating properties make it an excellent choice for environments where traditional lubrication may not be feasible. It can be used in construction equipment, mining machinery, and hydraulic systems, among other applications.
In conclusion, VIIPLUS.COM's Graphite Bronze Bearing is the perfect solution for construction applications that require a durable, self-lubricating bearing with high load capacity and low friction. Its versatile nature makes it an excellent choice for various industries, and its SPW, JTW, and SBW codes make it easy to find the right product for the right application.



Customization:

Our Graphite Oilless Bearings are made from high-quality materials including C86300, SAE430, and CuZn25Al5, ensuring excellent corrosion resistance and durability. Whether you need bearings for industrial machinery, automotive applications, or anything in between, VIIPLUS.COM has the expertise and experience to provide the customized solutions you need.
Contact us today to learn more about our Graphite Bronze Bearings and other self-lubricating bearings products. Let us help you find the perfect solution for your specific needs!



Support and Services:

Our Graphite Bronze Bearing product is designed to provide superior performance and longevity in a variety of industrial applications. To ensure optimal performance, we offer a range of technical support and services:

  • Product selection assistance
  • Installation guidance
  • Maintenance recommendations
  • Troubleshooting support
  • Customized solutions for unique applications

Our knowledgeable and experienced technical support team is available to answer any questions and provide expert guidance throughout the entire lifespan of your Graphite Bronze Bearing product. Contact us today to learn more.



FAQ:

Q: What is the brand name of the Graphite Bronze Bearing?
A: The brand name is VIIPLUS.COM.
Q: What is the model number of the Graphite Bronze Bearing?
A: The model number is CuZn25Al6Fe3Mn3+Graphite.
Q: Where is the Graphite Bronze Bearing made?
A: The Graphite Bronze Bearing is made in China.
Q: What are the dimensions of the Graphite Bronze Bearing?
A: The dimensions vary depending on the specific model. Please refer to the product specifications for more information.
Q: What are the benefits of using the Graphite Bronze Bearing?
A: The Graphite Bronze Bearing offers excellent wear resistance, high load carrying capacity, and low friction. It also has good corrosion resistance and can operate in a wide range of temperatures.
