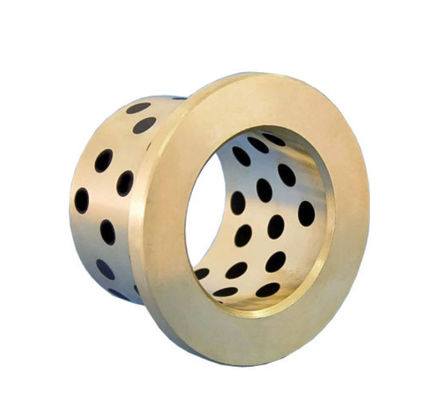

Introducing our Brass High Strength Flange Embedded Graphite Plugged Bushings, specifically designed to offer exceptional performance and durability in a wide range of industrial applications. These bushings are crafted from high-grade brass, renowned for its strength and corrosion resistance, ensuring reliable operation even in harsh environments.

The unique design of our bushings features a flanged structure that provides additional support and stability. The embedded graphite plug enhances lubrication, reducing friction and wear, while also ensuring smooth and efficient operation. This combination of features results in bushings that are both tough and long-lasting.

Furthermore, our bushings are designed with precision mating housing and shaft tolerance. This ensures a secure and snug fit, minimizing movement and vibration during operation. The tight tolerances also contribute to the overall stability and performance of the bushings, making them ideal for high-precision applications.

Wh you're looking to replace worn-out bushings or upgrade your equipment with superior components, our Brass High Strength Flange Embedded Graphite Plugged Bushings are the perfect choice. They offer superior performance, durability, and precision, ensuring smooth and efficient operation of your machinery.

In summary, our Brass High Strength Flange Embedded Graphite Plugged Bushings are a top-notch solution for industrial applications that require high-strength, corrosion-resistant bushings with precision mating housing and shaft tolerance. Trust us to provide you with the best bushings for your specific needs.

Graphite Plugged Bushings

Inner diameter tolerance is F7 for Bronze Graphite OILLESS BUSH Outer diameter tolerance is m6 for Bronze Sliding Bushing Base material is CuZn25A15Mn4Fe3 All bush has solid graphite insert Leaser Marking possible on flat length surface Material Test Report and Final Inspection Report Available CNC Machined Bronze & Metal Products,Standard Size and Custom Bushings are available from stock made-to-order from china.Graphited bearings are primarily used in applications that need continual lubrication in hard to reach areas.Dimension Report for each part
Flange Tolerance Guide Bearing Mating Housing Shaft Special Solid Lubricant Embedded
Embedded Graphite Bronze Bushings Made-To-Order Choose your Bushing Inch Size,

Custom & Special Graphite Bronze Bushings

We provide sliding bearing for European, Japanese and American standard online.
Sliding Bronze bearings with or without flange are made of casted bronze material with special Graphite + additive embedded.The bronze bushings is aimed for high loads and the solid lubricant makes it possible to use plugged graphite bearings without additional lubrication. Sliding bearings show excellent performance without lubrication under conditions of low speeds and extreme high or low temperatures. The lubrication reservoirs are dispersed in a special way over the bearing surface, therefore the whole bearing surface is lubricated when the movement occurs.
Bronze Bushings Material Customized
Our main products are:Sliding bearings, self-lubricating bearings, solid lubrication bearings, self-lubricating bearings, sliding plate,trust washer,gasket, copper, brass sleeve bushings, and design ,Bushing material:phosphorus copper (QSn6.5 QSn10-1, 0.1), brass (H62, H65, H68 H70, H85, H90), tin bronze (QSn6-6-6, QSn5-5-5 CuSn10Pb1, CuSn8, CuSn4, CuSn12),Aluminum bronze (C60600, C64200, C60800, C61300, C61400, C61900, C62300, C62400, C63000, C63020, C63200, C65100, CuAL10Fe3, CuAL9Fe4Ni4, CuAL9Mn2, CuAL9Ni3Fe2, CuAL10Ni5Fe4), etc.
Sliding Bearings Precautions For Use:
1. Where possible, try to use standard design;
2. Please note that the surface of any foreign body assembly;
3. Sliding surface after use, because the solid lubricant film formation results in a surface with black or gray-black phenomenon, please do not scrub, as usual;
4. Before assembly, if the lubricating oil applied to the wear parts, can shorten the running-in period, in favor of mechanical operation, operation;
5. The assembly should be slowly pushed forbidden beat, so as not to damage bearings and cause deformation;
6. Design, should be used in different parts of the appropriate material, in order to improve the mechanical properties, extending bearing life;
7. In the high load, the reciprocating motion, it is recommended to use screws;
8. In fresh water, sea water, and at sea, the shaft, or recommend the use of stainless steel, chrome plated.
Groove Type :Single Loop Figure Eight Straight & Circular Double Loop Double Figure Eight Half Figure Eight Straight Circular
Note: In order to form a more perfect oil film between the bearing & shaft, we recommend a V-shaped groove whenever the design permits, as it allows full flow of the lubricant across the bearing surface.

Technical Parameters

Copper Alloy Bushings Materials

High-strength copper alloy as base material, according to the use conditions by a certain percentage of its working surface machined hole and fill one solid lubricant. High-strength copper alloy provides a high load carrying capacity and the solid lubricant can be formed lower friction. Under dry friction condition of our pre-designed layer of lubricating film in the bearing surface to ensure that in the shortest possible time will be transferred to the solid lubricant on the coupling member and form a valid solid lubricant film.

Sliding Bearing Characteristics

Custom Bushings Designs are taking on a huge need for today's self-lubricating bearing materials. Even in extreme extreme operating conditions and maximum load conditions are also required maintenance-free. With the continuous improvement of cost requirements, the reliability of equipment and plant operation requirements are also getting higher and higher. Metal self-lubricating bearings are designed for maintenance-free and self-lubricating conditions under long-term service conditions, thus making it possible to design reliable long-term self-lubricating systems. Metal self-lubricating bearing materials can be widely used in high-load low-speed conditions of rotation, swing and linear reciprocating motion, but also applies to traditional lubrication can not be achieved or prohibited to use the occasion, or in special conditions such as dust, Load or irradiation conditions need long-term and stable use.

Available Sliding Bearings Form:

Plain cast bronze sleeve bushings,grooved cast bronze sleeve bushings,flanged cast bronze bushings,thrust washer,cast bronze bearings , Oversized Bearings
Bushings Size:Our standard bearing line features over different deminsion & inch size bushings that are carried in stock.
Made-To-Order Cast Bronze Sleeve Bearings for an Oil/Grease Application
VIIPLUS INTERNATIONAL according to different customer requirements, according to DIN, BS, EN (DIN/EN), SS, NS, UNS, SAE and China GB standard production of all kinds of bronze, brass bushing, plate and rod products.All products are made of electrolytic copper by centrifugal casting, continuous casting and extrusion sliding bearings.
Sliding Bearing Application
Suite for general machines and under atmosphere,Ship,hydraulic turbine,gas turbine etc.
