Centrifugal Casting Graphite Plugged Bushings Large Size C86300 Alloy

Place of Origin Graphite Bearings Manufacturers
Brand Name VIIPLUS
Certification Met SANKYO,PUNCHI,MISUMU Standard
Model Number Centrifugal Casting Bronze Bearing
Minimum Order Quantity made to order from china no MOQ
Price china factory prices
Delivery Time fast delivery online sale
Payment Terms T/T, Western Union
Supply Ability Special Bronze Bearing Parts Customized Size Manufacturing Order

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Bronze Bearing Graphite,Slide Plates European And American Standards Standard Tolerance
Material ALLOY 86300/C86200 Feature Oversized Bronze Bearing Types
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Item Bronze Grafitado Graphite Plugged Bushings Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite impregnated bushings


graphite filled bronze bushes

Leave a Message
Product Description

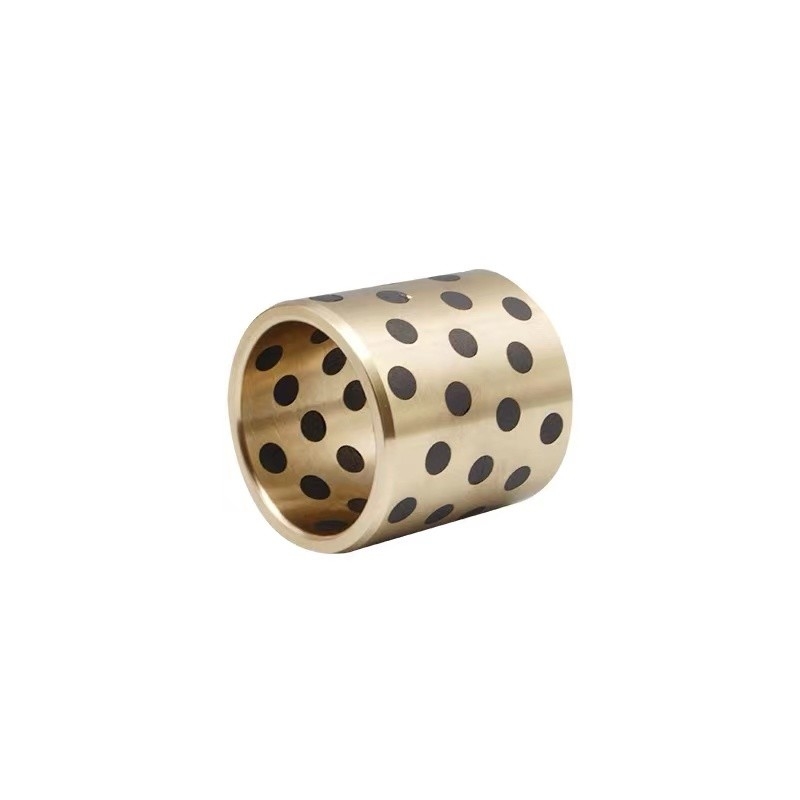

Centrifugal Casting Graphite Plugged Bushings Large Size C86300 Alloy

Specializes In The Research,Development And Production Of Bronze Machining Bushings & Self Lubricating Bearings.
(C86300,CuZn24Al6Fe3Mn4,SAE430B)Brass+Bronze+Graphite Customized material can be made based on your requirement.
Discovery centrifugal casting large size bronze bushings in metric sizes. The mold casting is characterized in that the solid copper alloy bearing cage mold casting is produced by a special centrifugal casting mold. Order Online Today!



Bronze Machining Bushings Made-To-Order From China.

Graphite plugged bushings are a special type of bushing that is used in applications that need continuous lubrication, but don’t offer easy access for the lubrication to be added manually on a regular basis. This type of bushing is made with graphite impregnated into the small holes in the bushing’s surface. When in use, these bushings release the graphite, creating a film of lubricant to keep machinery running smoothly.

The following is the common bronze bearing material:


  1. Tin Bronzes C90300 C90500 C90700
  2. Leaded Tin Bronzes C83600 C92200 C92900 C93200(SAE660) C93700(SAE64)
  3. Manganese Bronzes C86200 C86300 C86500
  4. Aluminum Bronzes C95200 C95400 C95500
  5. Lead-free Bronzes C89833 C89320

Alloy C86300/C86200 are considered this family’s workhorse alloyS and is widely used in sliding bearing & oilless guide applications.
Industrial hydraulic cylinders bronze bearings manufacturers

Oversized Bronze Bearing Types Plugged Graphite

Centrifugal casting is a technique and method of injecting liquid metal into a high-speed rotating mold so that the liquid metal fills the mold and forms a casting by centrifugal motion.Because of centrifugal motion, the liquid metal can fill the mold well in the radial direction and form the free surface of the casting.Cylindrical inner hole can be obtained without core;Helps remove gases and inclusions from liquid metals;The crystallization process of the metal is affected to improve the mechanical and physical properties of the casting.

ALLOY C86300/C86200 Bronze Bearings

C86300  manganese bronze bearings

We specializes manufactures C86300/C86200 Manganese Bronze as a standard-stocked Bronze Bearing Plugged with metric size.
Applications: Industrial - Selecting Bronze Bearing Materials."Extra large size" or "Large Diameter" Bronze Bearings are manufactured in a variety of sizes and shapes. These include sleeve bearings, flanged bearings, thrust washer and wear plate with graphite or groove.
Our products are exported to more than 60 countries including United States Europe and Japan,widely used in the fields of engineering machinery,hydro power & dams,molding machinery,automation equipment ,ship and mining machinery.
Based on introduction,digesting and absorption of foreign advanced self lubricating bushing technology and cooperating with the famous universities and research institutes,the company has advanced manufacturing capacity of copper alloy solid lubricant embedded bushing,bimetal solid lubricant embedded bushing,thermoplastic bushing,thermosetting composite bushing and spherical bushing.

Precision Sliding Bearings Manufacturing


Machining Bronze Bearings Solid Lubricant Embedded Bushings with graphite
Main metal material type
Sn% 5 12
Pb% 5
Zn%255  25
Al%6 10 6
Fe%  5
Mn%4   4
Hardness HB>210>70>150>80>250
Tensile strength N/m㎡>750>200>500>360>800





Friction coefficient0.03~0.200.03~0.180.03~0.200.03~0.180.03~0.20
Thermal conductivity60W(m﹡K)﹣160W(m﹡K)﹣160W(m﹡K)﹣160W(m﹡K)﹣160W(m﹡K)﹣1
Limit Temp.300℃4O0℃400℃400℃300℃
Max.load N/m㎡100605070150
Max.speed m/min1510201010

Max.PV N/mm2




Graphite plugged bushings are beneficial anytime an application needs ongoing lubrication, but also needs to perform for long periods without maintenance. These bearings are self-lubricating, so additional oil and grease is not needed.
Because graphite plugged bearings self-lubricate, money is saved on maintenance and replacement—both in materials and in labor costs. Additionally, less downtime is needed to add more lubricant or perform other everyday maintenance tasks. Graphite plugged bushings have better wear resistance than other types of bearings. This is because when graphite plugged bushings are in use, there is very minimal friction thanks to the lubricant film they produce. Friction is what wears parts down and causes them to need eventual replacement, so limiting this is the key to durability.
Not only do graphite plugged bushings stand up to a great deal of wear and heavy use, they’re also resistant to corrosion when in damp, humid, or marine environments. In industries where bearings will be exposed to caustic chemicals, graphite plugged bushings from Atlas Bronze are an ideal choice for their chemical resistance.
Note: Please send an inquiry, so that we do not contact you to. Thank you for using online orders.



High temperature resistance C86300 Bronze Bushing & Wear Plate flanged bronze bushings
