Bronze With Embedded Solid Lubricant Straight Bushing 45 Mm ID 55 Mm OD 40 Mm Length

Product Details:
Place of Origin: Bronze Bearing Manufacturers
Brand Name: VIIPLUS
Certification: SAE430A C67500 C66800 C67400 C67600 C86200 C67000 BS 1400/HTB-3
Model Number: SOLID BRONZE CYLINDRICAL BUSHES,C86200 Manganese Bronze Alloy Bushing
Payment & Shipping Terms:
Minimum Order Quantity: Standard Size Bushing No Minimum Order Quantity
Price: Bushings High Quality Price Ratio B2B
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time: 7-25 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: Buy Bronze Bushings Online
Contact Now

Detail Information

Bushing Alloy: SAE430A C67500 C66800 C67400 C67600 C86200 C67000 BS 1400/HTB-3 Bushing Application: CNC Industries,Press Tools,Die,Moulds,Conventional Bearing Material For Lubricated Applications In General Engineering Applications
Size: 45 Mm ID, 55 Mm OD, 40 Mm Length Feature: Bronze With Embedded Solid Lubricant Material
CHARACTERISTICS: Suitable For Oil And Grease Lubrication AVAILABILITY: Bearing Forms Made To Order: Cylindrical Bushes With Bronze Alloy According , Special Parts According To ISO, DIN Or Customer Design, Special Alloys
High Light:

graphite impregnated bronze bushings

,

graphite impregnated bushings

Product Description

Graphite Plugged Bushings

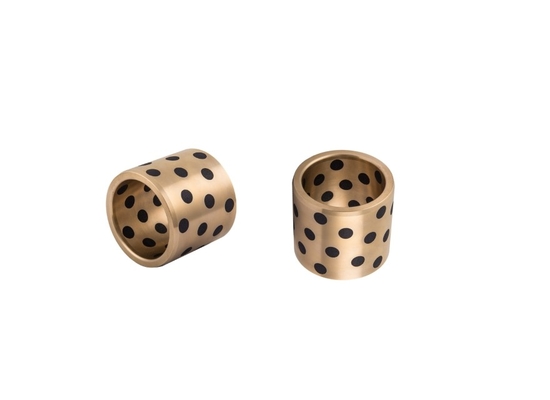

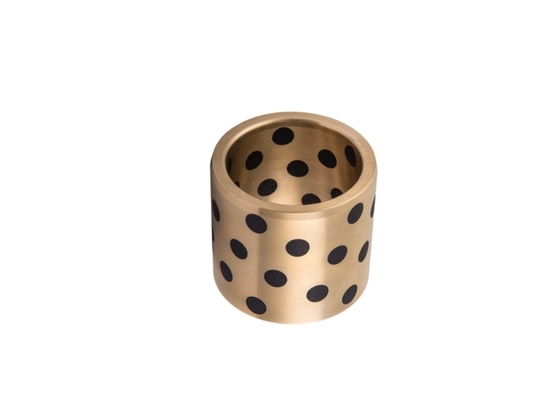

Tuleja SOB SANKYO 455540 - Straight Bushing - 45 mm ID, 55 mm OD, 40 mm Length, Bronze with Embedded Solid Lubricant Material

Grease groove bearing - Click here to display the page: https://www.viiplus.com



graphite plugged bushings



Graphite copper sleeve is a self-lubricating bearing with high strength copper alloy as the base material, and holes are machined on its working surface and filled with solid lubricant in a certain proportion according to the working conditions.This copper alloy embedded solid lubricant bearing combines the high bearing capacity and wear resistance of the copper alloy with the self-lubricating property of the solid lubricant, which eliminates the need for refueling and maintenance during use.Especially suitable for high load, high temperature, low speed and other parts that can not be refueling or difficult to form oil film.



graphite plugged bronze bushings



Product description


Serviceable without the need for lubrication
Demonstrates high performance under middle-load and middle-speed operations
Usable at high temperatures
Has superior chemical and corrosion resistances



Specification:



bore diameter: 45 mm
maximum p value: 15 N/mm2;Static 49 N/mm2
outside diameter: 55 mm
maximum v value: Dry 0.40;Periodic Lubrication 0.85 m/s
overall length: 40 mm
material specification: 500B
sleeve bearing type: Plain Sleeve
standards met: RoHS
bearing material: Bronze with Embedded Solid Lubricant
series: JDB series
operating temperature range: Periodic Lubrication -40 to +302 F, Dry -40 to +482
additional details: Lead Free
maximum pv value: Periodic Lubrication 1.65 N/mm2 x m/s, Dry 1.00



Product advantages


it can be used for a long time without maintenance;
● designed for high static load and dynamic load;
● with a very low coefficient of friction, no "adhesion" phenomenon;
● dust resistance, corrosion resistance, impact resistance and edge load resistance;
● metal substrate has good shock absorption capacity;
● can be used in a wide temperature range;
● suitable for reciprocating, rotating and swinging and other starting frequent but difficult to form oil film occasions;
● with very low wear rate, long service life.



Custom Google Search


Use the search below http://www.bronzegleitlager.com to search the entire site with Google Custom Search or use the box top right of any page to find products in our online store.

STRATEGIC MANUFACTURING BEARINGS

high quality with the lowest cost total bronze bushing & sliding bearingsmade to order from china.
For some customers, USA manufacturing is the only option. For others, cost reductions in Asia are compelling. Sometimes a hybrid solution is key: USA for quick turns and Asia for lower cost.

C86200 (SAE 430A) bronze alloy material  is used for a number of applications including gears, struts, bushings, shafts and worm gears.

Plain Bearing Components & Bushings

Bronze Bushes made to order from china. Depending on the application, we offer guide elements for self-assembly of custom-made die sets or devices in various designs.

Cast Bushing Inch and Metric

Manganese bronze alloys can operate under very high loads and speeds. However, bearing applications require reliable lubrication. Besides excellent mechanical qualities, these alloys have good corrosion resistance. The standard alloy in this group is high tensile C86300, which is comprised of copper, manganese, aluminum and iron. This combination raises the tensile strength to over 110,000 KSI.

VIIPLUS supply manufactures straight and flange bushings and wear plate strip of all sizes that are precisely ground and thoroughly checked to assure complete interchangeability and eliminate the necessity of select fitting.VIIPLUS export the best quality bronze manganese bronze bushing in bronze alloy standard SAE430A C67500 C66800 C67400 C67600 C86200 C67000 BS 1400/HTB-3 with high precision and reliable performance.

Self Lubricating Bushings Guide Bushing

C86200 (SAE 430A)Chemical Composition

Cu

Sn

Pb

Zn

Fe

Ni

Sb

P

S

Al

Mn

Si

60.00-66.00

0.2

0.2

22.00-28.00

2.00-4.00

1.00

N/A

N/A

N/A

3.00-4.90





Similar or Equivalent Specification



CDA

ASTM

ASARCON

SAE

AMS

Federal

Military

Other

C86200

B505
B505M



430A
J461
J462



QQ-C-390, C4;
QQ-B-726, CLASS B

MIL-C-22229, COMP 9







Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)

621

310

18

180





Note:



1,In Chemical Composition, Single values represent maximums.

2,Mechanical performance of hardness value is only for reference

Calculate the Bushing Parts weight based on the size and dimension Includes instant access to CAD data.



Typical Uses



Industrial: sliding bearing,bushings, cams, wear plate,washer, dies parts, shafts, valve stems, strips

We offer bronze bushes, guide bushing, oilless bushing, steel bushes, self lubricating bushings and pillar bush from china.

Products made to order from china:Composite Bearings,Dry Bearings,Self Lubricating Bearing,Wrapped Bronze Bearing,Bimetal Bearings,Bimetallic Bushings,Steel Bronze Bushings,Steel Bushing,Steel Bearing.Graphite Steel Bearing,OILLESS BEARING,Bronze Bushings,Graphite Bushings,Sinter Bearing,Ball Bearing Cage,Bronze Alloy,Naval Brass Alloy,Leaded Red Brass Alloy,Aluminum Bronze,High Leaded Tin Bronze,Leaded Tin Bronze,Manganese Bronze,Nickel Aluminum Bronze,Phosphor Bronze,Tin Bronze
