Press Die Sleeve Bushes C95400 Aluminum Bronze Bushing Oilless Sliding Cast Bronze Bushings

Product Details:
Place of Origin: Bushing Manufacturer
Brand Name: REPLACEMENT PLAIN BEARINGS
Certification: ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number: LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Payment & Shipping Terms:
Minimum Order Quantity: MATE-TO-ORDER CUSTOM BUSHINGS
Price: Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details: Export Cartons,Customizable,Wooden Cases
Delivery Time: 15~20 work days
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: STANDARD TOLERANCE BUSHINGS
Contact Now

Detail Information

Material: ALUMINUM BRONZE WITH GRAPHITE OR WITHOUT GRAPHITE Model Number: Cylinder Bearings,Cylinder Bearings With Flange
Feature: Self-lubrication Bearings,extreme Temperatures Lubrication: Graphite,Self Lubricating,maintenance Free
Application: Hardware And Steel Fabrication, Stamping Dies, Tooling Components For The Automotive Industry, Sheet Pressing Etc. Type: Sliding, Sleeve,Flanged,Washers,Plates,Strips,Customized

Product Description

Extreme High temperatures Bronze Slleve Bushing.Specializes in the design and manufacture of plastic moulds bronze bushings, blowing moulds bronze bushes, press moulds sliding bearing, die casting moulds cast bronze bushes. advanced mould plain bearings processing equipments and testing equipments

The spiral groove of pipe bronze bushings is formed by press die.

C95400 Aluminum bronze bushing | Oilless Sliding Bushes Cast bronze bushings | Bronze Material For Wrapped bushes
C95400 Aluminum Bronze Bushings & Washer Plate

C95400 Aluminum Bronze Bushings inch size is available.



✔ STANDARD-Aluminum Bronze BUSHINGS PRODUCT

CAST BRONZE PLAIN BEARINGS

Aluminum bronze is the highest strength standard copper-based alloy. We manufactured C95400, aluminum bronze bearing as standard size products in standard sizes of bushings. Aluminum in conjunction with iron and nickel in C954 acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.





VIIPLUS offer C95400 Aluminum Bronze cast bronze bushing.Used in many heavy duty applications, it is recommended for high load, high wear applications that require tensile strength, good ductility, weldability or exceptional resistance to fatigue and deformation in overload situations.

VIIPLUS Provide non-standardized products:Cylindrical bushes, thrust washers, strip and non-standard parts as the clients supplied drawing etc.



C95400 U.S. standard aluminum bronze alloy


Aluminum bronze containing iron, with high strength and antifriction, good corrosion resistance, good processing under hot pressure, welding and gas welding, but poor brazing.
It is characterized by good wear resistance.
Aluminum bronze, containing iron and aluminum elements, has high strength and abrasion resistance. After quenching and tempering, the hardness can be improved. It has good high temperature corrosion resistance and oxidation resistance.
Machinability is ok, but welding is not easy to fibrillar welding, hot processing under pressure is good.



Application



This C95400 Aluminum Bronze Bushings is used in a variety of applications. Typical uses for this alloy are: Bushings, Gears bushing, Valves bushes, Bearings, Valve parts, Gear Bushing Parts,Guides, Pickling Hooks, Spur Gears, Heavily Loaded Worm Gears, Pump bearings



CHEMICAL COMPOSITION:

(%max., unless shown as range or min.)







Cast Bronze Bushings

Aluminum bronze is the highest strength standard copper based alloy.

VIIPLUS produces C95400, C95500 and C95900 in standard sizes of Cast Bronze Bushings . Aluminum, in conjunction with iron and nickel in C95500, acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.





C954 Bronze Bushings | C95400 Aluminum Bronze Bushings provides high tensile and yield strength, good ductility, weldability and machinability, excellent resistance to wear, fatigue and deformation under shock and load.



C86300,C86200,C95400, SAE40, SAE660 aluminum bronze bushings stock,cast bronze bushings, manganese bronze , phosphorous bronze

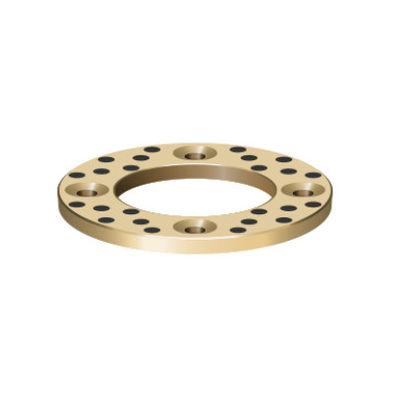

Plain Bearings & Oilless Flanged Bushings Oilless Solid Lubricant Thrust Washers

Aluminum Bronze Bushings– Aluminum Bronze The most widely accepted disc material used in butterfly valves, aluminum bronze is heat treatable and has the strength of steel.



Aluminum bronze bushings is widely used in every industry or trade because of the excellent performance.



Aluminum bronze bushings, wear corrosion high strength. Welding surfacing of copper alloys.



Aluminum bronze alloy and T-Slot style to prevent jaw breakage and offers superior load bearing capabilities.

Detailed information

Aluminum bronze bushing Bronze  material with/without solid graphite lubricant inserts

Automotive: weld guns Fasteners: nuts, large hold down screws Industrial: bushings, high strength clamps, gears, valves, bearings, pawl, valve bodies, landing gear parts, worm gears, machine parts, pressure blocks for the steel industry, bearing segments for the steel industry, valve seats, valve guides, pickling hooks, spur gears, heavily loaded worm gears, pump parts Marine: covers for marine hardware, ship building Ordnance: government fittings




Note: Also available in a heat-treated condition.





C95400 U.S. standard aluminum bronze alloy




Aluminum bronze containing iron, with high strength and antifriction, good corrosion resistance, good processing under hot pressure, welding and gas welding, but poor brazing.
It is characterized by good wear resistance.
Aluminum bronze, containing iron and aluminum elements, has high strength and abrasion resistance. After quenching and tempering, the hardness can be improved. It has good high temperature corrosion resistance and oxidation resistance.
Machinability is ok, but welding is not easy to fibrillar welding, hot processing under pressure is good.





Graphite-impregnated aluminum-bronze solid lubrication bearings are customer-specified products. Its base is CuAl10Fe5Ni5 material which is relatively good corrosion-resistant. After graphite impregnation and oil soaking, it can be used without oil lubrication. Because it contains iron and nickel, it has high hardness and high load bearing capacity. This product has excellent self-lubricating properties, and is wear and corrosion resistant. Aluminum-bronze Bushings is primarily used in moderate speed and load applications.













Aluminum bronze bushing:

Aluminum bronze has high strength, wear resistance and excellent weldability. Aluminum bronze is very useful in a great number of engineering structures with a variety of the alloy finding applications in different industries.As an international manufacturer and supplier for Aluminum Bronze sheet




Oilless bearings have been developed for high load, low speed applications and are made of rotational cast high-strength bronze using a specially formed graphite plug as lubricant.



VIIPLUS range of oilless bearings are the perfect solution for projects where lubrication cannot easily be provided or where conventional lubricants may carbonise. The design of oil feeding systems is time consuming and expensive - The use of our oilless bearings can greatly reduce costs of maintenance and oil as it removes any need for such a system.

Our VIIPLUS plain bearings are available in metric and imperial sizes from stock. Our in-house machining service is able to produce non-standard sizes to suit specific customer requirements.

Typical applications include, but are by no means limited to:

  • Kilns

  • Dryers

  • Injection moulding machines

  • Dust collectors

  • Louvres

  • Hot conveyors









 Press Die Sleeve Bushes C95400 Aluminum Bronze Bushing Oilless Sliding Cast Bronze Bushings
C95400 Aluminum bronze is the most common cast aluminum bronze,C95400 is used in many heavy duty, high load and high wear applications. Goodtensile strength, ductility, weldability and resistance to fatigue. Typicalapplications include worm gears, bushings, pump parts and bearings.

Material
C95400 Aluminum Bronze ,Aluminum Bronze Materials




Chemical compostion: copper: 91.0%, Aluminum:7.0%, Iron: 2.0%, Zinc: 0.2%

Component

Wt. %

Al

6 - 7.5

Cu

88.5 - 91.5

Fe

2-3

Mn

Max 0.1

Other

Max 0.05

Pb

Max 0.01

Sn

0.02 - 0.5

Zn

Max 0.05

CHARACTERISTICS


with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available


VSB-50  Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

STRUSTURE




VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

TECHNICAL DATA





Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm










Chemical Compositions

Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2












AVAILABILITY


Bearing forms available in standard dimensions

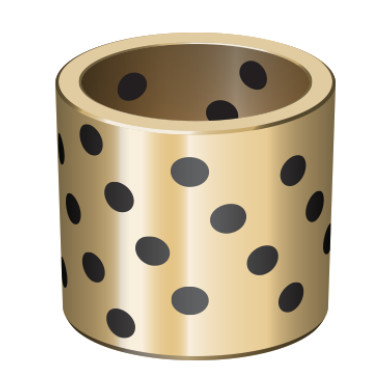

· Cylindrical bushes
· Flanged bushes
· Sliding plates

What carrier do you use?


Dependant on the size of the order, but we generally use FedEx,DHL,UPS.
Customers are also free to arrange their own shipping with their preferred courier

Packaging & Delivery


Packaging Details
1. Clear the plates
2.Pack with plastic paper
3.Pack with foam paper
4.Carton
5.Good quality wood case
Port:Shanghai
