Graphite Plug C86300 H7 Bronze Sleeve Bushings Self Lubrication

Place of Origin	Bushing Manufacturer
Brand Name	REPLACEMENT PLAIN BEARINGS
Certification	ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number	LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Minimum Order Quantity	MATE-TO-ORDER CUSTOM BUSHINGS
Price	Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details	Export Cartons,Customizable
Delivery Time	10~20 work days
Payment Terms	TT IN ADVANCE,L/C,Western Union
Supply Ability	STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	Bronze +Graphite，Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3	Model Number	Cylinder Bearings,Cylinder Bearings With Flange
Feature	Bronze Graphite Bushing	Lubrication	Graphite
Application	Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.	Type	FLANGE/SLEEVE/WASHER
Bearing Bushing Factory Price	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
High Light	Self-Lubricating Sintered Bronze Bushing	Characteristic	Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light	oil embedded sleeve bearing , graphite sleeve bearings

Leave a Message

Product Description

Graphite plug C86300 H7 bronze sleeve bushings are designed with self-lubrication properties that ensure smooth and reliable operation with minimal maintenance. These bushings are constructed from a high-quality bronze alloy (C86300) that offers excellent wear resistance and durability.

The graphite plugs integrated into the bushings provide a unique self-lubricating mechanism. As the bushing rotates or slides within its mating component, the graphite releases lubricating particles that coat the contact surfaces, reducing friction and wear. This self-lubricating feature eliminates the need for external lubricants, significantly simplifying maintenance requirements.

The H7 tolerance grade ensures precise fit and alignment, further enhancing the performance and durability of the bushings. The combination of C86300 bronze alloy, graphite plugs, and H7 tolerance grade makes these bushings ideal for a wide range of applications, including machinery, automotive, and heavy-duty equipment.

In summary, graphite plug C86300 H7 bronze sleeve bushings with self-lubrication properties offer superior wear resistance, durability, and low-maintenance requirements, making them a reliable choice for demanding applications.

Bronze Sleeve Bushings

Send your Solid Bronze Bush part number from our catalogue,contact with sales for the stock levels and pricing.Solid Bronze Bush made to order from china factory.

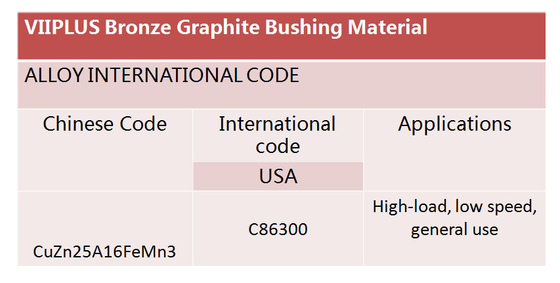

C86300 bronze bushings & bearings have been developed for high load, low speed applications and are made of rotational cast high-strength bronze using a specially formed graphite plug as lubricant.

C86300 PHOSPHOROUS BRONZE BUSHINGS SOLID BRONZE LUBRICATION | VSB-50

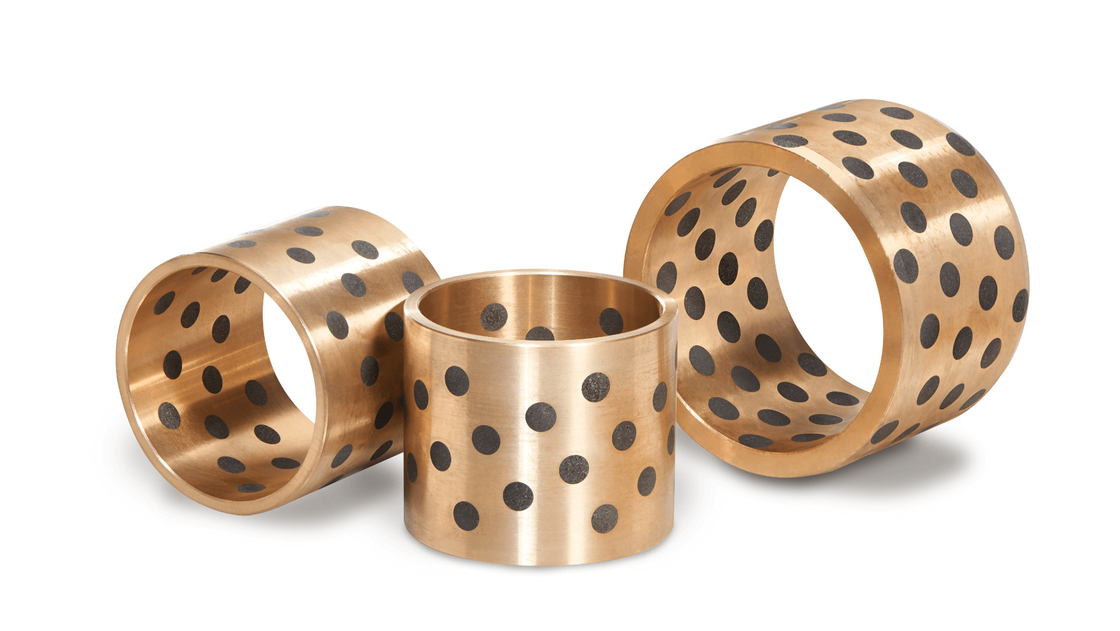

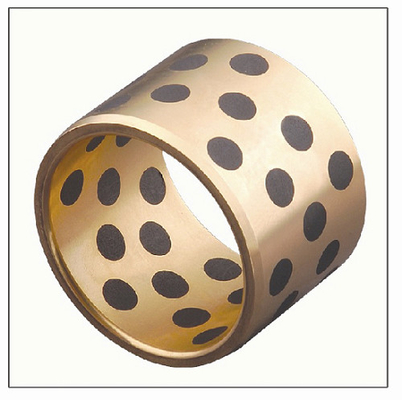

VSB-50 Solid Bronze Metallic Self-lubricating Bearings Cast Bronze Bearing with Graphite Plugs

MATERIAL:CuZn25AI5Mn4Fe3

STRUCTURE CHARACTERISTICS AND APPLICATIONS

VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bushings

Chemical Requirements
Copper Alloy UNS No.	Composition, % max, except as indicated
						Nickel
	Copper	Tin	Lead	Zinc	Iron	Including	Aluminum	Manganese	Antimony	Sulfur	Phosphorus	Silicon
						Cobalt
C86300	60.0–66.0	0.20	0.20	22.0–28.0	2.0–4.0	1.0A	5.0–7.5	2.5–5.0	...	...	...	...
C90500	86.0–89.0	9.0–11.0	0.30	1.0–3.0	0.20	1.0A	0.005	...	0.20	0.05	0.05B	0.005
C91100	82.0–85.0	15.0–17.0	0.25	0.25	0.25	0.50A	0.005	...	0.20	0.05	1.0B	0.005
C91300	79.0–82.0	18.0–20.0	0.25	0.25	0.25	0.50A	0.005	...	0.20	0.05	1.0B	0.005
C93700	78.0–82.0	9.0–11.0	8.0–11.0	0.8	0.7C	0.50A	0.005	...	0.50	0.08	0.10B	0.005
A In determining copper minimum, copper may be calculated as copper plus nickel.
B For continuous castings, phosphorus shall be 1.5 % max.
C Iron shall be 0.35 % max. when used for steel-backed.

Characteristics

with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

Strusture

VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

Technical Data

Grade	50#	50S1	50S2	50S3	650S5
Material	CuZn25AI5Mn4Fe3	CuSn5Pb5Zn5	CuAI10Ni5Fe5	CuSn12	CuZn25AI5Mn4Fe3
Density	8	8.9	7.8	8.9	8
Hardness	≥210	≥70	≥150	≥75	≥235
Tensile strength	≥750	≥250	≥500	≥270	≥800
Yield strength	≥450	≥90	≥260	≥150	≥450
Elongation	≥12	≥13	≥10	≥5	≥8
Coefficient o linear expansion	1.9×10-5/℃	1.8×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.9×10-5/℃
Max.Temp.	-40~+300℃	-40~+400℃	-40~+400℃	-40~+400℃	-40~+300℃
Max.dynamic load	100	60	50	70	120
Max.speed(Dry)	15	10	20	10	15
N/mm²*m/s(Lubrication)	200	60	60	80	200
Compression deformation	< 0.01 mm	< 0.05mm	< 0.04mm	< 0.05mm	< 0.005mm

Chemical Compositions

Product NO.	Chemical Compositions
VSB-50	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
VSB-50	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

Availability

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Typical Applications

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...

Products are widely used in continuous casting machines, mining machinery, ships, gas turbines and so on.

Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant
