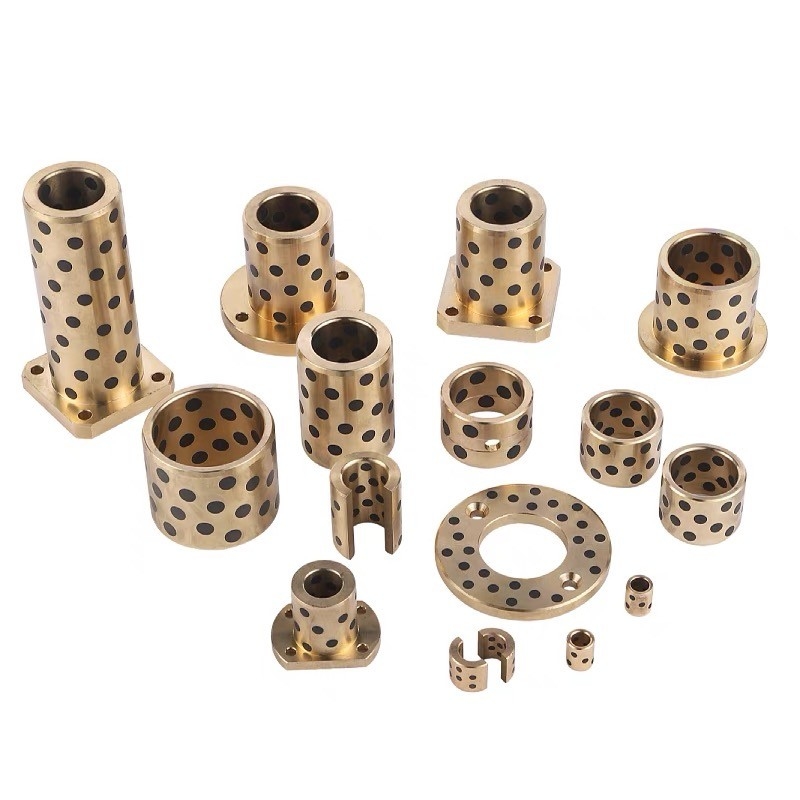

Cam Slide Bearings | Bronze Bushing With Graphite Plugs Guide Die Bushes

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details Export Cartons,Customizable
Delivery Time 10~20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Bronze +Graphite,Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 Model Number Cylinder Bearings,Cylinder Bearings With Flange
Feature Self Lubrication Lubrication Graphite
Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Type FLANGE/SLEEVE/WASHER
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil embedded sleeve bearing

,

graphite sleeve bearings

Leave a Message
Product Description

Cam slide bearings, also known as guide die bushes, are precision-engineered components that are widely used in various industrial applications, particularly in machinery and tooling. When these bearings are made from bronze with integrated graphite plugs, they offer exceptional performance and durability.
Bronze, a copper-based alloy, is chosen for cam slide bearings due to its high strength, excellent wear resistance, and good corrosion resistance. The addition of graphite plugs further enhances the bearing's performance by providing a self-lubricating mechanism.
Graphite, known for its excellent lubricity, releases lubricating particles as the bearing rotates or slides. This self-lubricating feature significantly reduces friction and wear, extending the life of the bearing and reducing the need for maintenance.
Guide die bushes with bronze bushings and graphite plugs are ideal for applications where precision and durability are critical. They are commonly used in cams, slides, and other moving parts in machinery, ensuring smooth and reliable operation.
In summary, cam slide bearings made from bronze with graphite plugs offer superior performance and durability for guide die bushes in various industrial applications. Their self-lubricating feature ensures smooth operation and reduced maintenance requirements.


Maintenance-Free bronze bearings with graphite filled grooves and graphite plugs are available.



Our graphite plug bearings typically have a coefficient of friction between 0.10 and 0.15, depending on a variety of factors affecting performance.Graphite bronze parts should be run dry with no oil or grease. Our graphite plug bearings typically for ID tolerance F7 and OD tolerance M6 Mating Shaft d8e7f7 Mating Housing H7.
VIIPLUS CHINA is a leading company dedicated to the industrial supply of standard mould and die elements. Our work is focused on selling and distributing standardized elements, such as guide pillars, guide bushes, die plates or punches, offering the best global solution to the most challenging automotive needs, die-making and mould sectors.
Bronze Bearings Viiplus offers a complete line of cast bronze bushing and slide plates. Cast bronze sleeve bearings extra large size or small inch Dimensions, flange bearings, and custom parts are available with oil grooves or grease grooves. MADE TO ORDER Maintenance-free self-lubricating bronze bearings with graphite filled grooves or graphite plugs are available.

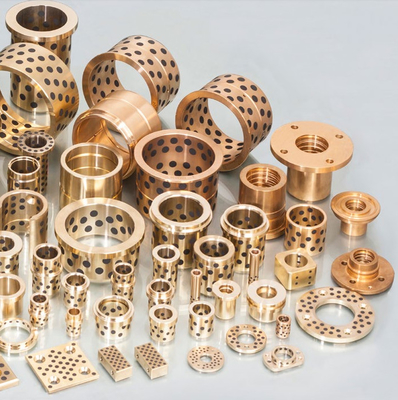

graphite plugged bushings

Bronze Bearing w/ Graphite Plugs INCH SIZE


Solid Bronze standard size table Plug Graphite Cast Bronze Bearings Solid Bronze Lubrication

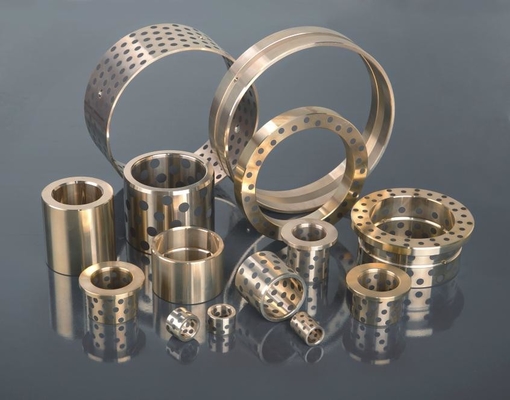

Solid Bronze Metallic Self-lubricating Bearings/Cast Bronze Bearing with Graphite Plugs
--Material:CuZn25AI5Mn4Fe3(C86300/C86200 BRONZE BEARINGS
Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.


Solid Lubricant Casting Aluminum Bronze Bearings Bushings


graphite plugged bronze bushinggraphite plugged bronze bushing

Characteristics



with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available


VSB-50  Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃



Strusture




VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



Availability

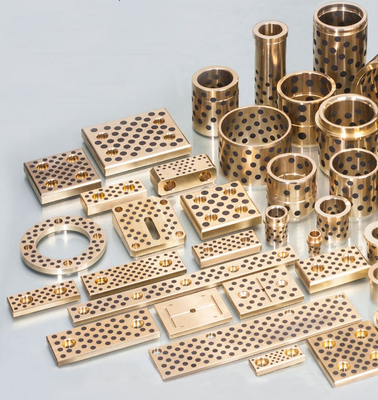

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs


Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



Chemical Compositions



Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2



Typical Applications



This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
Products are widely used in continuous casting machines, mining machinery, ships, gas turbines and so on.Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant

  • China Bearing Technologies
  • Your recognised global partner for sliding bearing applications.
  • Working tog to create solutions for the most demanding bearing applications.



Customer Size



VIIPLUS according to different customer requirements, in accordance with DIN, BS, EN, UNS, SAE and Chinese GB standards of production of various BRONZE SLIDING BEARINGS products (eg: CuZn39Pb3, CuZn40Al2, C86200, C95800, C48200). Welcome to inquire!
