China Bronze Gleitlager manufacturer

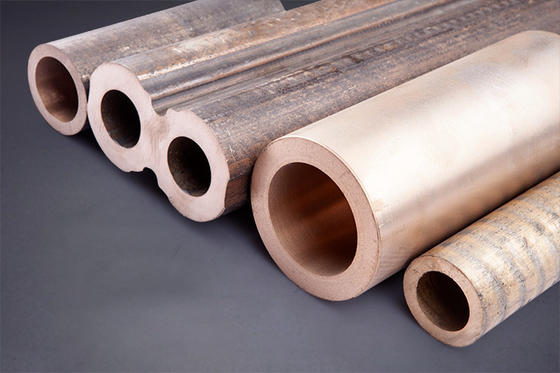

Cast Bronze Sleeve Bushing Replacement Aluminum Bronze Self Lube Bearings

Product Details:
Place of Origin: Graphite Bearings Manufacturers
Brand Name: SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification: DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number: solid bushing, bronze with lubricant plugs embedded Maintenance-free
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details: BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time: FAST DELIVERY
Payment Terms: TT IN ADVANCE
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Contact Now

Detail Information

Marerial: CuAl10Fe3 Bronze Graphite Bushing Size: Inch Size Bushings
Standard Size: C95800 Type: PLUGGED CAST BRONZE

Product Description

Some Fundamentals Of Aluminum Bronze:Aluminum Bronze Bushing made to order from china is basically alloys of aluminum and copper, with addition to metals such as iron, nickel and silicon. These materials are used in right proportions to enhance certain physical, mechanical as well as fabrication characteristics.

Aluminum Bronze Bushing Straight Bushings Engineered for a Longer More Reliable Service Life

Aluminum bronze graphite bushings is the highest strength standard copper based alloy. VIIPLUS produces C95400, C95500 and C95900 in standard sizes of bronze bushings. Aluminum in conjunction with iron and nickel in C95500 acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.

Aluminum Bronze Bronze Bushings-- C95800Cast Bronze Sleeve Bushing Replacement Aluminum Bronze Self Lube Bearings

SELF-LUBRICATING OIL-LESS TYPE BUSHINGS

Aluminum bronze graphite bushings is the highest strength standard copper based alloy. VIIPLUS produces C95400, C95500 and C95900 in standard sizes of Bronze graphite Bushings. Aluminum in conjunction with iron and nickel in C95500 acts as a strengthener in these alloys bronze bushings. All of the aluminum bronzes bearings can be heat treated, further increasing tensile strengths.

Chemical Composition

Cu%

Pb%

Fe%

Ni%

Al%

Mn%

Si%

79.00



3.50

4.00

8.50

0.80



min

0.03

4.50

5.00

9.50

1.50

0.10

Bronze sleeve bearings flanged bronze bushings for sale

APPLICATIONS

C95800 ALUMINUM Bronze bushings

machinery, shafts, valve bodies, propeller hub, worm gears, bushings, propeller blades, pickling equipment, worms, wear plates, gears

MATERIALTECHNICAL DATA



Related Specifications & Applications for Common Casting Copper Alloys

Alloy Description

American Spec.

American Spec.

German Spec.

British Spec.

Typical Material Applications

UNS

SAE

alloy

alloy

Cu85 Sn5 Zn5 Pb5
Leaded Gunmetal

C83600 ( CDA 836)

40

CuSn5ZnPb

LG2

Pump components, small gears, bearings, impellers, flanges, low pressure valves and fittings.

Cu83 Sn3 Zn8 Pb6
Leaded Gunmetal

C84400 (CDA 844)

-

CuSn2ZnPb

*LG1

Light duty bearings, general hardware, fixtures, low pressure valves and fittings.

Cu63 Al6 Fe3 Mn3 Zn25

C86300 (CDA 863)

430B

-

-

Heavy duty high strength alloy for gears, cams, slow speed heavy load bearings, screw down nuts.

Cu88 Sn8 Zn4
Tin Bronze

C90300 ( CDA 903)

620

-

-

Bearings, bushings, piston rings, valve components, seal rings, steam fittings and gears.

Cu88 Sn10 Zn2
Tin Bronze

C90500 ( CDA 905)

62

CuSn10Zn

*G1

Marine pumps, valves, bearings, bushings, piston rings, steam fittings and gears.

Cu89 Sn11
Tin Bronze

C90700 ( CDA 907)

65

CuSn12

*PB1

Heavy duty gears, high load bearings, bushings and worm wheels.

Cu88 Sn6 Zn4 Pb2
Leaded Tin Bronze

C92200 ( CDA 922)

622

-

LG3

Valves, fittings, Medium-pressure hydraulic and steam pressure parts for use up to 550 F (287 C)

Cu87 Sn11 Ni2
Leaded Tin Bronze

C92500 ( CDA 925)

640

CuSn12Ni

CT2

Gears, worm wheels - Good shock resistance, Automotive synchronizer rings.

Cu87 Sn11 Pb2
Leaded Tin Bronze

C92700 ( CDA 927)

63

CuSn12Pb

LB3

Heavy duty bearings, bushings, piston rings, valve components, steam fittings, gears.

Cu83 Sn7 Zn3 Pb7
Leaded Tin Bronze

C93200 ( CDA 932)

660

CuSn7ZnPb



General utility bearings, bushings and wear plates for medium speeds and pressures.

Cu85 Pb10 Sn5
High Leaded Tin Bronze

C93500 ( CDA 935)

66

-

LB4

high speed bearings, bushings, high speed light loading and light pressure parts.

Cu80 Pb10 Sn10
High Leaded Tin Bronze

C93700 ( CDA 937)

64

CuPb10Sn

LB2

Bearings for high speed and heavy pressures, pump parts, pressure tight castings.

Cu78 Pb15 Sn7
High Leaded Tin Bronze

C93800 ( CDA 938)

67

CuPb15Sn

LB1

Turbocharger bearings, bearings for general service and moderate pressures, railroad applications.

Cu87 AI10 Fe3
Aluminum Bronze

C95400 ( CDA 954)

-

CuAI10Fe

-

High strength bearings, bushings, gears, worms, wear plates, valve seats and guides.

Cu81 AI10 Ni5 Fe4
Ni Aluminum Bronze

C95500 ( CDA 955)

-

CuAI10Ni

-

High strength bearings, corrosion resistant parts, aircraft valve guides and seats.

Cu80 AI10 Ni6 Fe4
Ni Aluminum Bronze

C95800 ( CDA 958)

-

CuAl10Ni

AB2

Anti-fouling salt water corrosion resistant parts and general marine hardware.

Phosphor Bronze Grade I

C54400



CuSn4

PB101



Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings

Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.

  • Inch Sleeves

  • Metric Sleeves

  • Metric Flanges

  • Metric Washers

Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.

  • Wear Plates

  • Wear Strips

  • Bushings

  • Slide Assemblies

  • Guide Components

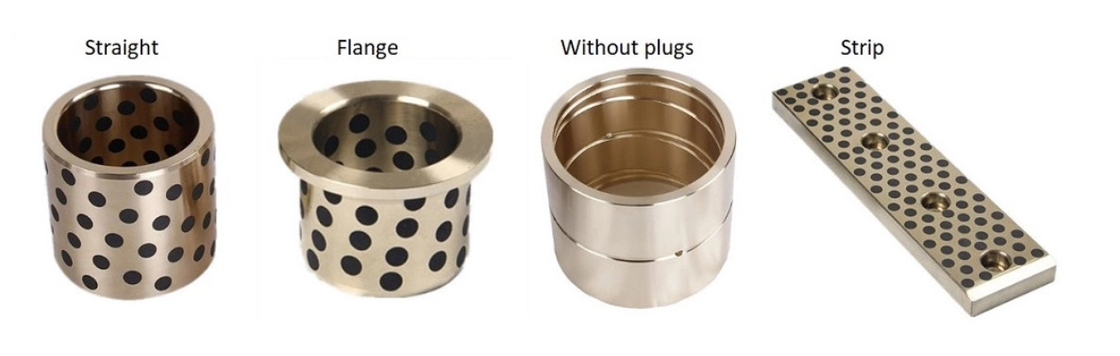

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing

C95800 ALUMINUM BRONZE BUSHINGS & PLATECast Bronze Sleeve Bushing Replacement Aluminum Bronze Self Lube Bearings

  • Inch Sized Bushings

  • Metric Sized Bushings

Bearings Features
Flexible design, simple, convenient with wide applications
The designing of oil-feeding system is both a labor consuming and time consuming job. Therefore, the neglecting of oil-feeding apparatus in the designing of solid Iubricant bearings saves the cost of oil-feeding apparatus. Besides, for various specific circumstances, the solid lubricant bearings can be designed into various types to meet the requirements thereof. The use of solid lubricant bearings can greatly reduce the cost of mechanical maintenance and oil.
