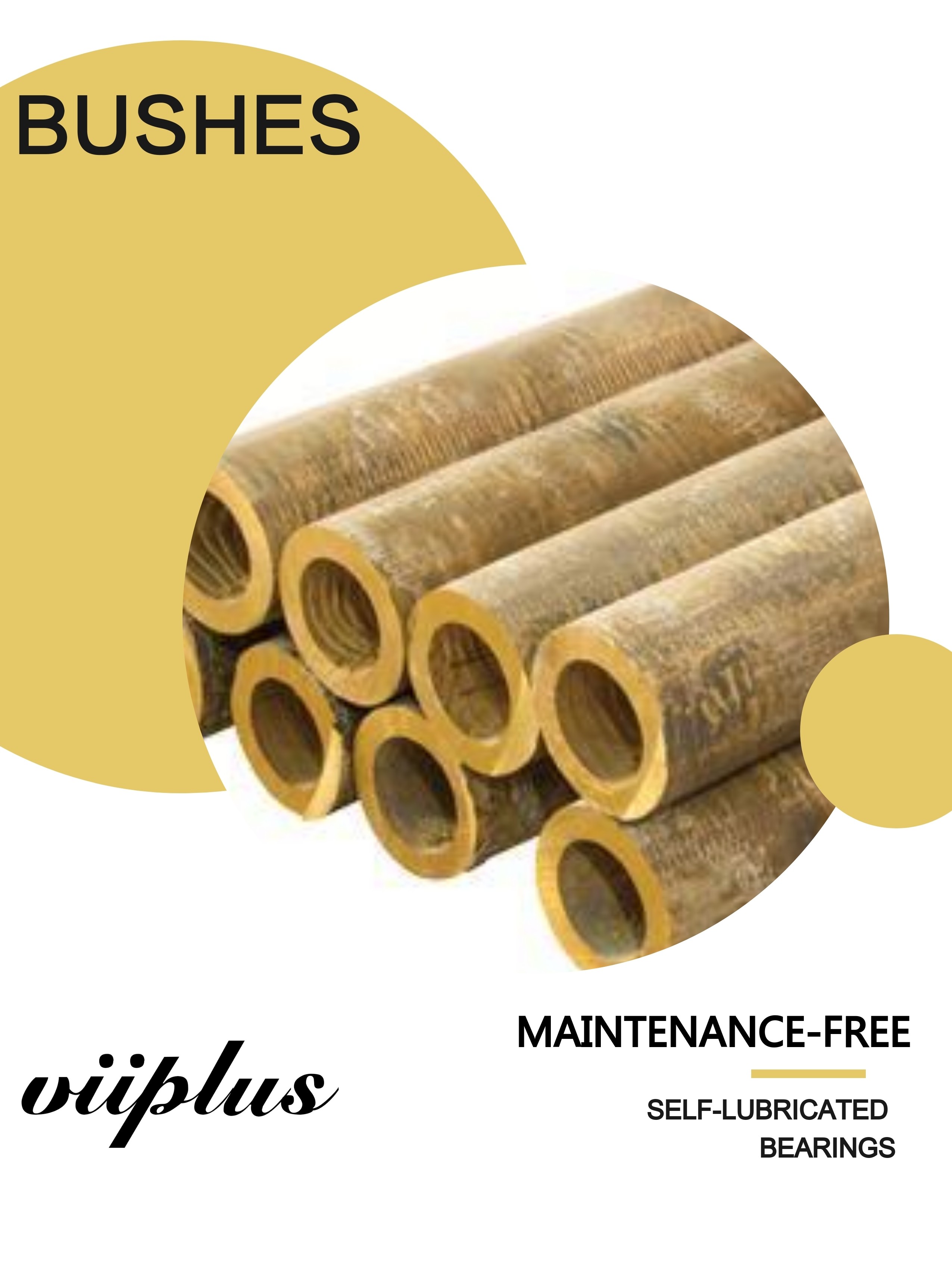

Cast Bronze Sleeve Bushing Replacement Aluminum Bronze Self Lube Bearings
|Place of Origin||Graphite Bearings Manufacturers|
|Brand Name||SANKYO,MISUMI，DAIDO，SELF LUBE，GGB,FIBRO STANDARD REPLACEMENT BEARING|
|Certification||DIN 1850/ISO 4379， UNITED STATES UNS STANDARD,C86300|
|Model Number||solid bushing, bronze with lubricant plugs embedded Maintenance-free|
|Minimum Order Quantity||NEGOTIABLE|
|Price||Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze|
|Packaging Details||BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS|
|Delivery Time||FAST DELIVERY|
|Payment Terms||TT IN ADVANCE|
|Supply Ability||Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers|
|Marerial||CuAl10Fe3 Bronze Graphite Bushing||Size||Inch Size Bushings|
|Standard Size||C95800||Type||PLUGGED CAST BRONZE|
graphite impregnated bronze bushings,
graphite impregnated bushings
Graphite Plugged Bushings
Graphite Plugged Bushings Products are a complete line of self lubricated bronze bearing / bushing products that excel whenever standard lubrication is impractical, including heavy load, high temperature applications. They are manufactured from a variety of bronze alloys including Aluminum Bronze or CDA954, Bearing Bronze or CDA932 and Manganese Bronze or CDA863. These products are available in Standard Bearings, Washers and Wear Plates.
Some Fundamentals Of Aluminum Bronze:Aluminum Bronze Bushing made to order from china is basically alloys of aluminum and copper, with addition to metals such as iron, nickel and silicon. These materials are used in right proportions to enhance certain physical, mechanical as well as fabrication characteristics.
Aluminum Bronze Bushing Straight Bushings Engineered for a Longer More Reliable Service Life
Aluminum bronze graphite bushings is the highest strength standard copper based alloy. VIIPLUS produces C95400, C95500 and C95900 in standard sizes of bronze bushings. Aluminum in conjunction with iron and nickel in C95500 acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.
Aluminum Bronze Bronze Bushings-- C95800
Self-Lubricating Oil-Less Type Bushings
Aluminum bronze graphite bushings is the highest strength standard copper based alloy. VIIPLUS produces C95400, C95500 and C95900 in standard sizes of Bronze graphite Bushings. Aluminum in conjunction with iron and nickel in C95500 acts as a strengthener in these alloys bronze bushings. All of the aluminum bronzes bearings can be heat treated, further increasing tensile strengths.
Bronze sleeve bearings flanged bronze bushings for sale
C95800 ALUMINUM Bronze bushings
machinery, shafts, valve bodies, propeller hub, worm gears, bushings, propeller blades, pickling equipment, worms, wear plates, gears
Material Technical Data
Typical Material Applications
Cu85 Sn5 Zn5 Pb5
C83600 ( CDA 836)
Pump components, small gears, bearings, impellers, flanges, low pressure valves and fittings.
Cu83 Sn3 Zn8 Pb6
C84400 (CDA 844)
Light duty bearings, general hardware, fixtures, low pressure valves and fittings.
Cu63 Al6 Fe3 Mn3 Zn25
C86300 (CDA 863)
Heavy duty high strength alloy for gears, cams, slow speed heavy load bearings, screw down nuts.
Cu88 Sn8 Zn4
C90300 ( CDA 903)
Bearings, bushings, piston rings, valve components, seal rings, steam fittings and gears.
Cu88 Sn10 Zn2
C90500 ( CDA 905)
Marine pumps, valves, bearings, bushings, piston rings, steam fittings and gears.
C90700 ( CDA 907)
Heavy duty gears, high load bearings, bushings and worm wheels.
Cu88 Sn6 Zn4 Pb2
C92200 ( CDA 922)
Valves, fittings, Medium-pressure hydraulic and steam pressure parts for use up to 550 F (287 C)
Cu87 Sn11 Ni2
C92500 ( CDA 925)
Gears, worm wheels - Good shock resistance, Automotive synchronizer rings.
Cu87 Sn11 Pb2
C92700 ( CDA 927)
Heavy duty bearings, bushings, piston rings, valve components, steam fittings, gears.
Cu83 Sn7 Zn3 Pb7
C93200 ( CDA 932)
General utility bearings, bushings and wear plates for medium speeds and pressures.
Cu85 Pb10 Sn5
C93500 ( CDA 935)
high speed bearings, bushings, high speed light loading and light pressure parts.
Cu80 Pb10 Sn10
C93700 ( CDA 937)
Bearings for high speed and heavy pressures, pump parts, pressure tight castings.
Cu78 Pb15 Sn7
C93800 ( CDA 938)
Turbocharger bearings, bearings for general service and moderate pressures, railroad applications.
Cu87 AI10 Fe3
C95400 ( CDA 954)
High strength bearings, bushings, gears, worms, wear plates, valve seats and guides.
Cu81 AI10 Ni5 Fe4
C95500 ( CDA 955)
High strength bearings, corrosion resistant parts, aircraft valve guides and seats.
Cu80 AI10 Ni6 Fe4
C95800 ( CDA 958)
Anti-fouling salt water corrosion resistant parts and general marine hardware.
Phosphor Bronze Grade I
Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings
Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.
Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.
Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing
C95800 Aluminum Bronze Bushings & Plate
Inch Sized Bushings
Metric Sized Bushings
Flexible design, simple, convenient with wide applications
The designing of oil-feeding system is both a labor consuming and time consuming job. Therefore, the neglecting of oil-feeding apparatus in the designing of solid Iubricant bearings saves the cost of oil-feeding apparatus. Besides, for various specific circumstances, the solid lubricant bearings can be designed into various types to meet the requirements thereof. The use of solid lubricant bearings can greatly reduce the cost of mechanical maintenance and oil.
