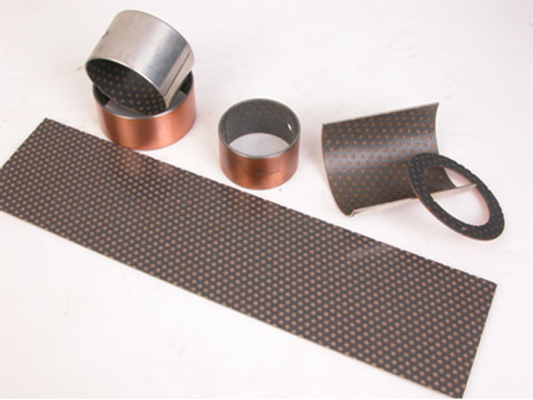

The PAP P14 Cylindrical Bush & Thrust Washer is a high-performance sliding bearing material that is maintenance-free and environmentally friendly. This material is a lead-free standard sliding material designed specifically for maintenance-free, dry-running applications, especially in the food industry. However, it can also be used in systems with liquid lubrication, although the use of grease as a lubricant is limited and not recommended.

The manufacturing process of the P14 material includes a specially adapted mixing process where the solid lubricant mass is produced. In a parallel, continuous sintering operation, bronze powder is sintered onto the steel back as a sliding layer. This results in a sliding layer with a thickness of 0.2 mm to 0.35 mm and a pore volume of approximately 30%. Subsequently, the cavities are filled with solid lubricant using impregnating rollers. This process step is controlled in such a way that a running-in layer of solid lubricant up to a maximum thickness of 0.03 mm is produced above the sliding layer. In further thermal treatments, the characteristic properties of the material system are adjusted, and the required thickness tolerances of the composite material are produced using controlled roller pairs.

Note: P14 material cannot be used in water (Alternatives: P180, P147, P10, P11). Sliding elements of various designs are produced from P14 material through cutting, stamping, and shaping processes. Standard designs include cylindrical bushes, flange bushes, thrust washers, and strips. In a final step, plain bearings made from P14 material undergo anti-corrosion treatment on the bearing back, end faces, and striking faces. The standard version is tin with a layer thickness of approximately 0.002 mm. Tin is used as temporary corrosion protection and an assembly aid.

Characteristics of P14 material include being lead-free, having a very low stick-slip tendency, low wear, low friction coefficient, no tendency to fuse with metal, and very low tendency to swell. Preferred areas of application include maintenance-free operation in dry-running conditions where lead-free parts are required, rotating or oscillating movements up to a speed of 1 m/s, linear movements, and a temperature range of -200°C to 280°C.

Hydrodynamic operation is possible without problems up to a sliding speed of 3 m/s. However, there is a risk of flow erosion or cavitation in continuous operation above 3 m/s. Motorservice offers the calculation of hydrodynamic operating states as a service.

Additionally, the PAP P14 series thrust washer (PAW42 P14) is available in various variants for order in the MISUMI online shop, with free CAD data, fast delivery, and fair prices. Other products in the PAP P14 series include cylindrical bushes, flange bushes, thrust washers, and strips. For instance, the PAP6040-P14-KS KS cylindrical bush has an inner diameter of 60 mm, an outer diameter of 65 mm, and a length of 40 mm. Another example is the PAP2020-P14 generic cylindrical bush with an inner diameter of 20 mm, an outer diameter of 23 mm, and a length of 20 mm. The MISUMI online shop also offers plain bearings made of PAP P14 composite material, with various variants available for selection and configuration.

Types Available: Flange Liner (PAF) Cylindrical Bush (PAP) Thrust Washer (PAW)

PAP Buchsen Equivalent China Factory Price

Low-maintenance and maintenance-free plain bearings

Bushes
Bushes
Description	Di	Do	B
PAP 0203 P14	2	3,5	3
PAP 0303 P14	3	4,5	3
PAP 0304 P14	3	4,5	4
PAP 0305 P14	3	4,5	5
PAP 0306 P14	3	4,5	6
PAP 0403 P14	4	5,5	3
PAP 0404 P14	4	5,5	4
PAP 0406 P14	4	5,5	6
PAP 0410 P14	4	5,5	10
PAP 0505 P14	5	7	5
PAP 0508 P14	5	7	8
PAP 0510 P14	5	7	10
PAP 0606 P14	6	8	6
PAP 0608 P14	6	8	8
PAP 0610 P14	6	8	10
PAP 0710 P14	7	9	10
PAP 0806 P14	8	10	6
PAP 0808 P14	8	10	8
PAP 0810 P14	8	10	10
PAP 0812 P14	8	10	12
PAP 100115 P14	100	105	115
PAP 10050 P14	100	105	50
PAP 10060 P14	100	105	60
PAP 1008 P14	10	12	8
PAP 1010 P14	10	12	10
PAP 1012 P14	10	12	12
PAP 1015 P14	10	12	15
PAP 1020 P14	10	12	20
PAP 11060 P14	110	115	60
PAP 12060 P14	120	125	60
PAP 1208 P14	12	14	8
PAP 1210 P14	12	14	10
PAP 1212 P14	12	14	12
PAP 1215 P14	12	14	15
PAP 1220 P14	12	14	20
PAP 1225 P14	12	14	25
PAP 125100 P14	125	130	100
PAP 130100 P14	130	135	100
PAP 1310 P14	13	15	10
PAP 140100 P14	140	145	100
PAP 14060 P14	140	145	60
PAP 1410 P14	14	16	10
PAP 1412 P14	14	16	12
PAP 1415 P14	14	16	15
PAP 1420 P14	14	16	20
PAP 1425 P14	14	16	25
PAP 150100 P14	150	155	100
PAP 15080 P14	150	155	80
PAP 1510 P14	15	17	10
PAP 1512 P14	15	17	12
PAP 1515 P14	15	17	15
PAP 1520 P14	15	17	20
PAP 1525 P14	15	17	25
PAP 16080 P14	160	165	80
PAP 1610 P14	16	18	10
PAP 1612 P14	16	18	12
PAP 1615 P14	16	18	15
PAP 1620 P14	16	18	20
PAP 1625 P14	16	18	25
PAP 180100 P14	180	185	100
PAP 1810 P14	18	20	10
PAP 1815 P14	18	20	15
PAP 1820 P14	18	20	20
PAP 1825 P14	18	20	25
PAP 200100 P14	200	205	100
PAP 2010 P14	20	23	10
PAP 2015 P14	20	23	15
PAP 2020 P14	20	23	20
PAP 2025 P14	20	23	25
PAP 2030 P14	20	23	30
PAP 2215 P14	22	25	15
PAP 2220 P14	22	25	20
PAP 2225 P14	22	25	25
PAP 2230 P14	22	25	30
PAP 2415 P14	24	27	15
PAP 2420 P14	24	27	20
PAP 2425 P14	24	27	25
PAP 2510 P14	25	28	10
PAP 2515 P14	25	28	15
PAP 2520 P14	25	28	20
PAP 2525 P14	25	28	25
PAP 2530 P14	25	28	30
PAP 2550 P14	25	28	50
PAP 2820 P14	28	32	20
PAP 2830 P14	28	32	30
PAP 300100 P14	300	305	100
PAP 3015 P14	30	34	15
PAP 3020 P14	30	34	20
PAP 3025 P14	30	34	25
PAP 3030 P14	30	34	30
PAP 3040 P14	30	34	40
PAP 3230 P14	32	36	30
PAP 3240 P14	32	36	40
PAP 3520 P14	35	39	20
PAP 3530 P14	35	39	30
PAP 3540 P14	35	39	40
PAP 3550 P14	35	39	50
PAP 4020 P14	40	44	20
PAP 4030 P14	40	44	30
PAP 4040 P14	40	44	40
PAP 4050 P14	40	44	50
PAP 4510 P14	45	50	10
PAP 4530 P14	45	50	30
PAP 4540 P14	45	50	40
PAP 4550 P14	45	50	50
PAP 5020 P14	50	55	20
PAP 5030 P14	50	55	30
PAP 5040 P14	50	55	40
PAP 5060 P14	50	55	60
PAP 5540 P14	55	60	40
PAP 5560 P14	55	60	60
PAP 6030 P14	60	65	30
PAP 6040 P14	60	65	40
PAP 6060 P14	60	65	60
PAP 6070 P14	60	65	70
PAP 6540 P14	65	70	40
PAP 6550 P14	65	70	50
PAP 6560 P14	65	70	60
PAP 6570 P14	65	70	70
PAP 7040 P14	70	75	40
PAP 7050 P14	70	75	50
PAP 7070 P14	70	75	70
PAP 7550 P14	75	80	50
PAP 7560 P14	75	80	60
PAP 8040 P14	80	85	40
PAP 8060 P14	80	85	60
PAP 8080 P14	80	85	80
PAP 8560 P14	85	90	60
PAP 90100 P14	90	95	100
PAP 9060 P14	90	95	60
up
Flange Bushes
Flange Bushes PAF..
Description	Di	Do	B
PAF 06040 P14	6	8	4
PAF 06070 P14	6	8	7
PAF 06080 P14	6	8	8
PAF 08055 P14	8	10	5,5
PAF 08075 P14	8	10	7,5
PAF 08095 P14	8	10	9,5
PAF 10070 P14	10	12	7
PAF 10090 P14	10	12	9
PAF 10120 P14	10	12	12
PAF 10170 P14	10	12	17
PAF 12070 P14	12	14	7
PAF 12090 P14	12	14	9
PAF 12120 P14	12	14	12
PAF 12170 P14	12	14	17
PAF 14120 P14	14	16	12
PAF 14170 P14	14	16	17
PAF 15090 P14	15	17	9
PAF 15120 P14	15	17	12
PAF 15170 P14	15	17	17
PAF 16120 P14	16	18	12
PAF 16170 P14	16	18	17
PAF 18120 P14	18	20	12
PAF 18170 P14	18	20	17
PAF 18220 P14	18	20	22
PAF 20115 P14	20	23	11,5
PAF 20165 P14	20	23	16,5
PAF 20215 P14	20	23	21,5
PAF 25115 P14	25	28	11,5
PAF 25165 P14	25	28	16,5
PAF 25215 P14	25	28	21,5
PAF 30160 P14	30	34	16
PAF 30260 P14	30	34	26
PAF 35160 P14	35	39	16
PAF 35260 P14	35	39	26
PAF 40260 P14	40	44	26
up
Strips
Strips
Description	L	B	S3
PAS 20250 P14	500	250	2,0
PAS 10250 P14	500	250	1,0
PAS 05180 P14	500	180	0,5
PAS 07250 P14	500	250	0,75
PAS 15250 P14	500	250	1,5
PAS 30250 P14	500	250	3,06
PAS 25250 P14	500	250	2,5
up
Thrust washers
Thrust washers PAW
Description	Di	Do	S3
PAW 18 P14	18	32	1,5
PAW 20 P14	20	36	1,5
PAW 52 P14	52	78	2,0
PAW 14 P14	14	26	1,5
PAW 26 P14	26	44	1,5
PAW 10 P14	10	20	1,5
PAW 32 P14	32	54	1,5
PAW 22 P14	22	38	1,5
PAW 48 P14	48	74	2,0
PAW 38 P14	38	62	1,5
PAW 42 P14	42	66	1,5
PAW 16 P14	16	30	1,5
PAW 12 P14	12	24	1,5
PAW 28 P14	28	48	1,5
PAW 62 P14	62	90	2,0

It is not possible to find the desired solution for plain bearing applications with products made of maintenance-free materials for all duties and applications. For such duties and applications, low-maintenance materials are available. In this case, the sliding surfacetaking up the wear load is formulated from a PVDF (Polyvinylidene Fluoride) matrix.

P1 Gleitlager Permaglide PAP Buchsen Equivalent

suitable for dry-run

Gleitlager Permaglide PAP Buchsen Equivalent is a leaded, robust sliding material with maximum tribological performance. It is designed for maintenance-free, dry-running applications, but can also be employed in systems with liquid lubrication.

The unique features:

• Universal use
• Low friction values, high wear resistance
• Extremely good performance in dry runs as self-lubricating

Material production

The solid lubricant mass is produced in a specially adapted mixing process. In a parallel, continuous sintering operation, bronze powder is sintered onto the steel or bronze back as a sliding layer. This produces a sliding layer with a thickness from 0.2 mm to 0.35 mm and a pore volume of approx. 30 %. Next, the cavities are filled with solid lubricant by means of impregnating rollers.

This process step is controlled in such a way that a running-in layer of solid lubricant up to max. 0.03 mm thick is produced above the sliding layer. In further thermal treatments, the characteristic properties of the material system are adjusted, and the required thickness tolerances of the composite material are produced using controlled roller pairs.

Preferred areas of application

P2 Gleitlager Permaglide PAP Buchsen Equivalent

lubrication required

The unique features:

• Lifetime lubrication possible
• Low wear
• Low sensitivity to edge loading
• Good damping characteristics
• Insensitive to impact
• Good chemical resistance

To reduce the coefficient of friction and improve thermal conductivity, special additives are mixed into the matrix. In addition, the surface of the sliding layer may optionally be equipped with lube bore relieves to accommodate grease or oil.

For Permaglide®, bearings for extremely high performance requirements, has formulated and applied a PEEK (Poly Ketone) plastic matrix that is compounded with special nano-scaled fillers to improve its tribological properties.

Similar to engine bearings, increasing technical demands and minimized installation clearance determine the development efforts for Permaglide® bearings. In accordance with customer requirements, not only are the geometries and shapes selectively developed but are optimised as sliding surface systems where purpose-adjusted kinetic momentum of the sliding pairs are taken into account. Moreover, customers need not adapt design of their assemblies to the sliding element; the Permaglide®-bearing optimally adjusts to the assembly design.
