Metric Standard Bronze Bushing Without Perforation DIN1494

Brand Name:	REPLACEMENT PLAIN BEARINGS
Model Number:	Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
MOQ:	MATE-TO-ORDER CUSTOM BUSHINGS
Price:	Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Payment Terms:	T/T
Supply Ability:	bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Detail Information

Product Description

Detail Information

Place of Origin:

gleitlagerbuchsen china

Certification:

DIN 1494 / ISO 3547

Bushing Однородная бронза:

(Cu 91,3%, Sn 8,5%, P 0,2%)

Feature:

CuSn6 CuSn8 Bundbuchse Messing

Performance:

BRM10 MBZ-B09 FB090 Wrapped Split ...

Type:

Sleeve,Flange,Thrust Washer

Bushings Thinkness:

Bushing Max. Thickness Of 2.5mm.

Self-lubricating Bushings:

Bronze Bushing 60-65-60mm, Perforated

Application:

Agricultural Machinery, Brakes And Certain Construction Machinery.

Bushing Size:

Special Dimensions And Imperial Sizes Are Available On Request

Model Number::

Wrapped Split Bushing

Logo:

Customized Logo

Get A Better Quote:

Tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer:

Https://www.viiplus.com/

High Light::

Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger:

A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain

Bush Bearings Manufacturers Suppliers Exporters:

Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/

Packaging Details:

EXPORT CARTON WOOD PALLET WOODEN CASE

Supply Ability:

bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Highlight:

Bronze Bushing Without Flange

Bronze Bushing Without Perforation

DIN1494 Metric Bronze Bushing

Product Description

The Metric Standard Bronze Bushing Without Perforation DIN 1494 is a precision-engineered component designed to meet the rigorous requirements of various industrial applications. Constructed from high-quality bronze material, it offers excellent corrosion resistance, wear resistance, and mechanical strength, ensuring long-lasting performance and reliability.

The bushing features a metric standard size, allowing it to fit into a wide range of mechanical systems and equipment. The absence of perforation ensures a smooth and uninterrupted surface, reducing friction and wear during operation. This, in turn, extends the lifespan of the bushing and improves overall system efficiency.

Compliance with the DIN 1494 standard guarantees that the bushing meets international quality and performance standards. This ensures its suitability for use in a variety of industries, including but not limited to automotive, machinery, and construction.

In summary, the Metric Standard Bronze Bushing Without Perforation DIN 1494 is a robust and reliable component that offers exceptional performance and durability in industrial applications.

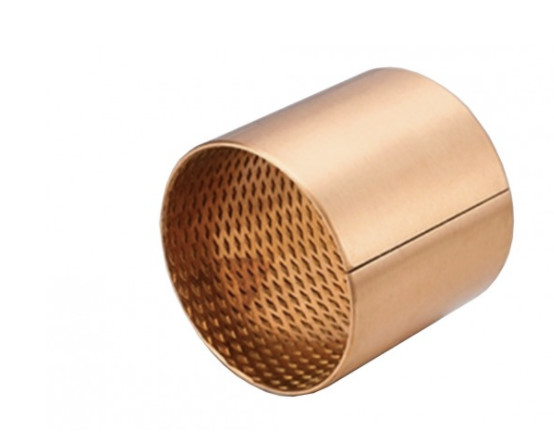

BRM10 Bushes Metric Standard Bushing(DIN1494)

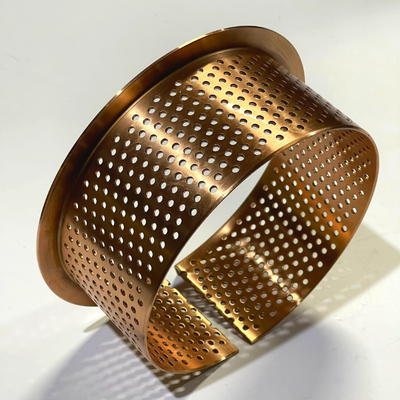

Flange Bronze Bush with Through Hole
Wrapped flanged bronze bushing with through holes.

Material: FB092 Metric Standard Bronze Bushing Without Perforation DIN1494

Manufacturer Code FB092/LD

Bronze Bushing Without Flange Without Perforation, bundbuchse messing
BRM10 Bushes Metric Standard Bushing(DIN1494)

CuSn6 CuSn8 BRM10 MBZ-B09 FB090 Wrapped Split ...

1 Bushing OD 70 mm, ID 65 mm, L= 40 mm DIN 1494 (CuSn8)
2 Bushing OD 70 mm, ID 65 mm, L= 60 mm DIN 1494 (CuSn8)
3 Bushing OD 80 mm, ID 75 mm, L= 80 mm DIN 1494 (CuSn8)

BRONZE SLEEVES WITHOUT FLANGE WITHOUT PERFORATION
PLACE AN ORDER TO ASK A QUESTION
We offer bronze sleeves of different diameters - with notches and surface rifling. Can be used for greasing for a long time without additional maintenance. The grease is applied beforehand and is very economical.

BRM10 Bushes Metric Standard Bushing(DIN1494)

Type	ØD	Ød	Axle	Housing	f1	f2	L 0 -0.40
Type	ØD	Ød	Axle	Housing	f1	f2	10	15	20	25	30	40	50
BRM10	12	10	10-0.013 -0.028	12+0.018 0	0.6	0.3	1010	1015	1020
BRM10	14	12	12-0.016 -0.034	14+0.018 0			1210	1215	1220
BRM10	16	14	14-0.016 -0.034	16+0.018 0				1415	1420
BRM10	17	15	15-0.016 -0.034	17+0.018 0				1515	1520	2525
BRM10	18	16	16-0.016 -0.034	18+0.018 0				1615	1620	1625
BRM10	19	17	17-0.016 -0.034	19+0.021 0				1715	1720	1725
BRM10	20	18	18-0.016 -0.034	20+0.021 0				1815	1820	1825
BRM10	23	20	20-0.020 -0.041	23+0.021 0	0.8	0.4		2015	2020	2025	2030
BRM10	25	22	22-0.020 -0.041	25+0.021 0				2215	2220	2225	2230
BRM10	27	24	24-0.020 -0.041	27+0.021 0					2420	2425	2430
BRM10	28	25	25-0.020 -0.041	28+0.021 0					2520	2525	2530
BRM10	32	28	28-0.020 -0.041	32+0.025 0	1.2	0.6			2820	2825	2830
BRM10	34	30	30-0.020 -0.041	34+0.025 0					3020	3025	3030	3040
BRM10	36	32	32-0.025 -0.050	36+0.025 0					3220	3225	3230	3240
BRM10	39	35	35-0.025 -0.050	39+0.025 0					3520	4525	4530	4540
BRM10	44	40	40-0.025 -0.050	44+0.025 0					4020	4025	4030	4040
BRM10	50	45	45-0.025 -0.050	50+0.025 0	1.6	0.8			4520	4525	4530	4540
BRM10	55	50	50-0.025 -0.050	55+0.030 0							5030	5040	5050
BRM10	60	55	55-0.030 -0.060	60+0.030 0							5530	5540	5550
BRM10	65	60	60-0.030 -0.060	65+0.030 0							6030	6040	6050
BRM10	70	65	65-0.030 -0.060	70+0.030 0							6530	6540	6550

BRM10	80	75	75-0.030 -0.060	80+0.030 0	1.6	0.8	7540	7550	7560
BRM10	85	80	80-0.030 -0.060	85+0.035 0			8040	8050	8060
BRM10	90	85	85-0.036 -0.071	90+0.035 0			8540	8550	8560
BRM10	95	90	90-0.036 -0.071	95+0.035 0				9050	9560	9580
BRM10	100	95	95-0.036 -0.071	100+0.035 0				9550	9560	9580
BRM10	105	100	100-0.036 -0.071	105+0.035 0				10050	10060	10080	100100
BRM10	110	105	105-0.036 -0.071	110+0.035 0				10550	10560	10580	105100
BRM10	115	110	110-0.036 -0.071	115+0.035 0				11050	11060	11080	110100
BRM10	120	115	115-0.036 -0.071	120+0.035 0				11550	11560	11580	115100
BRM10	125	120	120-0.036 -0.071	125+0.040 0					12060	12080	120100
BRM10	130	125	125-0.043 -0.083	130+0.040 0					12560	12580	125100
BRM10	135	130	130-0.043 -0.083	135+0.040 0					13060	13080	130100
BRM10	140	135	135-0.043 -0.083	140+0.040 0					13560	13580	135100
BRM10	145	140	140-0.043 -0.083	145+0.040 0					14060	14080	140100
BRM10	150	145	145-0.043 -0.083	150+0.040 0					14560	14580	145100
BRM10	160	155	155-0.043 -0.083	160+0.040 0						15580	155100	155120
BRM10	170	165	165-0.043 -0.083	170+0.040 0						16580	165100	165120
BRM10	180	175	175-0.043 -0.083	180+0.040 0						17580	175100	175120
BRM10	190	185	185-0.050 -0.096	190+0.046 0						18580	185100	185120
BRM10	200	195	195-0.050 -0.096	200+0.046 0						19580	195100	195120
BRM10	210	205	205-0.050 -0.096	210+0.046 0						20580	205100	205120
BRM10	220	215	215-0.050 -0.096	220+0.046 0						21580	215100	215120
BRM10	230	225	225-0.050 -0.096	230+0.046 0						22580	225100	225120
BRM10	240	235	235-0.050 -0.096	240+0.046 0						23580	235100	235120
BRM10	250	245	245-0.050 -0.096	250+0.046 0						24580	245100	245120
BRM10	265	260	260-0.056 -0.108	265+0.052 0						26080	260100	260120
BRM10	285	280	280-0.056 -0.108	285+0.052 0						28080	280100	280120
BRM10	305	300	300-0.056 -0.108	305+0.052 0						30080	300100	300120

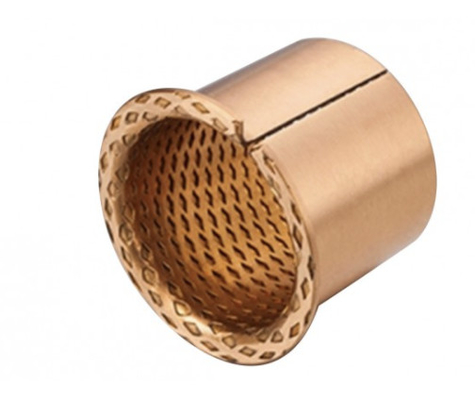

BRM10F Flange Bushes Metric Standard Flange Bushing(DIN1494)

Designation	Ød	Ø D	ØD1±0.5	h0 -0.20	L±0.25	f1	f2	Axle	Housing
BRM10F 2520	25	28	35	1.5	20	0.8	0.4	25-0.020 -0.041	28+0.021 0
BRM10F 2525					25
BRM10F 3020	30	34	45	2.0	20	1.2	0.6	30-0.020 -0.041	34+0.025 0
BRM10F 3025					25
BRM10F 3030					30
BRM10F 3530	35	39	50		30			35-0.025 -0.050	39+0.025 0
BRM10F 3540					40
BRM10F 3550					50
BRM10F 4030	40	44	55		30			40-0.025 -0.050	44+0.025 0
BRM10F 4040					40
BRM10F 4050					50
BRM10F 5030	50	55	65	2.5	30	1.6	0.8	50-0.025 -0.050	55+0.030 0
BRM10F 5040					40
BRM10F 5050					50
BRM10F 5530	55	60	70		30			55-0.030 -0.060	60+0.030 0
BRM10F 5540					40
BRM10F 5550					50
BRM10F 6040	60	65	75		40			60-0.030 -0.060	65+0.030 0
BRM10F 6050					50
BRM10F 6060					60
BRM10F 8050	80	85	100		50			80-0.030 -0.060	85+0.035 0
BRM10F 8060					60
BRM10F 8080					80
BRM10F 10050	100	105	120		50			100-0.036 -0.071	105+0.035 0
BRM10F 10060					60
BRM10F 10080					80
BRM10F 16060	160	165	190		60			160-0.043 -0.083	165+0.040 0
BRM10F 16080					80
BRM10F 20060	200	205	235		60			200-0.050 -0.096	205+0.046 0
BRM10F 20080					80

************************TOLERANCE TABLES***********************************************?

Bushing O.D. Tolerances Table

Outer Diameter ØD	Outer Diameter Tolerance
ØD≤10	+0.055 +0.025
10＜ØD≤18	+0.065 +0.030
18＜ØD≤30	+0.075 +0.035
30＜ØD≤50	+0.085 +0.045
50＜ØD≤80	+0.100 +0.055
80＜ØD≤120	+0.120 +0.070
120＜ØD≤180	+0.170 +0.100
180＜ØD≤250	+0.210 +0.130
250＜ØD≤305	+0.260 +0.170

Bushing Inner Diameter Tolerances Table

Inner Diameter Ød	Inner Diameter Tolerance
Ød≤10	+0.036 0
10＜Ød≤18	+0.043 0
18＜Ød≤30	+0.052 0
30＜Ød≤50	+0.062 0
50＜Ød≤80	+0.074 0
80＜Ød≤120	+0.087 0
120＜Ød≤180	+0.100 0
180＜Ød≤250	+0.115 0
250＜Ød≤305	+0.130 0

Inspecting Housing Tolerances Table

Outer Diameter ØD	0 ∫ 10	10 ∫ 18	18 ∫ 30	30 ∫ 50	50 ∫ 80	80 ∫ 120	120 ∫ 180	180 ∫ 250
Housing H7 Middle	D+0.008	D+0.009	D+0.011	D+0.013	D+0.015	D+0.018	D+0.020	D+0.023

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

• BRM10 Bushes

BRM10 Bushes, wrapped of a cold formable homogenous bronze (CuSn8), which will obtain exceptional material properties. The standard size are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film in the start movement and therewith reduce the start friction. The material suitable for constructions, agriculture etc where high load and slow movement are occurring
the BRM10 bushes is widely applied in hoisting machines and other construction machines,

Bornze Gleitlager CuSn8 Chemical Composition

Part No	Material	Cu	Sn	P	Pb	Zn
E92 & E92F	CuSn8	91.3%	8.5%	0.2%	/	/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

FB090 bronze bushing with holes

Product description:
FB090 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.

Sliding Bearing China | High Quality, Factory Price‎

MATERIALS

• Support materialCuSn8P (DIN 17662)

• alternative CuSn6P available

Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.

Technical Details

Specific load capacity static< 120 [N/mm2]
Specific load capacity dynamic< 40 [N/mm2]
Sliding speed≤ 2.5 [m/s]
Friction value0.05 [µ] to 0.12 [µ] depending on lubrication
Temperature strain- 40 [°C] to + 250 [°C]
Max. PV-value2.8 [N/mm² x m/s]
The percentage of contact area on the ID is > 75%

FOLLOW US ON

Metric Standard Bronze Bushing Without Perforation DIN1494 4

https://www.viiplus.com

Tags:

Oilless Bushes

Solid Bronze Bearing

Wrapped Bronze Bearings

Wrapped Bronze Bushings

Graphite Plugged Bushings

Graphite Bronze Bearing

Bronze Sleeve Bushings

Self Lubricating Plain Bearing

Lined Bushing

Bronze Gleitlager

Polymer Plain Bearings

POM Bushing

Bimetal Bearing Bushes

Bronze Plain Bearings

Self Lube Wear Plates

Stainless Steel Bushings

Cast Bronze Bushings

Bronze Bushing Material

Valve Bushing

Self Lubricating Bronze Bushings

Flanged Sleeve Bearing

Dry Sliding Bearing

Oilless Bushes

Solid Bronze Bearing

Wrapped Bronze Bearings

Wrapped Bronze Bushings

Graphite Plugged Bushings

Graphite Bronze Bearing

Bronze Sleeve Bushings

Self Lubricating Plain Bearing

Lined Bushing

Bronze Gleitlager

Polymer Plain Bearings

POM Bushing

Bimetal Bearing Bushes

Bronze Plain Bearings

Self Lube Wear Plates

Stainless Steel Bushings

Cast Bronze Bushings

Bronze Bushing Material

Valve Bushing

Self Lubricating Bronze Bushings

Flanged Sleeve Bearing

Dry Sliding Bearing

Metric Standard Bronze Bushing Without Perforation DIN1494

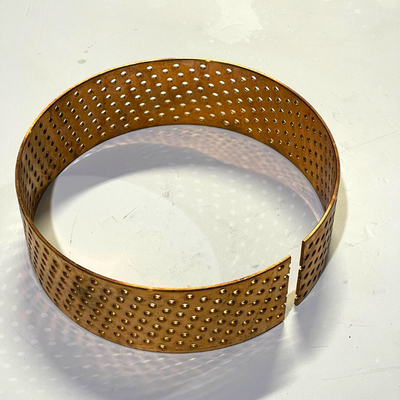

Metric Standard Bronze Bushing Without Perforation DIN1494

Bronze Bushing Without Flange

Bronze Bushing Without Perforation

DIN1494 Metric Bronze Bushing

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Bornze Gleitlager CuSn8 Chemical Composition

Part No

Material

Cu

Sn

P

Pb

Zn

E92 & E92F

CuSn8

91.3%

8.5%

0.2%

/

/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

FB090 bronze bushing with holes

Sliding Bearing China | High Quality, Factory Price‎

MATERIALS

• Support materialCuSn8P (DIN 17662)

• alternative CuSn6P available

Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving
