Oil - Free Cast Bronze Bushings With Solid Lubricant Inserts

Place of Origin gleitlagerbuchsen china
Brand Name viiplus Self-lubricating bearing
Certification Rosh
Model Number Self-lubricating bearing
Minimum Order Quantity Negotiate, according to the size of the product
Price According to the size of the product
Packaging Details Wooden packaging, paper packaging
Delivery Time 5-25 works day
Payment Terms L/C, T/T
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Copper Size Custom
Transportation Air Sea Train Get A Better Quote Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze bushings grainger

,

bronze bush bearings

Leave a Message
Product Description

Need Assistance Selecting The Metallic Self-Lubricating Bushings Cast Bronze Bushings With Solid Lubricant Inserts?



Oil-free cast bronze bushings, integrated with solid lubricant inserts, offer a unique and efficient solution for lubrication-free operations. These bushings are designed to eliminate the need for regular oiling, significantly reducing maintenance requirements and operational costs.

The cast bronze material used in the bushings is renowned for its exceptional strength, durability, and wear resistance. This ensures that the bushings can withstand heavy loads and maintain their performance even under extreme conditions.

The solid lubricant inserts are a key feature of these bushings. These inserts are made from a high-performance material that releases lubricating particles as the bushing rotates, providing a continuous and reliable lubricating layer between the bushing and the mating surface. This eliminates the need for external lubrication, ensuring smooth and friction-free operation.

The combination of cast bronze and solid lubricant inserts creates a bushing that is not only durable but also self-lubricating. This makes it an ideal choice for a wide range of industrial applications, particularly those that require reliable and maintenance-free bearing solutions.

In addition to their lubrication-free operation, these bushings are also easy to install and maintain. Their robust design and material choice ensure long-term reliability and performance, minimizing downtime and operational disruptions.

Overall, oil-free cast bronze bushings with solid lubricant inserts provide a cost-effective and efficient solution for lubrication-free bearing applications, offering superior performance, durability, and maintenance-free operation.



1. It can work under oil-free lubrication or oil less condition for a long time, with good self-lubrication performance. 2. More suitable for heavy load and low speed working conditions, with very good wear resistance and very low friction coefficient. 3. Suitable for reciprocating, rotating, oscillating and intermittent motion, etc. where oil film is difficult to form. 4. With corrosion and chemical resistance.

High force brass part can also be drilled and graphited.

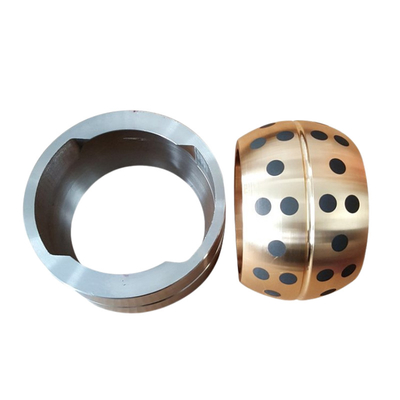

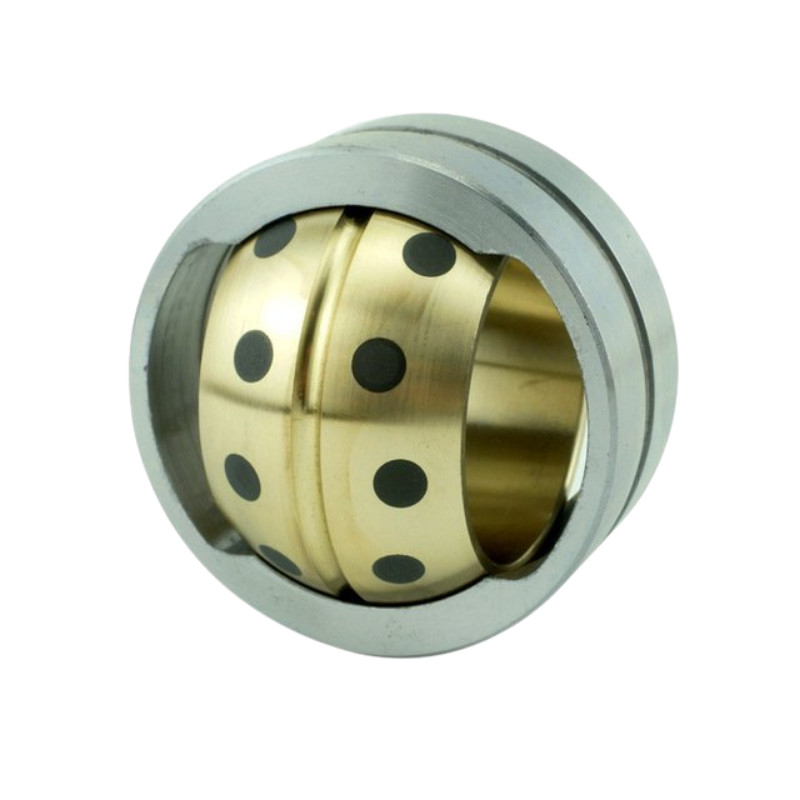

45# steel ring High force brass as the base and inlaid with solid lubricant. Using the frictional heat in use to form a self-lubricating film of oil and ultra-fine powder mixture, breaking through the limitations of general bearings rely on oil film lubrication. High hardness, excellent wear resistance and high load bearing capacity.





If you need help in selecting the best Cast Bronze Bushings products for your particular application, please remember that design engineering and application assistance are available from bronze gleitlager as part of our value-added services designed to make your job easier.

Cast Bronze with Solid Lubricants Cast Bronze Bushings Bearings Catalog

Check out our Cast Bronze Bushings online product catalog with metric size and inch size products with full specifications & CAD drawings available for customized - all free of charge!

self-lubricating bearing, same size, same manufacturing process, lower price

Composition And Structure

Cast self-lubricating bronze bearing with solid lubricant filling

Organization chart

Microsection of  DB cast bronze plain bearings





















1. Sliding layer oil film



2. Solid lubricant inserts



3. Bronze organization





OPERATING PERFORMANCE
Dry Good
Oil lubricated Good
Grease lubricated Good
Water lubricated Good
Process fluid lubricated Fair



Chemical elements of matrix material





ZCuSn6Zn6Pb3(GB1776-87)=ZQSn6-6-3(GB 1176-74)=GB-CuSn5Zn5Pb5(DIN)=C83600(ASTM) Chemical composition quality/%
Cu Sn Al Fe Mn Ni Pb Si P Zn
84.0-86.0 4.0-6.0 ma'x 0.005 max 0.3 - max 1 max 4.0-6.0 max 0.005 max 0.05 max 4.0-6.0







Mechanical properties of (C86300)(GB-CuSn5Zn5Pb5)(ZCuSn6Zn6Pb3)
Tensile strength(Mpa) The yield strength (Mpa) percentage elongation% hardness(HB)
248 max131 max15 60



Principle of self-lubricating bearing







ZCuSn6Zn6Pb3, C86300 Composition principle of graphite self - lubricating bearing Oil - Free Cast Bronze Bushings With Solid Lubricant Inserts 2













The use of graphite self-lubricating bearing parameters



Bearing performance
Substrate material CuSn6Zn6Pb3 Maximum operating temperature ℃ 350
Ultimate dynamic load N/mm² 60
The coefficient of friction u <0.15 Maximum sliding speed m/s 2
Basic hardness HB 80~100





CAD drawing of a certain size graphite self-lubricating bearing







CAD drawing of CuSn6Zn6Pb3 graphite self-lubricating bearing



You can choose the product structure and know our product process

The production process of CuSn6Zn6Pb3 (C86300) graphite self-lubricating bearing column is generally made by CNC vehicles. After that, the 5-axis machining center is used to punch holes, assemble and install graphite, and then conduct performance testing



Graphite bearing process production diagram

Application field





At present,CuSn6Zn6Pb3(C86300) graphite self-lubricating bearing the products have been used in metallurgical continuous casting machines, train supports, steel rolling equipment, mining machinery, ships, gas turbines







CuSn6Zn6Pb3 graphite self-lubricating bearing mine applications CuSn6Zn6Pb3 (C86300) graphite self-lubricating bearings for ship applications CuSn6Zn6Pb3 (C86300) graphite self-lubricating bearing train applications



Contact us





We provide you with special size customization and standard size production, you can choose CuSn6Zn6Pb3 (C86300) material sliding block, bearing sleeve, graphite bearing sleeve, washer, and other products, we will refer to ISO 4379 design or according to their own industry experience to optimize. So choose us.
