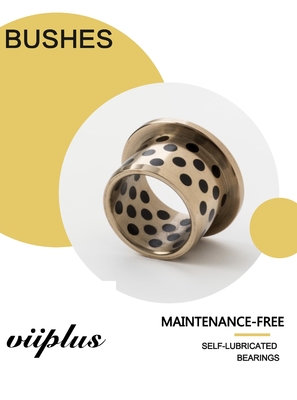

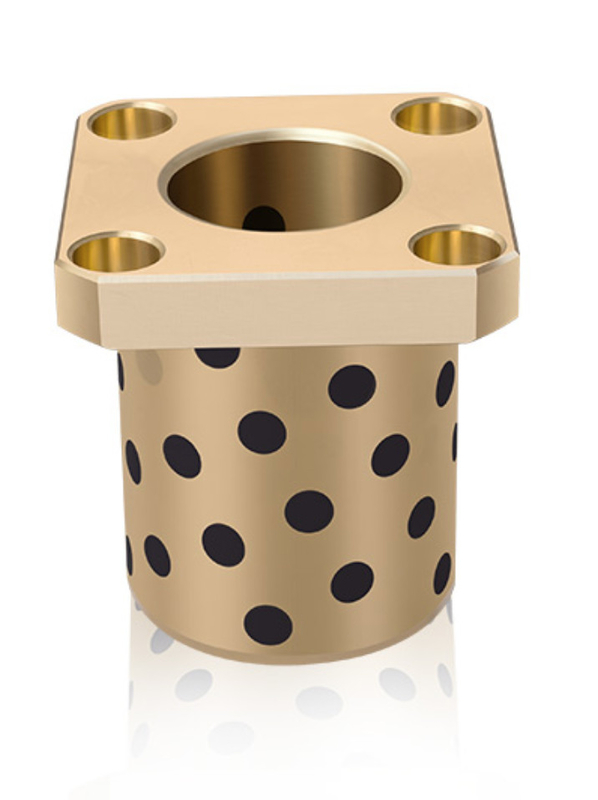

C93200 / SAE660 ASTM B505 Tin Bronze Sleeve Bushing Oil Less Graphite Plugged

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS Sleeve Bushings
Certification SAE 660
Model Number C93200 BRONZE BUSHINGS
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Payment Terms T/T, L/C, Western Union,
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material TIN BRONZE Model Number Cylinder Bearings,Cylinder Bearings With Flange,Plate,Washer
Feature Self Lubrication Beareing Lubrication Graphite
Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Standard SAE 660 C93200 Bronze,C93200/ASTM B505
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite bronze bushing

,

graphite plugged bronze bushings

Leave a Message
Product Description

The C93200 / SAE660 ASTM B505 tin bronze sleeve bushing, featuring an oil-less graphite plugged design, offers an exceptional bearing solution for a range of industrial applications. This bushing's unique composition and design ensure smooth, reliable, and long-lasting operation, even in high-load and high-speed environments.

The C93200 / SAE660 alloy is composed primarily of tin, copper, and other alloying elements, which give it superior strength, ductility, and wear resistance. This material is ideal for applications where bearings are subject to heavy loads and constant movement.

The oil-less graphite plugged design is a key feature of this bushing. Graphite is a natural lubricant that provides excellent friction reduction and wear protection, even in the absence of external lubrication. The graphite plugs are strategically positioned within the bushing to ensure continuous lubrication and protection of the bearing surface.

The sleeve bushing design allows for easy installation and removal, making maintenance and replacement quick and efficient. The precision machining of the bushing ensures a tight fit within the application, minimizing vibration and clearance, and extending the life of the bearing.

ASTM B505 is the standard specification for this type of tin bronze alloy, ensuring that the bushings meet the highest quality standards. The SAE660 designation further signifies its compliance with SAE standards for automotive applications, demonstrating its suitability for use in a wide range of industrial and automotive applications.

In summary, the C93200 / SAE660 ASTM B505 tin bronze sleeve bushing with an oil-less graphite plugged design offers a robust and reliable bearing solution for applications requiring smooth, wear-resistant, and maintenance-free operation. Its unique alloy composition, oil-less design, and precision machining make it an excellent choice for industrial and automotive applications.





Maintenance Free Graphite Plugged Bronze Bushing, Sliding Plate, Factory Price, Contact Us!

Our large bronze bushing stock is available in various types with full sizes available.No minimums, and fast delivery nationwide.Buy online or contact us for a quote!

Oilless Bushing at Best Price, Oilless Bushing By bronzegleitlager.com



The wear-resistant material is a metal substrate, adding various lubricating materials to reduce the friction coefficient and self-lubricating.

This material combines high load metal structure, advantages, good impact resistance and a low coefficient of non-metallic friction, being able to meet a variety of different conditions of use.



C93200 (SAE 660) Bronze Bushing Material



Chemical Composition
(%max., unless shown as range or min.)
  Cu(1) Al Sb Fe Pb Ni(2) P(3) Si S Sn Zn
Min./Max. 81.0-85.0 .005 .35 .20 6.0-8.0 1.0 .15 .005 .08 6.3-7.5 1.0-4.0
Nominal 83.0 - - - 7.0 - - - - 6.9 2.5

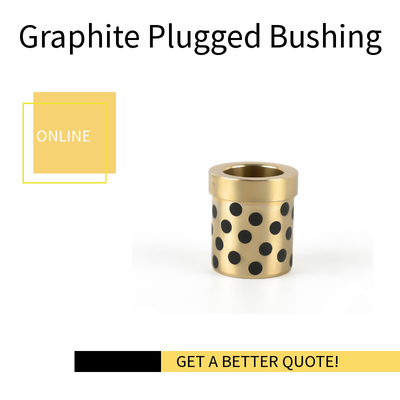

Graphite plugged bronze sleeve bronze bushing solid lubrication



Solid Lubricant
Lubricant Features Typical application
SL1 Graphite+add Excellent resistance against chemical attacks and low friction.Temp limit 400 ℃ Suite for general machines and under atmosphere
SL4 +Additives Lowest in friction and good of water lubrication ,Temp.limit 300℃ Ship,hydraulic turbine,gas turbine etc



High quality High quality precision Oilless Bushing all Oiles Bronze Bearing,Oil Free Bushings factory from China



Manufacture of slide bearing,bronze bushing,solid cast bronze bearing,oilless bushing,oiles bush,wrapped bronze bushing,bimetal bushing,etc.



We are a Chinese supplier manufacturer of Bearing Bronze SAE 660 inch size in china, application for ELECTRIC MOTORS, GEARBOXES, PUMPS, STEAM TURBINES!



Sliding Bearing Bronze Bushing Materials|Standard Components for Sliding Material|Products|VIIPLUS INTERNATIONAL MADE TO ORDER FROM CHINA. Your reliable self-lubricating bronze bushings suppliers made to order from china



CUSTOMIZED BRONZE SLEEVE BUSHINGS MANUFACTURING C93200 / SAE660 TIN BRONZE OIL LESS GRAPHITE PLUGGED. MANUFACTURER OF CAST BRONZE SLEEVE BUSHING SIZE AND SHAPES. IF YOU NEED HELP IN SELECTING THE BEST SLIDING BEARINGS FOR YOUR PARTICULAR APPLICATION, PLEASE REMEMBER THAT DESIGN ENGINEERING AND APPLICATION ASSISTANCE ARE AVAILABLE FROM VIIPLUS CHINA. CLICK HERE TO GO TO OUR BRONZE BUSHINGS ONLINE CATALOG C86300 CAST MANGANESE BRONZE WITH GRAPHITE OILLES...



Cast Bronze Bushings



C93200 SAE660 TIN BRONZE OIL LESS GRAPHITE PLUGGED, also termed C932, bearing bronze, SAE 660 bushes, SAE 660 bronze bushing, and SAE 660 bearing bronze, is considered this family’s workhorse alloy and is widely used in many sliding bearing applications.

Bearing forms available in standard dimensions.
· Cylindrical bushes
· Flanged bushes
· Sliding plates



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

✔ STANDARD-STOCKED BRONZE BUSHINGS PRODUCT C93200 BRONZE BEARINGS WITH GRAPHITE



Gleitlagerbuchsen

VIIPLUS-The Chines partner of a metal-polymer plain bearing.

The main products is metal-polymer plain bearing. Bearings with Solid Graphite Lubrication.



VIIPLUS Bronze graphite bushing products are manufactured for precise standards for long-term usage and high output.

Made from C95400 aluminum bronze bushing, C86300 manganese bronze alloy bushes, C93200(SAE660) tin bronze flanged bushes.

our products can take your designs to the next level. We can even custom manufacture a bearing for your specific needs.



What is Cast Bronze Bushings C86300 & C95400 material?



Metal base self-lubricating bearing, wear resistance, impact resistance, high load characteristics, is also mainly used in the construction machinery industry, it is no wonder that productivity utilization rate is high. Cast Bronze Bushings is made of Cast Bronze Bushings with Solid Lubricant Inserts, the base metal withstands high load and the graphite provides self-lubrication. This type of oiles bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed.

Solid Bronze Metallic Self-lubricating Bearings Cast Bronze Bearing with Graphite Plugs
Material: TIN BRONZE BUSHING



Bronze Sleeve Bushing Application



The C93200 TIN BRONZE BUSHING product is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engines, etc. This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water, or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines, and injection molding machines...



Gleitlagerbuchsen



Our Bronze Bushings Structure Characteristics



C86300 Manganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminum, Al

5.0-7.50

Manganese, Mn

2.5-5.0





C86200 Manganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminum, Al

3.0-4.90

Manganese, Mn

2.5-5.0





VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has a pretty good anti-erosion ability in air, freshwater and seawater. The surface is regularly and finely machined with sockets in which a particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, the steam engine, etc.

Solid Lubricant Casting TIN Bronze Bearings Bushings.



China Bronze Sliding Bearing Technologies



with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available

CHARACTERISTICS Solid lubricating bearings

1. May work without any oil for a long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can be used in a wide range of temperature from -40℃-+300℃

Your recognized global partner for sliding bearing applications.

CUSTOMER TIN BRONZE BUSHINGS SIZE
START YOUR PROJECTWITH AN APPLICATION ENGINEER



This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
