Homogeneous Bronze Bushing With Perforated Flange

Place of Origin	gleitlagerbuchsen china
Brand Name	REPLACEMENT PLAIN BEARINGS
Certification	DIN 1494 / ISO 3547
Model Number	Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Minimum Order Quantity	MATE-TO-ORDER CUSTOM BUSHINGS
Price	Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details	EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time	3 - 15 BUSINESS DAYS
Payment Terms	T/T
Supply Ability	bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Product Details

Bushing Однородная бронза	Материал: Однородная бронза (Cu 91,3%, Sn 8,5%, P 0,2%)	Feature	High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance	High Load Capacity And Long Life	Type	Sleeve,Flange,Thrust Washer
Bushings Thinkness	Bushing Max. Thickness Of 2.5mm.	Self-lubricating Bushings	Bronze Bushing 60-65-60mm, Perforated
Application	Agricultural Machinery, Brakes And Certain Construction Machinery.	Bushing Size	Special Dimensions And Imperial Sizes Are Available On Request
Model Number	E90F E92F E90 E92 BUSHINGS	Logo	Customized Logo
Get A Better Quote	Tiffany@viiplus.com	Get A Better Quote	Tiffany@viiplus.com
Get A Better Quote	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
High Light	Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing	Gleitalger	A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light	Perforated Flange Bronze Bushing , Homogeneous Bronze Bushing , Perforated Flange Bronze Gleitlager

Leave a Message

Product Description

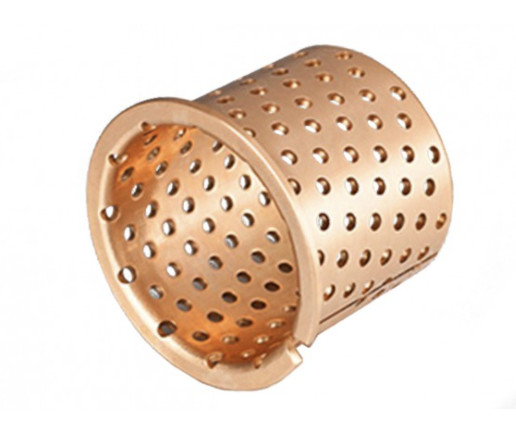

Homogeneous Bronze Bushing With Perforated Flange

BRONZE SLEEVES WITH PERFORATED FLANGE
ORDER ORDER ORDER A QUESTION
Technical characteristics
Material: Homogeneous Bronze (Cu 91,3%, Sn 8,5%, P 0,2%)
Yield strength: (Rp0.2) Ca 300 N/mm2
Tensile strength: (Rm) Ca 450 N/mm2
Hardness: Ca 125-150 HB
Friction: 0.08-0.25 µ
Maximum speed: 2.5 m/s
Temperature range: -100 / +200 °C

Load Rate
Ca: 280 N/mm2 0 m/s
80 - 120 N/mm2 0.01 m/s
30 - 40 N/mm2 2,0 m/s

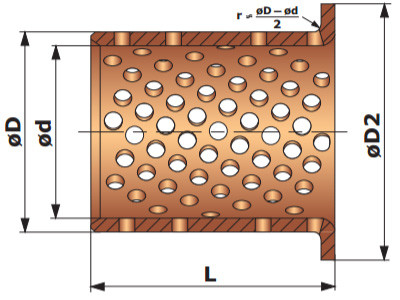

Homogeneous Bronze Bushing With Perforated Flange Size

Homogeneous Bronze Bushing With Perforated Flange SIZE

d — внутренний диаметр	D — внешний диаметр	D2 — внешний габаритный диамети	L — длина втулки
20	23	30	16
20	23	30	20
25	28	35	12,5
25	28	35	16
25	28	35	25
30	34	45	20
30	34	45	30
35	39	50	20
35	39	50	35
40	44	55	25
40	44	55	40
45	50	60	30
45	50	60	40
45	50	60	45
50	55	65	30
50	55	65	50
55	60	70	30
55	60	70	50
60	65	75	25
60	65	75	35
60	65	75	50
60	65	75	60
65	70	80	40
65	70	80	60
65	70	85	40
70	75	85	35
70	75	85	70
75	80	90	40
75	80	90	70
80	85	95	40
80	85	95	80
90	95	110	50
90	95	110	90
100	105	120	50
100	105	120	90
110	115	130	50
110	115	130	90
120	125	145	50
120	125	145	90
130	135	155	60
130	135	155	90
140	145	165	60
140	145	165	90
150	155	180	60
150	155	180	90
160	165	190	60
160	165	190	90
170	175	200	60
170	175	200	90
180	185	215	60
180	185	215	90
190	195	225	60
190	195	225	90
200	205	235	60
200	205	235	90
220	225	245	90
230	235	265	90

CuSn8P (DIN 17662)

DIN 1494 / ISO 3547

Bornze Gleitlager CuSn8 Chemical Composition

Part No	Material	Cu	Sn	P	Pb	Zn
E92 & E92F	CuSn8	91.3%	8.5%	0.2%	/	/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

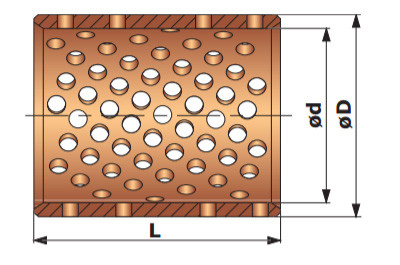

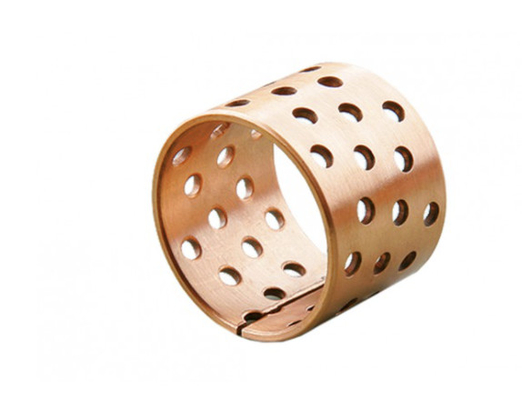

FB090 bronze bushing with holes

Product description:
FB090 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation, and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyors, elevators, winding machines, leveling machines and another medium load, low-speed occasions.

Sliding Bearing China | High Quality, Factory Price‎

MATERIALS

Support materialCuSn8P (DIN 17662)
alternative CuSn6P available

Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial

CuSn8P (DIN 17662)
DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing oilite bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.

Technical Details

Specific load capacity static< 120 [N/mm2]
Specific load capacity dynamic< 40 [N/mm2]
Sliding speed≤ 2.5 [m/s]
Friction value0.05 [µ] to 0.12 [µ] depending on lubrication
Temperature strain- 40 [°C] to + 250 [°C]
Max. PV-value2.8 [N/mm² x m/s]
The percentage of contact area on the ID is > 75%
