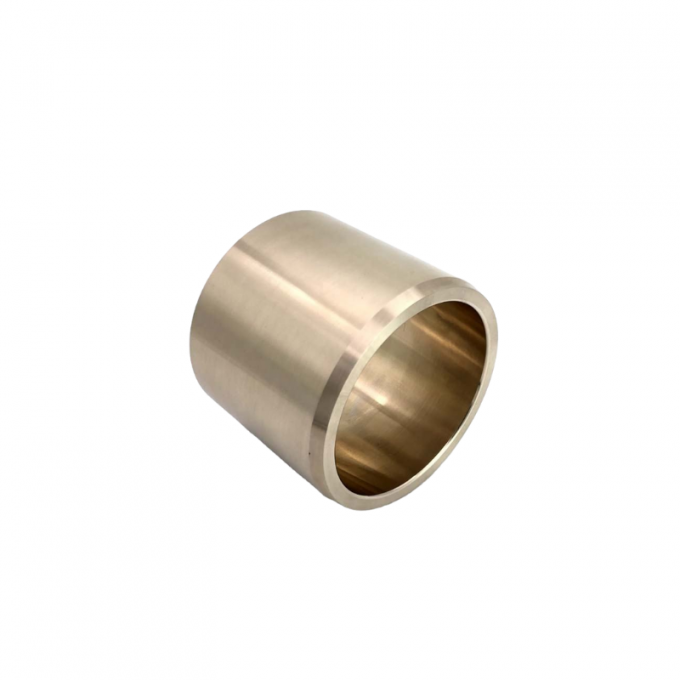

Oil Free Bushings Copper Alloy Thrust Type MPKZ30-20

Oil Free Bushings Copper Alloy Thrust Type MPKZ30-20

Brand Name: REPLACEMENT PLAIN BEARINGS
Model Number: JFB SL2 Graphite Plugged Flanged Bronze Bushing
MOQ: MATE-TO-ORDER CUSTOM BUSHINGS
Price: Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: STANDARD TOLERANCE BUSHINGS
Detail Information
Place of Origin:
Bushing Manufacturer
Certification:
ISO9001:2008 CuSn8, CuSn6.5, Brass
Material:
Bronze
Model Number:
Copper Alloy Thrust Type
Feature:
Oil Free Bushings
Lubrication:
Oil Or Grease
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Self-Lubricating Sintered Bronze Bushing
Bushing Material:
Graphite Impregnated Brass
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Application:
Industrial
Corrosion Resistance:
Excellent
Friction Coefficient:
Low
Load Capacity:
High
Product Name:
Bronze Sleeve Bushings
Shape:
Cylindrical
Packaging Details:
Export Cartons,Customizable,Wooden Cases
Supply Ability:
STANDARD TOLERANCE BUSHINGS
Highlight:

Copper Alloy Oil Free Bushings

,

Thrust Type Oil Free Bushings

,

Oil Free Bushings MPKZ30-20

Product Description

Oil-Free Bushings - Copper Alloy Thrust Type (MPKZ30-20) and Related Products



Oil-Free Bushings made from Copper Alloy and featuring a Thrust Type design, such as the MPKZ30-20 model, are precision-engineered components that provide exceptional wear resistance and self-lubricating properties. The use of copper alloy as the primary material ensures durability and high mechanical strength, making these bushings suitable for high-load and high-friction applications.

The thrust type design of these bushings allows them to effectively handle thrust loads, making them ideal for use in rotating or reciprocating motion applications. The self-lubricating nature of the material eliminates the need for regular lubrication, reducing maintenance requirements and operational costs.

The MPKZ30-20 model, specifically, is tailored to meet the demands of specific industrial applications. Its dimensions and tolerances are carefully controlled to ensure a perfect fit and optimal performance. Wh used in machinery, pumps, motors, or other industrial equipment, these bushings provide a smooth and efficient operating surface that helps reduce friction and wear.

Overall, Oil-Free Bushings made from Copper Alloy with a Thrust Type design, like the MPKZ30-20 model, are a cost-effective and long-lasting solution for industrial applications that require oil-free, self-lubricating components.



MPKZ30-20 Bushings



Material: High Tensile Brass Alloy with Embedded Solid Lubricant.
Features: Self-lubricating for long-term wear resistance.
MPSZ 10-12 and MPKZ 10-12 Bushings



Material: Graphite Impregnated Brass.
Specifications:
Maximum Allowable PV Value Range: 1.1 to 2.0 N/mm²•m/s.
Maximum Allowable PV Value: 1.65 N/mm²•m/s.
Maximum Allowable Load: 29 N/mm².
Maximum Allowable Velocity: 0.5 m/s.
Mounting Hole Fits: H7.
Operating Temperature Range: -40 to 150℃.
Copper Alloy Straight Column Bushing



Material: Bronze with Graphite.
Use: Guide bush with a collar for centering between plates; self-lubricating to reduce maintenance.
Bronze Sleeve Bushing with Flange



Type: Graphite Plugged Flanged Bronze Bushing.
Purpose: Provides self-lubrication in mechanical systems, minimizing the need for external lubricants.
These bushings are designed for various industrial applications where durability and low maintenance are key. The integration of solid lubricants like graphite in the brass or bronze alloy ensures smooth operation and longevity.

Oil Free Bushings Copper Alloy Thrust Type MPKZ30-20





Specifications



Part Number - L
MPGZ10
MPSZ12
MPKZ16
-
-
-
15
15
20
Part Number L Dr6 H t Housing Dia. (Recommended Dimension)
Type dE7 Reference Dimension Tolerance (H7)
MPGZ
(Standard)
6 +0.032
+0.020
10 12                     12 +0.034
+0.023
22 3 12 + 0.018
0
8 +0.040
+0.025
10 12   15                 14 25 14
10 10 12   15 20               16 16
12 +0.050
+0.032
10 12   15 20 25             18 30 18
13   12   15 20 25             19 +0.041
+0.028
19 + 0.021
0
15   12   15 20 25             21 35 21
16   12   15 20 25 30           22 22
18     14   20 25 30 35         24 40 24
20 +0.061
+0.040
    14   20 25 30 35 40       28 45 5 28
25     14   20 25 30 35 40       33 +0.050
+0.034
50 33 + 0.025
0
30         20 25 30 35 40       38 55 38
35 +0.075
+0.050
        20 25 30 35 40       44 65 44
40           25 30 35 40 45 50   50 70 7 50
50             30 35 40 45 50 60 62 +0.060
+0.041
90 8 62 + 0.030
0
Part Number L Dm6 MPSZ MPKZ Housing Dia.
(Recommended Dimension)
H Mounting Hole t H Mounting Hole Accessories:
Hex Socket Low Head Cap Screw
t
Type dF7 P.C.D d1 d2 h Flat-head
Countersunk Screw
P.C.D d1 d2 h Reference Dimension Tolerance (H7)
MPSZ
(Flat-head Countersunk Screw Hole)
MPKZ
(Low Head Screw Hole)
6 +0.022
+0.010
10 12               10 +0.015
+0.006
25 15 8.5 3.5 2.5 M3 3 25 17 6 3.5 2.2 M3-10x2 pcs. 4 10 + 0.015
0
8 +0.028
+0.013
  12 15             12 +0.018
+0.007
28 18 27 19 12 + 0.018
0
10   12 15 20           14 30 20 29 21 14
12 +0.034
+0.016
  12 15 20           18 40 28 36 26 7.5 4.5 3 M4-12x2 pcs. 5 18
15   12 15 20           21 +0.021
+0.008
50 35 39 29 M4-12x4 pcs. 21 + 0.021
0
16   12 15 20 25 30       22 40 30 22
18       20 25 30       24 42 32 24
20 +0.041
+0.020
      20 25 30 35 40   28 13 6 3.5 M5 5 49 38 9 5.5 3.7 M5-16x4 pcs. 6 28
25       20 25 30 35 40   33 +0.025
+0.009
55 40 54 43 33 + 0.025
0
30       20 25 30 35 40   38 60 45 63 50 11 6.6 4.2 M6-20x4 pcs. 8 38
35 +0.050
+0.025
      20 25 30 35 40   44 70 52 69 56 44
40         25 30 35 40 45 50 80 60 16 7 4.5 M6 7 82 66 14 9 5.2 M8-25x4 pcs. 10 50
50           30 35 40 45 62 +0.030
+0.011
100 75 8 94 78 62 + 0.030
0



Basic Information



Bushing Material Graphite Impregnated Brass Maximum Allowable PV Value Range(N/mm2•m/s) 1.1 to 2.0 Maximum Allowable PV Value(N/mm2•m/s) 1.65
Maximum Allowable Load(N/mm2) 29 Maximum Allowable Velocity(m/s) 0.5 Mounting Hole Fits H7
Operating Temperature Range(℃) -40::150


Артикул: MPGZ6-10 MPGZ6-12 MPGZ8-10 MPGZ8-12 MPGZ8-15 MPGZ10-10 MPGZ10-12 MPGZ10-15 MPGZ10-20 MPGZ12-10 MPGZ12-12 MPGZ12-15 MPGZ12-20 MPGZ12-25 MPGZ13-12 MPGZ13-15 MPGZ13-20 MPGZ13-25 MPGZ15-12 MPGZ15-15 MPGZ15-20 MPGZ15-25 MPGZ16-12 MPGZ16-15 MPGZ16-20 MPGZ16-25 MPGZ16-30 MPGZ18-14 MPGZ18-20 MPGZ18-25 MPGZ18-30 MPGZ18-35 MPGZ20-14 MPGZ20-20 MPGZ20-25 MPGZ20-30 MPGZ20-35 MPGZ20-40 MPGZ25-14 MPGZ25-20 MPGZ25-25 MPGZ25-30 MPGZ25-35 MPGZ25-40 MPGZ30-20 MPGZ30-25 MPGZ30-30 MPGZ30-35 MPGZ30-40 MPGZ35-20 MPGZ35-25 MPGZ35-30 MPGZ35-35 MPGZ35-40 MPGZ40-25 MPGZ40-30 MPGZ40-35 MPGZ40-40 MPGZ40-45 MPGZ40-50 MPGZ50-30 MPGZ50-35 MPGZ50-40 MPGZ50-45 MPGZ50-50 MPGZ50-60 MPKZ6-10 MPKZ6-12 MPKZ8-12 MPKZ8-15 MPKZ10-12 MPKZ10-15 MPKZ10-20 MPKZ12-12 MPKZ12-15 MPKZ12-20 MPKZ15-12 MPKZ15-15 MPKZ15-20 MPKZ16-12 MPKZ16-15 MPKZ16-20 MPKZ16-25 MPKZ16-30 MPKZ18-20 MPKZ18-25 MPKZ18-30 MPKZ20-20 MPKZ20-25 MPKZ20-30 MPKZ20-35 MPKZ20-40 MPKZ25-20 MPKZ25-25 MPKZ25-30 MPKZ25-35 MPKZ25-40 MPKZ30-20 MPKZ30-25 MPKZ30-30 MPKZ30-35 MPKZ30-40 MPKZ35-20 MPKZ35-25 MPKZ35-30 MPKZ35-35 MPKZ35-40 MPKZ40-25 MPKZ40-30 MPKZ40-35 MPKZ40-40 MPKZ40-45 MPKZ50-30 MPKZ50-35 MPKZ50-40 MPKZ50-45 MPSZ6-10 MPSZ6-12 MPSZ8-12 MPSZ8-15 MPSZ10-12 MPSZ10-15 MPSZ10-20 MPSZ12-12 MPSZ12-15 MPSZ12-20 MPSZ15-12 MPSZ15-15 MPSZ15-20 MPSZ16-12 MPSZ16-15 MPSZ16-20 MPSZ16-25 MPSZ16-30 MPSZ18-20 MPSZ18-25 MPSZ18-30 MPSZ20-20 MPSZ20-25 MPSZ20-30 MPSZ20-35 MPSZ20-40 MPSZ25-20 MPSZ25-25 MPSZ25-30 MPSZ25-35 MPSZ25-40 MPSZ30-20 MPSZ30-25 MPSZ30-30 MPSZ30-35 MPSZ30-40 MPSZ35-20 MPSZ35-25 MPSZ35-30 MPSZ35-35 MPSZ35-40 MPSZ40-25 MPSZ40-30 MPSZ40-35 MPSZ40-40 MPSZ40-45 MPSZ50-30 MPSZ50-35 MPSZ50-40 MPSZ50-45



oilless bush catalogue pdf



MATERIAL: Bronze Graphite



  Bronze material

CuZn25Al6Fe3Mn3

+SL2

CuSn5Pb5Zn5

+SL2

CuAl10Fe5Ni5

+SL2

CuSn12

+SL2

Cu% Rest 85 80 88
Sn% -- 5 -- 12
Pb% -- 5 -- --
Zn% 25 5 -- --
Al% 6 -- 10 --
Ni% -- -- 5 --
Fe% 3 -- 5 --
Mn% 3 -- -- --
Density 8.2 g/cm3 8.8 g/cm3 8.5 g/cm3 8.8 g/cm3
Hardness >HB210 >HB70 >HB150 >HB80
Max. Load Pressure 100 N/mm2 40 N/mm2 50 N/mm2 45 N/mm2
Max. Linear Speed 0.5 m/s(dry) 0.4 m/s(dry) 0.25 m/s(dry) 0.5 m/s(dry)
Max. PV 1.65 N/mm2 * m/s 1.00 N/mm2 * m/s 1.25 N/mm2 * m/s 1.20 N/mm2 * m/s
Tensile Strength >750 N/mm2 >200 N/mm2 >500 N/mm2 >360 N/mm2
Elongation >12 % >15 % >10 % >8 %
  Temperature Limit -40 ~ +300 oC -40 ~ +250 oC -40 ~ +400 oC -40 ~ +300 oC

Products Standard: ISO 4379 (replaces DIN 1850)

Solid Lubricants


Code Material Features Application
SL2 Graphite composite

Low friction
Chemical resistant
Low cost
Temperature limit 400oC

Widely used for machinery
SL4 +MoS2 composite

Water contacting lubricating
Longer life
Temperature limit 300oC
