Straight MDZB Oil Free Bushings Multi Layer Tin Plating

  • Straight MDZB Oil Free Bushings Multi Layer Tin Plating
Place of Origin CHINA
Brand Name viiplus
Certification ISO 9001
Model Number Self-lubricating bearing
Minimum Order Quantity negotiable
Price According to product specifications
Packaging Details Paper packing, or wooden packing
Delivery Time 10-15days
Payment Terms L/C, T/T
Supply Ability production capacity can be supplied in large quantities
Product Details
Features Maintenance Material Steel-backed Metal Layer (Low Carbon Steel: Tin Plating)
Size Metric Size & Customized Size Type Sleeve, Flange, Plate
Benefit High Quality, Factory Price Finishing Tin Plating
Service Customization & OEM Service Sample Available / Free
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

Multilayer Polymer Plain Bearings

,

Multi Layer Oil Free Bushings

,

Tin Plating Oil Free Bushings
Leave a Message
Product Description

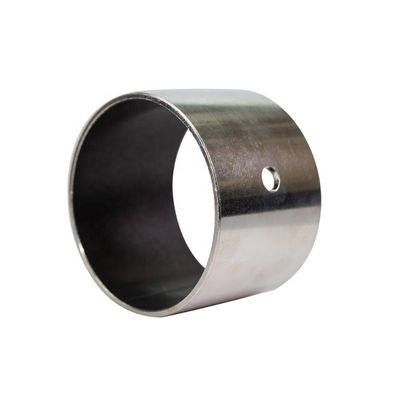

Straight MDZB Oil Free Bushings - Multi - Layer LF

Straight MDZB Oil Free Bushings - Multi-Layer LF bushes,

  • The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer Oil Free Bushings catalogs .

Basic Information

Type Straight Bushing Material Sintered Bronze with PTFE Maximum Allowable PV Value Range(N/mm2•m/s) 2.1～5.0
Maximum Allowable PV Value(N/mm2•m/s) 3.6 Maximum Allowable Load(N/mm2) 49 Maximum Allowable Velocity(m/s) 0.65
Mounting Hole Fits H7

Has a Thin wall and is compact.

・Materials
[ M ] Material: Filler Added PTFE Layer
Sintered Bronze Layer
Steel-backed Metal Layer (Low Carbon Steel: Tin Plating)
Allowable Temperature: -195 ~ 280°C



Plain Sliding Bearings, Self Lubricated Wrapped Bushes ...

Plain Sliding Bearings, Self Lubricated, Pre Lubricated Wrapped Bushes, Wrapped Bush DU 6530 Split Metric Size Bushings, Manufacturer, Supplier,



Part Number Part Number
MDZB6-10 MDZB18-30
MDZB6-12 MDZB20-10
MDZB8-5 MDZB20-12
MDZB8-6 MDZB20-15
MDZB8-8 MDZB20-20
MDZB8-10 MDZB20-25
MDZB8-12 MDZB20-30
MDZB8-15 MDZB22-10
MDZB10-6 MDZB22-12
MDZB10-8 MDZB22-15
MDZB10-10 MDZB22-20
MDZB10-12 MDZB22-25
MDZB10-15 MDZB22-30
MDZB10-20 MDZB25-10
MDZB12-6 MDZB25-12
MDZB12-8 MDZB25-15
MDZB12-10 MDZB25-20
MDZB12-12 MDZB25-25
MDZB12-15 MDZB25-30
MDZB12-20 MDZB25-35
MDZB13-8 MDZB30-12
MDZB13-10 MDZB30-15
MDZB13-12 MDZB30-20
MDZB13-15 MDZB30-25
MDZB13-20 MDZB30-30
MDZB15-8 MDZB30-35
MDZB15-10 MDZB30-40
MDZB15-12 MDZB30-50
MDZB15-15 MDZB35-20
MDZB15-20 MDZB35-25
MDZB15-25 MDZB35-30
MDZB16-10 MDZB35-35
MDZB16-12 MDZB35-40
MDZB16-15 MDZB35-50
MDZB16-20 MDZB40-12
MDZB16-25 MDZB40-15
MDZB18-10 MDZB40-20
MDZB18-12 MDZB40-25
MDZB18-15 MDZB40-30
MDZB18-20 MDZB40-35
MDZB18-25 MDZB40-40
  MDZB40-50
  MDZB50-20
  MDZB50-25
  MDZB50-30
  MDZB50-35
  MDZB50-40
  MDZB50-50
  MDZB50-60











Combine the unique versatility of PTFE material with the flexibility of manufacturing. Contact Us Today. Saves You Time & Money In Research, Design & Production Costs. Free Design Assistance. Quality Bushings & Bearings. Custom Self-lubricating Bearing Solutions.



Bushings, or plain bearings, operate with sliding motion between the moving surfaces. Bushings are selected based on the rotating speed and the applied load. Most bushings do not require additional lubrication to operate.





Self-lubricating PTFE bronze composite bushings consist of a PTFE layer sintered on a brown strip. These bushings are corrosion resistant and suitable for high temperature applications that can be made without the use of oil requiring long duty cycles.



This type of self-lubricating bearing is used in the radial or axial direction, especially in the steel and cement industries. Self-lubricating PTFE-bronze composite bushings can be used in panels as bridge supports, since the thick sliding layer on the inner surface can withstand loads of up to 140 N / mm².

SELF-LUBRICATING BRONZE BUSHING PTFE MATERIAL

Sintered Bronze PTFE Composite Material - maintenance-free

Plain & Self-Lubricating Bearings(Bushing Material:Sintered Bronze with PTFE)

Bronze backed with bronze powder PTFE dry bushing materail layer

  • Sliding layer PTFE+ Lead

  • Porous Bronze Sinter

  • Bronze Backing



1. PTFE / Pb 0.01 ~ 0.03mm mixture, provides an excellent initial transfer film, which effectively covers the contact surface of the socket assembly, forming an oxide type solid lubricant film.
2. sintered bronze powder 0.20-0.35mm, provides max. thermal conductivity away from the bushing surface, also serves as a reservoir for the PTFE-lead mixture.
3. Bronze bracket, gives exceptionally high load capacity, excellent heat dissipation. Have very good corrosion resistance.

Bronze+Sintered bronze+PTFE material

  • Metal-Polymer Composite Material
  • Bronze Back + Porous Bronze Sinter + PTFE + Lead



Support meterail bronze tin-plated0.7-2.3mm
Intermediate layer Sintered bronze0.2-0.3mm
Sliding layer PTFE0.01-0.03mm




Bronze Backed PTFE Bushing Technical Date



Resilience 140 N/mm²
Temperature Range -195°C +300°C
Sliding Speed Limit 5 m/s
Friction Coefficient 0.03 - 0.18
Limit Value (Dry) 4.3 N/mm² × m/s
Limit Value (Oil) 50 N/mm² × m/s

Metal-Polymer Bronze Backed PTFE Plain Bearing Du-B Bushing Characteristics



DU-B Composite Plain Bearing Dry type composite plain bearings are mainly used in bearing assemblies where heavy loads have to be carried and where rotational or oscillatory movements are relatively slow.



  • Very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
  • Suitable for lubricated applications
  • Suitable for linear, oscillating and rotating movements
  • Bronze back offers improved corrosion resistance in humid/saline environments

Availability

Self-lubricating Bearing forms available in standard dimensions



  • Cylindrical bushes
  • Flanged bushes
  • Sliding plates
  • Thrust washer



Self-lubricating Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs.



Operating Performance



OPERATING PERFORMANCE
Dry Very Good
Oil lubricated Good
Grease lubricated Fair
Water lubricated Good
Process fluid lubricated Fair



Plain Bearing Properties



GENERAL   Unit Value
Maximum load, p Static N/mm2 140
Dynamic N/mm2 140
Operating temperature Min °C -200
Max °C 280
Coefficient of linear thermal expansion Parallel to the surface 10-6/K 18
Normal to the surface
  10-6/K 36



DRY
Maximum sliding speed, U m/s 2.5
Maximum pU factor N/mm2 x m/s 1.8
Coefficient of friction   0.02 - 0.25 *



OIL LUBRICATED
Maximum sliding speed, U m/s 5
Maximum pU factor N/mm2 x m/s 5
Coefficient of friction   0.02 - 0.12



RECOMMENDATIONS
Shaft surface roughness, Ra Dry µm 0.3 - 0.5
Lubricated µm ≤ 0.05 - 0.4 *
Shaft surface hardness Unhardened acceptable, improved bearing life > 200 HB



* Depending on operating conditions



Application areas



This type of bearing is used radially or axially, particularly in the steel and cement industries.



Industrial: aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines - metal, plastic and rubber; office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic equipment cylinders, pumps and motors, railways and tramways, textile machines, valves, etc.


Other: marine and offshore equipment, other applications in water or in outdoor environments



Bronze Backed PTFE Bushing Typical Applications



It can meet the demanding criteria of long life and trouble-free performance with or without lubricant, especially for high chemical resistance requirements.

The Bronze Backed PTFE bushing is widely used in steel metallurgy in applications such as roller groove bushings of later casting machines, concrete injection pumps and screw conveyors for concrete. They can also be made of steel housings or be transformed into flanged bushings that can move in both radial and axial directions.

The Bronze Backed PTFE bushing is particularly suitable for high temperature environments where no oil is efficient and the machine must operate under consecutive long term conditions.

Bronze Backed, Bronze With PTFE Material - Metric

Straight Bushings, Flanged Bushings, Washers and Strip - Metric
